◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#20966) — 11 parça

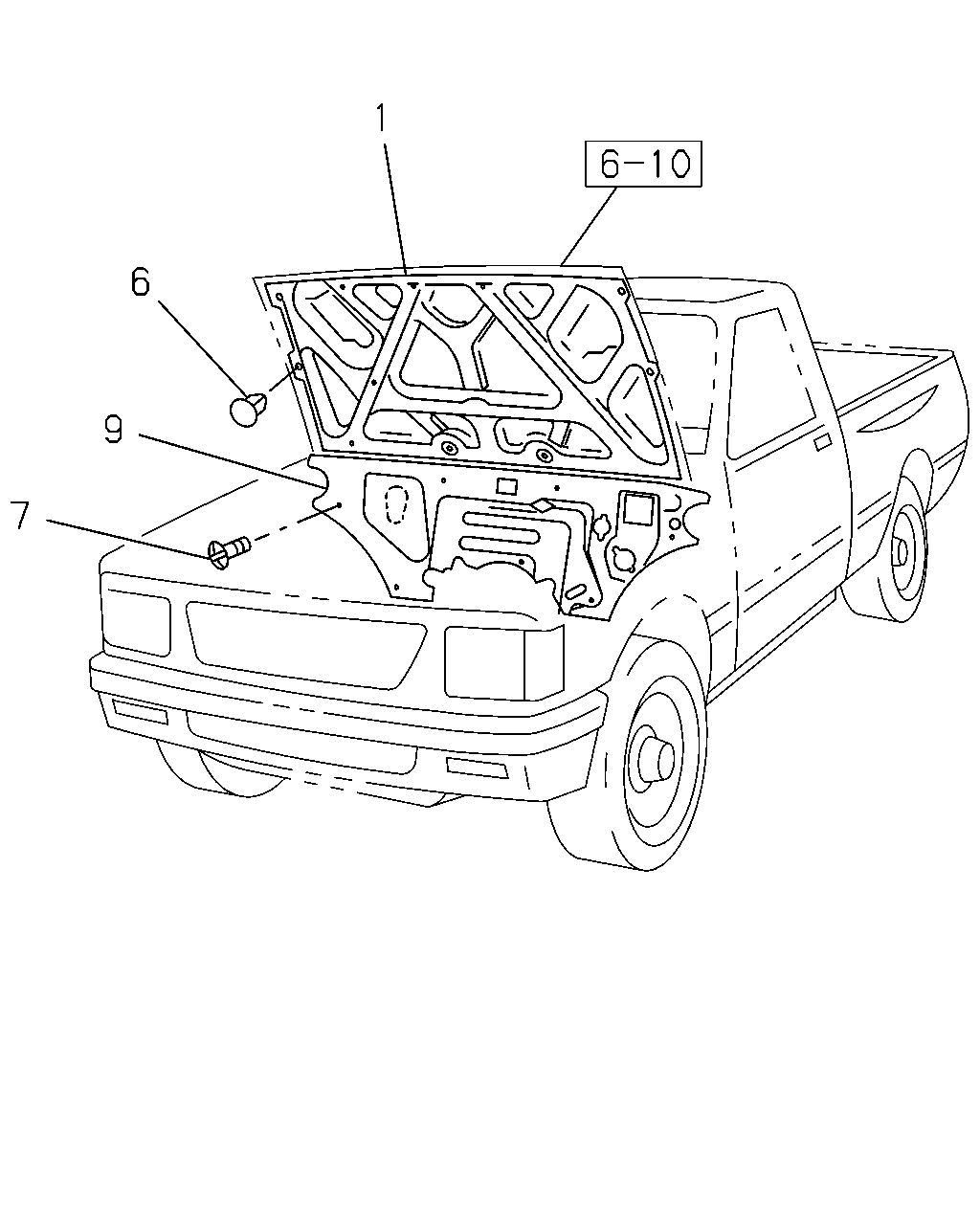

çizim 12059
1 6 9 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.021 INSULATION; ENG HOOD
CHARGE AIR COOLER<6PL> 		8-97289-075-1 01 1 0108- ● ● ● ●
1 08.021 INSULATION; ENG HOOD
EXC. CHARGE AIR COOLER<6PL> 		8-97213-768-0 01 1 0108- ● ● ● ●
1 08.021 INSULATION; ENG HOOD 8-97213-768-0 01 1 0108- ●
6 08.021 CLIP; ENG HOOD INSULATION
CHARGE AIR COOLER<6PL> ID=6.2 L=11.4 		8-97808-623-0 12 1 0108- ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
EXC. CHARGE AIR COOLER<6PL> ID=6.2 L=11.4 		8-97808-623-0 13 1 0108- ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 13 1 0108- ●
7 08.021 CLIP; INSULATION
16.550 H=10.5 		8-94441-810-0 06 1 0108- ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
KD PREPARATORY PACK<6HF> 		8-97147-024-3 01 1 0108-0211 ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
KD PREPARATORY PACK<6HF> 		8-97361-157-0 01 1 0212- ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
EXC. KD PREPARATORY PACK<6HF> 		8-97311-547-0 01 1 0108-0211 ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
EXC. KD PREPARATORY PACK<6HF> 		8-97361-158-0 01 1 0212- ● ● ● ● ●
