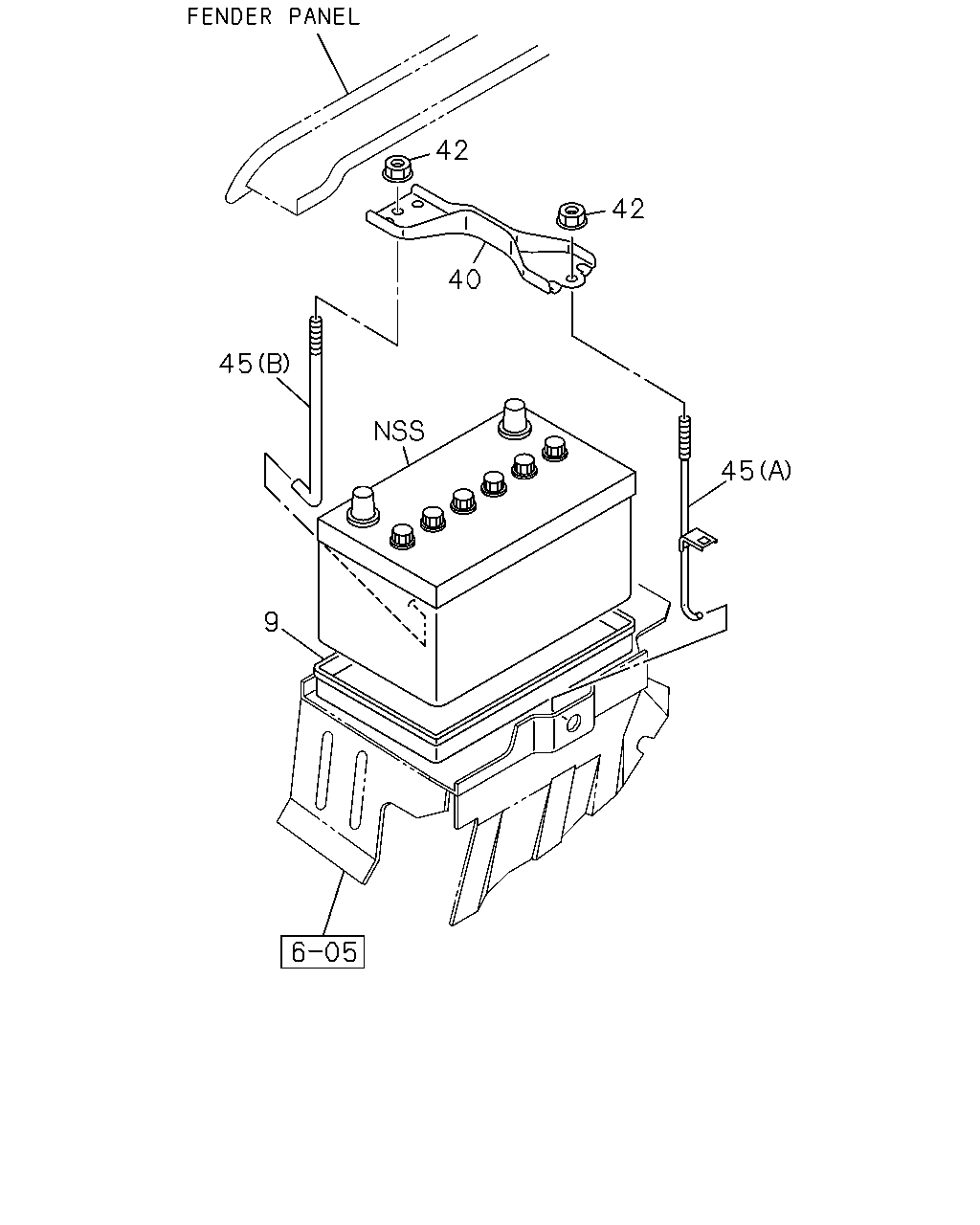

5-20 — BATTERY CARRIER (#20964) — 9 parça

42 42 40 45 45 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	02.333 SEAT; BATTERY 4JG2 ENG(RJC)	8-94405-030-1	01	1	0108-	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 95D31L DRY(8BL)	8-94405-030-1	01	1	0108-	●	●		●	●
40	02.335 CLAMP; BATTERY	8-97125-377-0	01	1	0108-	●	●	●	●	●
42	02.334 NUT; CLAMP 07.833 M6 W/DISHED WASHER	8-94170-192-0	02	1	0108-	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE) L=202	8-97039-079-1	01	1	0301-	●	●		●	●
45	02.334 ROD; TENSION,BATTERY (B) L=180	8-94407-451-2	01	1	0108-	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY (A) L=202	8-97039-079-1	01	1	0108-0211	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY (A) L=202	8-97221-728-0	01	1	0212-0212	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 4JG2 ENG(RJC) L=202	8-97221-728-0	01	1	0301-	●	●	●	●	●
