3-46 — AIR DRYER (#2096) — 32 parça

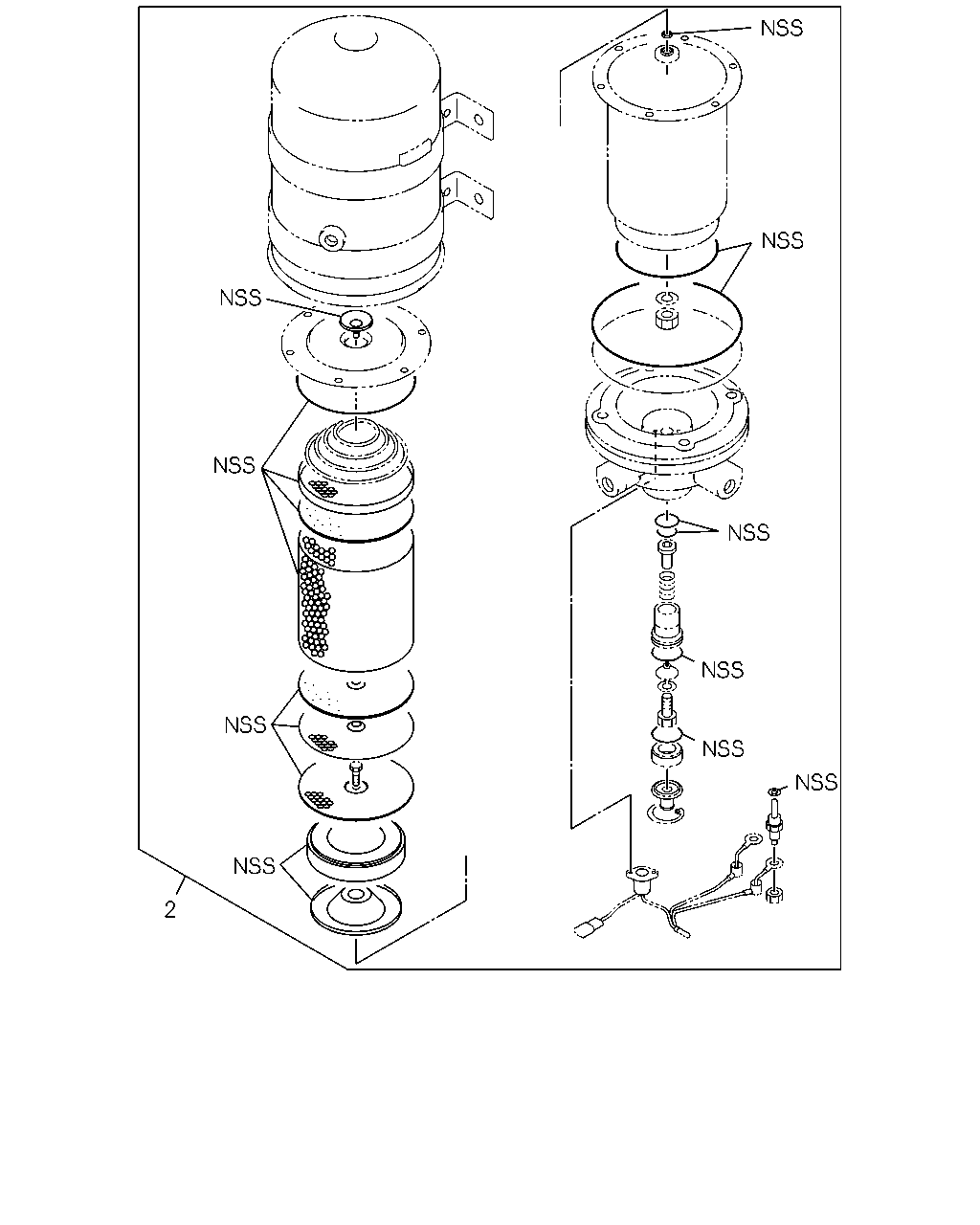

çizim 93706
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-055-1 01 1 9203- ● ●

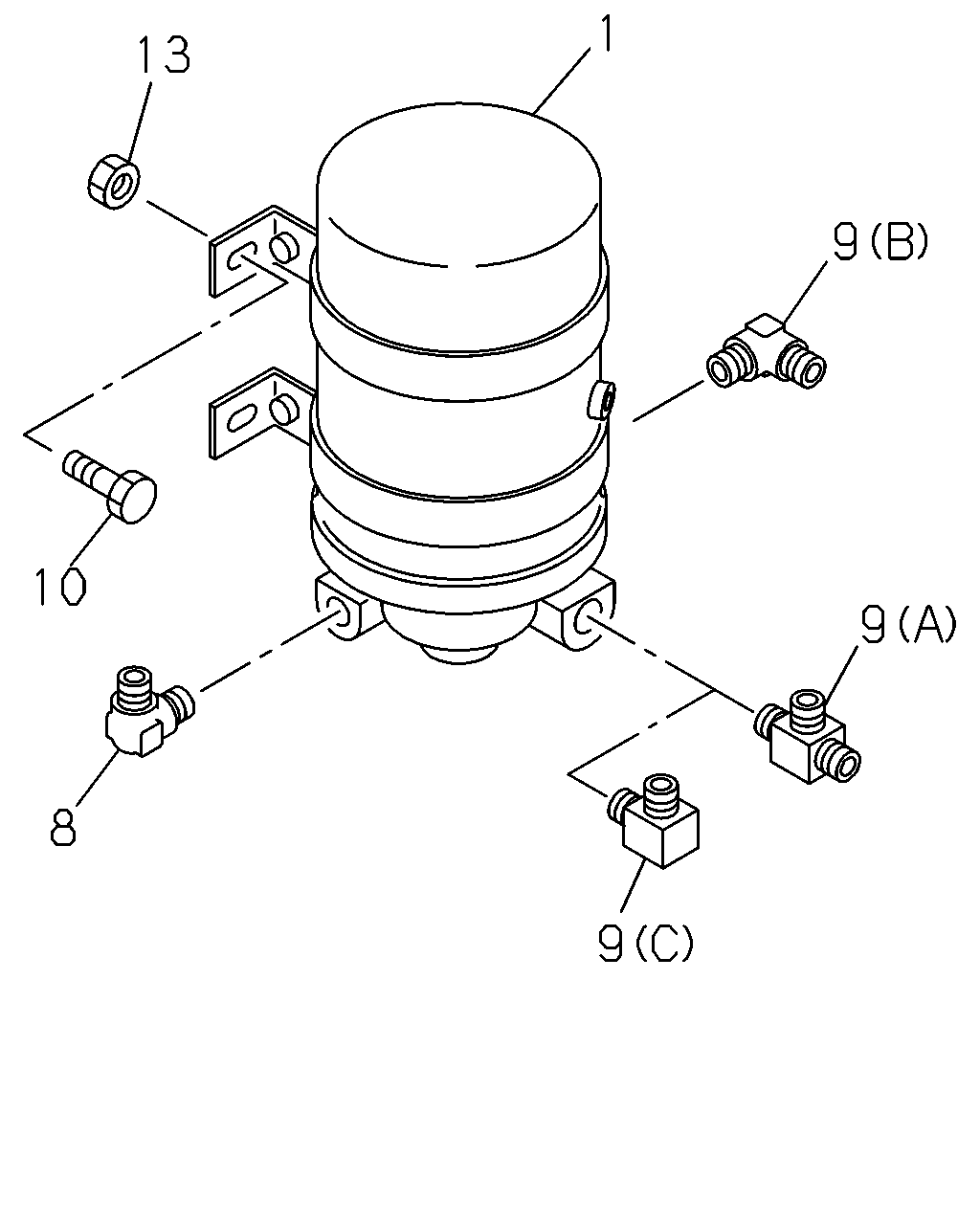

çizim 93794
1 13 9 10 9 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-037-3 01 1 9203- ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-178-1 01 1 9203-9302 ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 9303- ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9203-9210 ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) 		1-09650-036-1 01 1 9211- ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M20 & PT1/2 ELBOW 		1-09650-178-1 01 1 9203-9302 ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 9303- ● ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X25 W/LK&PL WASHER 		0-50141-025-0 04 1 9203-9606 ● ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X20 FLANGE 		0-28681-020-0 04 1 9607- ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 		9-09110-510-0 04 1 9203-9606 ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9607- ● ●

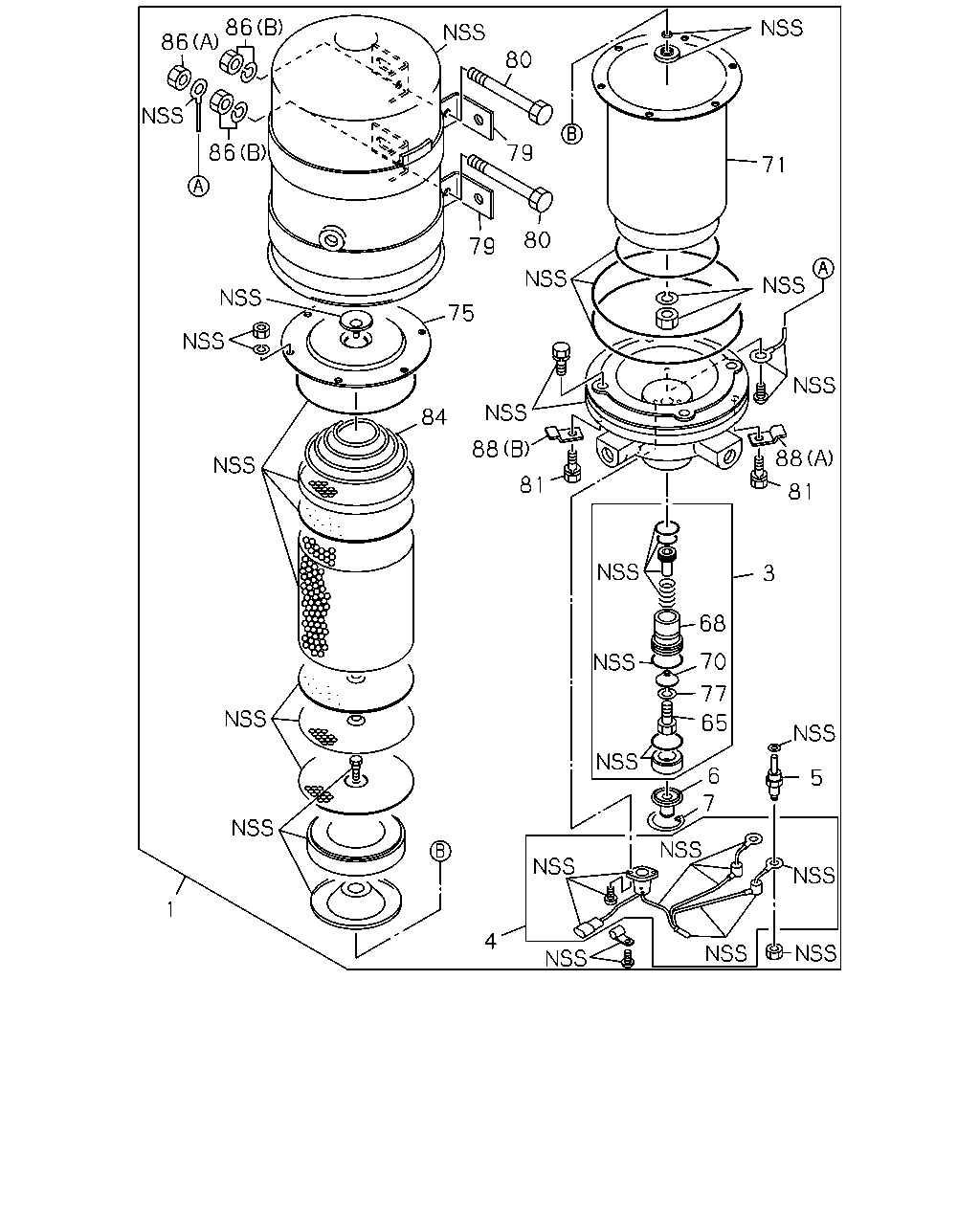

çizim 95414
86 86 80 86 79 71 80 79 75 84 88 88 81 81 3 68 70 77 65 6 7 5 1 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-037-3 01 1 9203- ● ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-057-1 01 1 9203- ● ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-066-0 01 1 9203- ● ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 02 1 9203- ● ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-101-0 01 1 9203- ● ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-154-0 01 1 9203- ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-102-0 01 1 9203- ● ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 9203- ● ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 9203- ● ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 9203- ● ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 9203- ● ●
77 WASHER; LK,VALVE
AIR DRYER<PS7> 		1-48199-103-0 01 1 9203- ● ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 9203- ● ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 9203- ● ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 9203- ● ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 9203- ● ●
86 NUT; BRKT
AIR DRYER<PS7> (A) 		1-48199-194-0 01 1 9203- ● ●
86 NUT; BRKT
AIR DRYER<PS7> (B) 		1-48199-320-0 02 1 9203- ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 9203- ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 9203- ● ●
