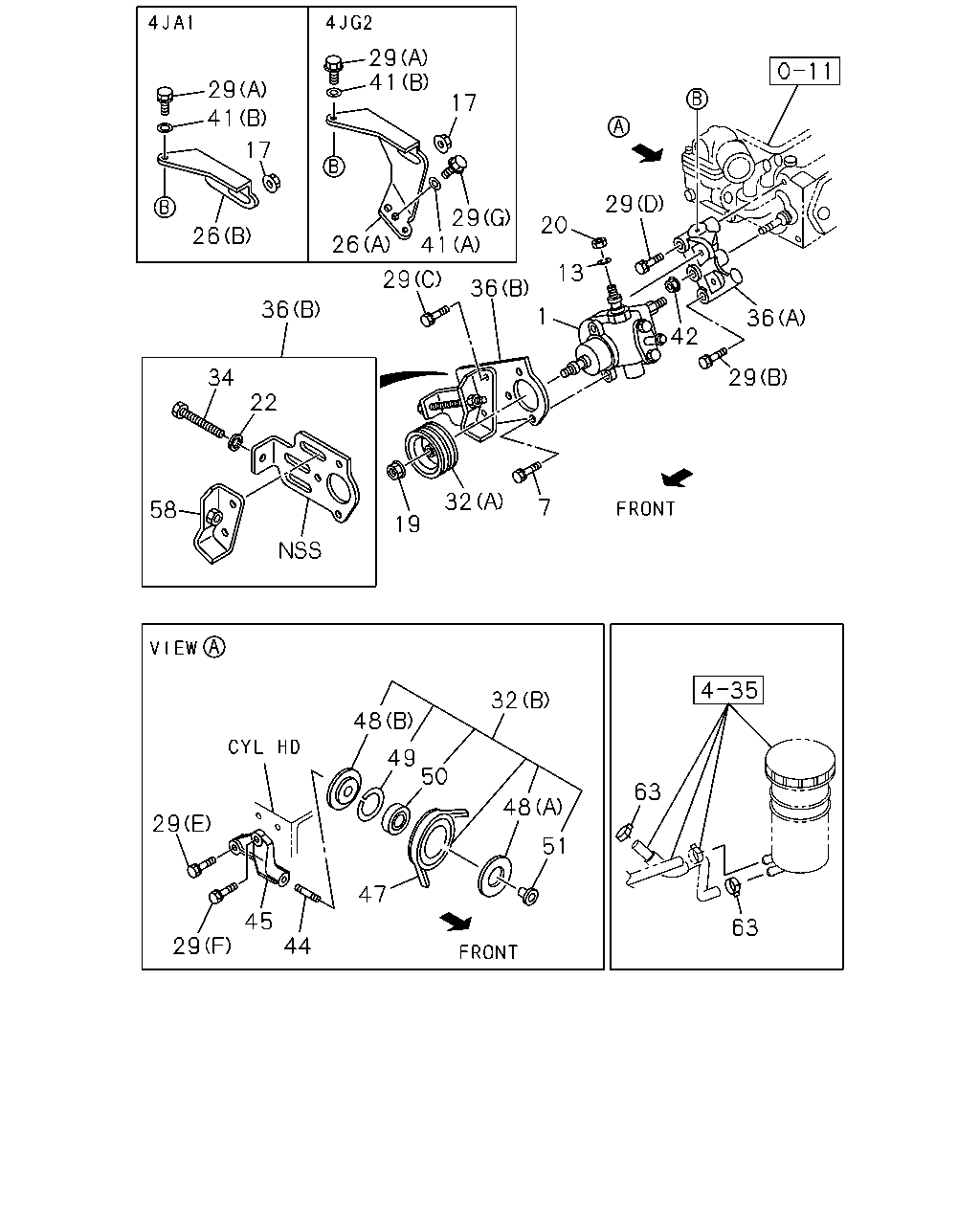

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#20954) — 39 parça

29 41 29 41 17 17 29 29 41 20 26 26 13 29 36 1 36 36 42 29 34 22 32 7 58 19 32 48 49 50 63 48 29 51 47 45 63 29 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97129-593-5	01	1	0108-0206	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97331-940-0	01	1	0207-	●	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S 06.606 M10X20 W/LK WASHER	8-97033-053-1	03	1	0108-	●	●	●	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 04.634 ID=12.2	9-09150-512-0	01	1	0108-	●	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 08.917 M10 FLANGE	0-91150-210-0	01	1	0108-	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 06.606 M12	8-94139-015-0	01	1	0108-	●	●	●	●	●
20	06.673 NUT; HOSE TO PUMP 07.347 M12	9-99111-412-0	01	1	0108-	●	●	●	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 00.002 ID=10.2	9-09150-510-0	01	1	0108-	●	●	●	●	●
26	06.635 BRACKET; P/S PUMP,RR 4JA1 ENG(RLE) (B)	8-97134-259-0	01	1	0108-	●	●		●	●
26	06.635 BRACKET; P/S PUMP,RR 4JG2 ENG(RJC) (A)	8-97134-149-0	01	1	0108-	●	●		●	●
26	06.635 BRACKET; P/S PUMP,RR (A)	8-97134-149-0	01	1	0108-			●
29	09.171 BOLT; BRKT,POWER STRG 03.417 (C) M10X25 FLANGE	0-28081-025-0	02	1	0108-	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	0108-	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 01.252 (B) M8X60 W/LK WASHER	0-50040-860-0	01	1	0108-	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 04.104 (D) M10X60 W/LK WASHER	0-50041-060-0	01	1	0108-	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG HEATER & DEFROSTER(C41) 00.780 (E) M8X30 W/LK WASHER	0-50040-830-0	01	1	0108-	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG HEATER & DEFROSTER(C41) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	0108-	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.415 (G) M8X35 FLANGE	0-28080-835-0	01	1	0108-	●	●		●	●
29	09.171 BOLT; BRKT,POWER STRG 03.415 (G) M8X35 FLANGE	0-28080-835-0	01	1	0108-			●
32	06.665 PULLEY; IDLER,P/S 06.655 (A)	8-97042-266-1	01	1	0108-	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S HEATER & DEFROSTER(C41) (B)	8-97112-740-0	01	1	0108-	●	●	●	●	●
34	09.181 BOLT; ADJ PLATE M10X70	0-20801-070-0	01	1	0108-	●	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP (A)	8-94478-880-1	01	1	0108-	●	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP (B)	8-97066-758-1	01	1	0108-	●	●	●	●	●
41	06.168 WASHER; PL,BRKT 00.029 (B) ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0108-	●	●	●	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC) 00.206 (A) ID=8.4	9-09164-508-0	01	1	0108-	●	●		●	●
41	06.168 WASHER; PL,BRKT 00.206 (A) ID=8.4	9-09164-508-0	01	1	0108-			●
42	06.672 NUT; ADJ PLATE 01.540 M8 FLANGE	0-91150-208-0	01	1	0108-	●	●	●	●	●
44	06.665 STUD; IDLER PULLEY HEATER & DEFROSTER(C41) 03.275 M10X25 L=40	9-04411-025-0	01	1	0108-	●	●	●	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S HEATER & DEFROSTER(C41)	8-94449-652-0	01	1	0108-	●	●	●	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) L=1451 MITSUBOSHI	1-13671-301-0	01	1	0108-	●	●	●	●	●
47	01.066 BELT; P/S PUMP 4JA1 ENG(RLE) HEATER & DEFROSTER(C41) L=1399	5-13671-111-0	01	1	0108-	●	●		●	●
48	06.665 COVER; IDLER HEATER & DEFROSTER(C41) (B)	8-97092-819-0	01	1	0108-	●	●	●	●	●
48	06.665 COVER; IDLER HEATER & DEFROSTER(C41) 09.181 (A)	9-13669-603-0	01	1	0108-	●	●	●	●	●
49	06.665 RING; SNAP,IDLER HEATER & DEFROSTER(C41)	8-94175-036-0	01	1	0108-	●	●	●	●	●
50	06.665 BEARING; IDLER HEATER & DEFROSTER(C41)	8-94251-052-0	01	1	0108-	●	●	●	●	●
51	06.665 NUT; IDLER HEATER & DEFROSTER(C41)	8-97092-813-0	01	1	0108-	●	●	●	●	●
58	06.655 SLIDER; BELT ADJ,P/S OIL PUMP	8-94479-122-0	01	1	0108-	●	●	●	●	●
63	01.762 CLIP; HOSE,P/S 06.672 ID=21	8-94242-034-0	02	1	0108-	●	●	●	●	●
