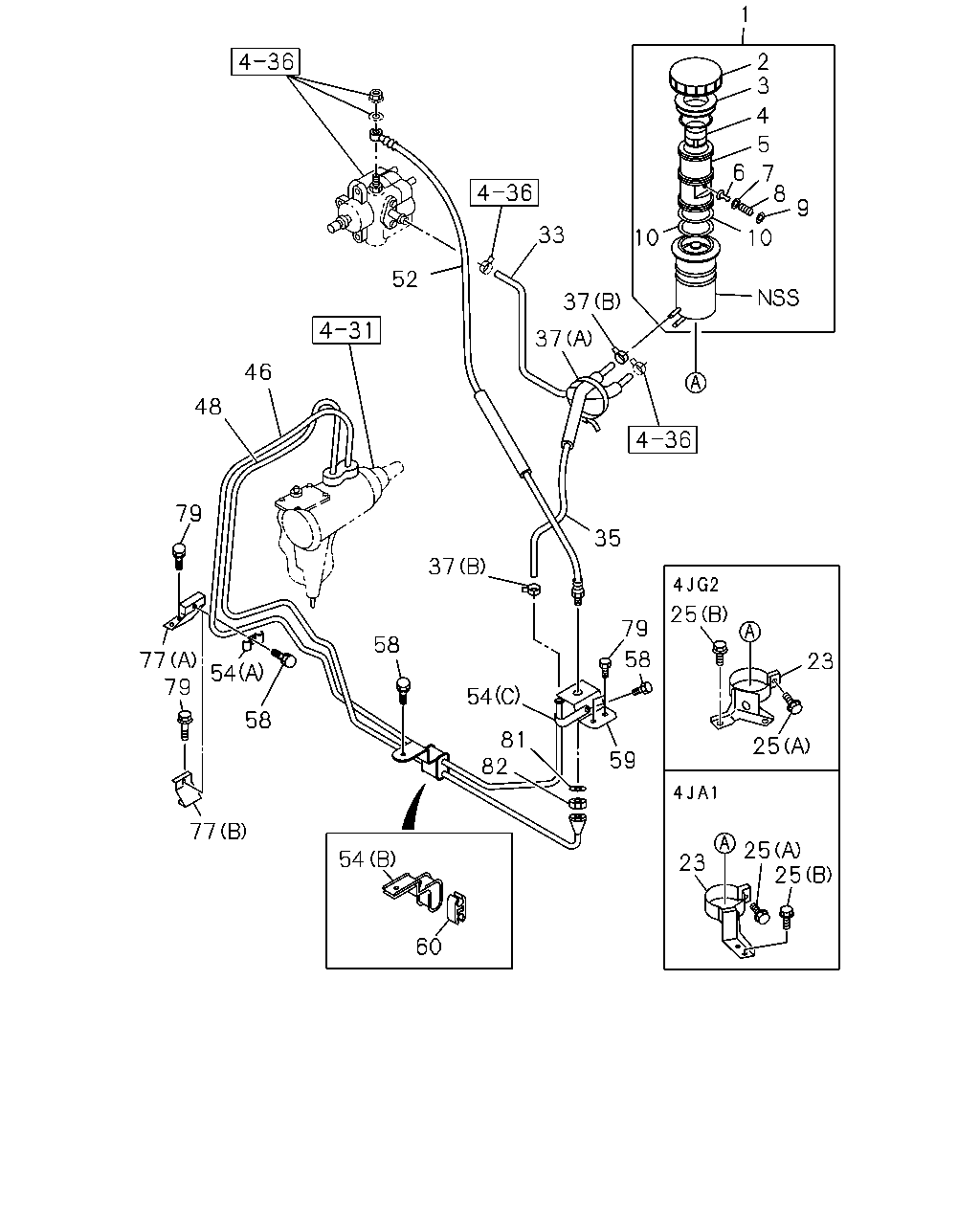

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#20953) — 41 parça

1 2 3 4 5 6 7 8 9 10 33 10 52 37 37 46 48 79 35 37 25 79 58 58 77 79 23 54 54 58 81 82 25 59 77 25 25 54 23 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-94105-282-8	01	1	0108-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	5-21241-001-2	01	1	0108-	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 06.635	8-94246-510-0	01	1	0108-	●	●	●	●	●
4	06.635 FILTER; OIL TANK,P/S	8-94204-441-1	01	1	0108-	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-94405-458-1	01	1	0108-0208	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97351-631-0	01	1	0209-	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S 06.635	5-21219-005-0	01	1	0108-0208	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S 06.635	5-21219-007-0	01	1	0108-0208	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S 06.635	5-09580-088-1	01	1	0108-0208	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S 06.635	5-21219-006-0	01	1	0108-0208	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S 06.635	8-94405-457-0	02	1	0108-	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97049-050-1	01	1	0108-	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JA1 ENG(RLE)	8-97224-312-0	01	1	0108-	●	●		●	●
25	06.635 BOLT; OIL TANK BRKT (A) M6X16 FLANGE	0-28480-616-0	01	1	0108-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	0108-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) 06.670	8-97071-155-3	01	1	0108-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE)	8-97312-923-0	01	1	0108-	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97071-156-3	01	1	0108-	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE)	8-94329-684-4	01	1	0108-	●	●		●	●
37	01.762 CLIP; HOSE,P/S 02.559 (A) L=250	5-09707-030-1	01	1	0108-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=16	8-97173-222-0	02	1	0108-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE)	8-97363-897-1	01	1	0301-	●	●		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97249-313-1	01	1	0108-0212	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97249-313-1	01	1	0301-	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE)	8-97363-894-1	01	1	0301-	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97248-859-0	01	1	0108-0212	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97248-859-0	01	1	0301-	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JG2 ENG(RJC)	8-97147-694-1	01	1	0108-	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE)	8-97313-106-0	01	1	0108-	●	●		●	●
54	06.672 CLIP; OIL PIPE (C) ID=11 H=34 L=27	1-09701-023-0	01	1	0108-	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 04.342 (A)	8-94222-795-1	01	1	0108-	●	●	●	●	●
54	06.672 CLIP; OIL PIPE (B)	8-97026-703-0	01	1	0108-	●	●	●	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0108-	●	●	●	●	●
58	06.672 BOLT; CLIP 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0108-	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE	8-97087-533-1	01	1	0108-	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0108-	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JA1 ENG(RLE) (B)	8-97120-705-0	01	1	0301-	●	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE (A)	8-97120-707-0	01	1	0108-	●	●	●	●	●
79	06.672 BOLT; BRKT 06.635 M6X16 FLANGE	0-28480-616-0	03	1	0108-	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 04.681 M16	9-99111-416-0	01	1	0108-	●	●	●	●	●
