4-33 — STEERING LINKAGE (#20952) — 32 parça

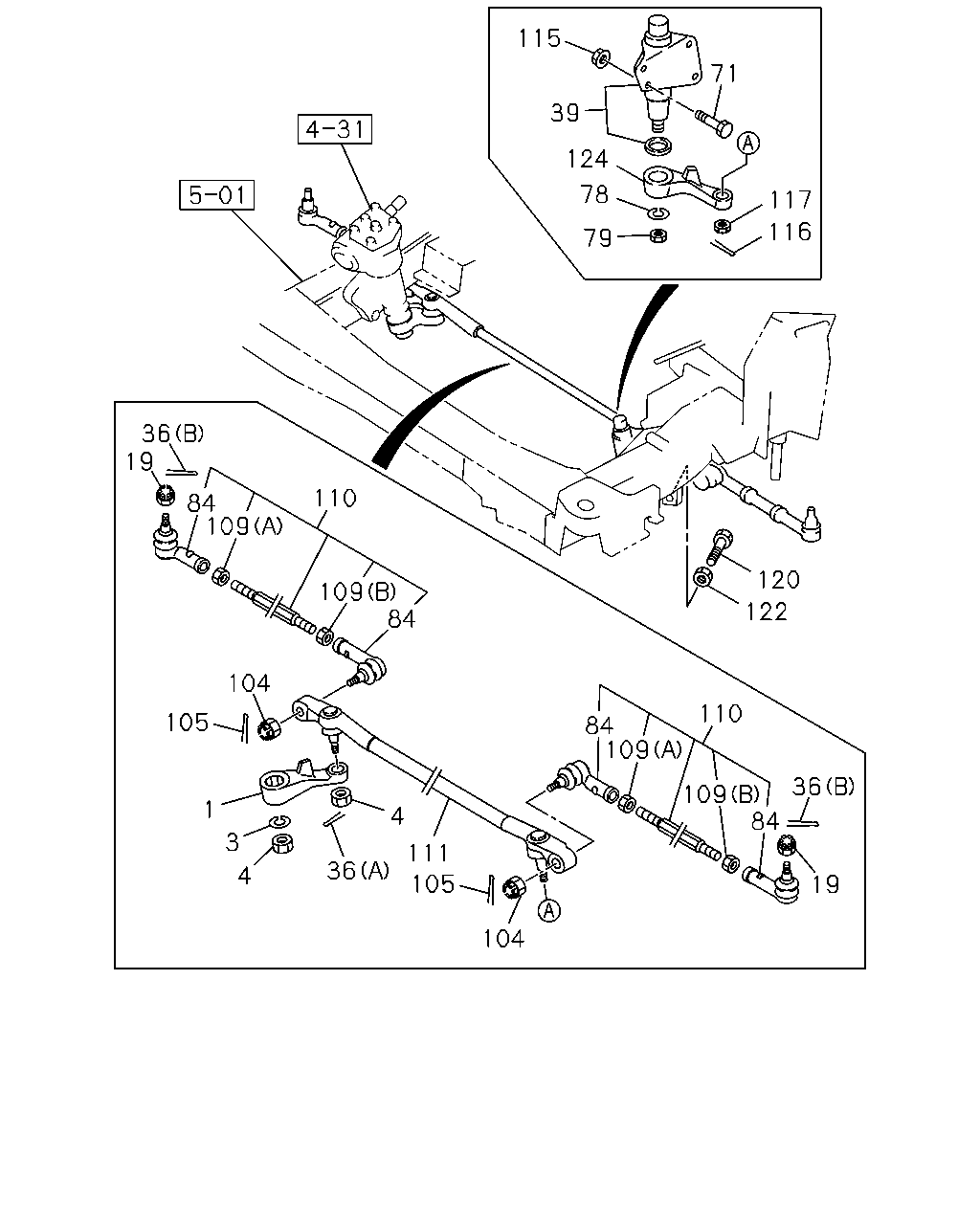

çizim 11706
115 71 39 124 78 117 116 79 36 19 110 84 109 120 109 84 122 104 110 105 84 109 36 109 84 1 4 3 111 36 4 105 19 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.859 ARM; PITMAN,STRG 8-97315-931-0 01 1 0108- ● ●
1 06.859 ARM; PITMAN,STRG 8-97315-932-0 01 1 0108- ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0108- ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
06.865 M14 		8-94465-411-0 01 1 0108- ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
08.915 M22 		9-09111-522-0 01 1 0108- ● ● ● ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 0108- ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
06.865 (A) OD=2.7 L=17 		8-97171-453-0 01 1 0108- ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
06.865 (B) OD=2.8 L=25 		9-08113-025-0 02 1 0108- ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE 8-97039-325-1 01 1 0108- ● ● ● ● ●
71 06.896 BOLT; RELAY LEVER BRKT
06.509 M10X92 FLANGE 		8-94313-798-1 04 1 0108- ● ● ● ● ●
78 06.897 WASHER; LINK,RELAY LEVER
07.247 ID=16.2 		9-09150-816-0 01 1 0108- ● ● ● ● ●
79 06.897 NUT; RELAY LEVER
04.681 M16 		9-99111-516-0 01 1 0108- ● ● ● ● ●
84 06.874 ROD END; TRACK ROD
RH THREAD 		8-97020-953-1 02 1 0108- ● ● ● ● ●
84 06.874 ROD END; TRACK ROD
LH THREAD 		8-97020-954-2 02 1 0108- ● ● ● ● ●
104 06.233 NUT; ROD END
06.865 M14 		8-94465-411-0 02 1 0108- ● ● ● ● ●
105 06.865 PIN; SPLIT,ROD END
OD=2.7 L=17 		8-97171-453-0 02 1 0108- ● ● ● ● ●
109 06.897 NUT; ROD
(A) M14 LH THREAD 		5-09400-010-0 02 1 0108- ● ● ● ● ●
109 06.897 NUT; ROD
06.232 (B) M14 		9-99110-414-0 02 1 0108- ● ● ● ● ●
110 06.870 ROD; TRACK,OUTER
L=306.9 		8-94459-478-2 02 1 0108- ● ●
110 06.870 ROD; TRACK,OUTER
L=262 		8-94459-493-2 02 1 0108- ● ● ●
111 06.870 ROD; TRACK,CENTER 8-94459-474-2 01 1 0108-0203 ● ●
111 06.870 ROD; TRACK,CENTER 8-97316-966-1 01 1 0204- ● ●
111 06.870 ROD; TRACK,CENTER 8-94459-489-2 01 1 0108-0203 ● ● ●
111 06.870 ROD; TRACK,CENTER 8-97316-968-1 01 1 0204- ● ● ●
115 06.896 NUT; RELAY LEVER BRKT
06.509 M10 FLANGE 		8-94313-797-0 04 1 0108- ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
OD=2.7 L=15 		8-97171-452-0 01 1 0108- ● ● ● ● ●
117 06.233 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 0108- ● ● ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
06.861 L=35 		9-09802-280-0 02 1 0108- ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
L=57 		8-94403-347-1 02 1 0108- ● ● ●
122 06.896 NUT; RELAY LEVER STOPPER
06.822 M10 		9-09111-410-0 02 1 0108- ● ● ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-94440-893-3 01 1 0108- ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-94404-000-6 01 1 0108- ● ● ●
