4-31 — STEERING COLUMN AND SHAFT (#20951) — 78 parça

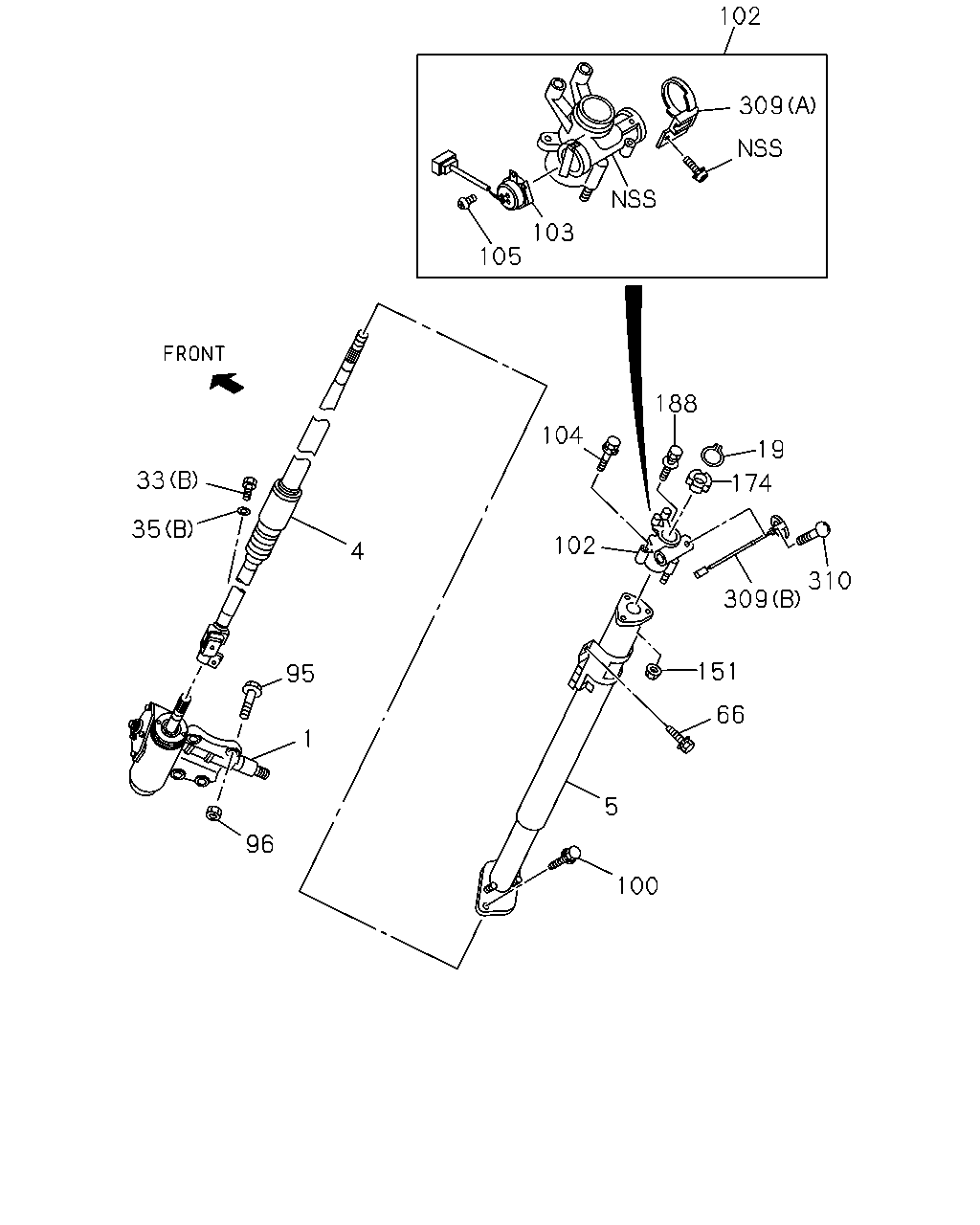

çizim 52873
102 309 103 105 188 104 19 33 174 35 102 4 310 309 151 95 66 1 5 96 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97101-357-6 01 1 0208- ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97101-356-4 01 1 0108-0202 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97101-357-4 01 1 0203-0206 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97332-756-0 01 1 0207-0207 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4JA1 ENG(RLE) 		8-97332-756-2 01 1 0208- ● ● ● ●
4 06.524 SHAFT; STRG
AIR BAG DRIVER(AJ3) TILT STEERING<N33> 		8-97289-286-0 01 1 0108-0210 ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97289-286-0 01 1 0211- ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3) 		8-97207-517-0 01 1 0108-0210 ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97207-518-0 01 1 0108-0304 ● ● ● ● ●
4 06.524 SHAFT; STRG
AIR BAG DRIVER(AJ3) TILT STEERING<N33> 		8-97108-695-0 01 1 0108-0210 ● ● ●
5 06.518 COLUMN; STRG
AIR BAG DRIVER(AJ3) TILT STEERING<N33> 		8-97203-776-2 01 1 0108-0210 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> 		8-97203-776-2 01 1 0211- ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3) 		8-97203-777-0 01 1 0108-0210 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97207-516-0 01 1 0108-0304 ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 0108- ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) M8X30 		8-94247-692-0 01 1 0108- ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 0108- ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
00.002 (B) ID=8.2 		9-09150-508-0 01 1 0108- ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 0108- ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
03.417 M8X35 		8-97100-457-0 02 1 0108- ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 0108- ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 0108- ● ● ● ● ●
100 03.670 BOLT; COLUMN TO FLOOR
10.455 M8X25 		8-94152-496-1 02 1 0108- ● ● ● ● ●
102 06.500 LOCK ASM; STRG
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 		8-97170-879-0 01 1 0108- ● ● ● ●
102 06.500 LOCK ASM; STRG
EXC. IMMOBILIZER SYSTEM<7KC> 		8-97170-879-0 01 1 0108- ● ● ● ●
102 06.500 LOCK ASM; STRG
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> 		8-97224-881-0 01 1 0108- ● ● ● ●
102 06.500 LOCK ASM; STRG 8-97224-881-0 01 1 0108- ●
103 02.188 SWITCH; IGNITION 8-97145-371-0 01 1 0108- ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 0108- ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 0108- ● ● ● ● ●
151 06.521 NUT; FLANGE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 0108- ● ● ● ● ●
188 06.500 BOLT; TORQUE,STEERING 8-94474-206-0 01 1 0108- ● ● ● ● ●
309 06.500 COIL; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97365-495-0 01 1 0108- ● ● ● ●
309 06.500 COIL; IMMOBILIZER
(A) 		8-97365-495-0 01 1 0108- ●
309 06.500 COIL; IMMOBILIZER
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (B) 		8-97251-755-0 01 1 0108- ● ● ● ●
310 06.500 SCREW; COIL
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 02.819 M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0108- ● ● ● ●

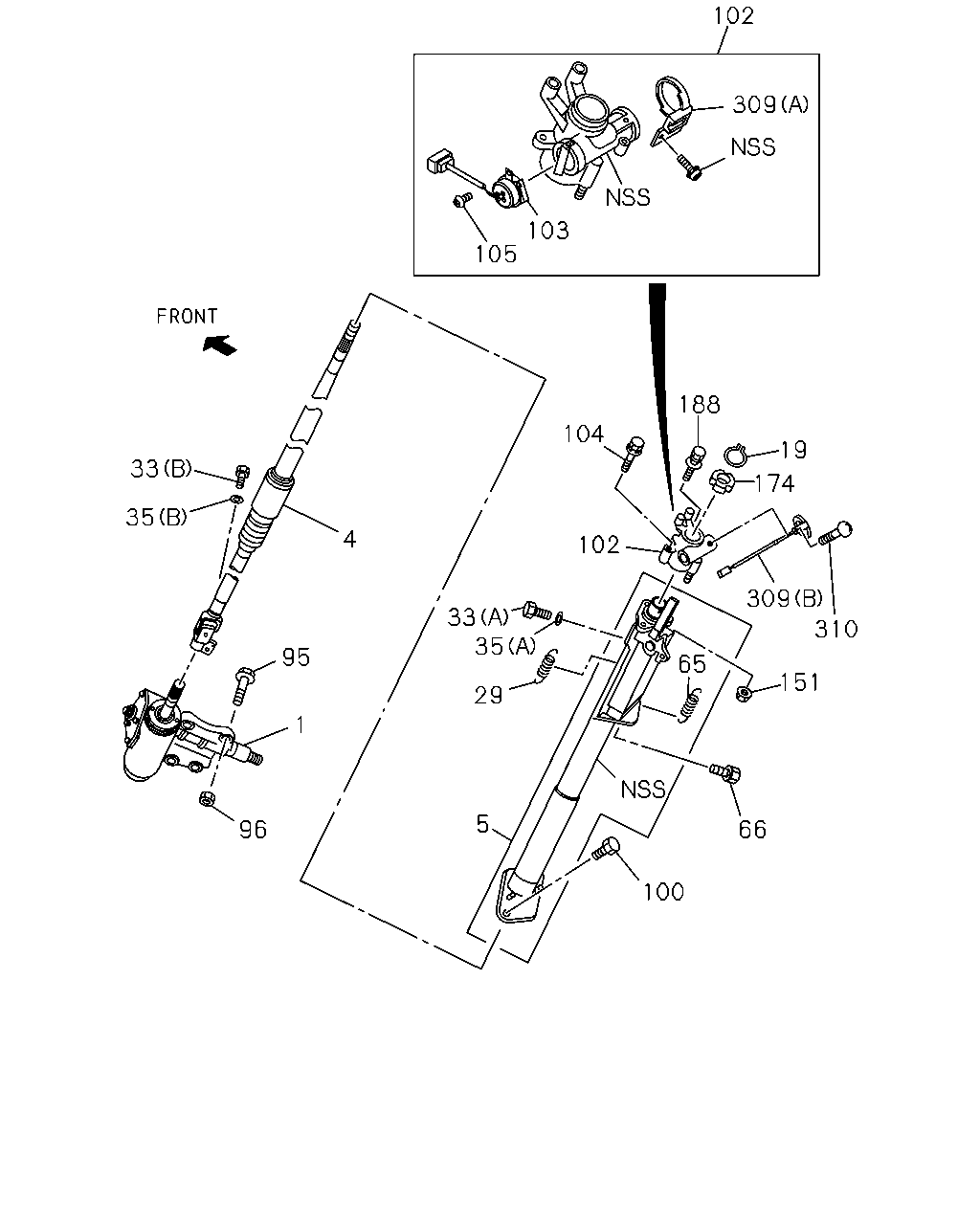

çizim 53110
102 309 103 105 188 104 19 33 174 35 4 102 309 33 35 310 95 65 151 29 1 5 96 66 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97101-357-6 01 1 0208- ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97101-356-4 01 1 0108-0202 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97101-357-4 01 1 0203-0206 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97332-756-0 01 1 0207-0207 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 4JA1 ENG(RLE) 		8-97332-756-2 01 1 0208- ● ● ● ●
4 06.524 SHAFT; STRG
AIR BAG DRIVER(AJ3) TILT STEERING<N33> 		8-97289-286-0 01 1 0108-0210 ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97289-286-0 01 1 0211- ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3) 		8-97207-517-0 01 1 0108-0210 ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97207-518-0 01 1 0108-0304 ● ● ● ● ●
4 06.524 SHAFT; STRG
AIR BAG DRIVER(AJ3) TILT STEERING<N33> 		8-97108-695-0 01 1 0108-0210 ● ● ●
5 06.518 COLUMN; STRG
AIR BAG DRIVER(AJ3) TILT STEERING<N33> 		8-97203-776-2 01 1 0108-0210 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> 		8-97203-776-2 01 1 0211- ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3) 		8-97203-777-0 01 1 0108-0210 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97207-516-0 01 1 0108-0304 ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 0108- ● ● ● ● ●
29 06.514 SPRING; COLUMN
AIR BAG DRIVER(AJ3) TILT STEERING<N33> 		8-97069-501-1 01 1 0108-0210 ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97069-501-1 01 1 0211- ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3) 		8-97069-501-1 02 1 0108-0210 ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) M8X30 		8-94247-692-0 01 1 0108- ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 0108- ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
00.002 (B) ID=8.2 		9-09150-508-0 01 1 0108- ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 0108- ● ● ● ● ●
65 06.521 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 01 1 0108- ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
03.417 M8X35 		8-97100-457-0 02 1 0108- ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 0108- ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 0108- ● ● ● ● ●
100 03.670 BOLT; COLUMN TO FLOOR
10.455 M8X25 		8-94152-496-1 02 1 0108- ● ● ● ● ●
102 06.500 LOCK ASM; STRG
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 		8-97170-879-0 01 1 0108- ● ● ● ●
102 06.500 LOCK ASM; STRG
EXC. IMMOBILIZER SYSTEM<7KC> 		8-97170-879-0 01 1 0108- ● ● ● ●
102 06.500 LOCK ASM; STRG
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> 		8-97224-881-0 01 1 0108- ● ● ● ●
102 06.500 LOCK ASM; STRG 8-97224-881-0 01 1 0108- ●
103 02.188 SWITCH; IGNITION 8-97145-371-0 01 1 0108- ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 0108- ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 0108- ● ● ● ● ●
151 06.521 NUT; FLANGE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 0108- ● ● ● ● ●
188 06.500 BOLT; TORQUE,STEERING 8-94474-206-0 01 1 0108- ● ● ● ● ●
309 06.500 COIL; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97365-495-0 01 1 0108- ● ● ● ●
309 06.500 COIL; IMMOBILIZER
(A) 		8-97365-495-0 01 1 0108- ●
309 06.500 COIL; IMMOBILIZER
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (B) 		8-97251-755-0 01 1 0108- ● ● ● ●
310 06.500 SCREW; COIL
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 02.819 M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0108- ● ● ● ●
