◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#2095) — 80 parça

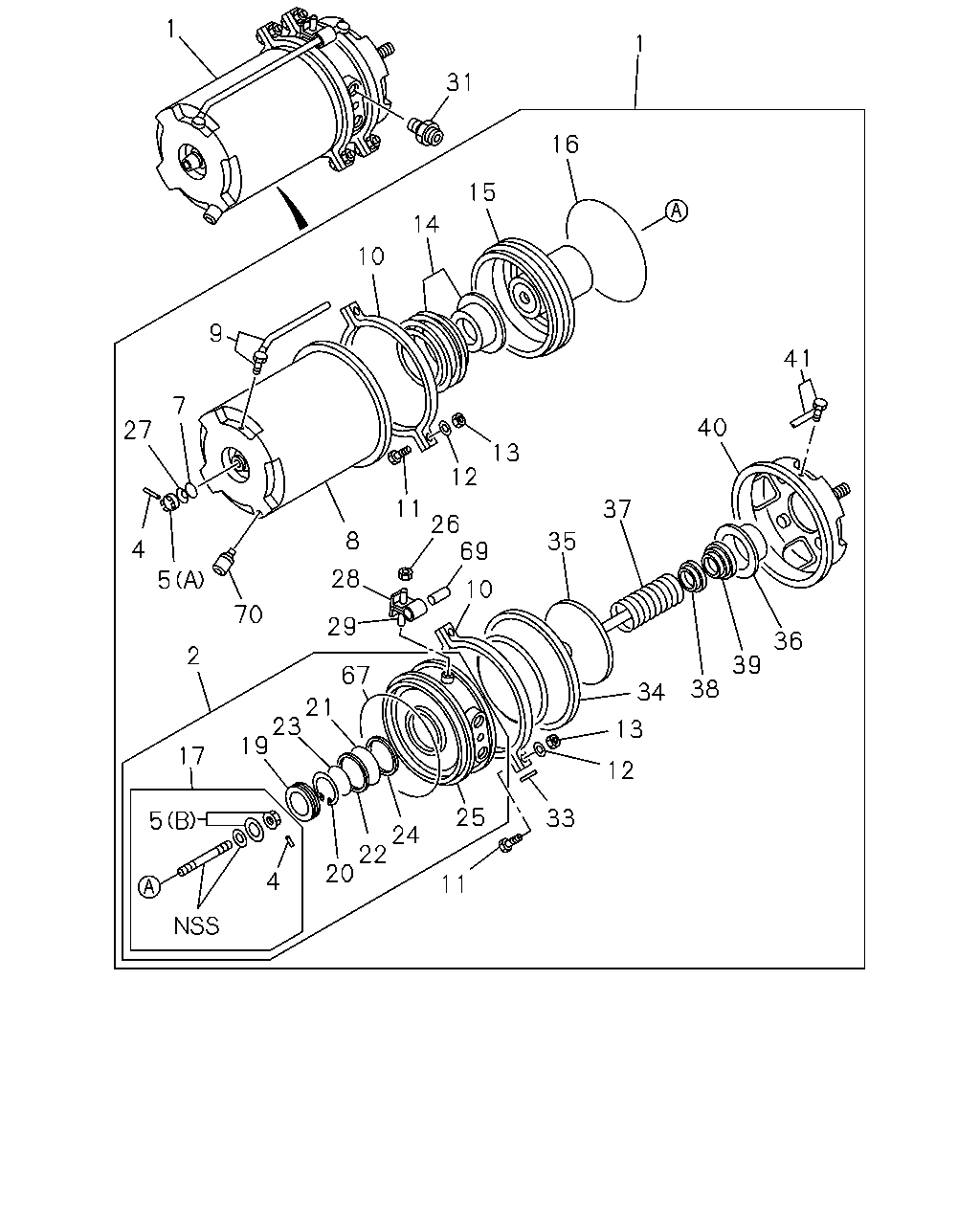

çizim 28255
1 1 31 16 15 14 10 9 41 7 40 27 13 12 11 37 26 69 8 35 4 28 5 10 70 29 36 2 39 67 38 34 21 23 19 13 17 12 25 33 5 24 22 20 4 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-180-1 02 1 9001- ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-180-1 02 1 9001- ●
2 CHAMBER; EMERGENCY 1-48252-018-0 02 1 9001- ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-018-0 02 1 9001- ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9001- ●
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-056-0 04 1 9001- ●
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9001- ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-054-0 02 1 9001- ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9001- ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-074-0 02 1 9001- ●
7 GASKET 1-48259-055-0 02 1 9001- ●
7 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-055-0 02 1 9001- ●
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 02 1 9001- ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-069-0 02 1 9001- ●
9 PIPE ASM; SHELL 1-48259-076-0 02 1 9001- ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-076-0 02 1 9001- ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 9001- ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-016-0 08 1 9001- ●
11 BOLT; CLAMP RING 1-48259-035-0 08 1 9001- ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-035-0 08 1 9001- ●
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 9001- ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-046-0 08 1 9001- ●
13 NUT; CLAMP RING 1-48259-045-0 08 1 9001- ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-045-0 08 1 9001- ●
14 SPRING & SEAT SET 1-48259-037-0 02 1 9001- ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-037-0 02 1 9001- ●
15 PISTON 1-48262-005-0 02 1 9001- ●
15 PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48262-005-0 02 1 9001- ●
16 GASKET 1-48259-048-0 02 1 9001- ●
16 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-048-0 02 1 9001- ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9001- ●
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-073-0 02 1 9001- ●
19 COVER; PISTON 1-48269-011-0 02 1 9001- ●
19 COVER; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-011-0 02 1 9001- ●
20 RING; RET 1-48259-060-0 02 1 9001- ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-060-0 02 1 9001- ●
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 9001- ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-049-0 02 1 9001- ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9001- ●
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-019-0 02 1 9001- ●
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9001- ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-047-0 02 1 9001- ●
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9001- ●
24 BEARING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-020-0 02 1 9001- ●
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-085-0 02 1 9001- ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-085-0 02 1 9001- ●
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 9001- ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-058-0 04 1 9001- ●
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 9001- ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-057-0 02 1 9001- ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9001- ●
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-059-0 02 1 9001- ●
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9001- ●
29 STUD; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-050-0 02 1 9001- ●
31 CONNECTOR 9-09902-409-0 04 1 9001- ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-09902-409-0 04 1 9001- ●
33 RETAINER; DIAPH 1-48259-044-0 04 1 9001- ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-044-0 04 1 9001- ●
34 DIAPHRAGM 1-48252-010-0 02 1 9001- ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-010-0 02 1 9001- ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 9001- ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-010-0 02 1 9001- ●
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 9001- ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-043-0 02 1 9001- ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9001- ●
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-003-0 02 1 9001- ●
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9001- ●
38 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-066-0 02 1 9001- ●
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9001- ●
39 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-065-0 02 1 9001- ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 02 1 9001- ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-067-1 02 1 9001- ●
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 9001- ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-075-0 02 1 9001- ●
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9001- ●
67 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-053-0 02 1 9001- ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9001- ●
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-051-0 02 1 9001- ●
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 9001- ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-052-0 02 1 9001- ●
