4-25 — REAR FINAL DRIVE (#20949) — 90 parça

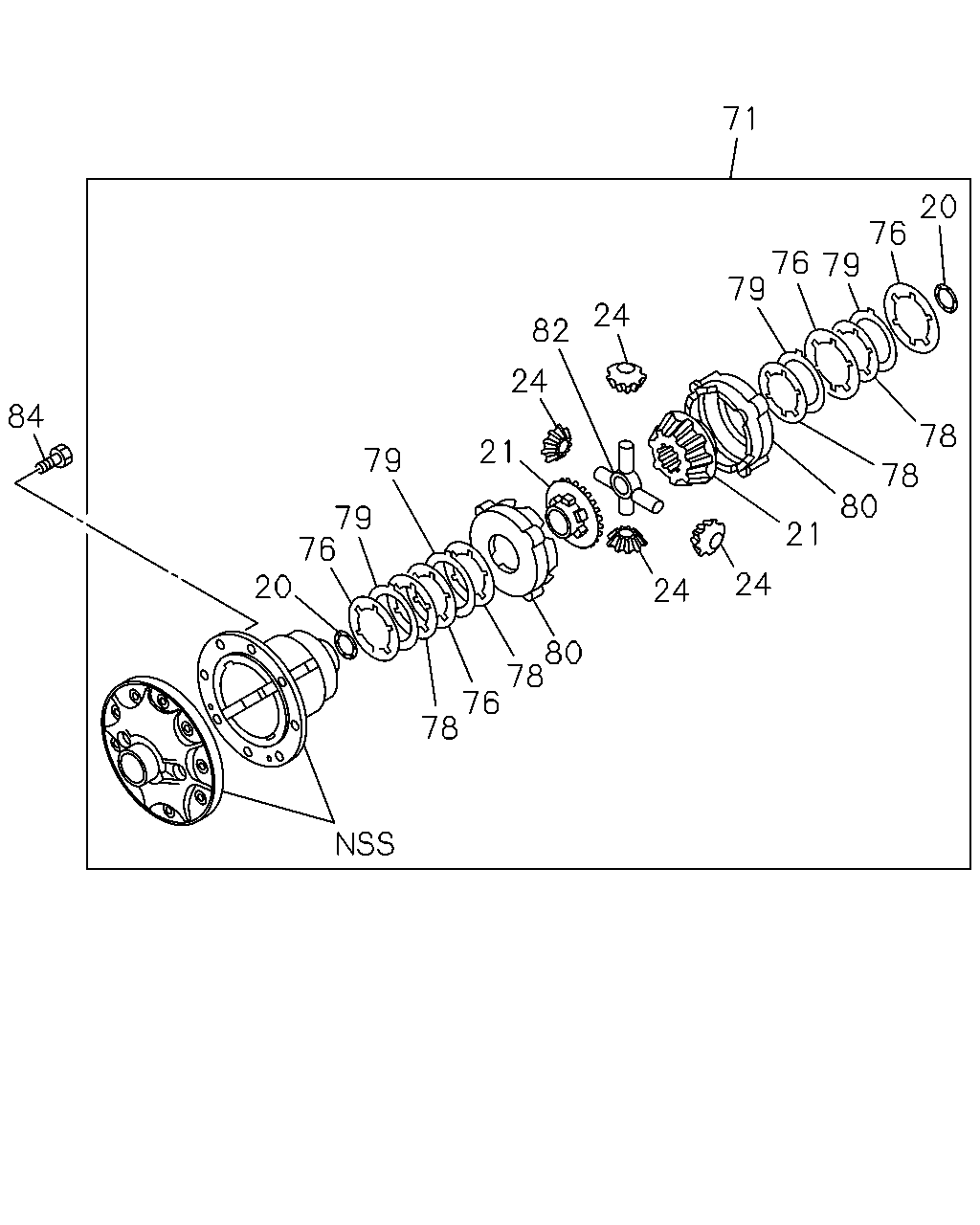

71 20 76 79 24 82 24 84 78 78 80 21 79 79 76 20 21 24 24 80 78 76 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	0108-	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF(G80)	8-97200-286-0	02	1	0108-	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G80) Z=18	8-97226-763-0	02	1	0108-	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF LIMITED SLIP DIFF(G80)	8-97200-285-0	04	1	0108-	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G80) Z=10	8-97226-762-0	02	1	0108-	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97062-975-1	01	1	0108-	●	●	●	●	●
76	05.511 DISC; BEVEL LIMITED SLIP DIFF(G80)	8-97096-209-0	04	1	0108-	●	●	●	●	●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF(G80)	8-94453-937-0	04	1	0108-	●	●	●	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF(G80) T=1.85	8-94365-189-0	04	1	0108-	●	●	●	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF(G80) T=1.75	8-94453-936-0	04	1	0108-	●	●	●	●	●
80	05.511 RING; PRESSURE LIMITED SLIP DIFF(G80)	8-94453-931-0	02	1	0108-	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF(G80)	8-94453-932-0	01	1	0108-	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	0108-	●	●	●	●	●

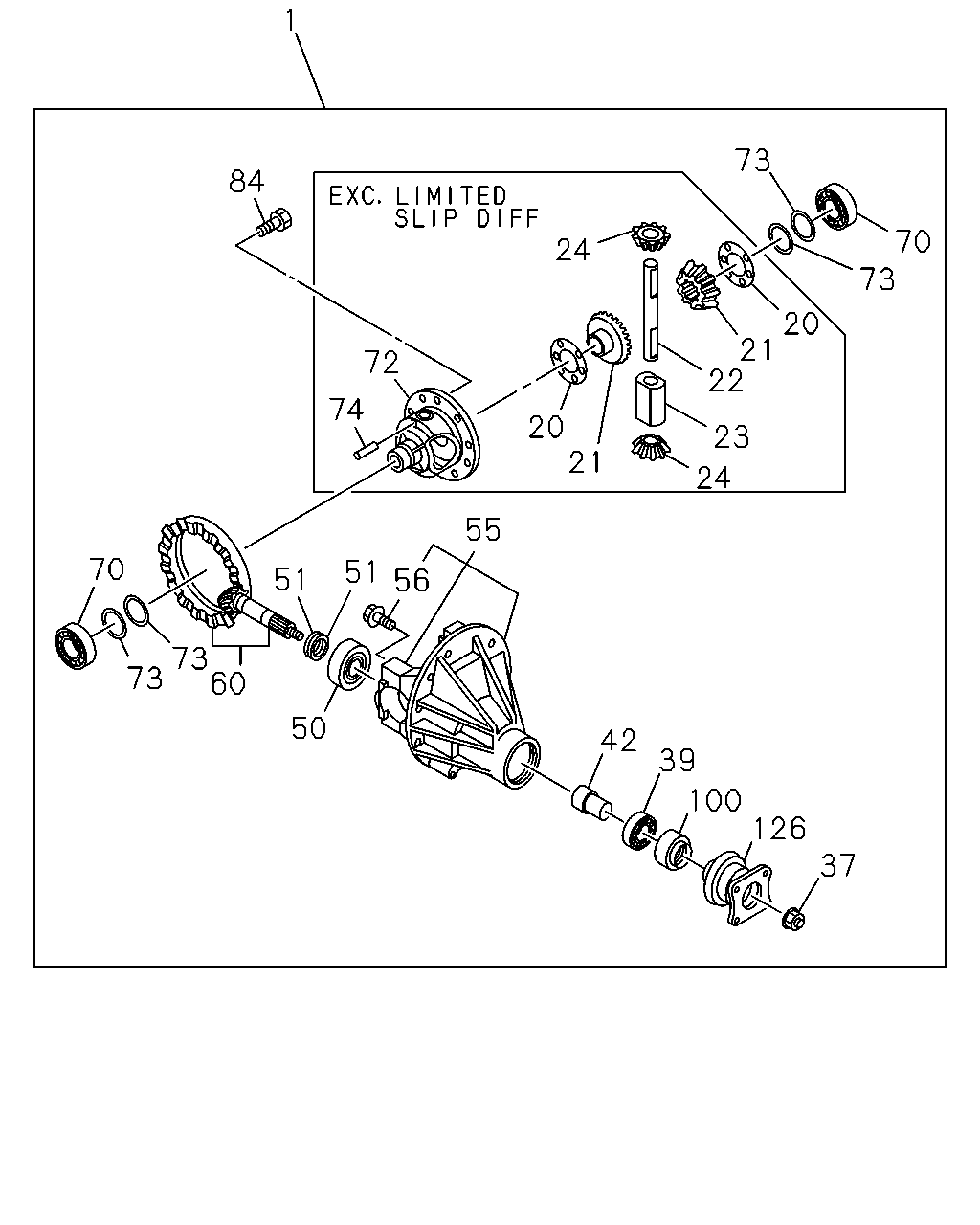

1 73 84 70 73 24 20 21 22 72 74 20 21 23 24 55 70 51 51 56 73 73 60 50 42 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) 43/11	8-97302-690-0	01	1	0108-	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 43/11	8-97228-808-0	01	1	0108-	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) 41/10	8-97021-091-3	01	1	0108-	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94387-987-3	01	1	0108-	●	●
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97021-092-3	01	1	0108-			●	●	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-94320-490-3	01	1	0108-			●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	0108-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	0108-	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF(G80)	8-97200-286-0	02	1	0108-	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G80) Z=18	8-97226-763-0	02	1	0108-	●	●	●	●	●
22	05.520 PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80)	8-94435-308-1	01	1	0108-	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX LIMITED SLIP DIFF(G80)	8-94320-495-0	01	1	0108-	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	0108-	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF LIMITED SLIP DIFF(G80)	8-97200-285-0	04	1	0108-	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G80) Z=10	8-97226-762-0	02	1	0108-	●	●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0108-	●	●	●	●	●
39	05.484 BEARING; FINAL PINION NSK	9-00093-078-0	01	1	0108-	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	0108-	●	●	●	●	●
50	05.447 BEARING; FINAL PINION NSK	8-94435-342-0	01	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	0108-	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	0108-	●	●	●	●	●
55	05.505 CARRIER; DIFF	8-94435-290-4	01	1	0108-	●	●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M12X75	8-94435-341-0	04	1	0108-	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) 43/11	8-97228-809-0	01	1	0108-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JG2 ENG(RJC) 41/10	8-97063-394-2	01	1	0108-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97039-238-1	01	1	0108-			●	●	●
70	05.536 BEARING; DIFF CAGE KOYO	8-94452-449-1	02	1	0209-	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	0108-	●	●	●	●	●
72	05.510 CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	0108-	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	0108-	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	0108-	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	0108-	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	0108-	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	0108-	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	0108-	●	●	●	●	●
74	05.518 PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF(G80) OD=5 L=35	9-09878-096-0	01	1	0108-	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	0108-	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	0108-	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION TKK	8-94408-085-1	01	1	0108-	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION	8-97075-216-3	01	1	0108-	●	●	●	●	●
