◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#20948) — 32 parça

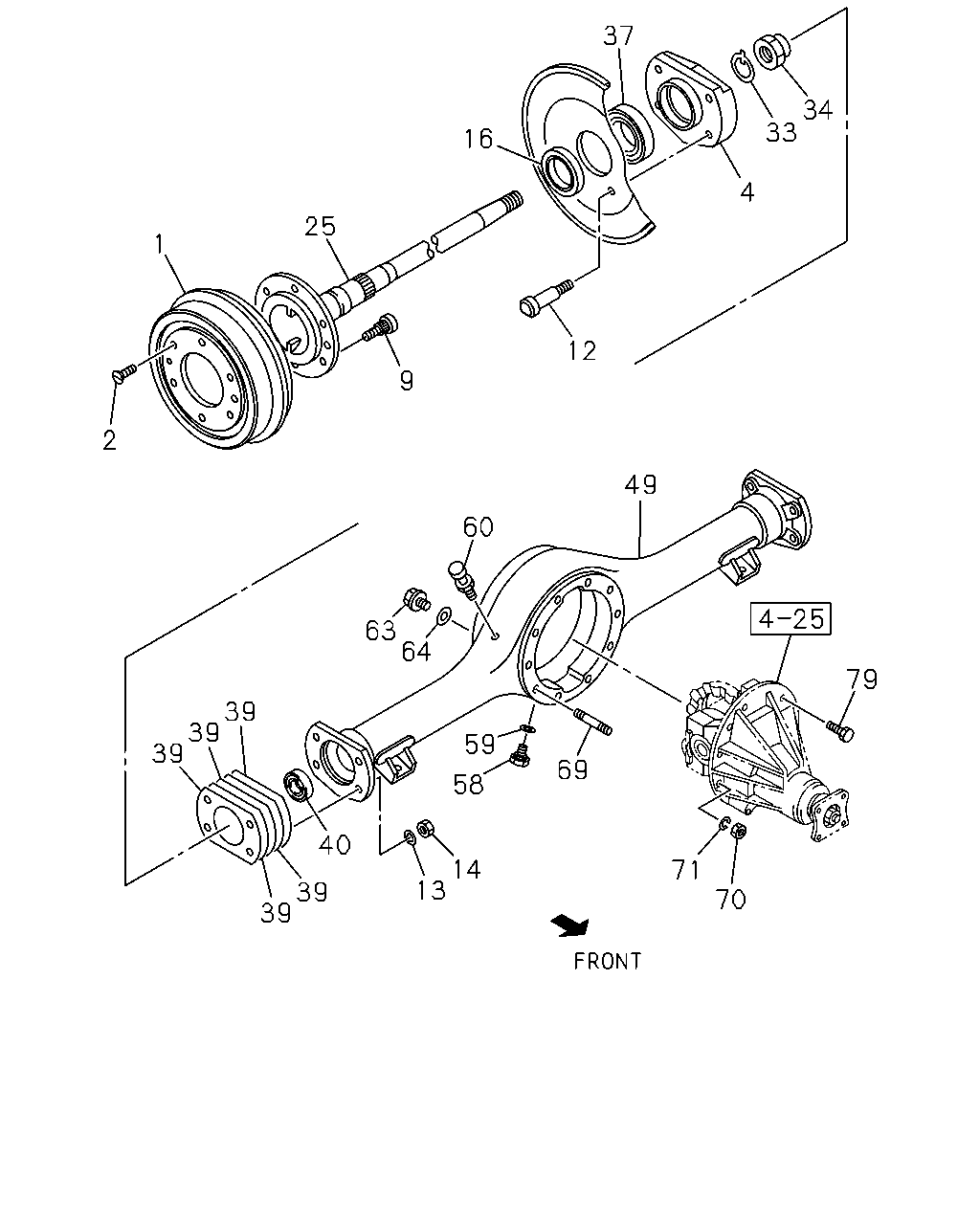

çizim 47874
37 34 33 16 4 25 1 12 9 2 49 60 63 64 79 39 39 39 59 69 58 40 14 13 71 39 39 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 05.809 DRUM; BRK,RR 8-94226-829-1 02 1 0108- ● ●
1 05.809 DRUM; BRK,RR 8-97113-020-0 02 1 0108- ● ● ●
2 05.812 BOLT; BRK DRUM
M6X16 CK-HEAD 		9-03090-616-0 02 1 0108- ● ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-94469-695-1 02 1 0108- ● ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97213-870-0 12 1 0108- ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
UPPER M12X83 		8-94471-384-3 04 1 0108- ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
LOWER M12X83 		8-94471-385-2 04 1 0108- ● ● ● ● ●
13 05.816 WASHER; LK,BRG HOLDER TO CASE
04.634 ID=12.2 		9-09150-512-0 08 1 0108- ● ● ● ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 0108- ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 		8-97138-934-0 08 1 0108- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
ID=50.5 OD=72 		9-09724-022-1 02 1 0108- ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-94319-326-4 02 1 0108- ● ● ● ● ●
33 05.422 WASHER; AXLE SHAFT 8-97086-472-0 02 1 0108- ● ● ● ● ●
34 05.387 NUT; AXLE SHAFT
M45 		8-94178-278-0 02 1 0108- ● ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
ID=45 OD=85 		9-00032-209-0 02 1 0108- ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=1.000 		8-94469-775-0 AR 1 0108- ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.500 		8-94469-776-0 AR 1 0108- ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.130 		8-94469-777-0 AR 1 0108- ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.076 		8-94469-778-0 AR 1 0108- ● ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.050 		8-94469-779-0 AR 1 0108- ● ● ● ● ●
40 05.387 SEAL; OIL,REAR AXLE
ID=37.5 OD=60 		5-09625-092-0 02 1 0108- ● ● ● ● ●
49 05.387 CASE; RR AXLE 8-94337-224-6 01 1 0108- ● ● ● ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0108- ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0108- ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0108- ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 0108- ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0108- ● ● ● ● ●
69 05.387 STUD; AXLE CASE
05.398 M10X31 L=43 		9-09630-011-1 02 1 0108- ● ● ● ● ●
70 05.387 NUT; CARRIER
00.002 M10 		9-09110-510-0 02 1 0108- ● ● ● ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
00.002 ID=10.2 		9-09150-610-0 02 1 0108- ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
M10X30 		0-50061-030-0 07 1 0108- ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
M10X90 		0-50061-090-0 01 1 0108- ● ● ● ● ●
