4-11 — FRONT HUB AND DRUM OR ROTOR (#20944) — 54 parça

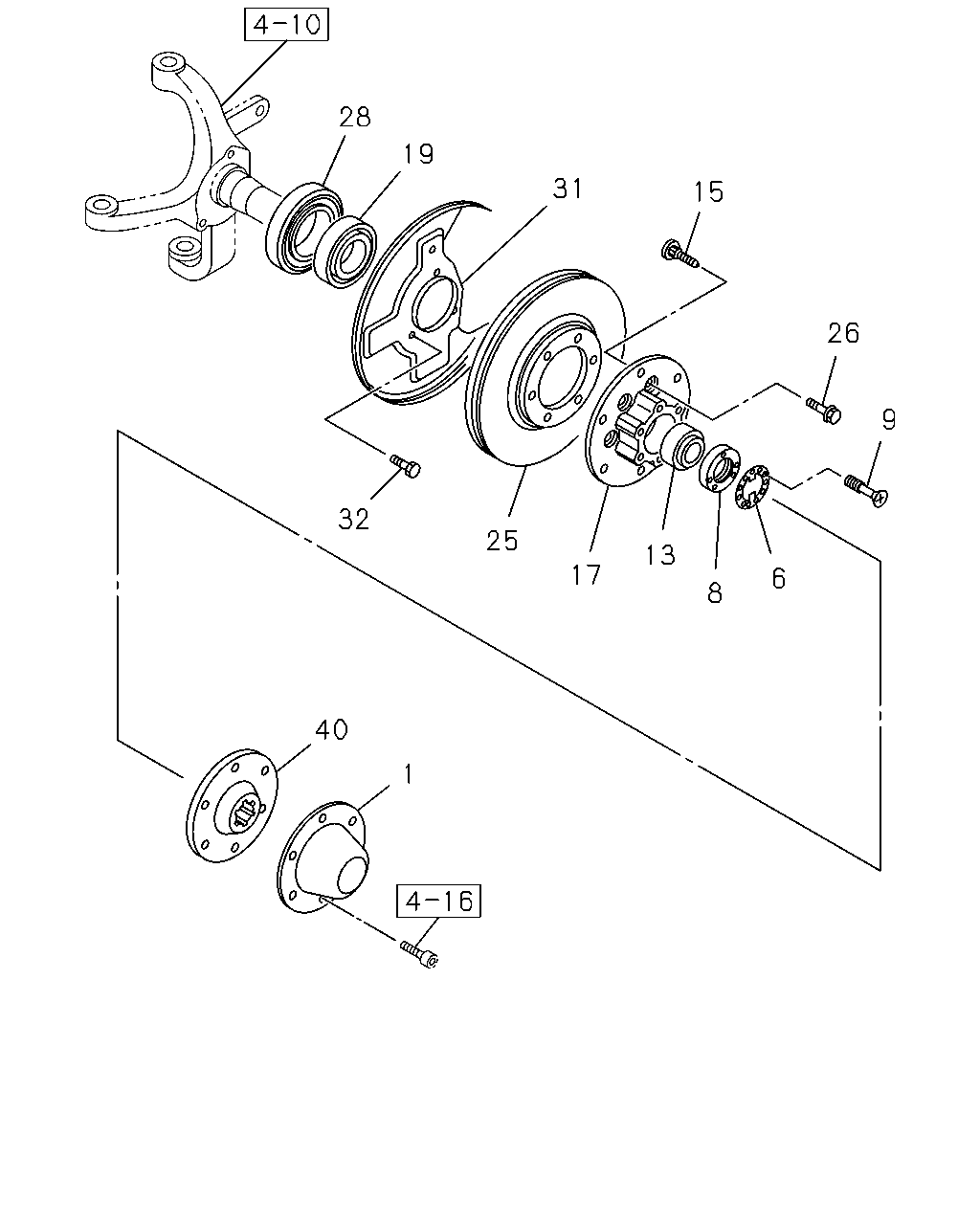

çizim 49746
28 19 31 15 26 9 32 25 13 17 6 8 40 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.330 CAP; HUB,FRT AXLE 9-42313-080-1 02 1 0108- ● ●
1 06.330 CAP; HUB,FRT AXLE
4JG2 ENG(RJC) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-314-2 02 1 0108- ●
1 06.330 CAP; HUB,FRT AXLE
4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 		8-94173-314-2 02 1 0108- ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y),SHIFT ON THE FLY(7EX) 		8-94173-314-2 02 1 0108- ● ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-94256-973-0 02 1 0108- ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0108- ● ● ●
8 05.812 NUT; ADJ,FRT HUB 8-94442-399-1 02 1 0108- ● ● ●
9 05.812 SCREW; ADJ,NUT
08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0108- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
TIMKEN 		8-94361-801-0 02 1 0108- ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0108- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97213-871-0 12 1 0108- ● ● ● ● ●
17 06.307 HUB; FRT AXLE 8-94433-669-1 02 1 0108- ● ●
17 06.307 HUB; FRT AXLE 8-94381-084-2 02 1 0108- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 0108- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
TIMKEN 		8-94361-804-0 02 1 0108- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0108- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-94172-376-1 02 1 0108- ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 		8-94409-921-0 12 1 0108- ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94433-718-0 02 1 0108- ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 0108- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94317-628-0 01 1 0108- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94317-627-0 01 1 0108- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94173-247-1 01 1 0108- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94173-246-1 01 1 0108- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97025-916-0 06 1 0108- ● ● ● ● ●
40 06.308 FLANGE; FRT WHEEL HUB
4JG2 ENG(RJC) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-313-0 02 1 0108- ●
40 06.308 FLANGE; FRT WHEEL HUB
4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 		8-94173-313-0 02 1 0108- ● ●
40 06.308 FLANGE; FRT WHEEL HUB
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y),SHIFT ON THE FLY(7EX) 		8-94173-313-0 02 1 0108- ● ●

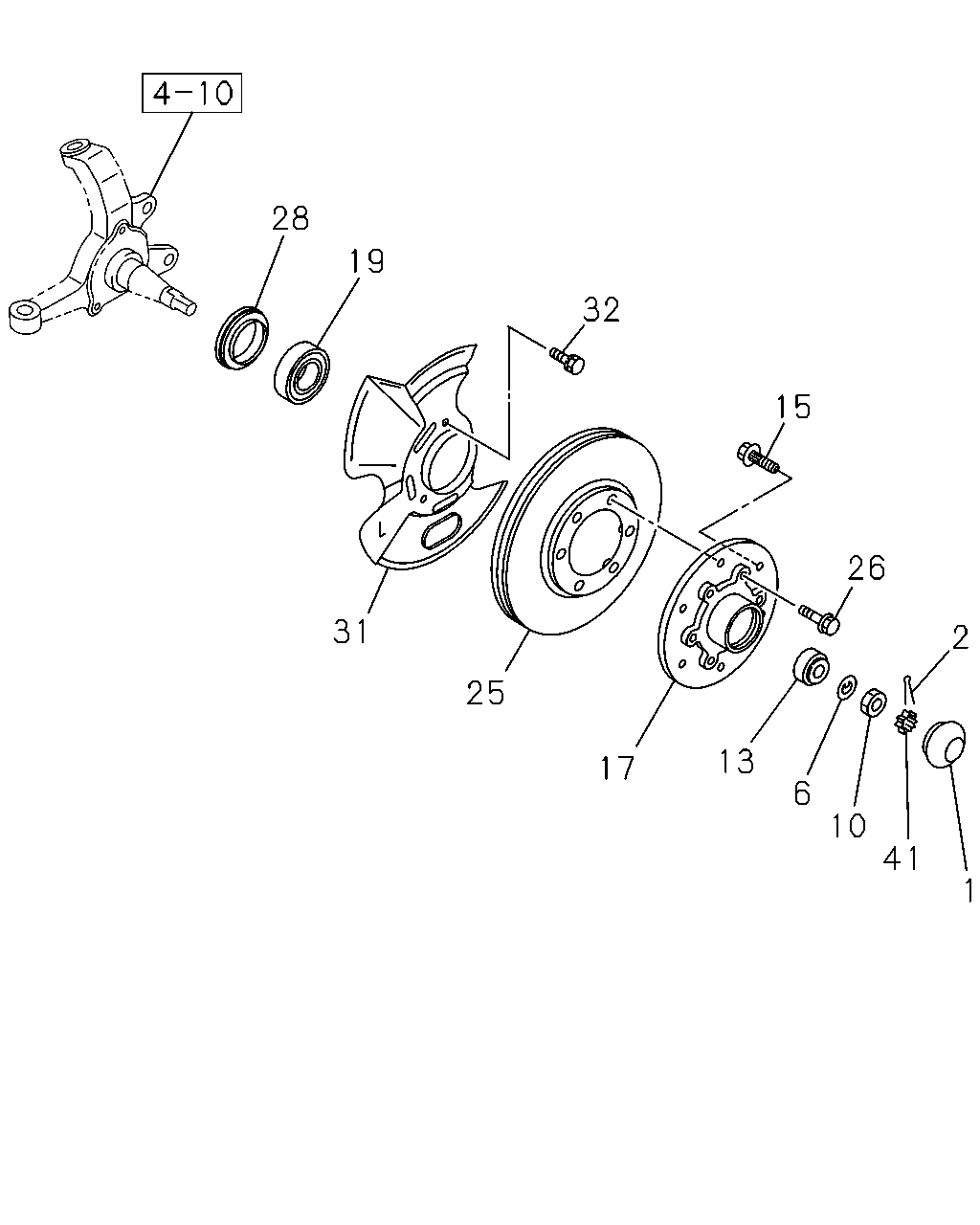

çizim 52932
28 19 32 15 26 31 2 25 13 17 6 10 41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.330 CAP; HUB,FRT AXLE 9-42313-080-1 02 1 0108- ● ●
1 06.330 CAP; HUB,FRT AXLE
4JG2 ENG(RJC) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-314-2 02 1 0108- ●
1 06.330 CAP; HUB,FRT AXLE
4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 		8-94173-314-2 02 1 0108- ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y),SHIFT ON THE FLY(7EX) 		8-94173-314-2 02 1 0108- ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0108- ● ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-94256-973-0 02 1 0108- ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0108- ● ● ●
10 05.812 NUT; FRT HUB BRG
M18 		8-94243-927-1 02 1 0108- ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
TIMKEN 		8-94361-801-0 02 1 0108- ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0108- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97213-871-0 12 1 0108- ● ● ● ● ●
17 06.307 HUB; FRT AXLE 8-94433-669-1 02 1 0108- ● ●
17 06.307 HUB; FRT AXLE 8-94381-084-2 02 1 0108- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 0108- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
TIMKEN 		8-94361-804-0 02 1 0108- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0108- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-94172-376-1 02 1 0108- ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 		8-94409-921-0 12 1 0108- ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94433-718-0 02 1 0108- ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 0108- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94317-628-0 01 1 0108- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94317-627-0 01 1 0108- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94173-247-1 01 1 0108- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94173-246-1 01 1 0108- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97025-916-0 06 1 0108- ● ● ● ● ●
41 05.812 RETAINER; NUT,FRT HUB 8-94243-928-1 02 1 0108- ● ●
