◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#20942) — 43 parça

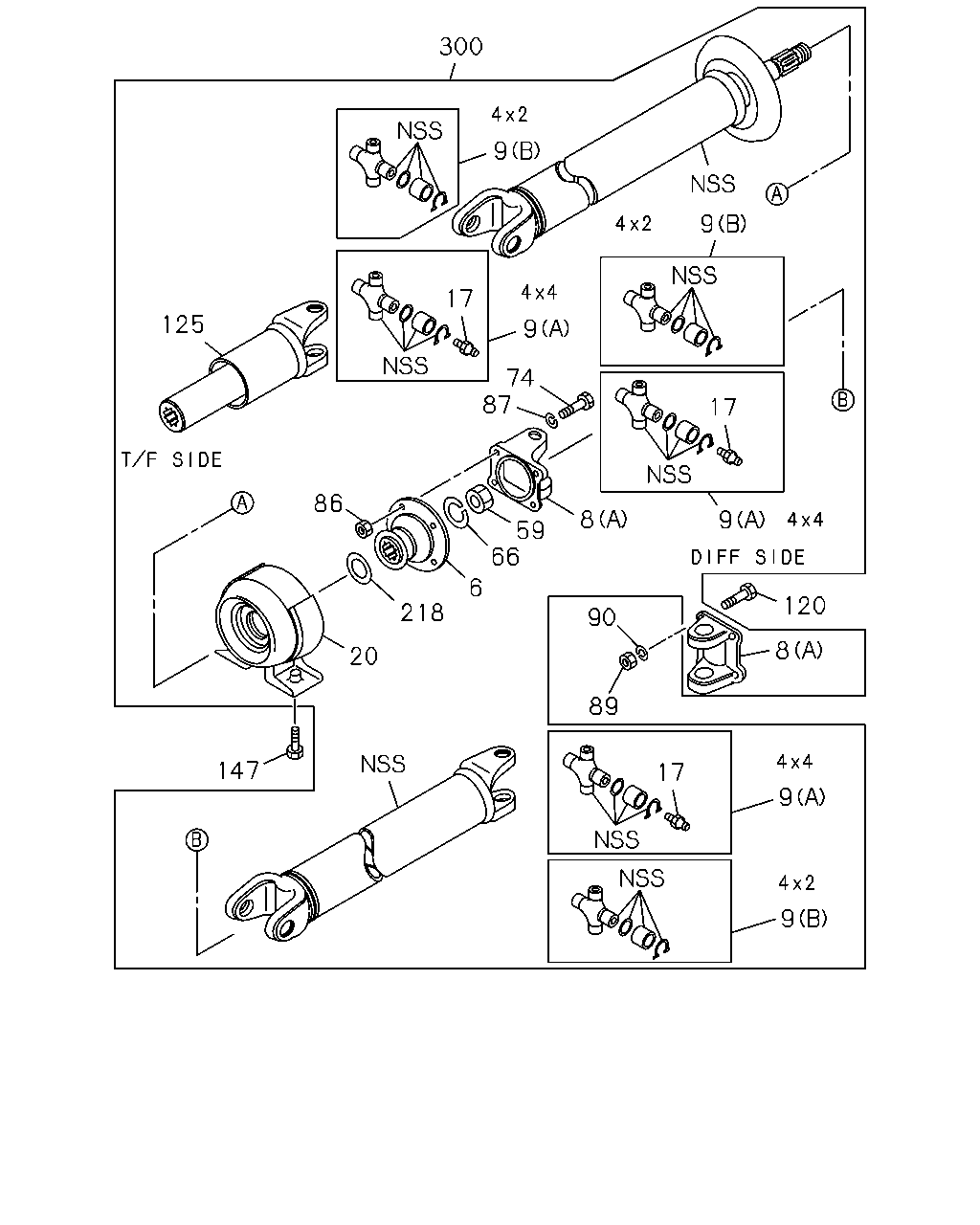

çizim 51848
300 9 9 17 125 9 74 87 17 86 8 9 59 66 6 120 218 90 8 20 89 147 17 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 05.600 COUPLING ASM; DRIVER,PROP SHAFT 8-97202-891-0 01 1 0108- ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(A) 		8-97211-116-0 02 1 0108- ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(B) 		8-97211-120-0 02 1 0108- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97211-134-0 03 1 0108- ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) FRONT 		8-97211-133-0 02 1 0108- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97211-133-0 03 1 0108- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 02 1 0108- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 03 1 0108- ● ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT 8-94328-800-0 01 1 0108- ● ●
20 05.600 BEARING ASM; CTR,PROP SHAFT 8-94328-799-0 01 1 0108- ● ● ●
59 05.586 NUT; RET TO SUPPORT
05.595 M18 		8-08937-737-0 01 1 0108- ● ● ● ● ●
66 05.595 WASHER
ID=18.5 OD=35 		8-03431-198-0 01 1 0108- ● ● ● ● ●
74 05.586 BOLT; YOKE,TRANS
M10X29 		8-97168-458-1 04 1 0108- ● ● ● ● ●
86 05.586 NUT; COUPLING DRIVER TO YOKE
00.002 M10 		9-09110-510-0 04 1 0108- ● ● ● ● ●
87 05.601 WASHER; LK,1ST PROP TO 2ND PROP
00.002 ID=10.2 		9-09150-610-0 04 1 0108- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M10 		8-94159-009-1 04 1 0108- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M10 		8-94159-009-1 08 1 0108- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
00.002 ID=10.2 		9-09150-610-0 04 1 0108- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
00.002 ID=10.2 		9-09150-610-0 08 1 0108- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M10X29 		8-97168-458-1 04 1 0108- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M10X29 		8-97168-458-1 08 1 0108- ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT 8-97211-132-0 01 1 0108- ● ● ● ● ●
147 05.586 BOLT; CENTER BRG MTG
07.395 M12X25 FLANGE 		0-28081-225-0 02 1 0108- ● ● ● ● ●
218 05.586 WASHER; PL,PROP SHAFT 8-97192-641-0 01 1 0108- ● ● ● ● ●
300 05.544 SHAFT ASM; PROP,RR 8-97211-588-0 01 1 0108- ● ●
300 05.544 SHAFT ASM; PROP,RR 8-97211-603-0 01 1 0108- ● ● ●

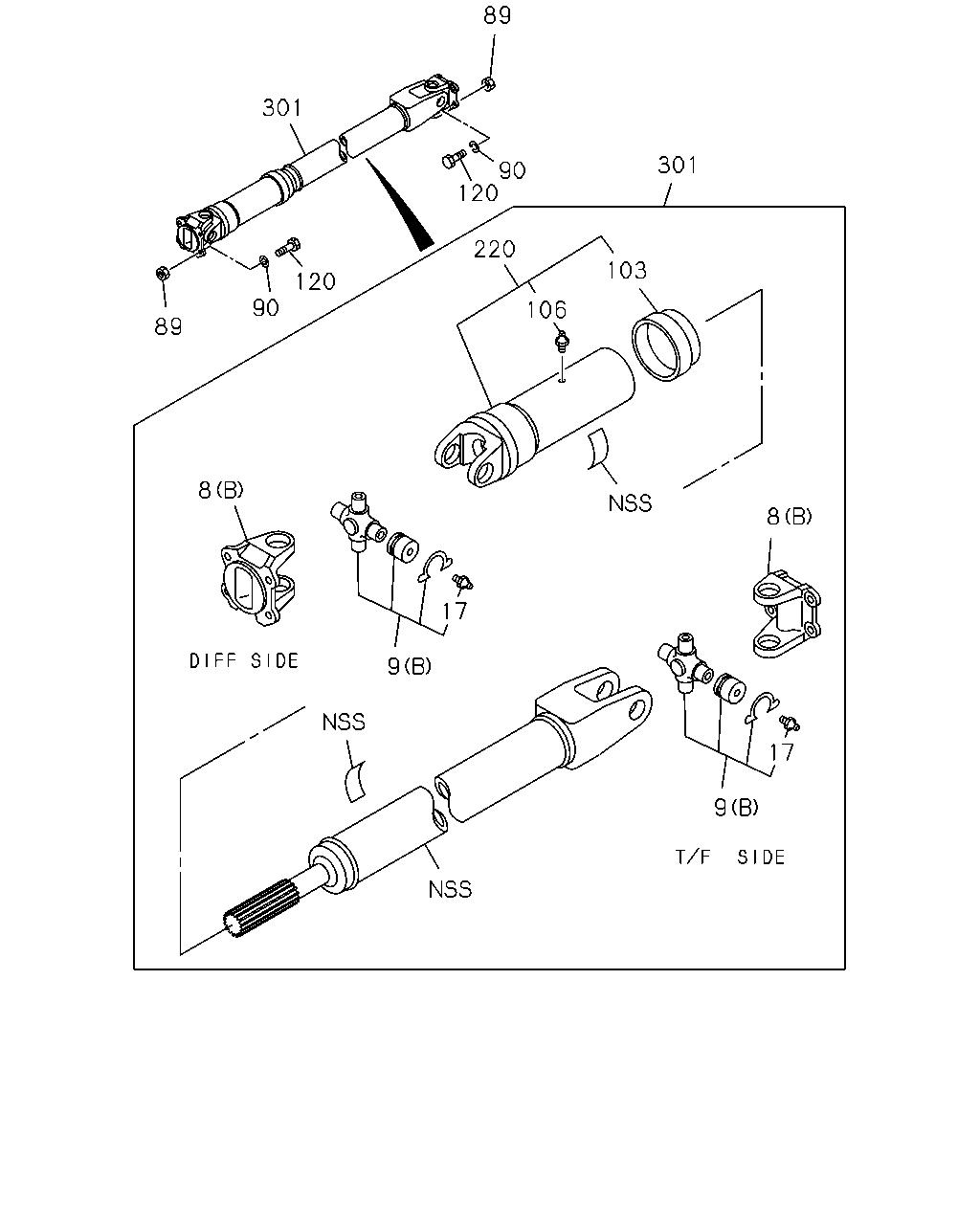

çizim 51886
89 301 301 90 120 220 103 120 90 106 89 8 8 17 9 17 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 05.544 YOKE; FLANGE,PROP SHAFT
(A) 		8-97211-116-0 02 1 0108- ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT
(B) 		8-97211-120-0 02 1 0108- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(B) REAR 		8-97211-134-0 03 1 0108- ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) FRONT 		8-97211-133-0 02 1 0108- ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT
(A) REAR 		8-97211-133-0 03 1 0108- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 02 1 0108- ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 03 1 0108- ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M10 		8-94159-009-1 04 1 0108- ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M10 		8-94159-009-1 08 1 0108- ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
00.002 ID=10.2 		9-09150-610-0 04 1 0108- ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
00.002 ID=10.2 		9-09150-610-0 08 1 0108- ● ● ●
103 05.544 BOOT; PROP SHAFT
05.545 		8-97020-597-1 01 1 0108- ● ● ●
106 05.586 NIPPLE; GREASE,YOKE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 01 1 0108- ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M10X29 		8-97168-458-1 04 1 0108- ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M10X29 		8-97168-458-1 08 1 0108- ● ● ●
220 05.544 YOKE; SPLINED
05.545 L=177 		8-97211-131-0 01 1 0108- ● ● ●
301 05.544 SHAFT ASM; PROP,FRT
L=420.5 		8-97211-641-1 01 1 0108- ● ● ●
