◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#20941) — 8 parça

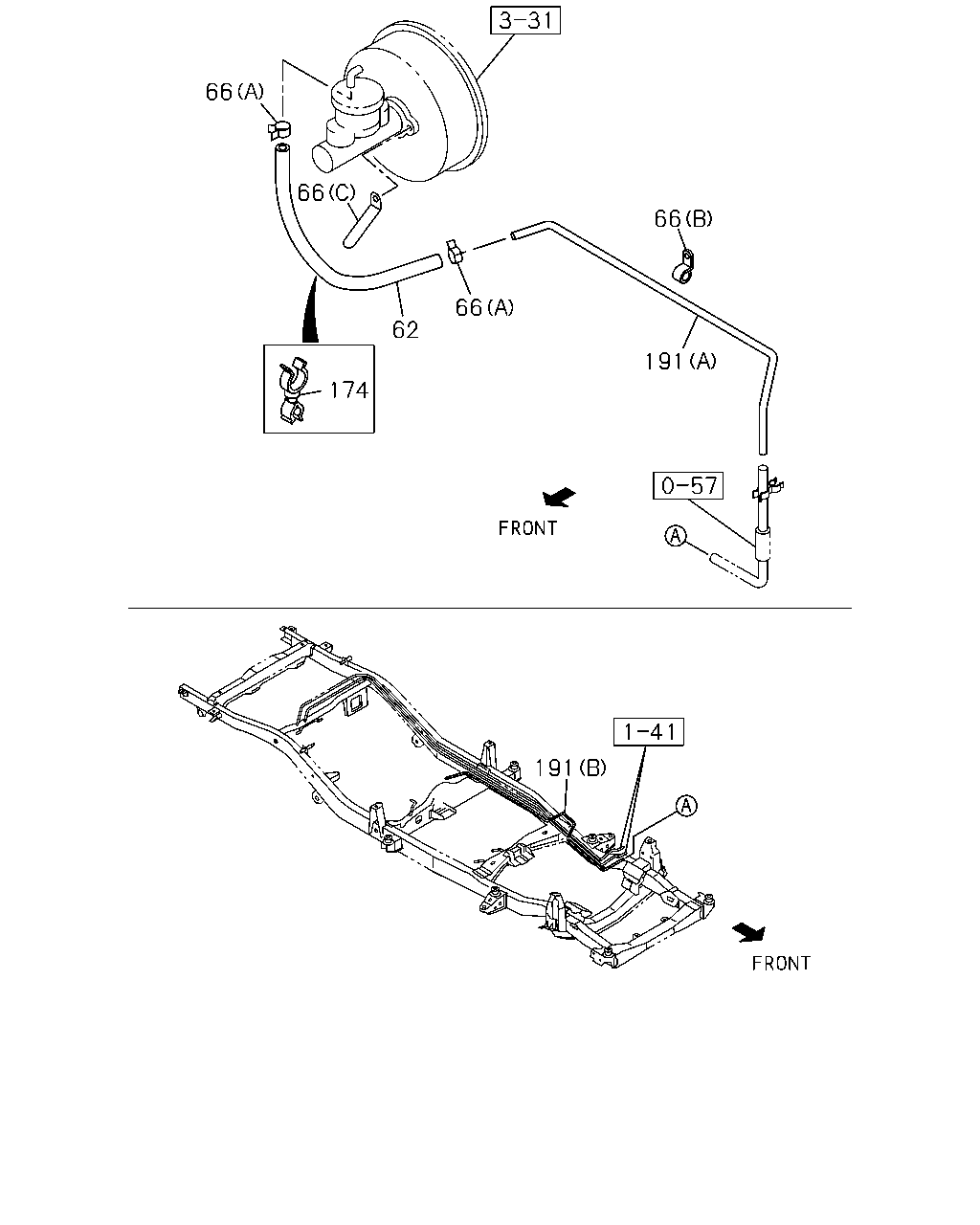

çizim 53398
66 66 66 66 62 191 174 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP 8-97322-376-1 01 1 0108- ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 0108- ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(C) L=91 ID=8.5 		8-94329-956-0 01 1 0108- ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=16 		8-97173-222-0 02 1 0108- ● ● ● ● ●
174 04.930 CLIP; VAC HOSE
02.183 ID=16.5 & 4.8 		8-94415-087-0 01 1 0108-0208 ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97301-002-1 01 1 0108- ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97088-564-2 01 1 0108- ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97301-003-1 01 1 0108- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
