3-52 — BRAKE PIPING; OIL,FRONT (#20938) — 25 parça

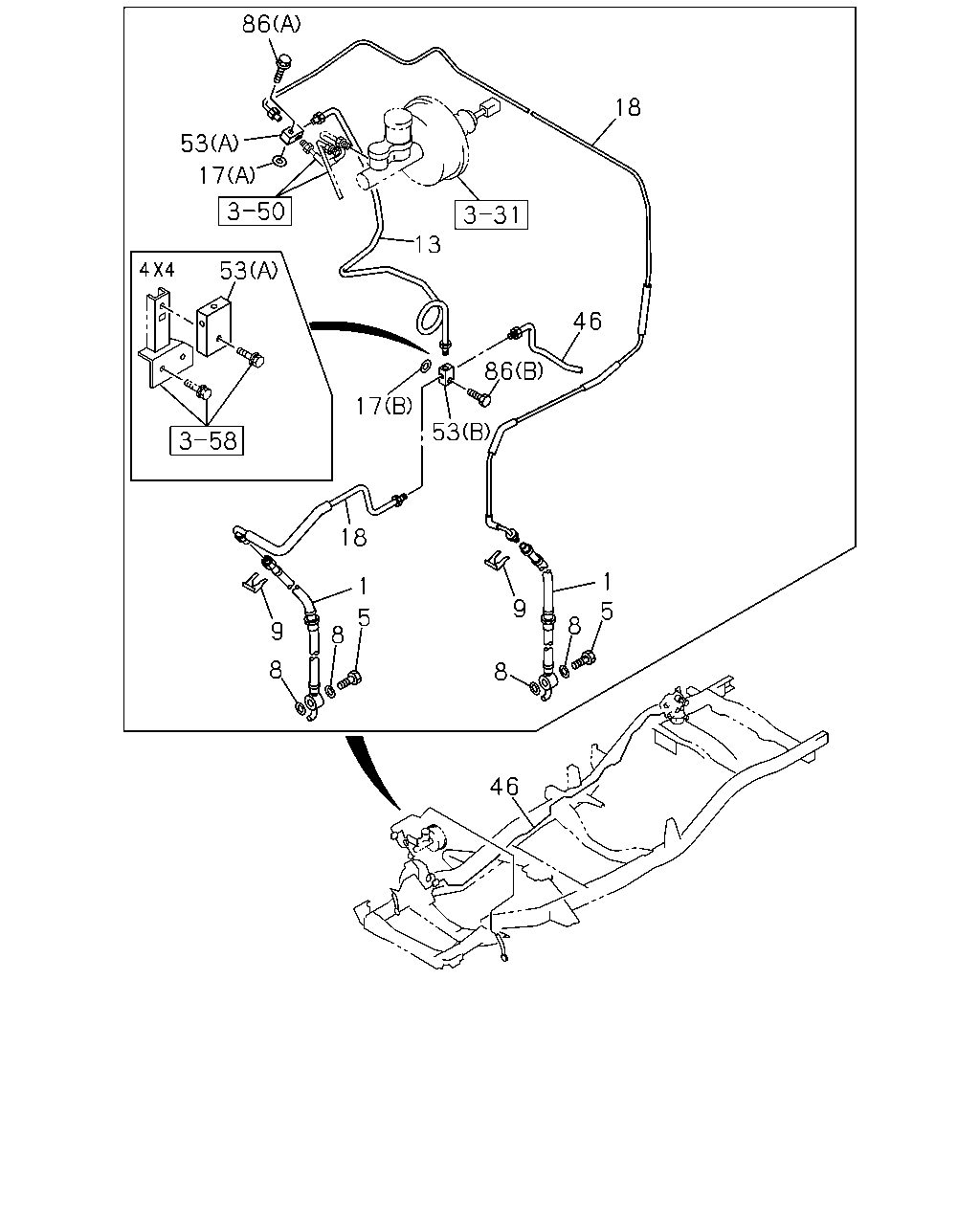

çizim 53396
86 18 53 17 13 53 46 86 17 53 18 1 5 1 9 5 8 9 8 8 8 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-1 02 1 0108- ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-830-1 02 1 0108- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 0108- ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0108- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 0108- ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97084-570-1 01 1 0108- ● ●
13 04.685 PIPE; OIL,UNION TO UNION 8-94333-042-2 01 1 0108- ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(B) ID=8.2 		8-94312-733-0 01 1 0108- ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 0108- ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97230-486-1 01 1 0108- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> 		8-97310-994-0 01 1 0108- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL> 		8-97228-038-1 01 1 0108-0205 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL> 		8-97349-466-0 01 1 0206- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97228-321-1 01 1 0108- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL> 		8-97228-321-1 01 1 0108- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97115-645-1 01 1 0108- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> 		8-97310-995-2 01 1 0108- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV 8-97300-999-1 01 1 0108- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV 8-97301-000-1 01 1 0108- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(B) 		8-94328-125-0 01 1 0108- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0108- ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0108- ● ● ●
86 04.686 BOLT; BRK PIPE
02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0108-0210 ● ●
86 04.686 BOLT; BRK PIPE
02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0211- ● ●
86 04.686 BOLT; BRK PIPE
00.206 (A) M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0108- ● ● ● ● ●
