3-11 — PARKING BRAKE CONTROL (#20933) — 131 parça

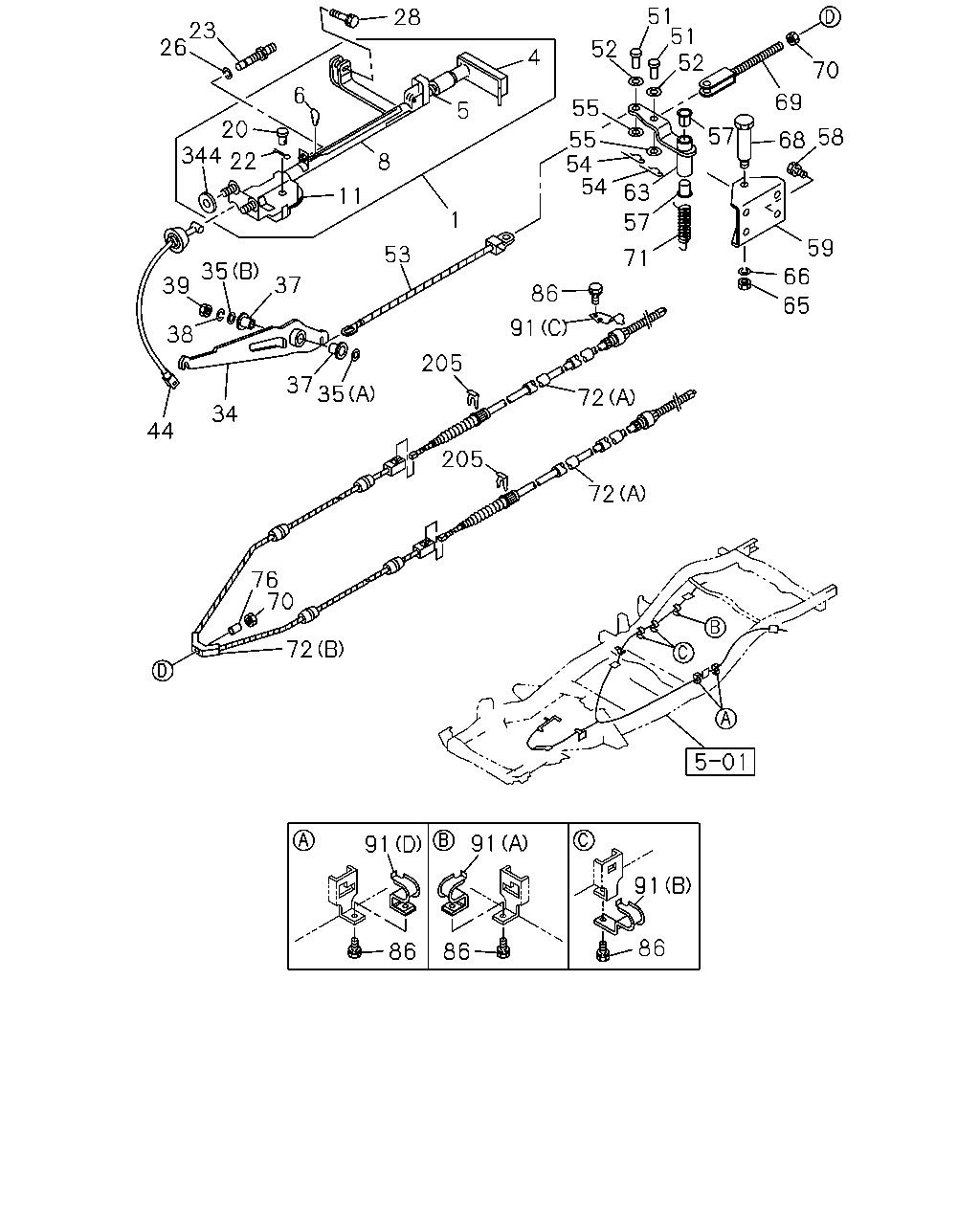

51 51 52 28 23 26 52 4 70 6 69 55 55 54 54 5 20 344 22 57 58 68 8 63 11 1 57 59 53 71 35 66 37 39 86 65 91 38 205 37 35 72 34 44 205 72 76 70 72 91 91 91 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97131-922-0	01	1	0108-	●	●
4	04.592 STEM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97162-052-0	01	1	0108-	●	●
5	04.592 BUSHING; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	9-46129-022-0	01	1	0108-	●	●
6	04.589 PIN; STEM,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97162-045-0	01	1	0108-	●	●
8	04.592 GUIDE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97076-058-0	01	1	0108-	●	●
11	04.790 ROLLER; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> 04.606	9-46125-071-0	01	1	0108-	●	●
20	04.790 PIN; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94171-208-0	01	1	0108-	●	●
22	04.595 PIN; SHAFT,PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97187-717-0	01	1	0108-	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97031-820-0	01	1	0108-	●	●
23	04.589 SWITCH; PARKING BRK	8-97031-820-0	01	1	0108-			●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> 12V	9-82750-367-0	01	1	0108-	●	●
26	04.595 WASHER; PARKING BRK SW EXC. PARKING BRAKE FLOOR<7XW> 00.002 ID=8.2	9-09150-508-0	01	1	0108-	●	●
28	04.594 BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.780 M8X50 FLANGE	0-28080-850-0	01	1	0108-	●	●
34	04.591 LEVER; PARK BRK CONT EXC. PARKING BRAKE FLOOR<7XW>	8-94479-100-1	01	1	0108-	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (A) ID=15.5 OD=24	8-94222-473-0	01	1	0108-	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (B) ID=10.5 OD=26	9-09160-710-0	01	1	0108-	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94408-022-0	02	1	0108-	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 00.002 ID=10.2	9-09150-510-0	01	1	0108-	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 09.011 M10	9-09110-410-0	01	1	0108-	●	●
44	04.779 CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW>	8-94341-285-0	01	1	0108-	●	●
51	04.785 PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 08.942 OD=8 L=20	9-08233-820-0	02	1	0108-	●	●
52	04.785 WASHER; CURVED RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	0108-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-94479-095-0	01	1	0108-	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER EXC. PARKING BRAKE FLOOR<7XW> 00.793 OD=1.8 L=15	9-08112-015-0	02	1	0108-	●	●
55	04.792 WASHER; PL,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 16.674 ID=8.4	9-09160-508-0	02	1	0108-	●	●
57	04.592 BUSHING; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 04.439	5-33659-053-0	02	1	0108-	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0108-	●	●
59	04.765 BRACKET; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94479-094-0	01	1	0108-	●	●
63	04.792 LEVER; RELAY,HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94324-632-0	01	1	0108-	●	●
65	04.594 NUT; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 09.011 M10	9-09110-410-0	01	1	0108-	●	●
66	04.592 WASHER; LK,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 00.002 ID=10.2	9-09150-510-0	01	1	0108-	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR EXC. PARKING BRAKE FLOOR<7XW>	8-94404-908-1	01	1	0108-	●	●
69	04.589 ROD; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94314-430-0	01	1	0108-	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE EXC. PARKING BRAKE FLOOR<7XW> 00.787 M8	9-09111-408-0	02	1	0108-	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO EXC. PARKING BRAKE FLOOR<7XW> 03.302	8-94479-600-2	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97217-149-1	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97174-665-2	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1850 WHITE	8-94367-286-0	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1604	8-94366-770-2	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1684	8-94366-769-2	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	0108-			●	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-565-3	01	1	0108-			●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> 05.601	8-11042-301-3	01	1	0108-	●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0108-	●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0108-	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0108-			●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	0108-	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	0108-	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	0108-	●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0108-	●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0108-	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	0108-			●	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	0108-			●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-002-0	01	1	0108-			●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-001-0	01	1	0108-			●	●	●
205	04.785 CLIP; 3RD C/MBR EXC. PARKING BRAKE FLOOR<7XW> 04.681	5-09709-039-0	02	1	0108-	●	●
344	04.595 GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW> 00.833	8-94322-995-0	01	1	0108-	●	●

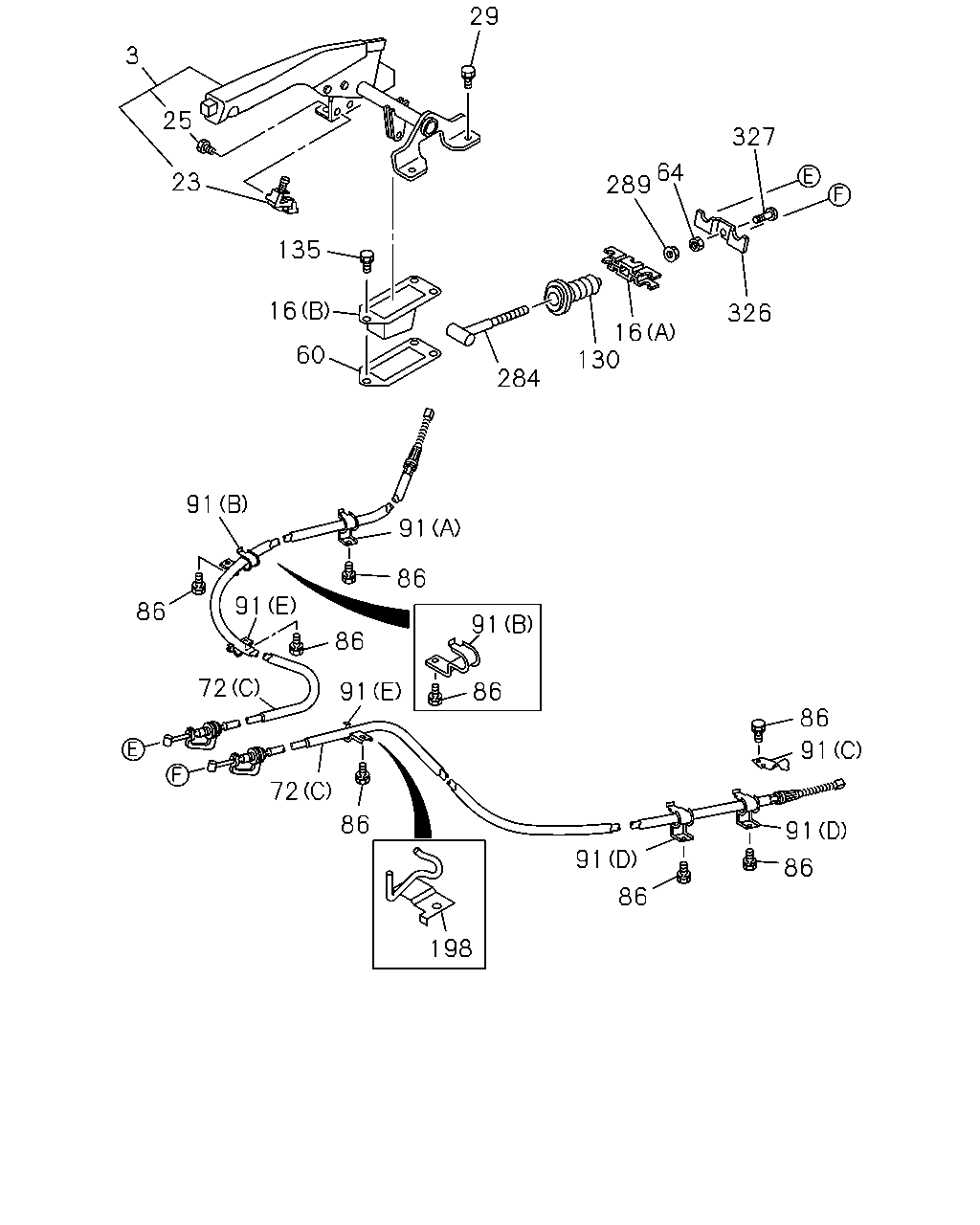

29 3 25 327 64 289 23 135 16 326 16 130 60 284 91 91 86 91 86 91 86 72 91 86 86 91 72 86 91 91 86 86 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	04.591 LEVER; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97207-661-0	01	1	0108-	●	●
3	04.591 LEVER; PARKING BRK	8-97207-661-0	01	1	0108-			●	●	●
16	04.591 BRACKET; PARKING BRK PARKING BRAKE FLOOR<7XW> (A)	8-97142-956-2	01	1	0108-	●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	0108-			●	●	●
16	04.591 BRACKET; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-97177-857-0	01	1	0108-	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	0108-			●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97031-820-0	01	1	0108-	●	●
23	04.589 SWITCH; PARKING BRK	8-97031-820-0	01	1	0108-			●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> 12V	9-82750-367-0	01	1	0108-	●	●
25	04.589 SCREW; SW,PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97103-556-0	01	1	0108-	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	0108-			●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0108-	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0108-			●	●	●
60	04.595 GASKET; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97046-789-1	01	1	0108-	●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	0108-			●	●	●
64	04.595 NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> 02.559 M8	9-09110-408-0	01	1	0108-	●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	0108-			●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97217-149-1	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97174-665-2	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1850 WHITE	8-94367-286-0	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1604	8-94366-770-2	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1684	8-94366-769-2	01	1	0108-	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	0108-			●	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-565-3	01	1	0108-			●	●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0108-	●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0108-	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0108-			●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	0108-	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	0108-	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	0108-	●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0108-	●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	0108-	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	0108-			●	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	0108-			●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	0108-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-002-0	01	1	0108-			●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-001-0	01	1	0108-			●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER PARKING BRAKE FLOOR<7XW>	8-97142-954-0	01	1	0108-	●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	0108-			●	●	●
135	04.591 BOLT; PARKING BRK BRKT PARKING BRAKE FLOOR<7XW> 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	0108-	●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	0108-			●	●	●
198	04.785 BRACKET; CABLE PARKING BRAKE FLOOR<7XW>	8-97217-152-0	01	1	0108-	●	●
284	04.595 ROD; HAND BRK PARKING BRAKE FLOOR<7XW>	8-97161-636-1	01	1	0108-	●	●
284	04.595 ROD; HAND BRK	8-97161-636-1	01	1	0108-			●	●	●
289	04.594 NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-	●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-			●	●	●
326	04.785 RETAINER; PARK CABLE PARKING BRAKE FLOOR<7XW>	8-97024-708-0	01	1	0108-	●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	0108-			●	●	●
327	04.785 BOLT; RETAINER PARKING BRAKE FLOOR<7XW> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-	●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-			●	●	●

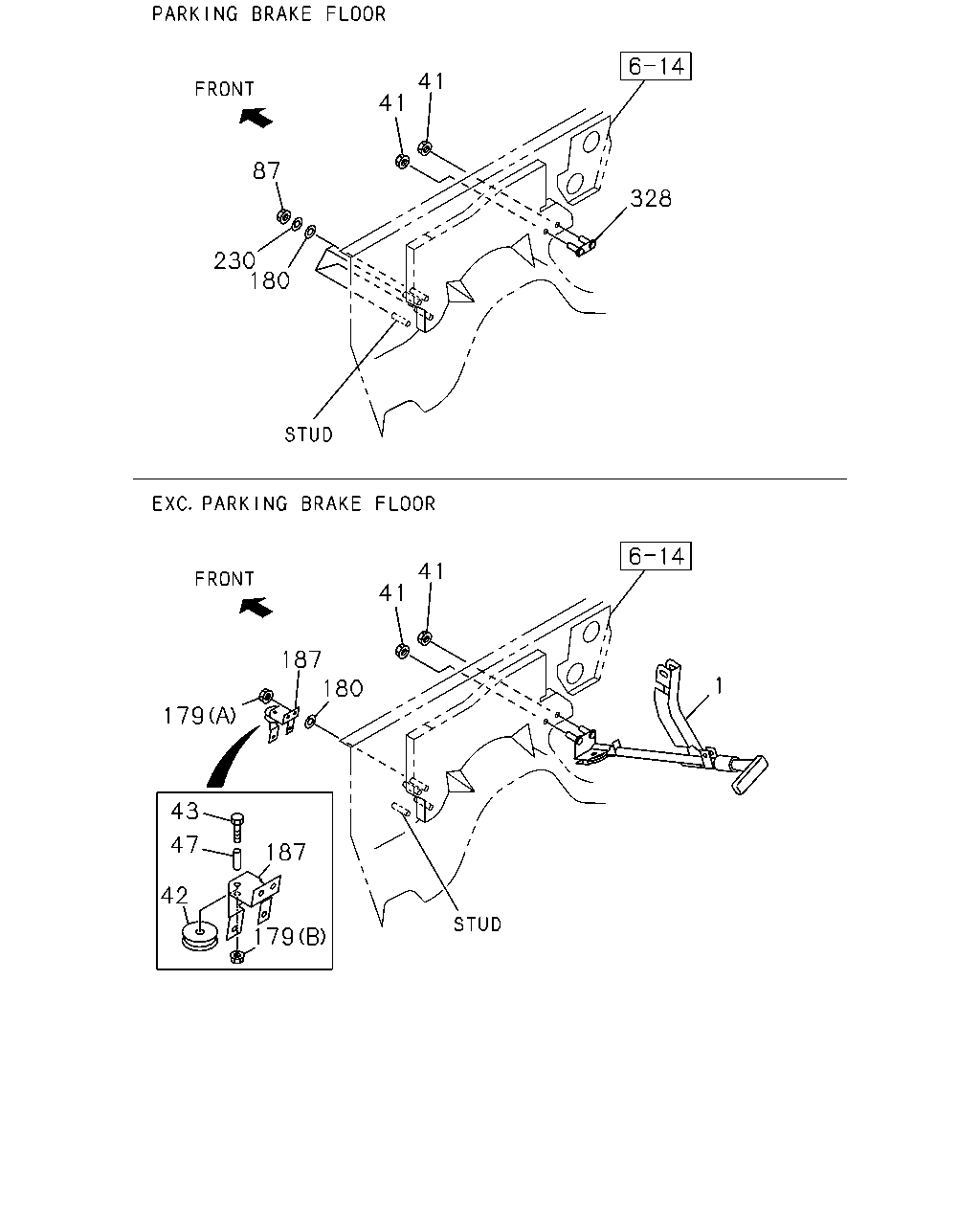

41 41 87 328 230 180 41 41 187 1 180 179 43 47 187 42 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97131-922-0	01	1	0108-	●	●
41	04.592 NUT; HAND BRK STEM 00.854 M8 FLANGE	5-09440-005-0	02	1	0108-	●	●	●	●	●
42	04.785 ROLLER; PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW>	8-94341-286-0	01	1	0108-	●	●
43	04.790 BOLT; ROLLER,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0108-	●	●
47	04.790 COLLAR; ROLLER,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW>	9-46129-013-1	01	1	0108-	●	●
87	04.785 NUT PARKING BRAKE FLOOR<7XW> 07.633 M8 FLANGE	0-91150-108-0	04	1	0108-	●	●
87	04.785 NUT 07.633 M8 FLANGE	0-91150-108-0	04	1	0108-			●	●	●
179	04.790 NUT; ROLLER,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	0108-	●	●
179	04.790 NUT; ROLLER,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 02.559 (B) M8	9-09110-408-0	01	1	0108-	●	●
180	04.591 GASKET; ROLLER BRKT,PARKING BRK	8-94334-899-1	04	1	0108-	●	●	●	●	●
187	04.606 BRACKET; HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94479-103-0	01	1	0108-	●	●
230	04.595 WASHER; PL PARKING BRAKE FLOOR<7XW> 06.760 ID=8.4 OD=22	9-09160-708-0	04	1	0108-	●	●
230	04.595 WASHER; PL 06.760 ID=8.4 OD=22	9-09160-708-0	04	1	0108-			●	●	●
328	04.784 PLATE; SEAL PARKING BRAKE FLOOR<7XW>	8-97069-885-1	01	1	0108-	●	●
328	04.784 PLATE; SEAL	8-97069-885-1	01	1	0108-			●	●	●
