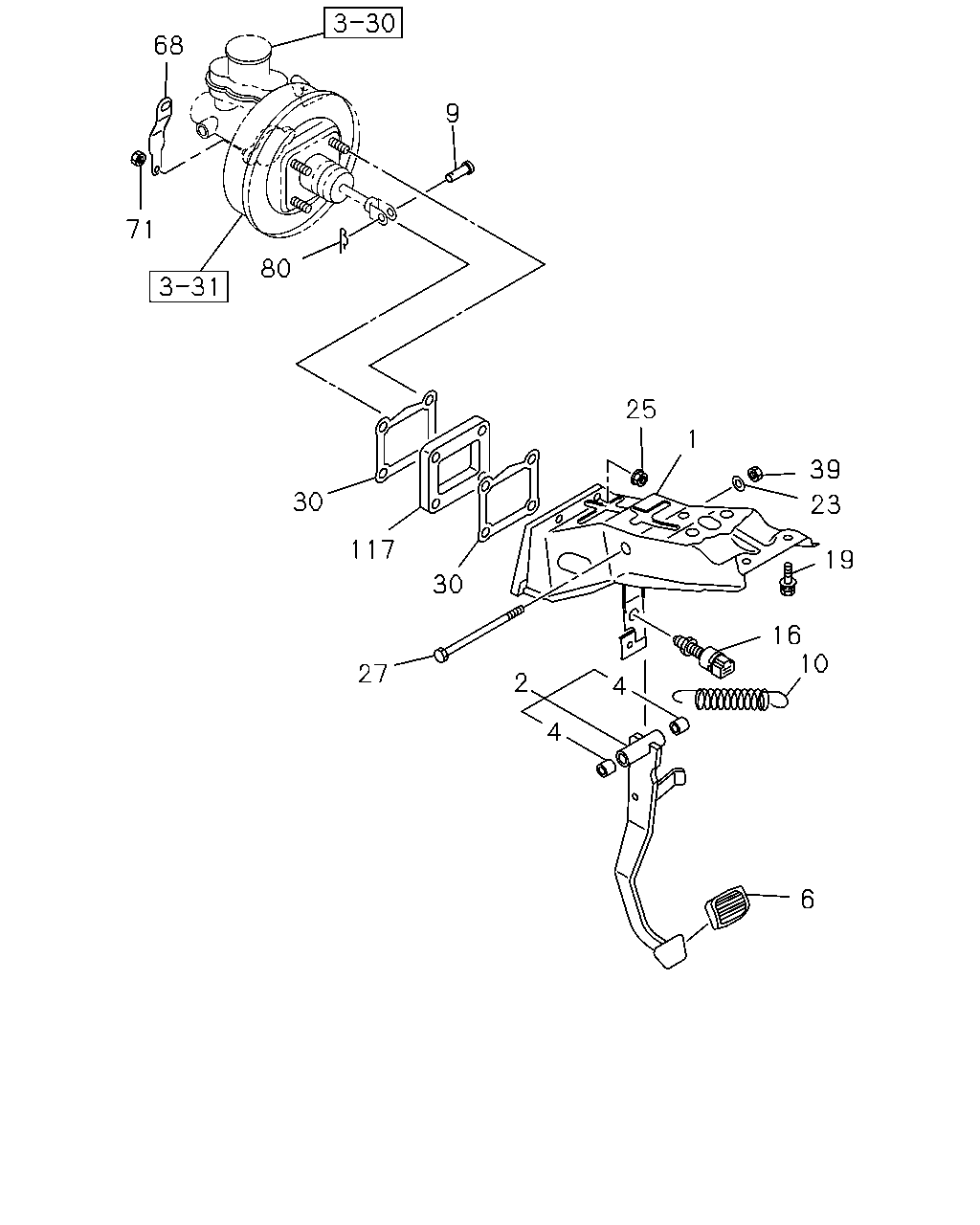

3-10 — BRAKE PEDAL AND CONTROL
(#20932) — 19 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5CF
D - TFS5SF
E - TFS5WF
68
9
71
80
25
1
39
30
23
117
19
30
16
10
27
2
4
4
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
04.634 BRACKET ASM; PEDAL
8-97134-254-3
01
1
0108-
●
●
●
●
●
2
04.625 PEDAL; BRK
8-97100-339-2
01
1
0108-
●
●
●
●
●
4
04.634 BUSHING; BRK PEDAL
00.833
8-94244-439-0
02
1
0108-
●
●
●
●
●
6
04.630 COVER; BRK PEDAL
8-94222-524-1
01
1
0108-
●
●
●
●
●
9
04.634 PIN; JAW JOINT
04.662
8-94250-182-0
01
1
0108-
●
●
●
●
●
10
04.639 SPRING; RETURN,BRK PEDAL
8-94329-696-0
01
1
0108-
●
●
●
●
●
16
02.447 SWITCH; STOP LAMP
CHARGE AIR COOLER<6PL>
8-94109-863-0
01
1
0108-
●
●
●
●
16
02.447 SWITCH; STOP LAMP
EXC. CHARGE AIR COOLER<6PL> 12V 12A
8-94362-930-0
01
1
0108-
●
●
●
●
16
02.447 SWITCH; STOP LAMP
12V 12A
8-94362-930-0
01
1
0108-
●
19
04.634 BOLT; BRKT
01.062 M8X16 FLANGE
0-28080-816-0
05
1
0108-
●
●
●
●
●
23
04.634 WASHER; LK,SHAFT
00.002 ID=10.2
9-09150-510-0
01
1
0108-
●
●
●
●
●
25
04.634 NUT; FLANGE,MTG BRKT TO BODY
00.854 M8 FLANGE
5-09440-005-0
04
1
0108-
●
●
●
●
●
27
04.634 SHAFT; BRK PEDAL
8-94480-803-0
01
1
0108-
●
●
●
●
●
30
04.910 GASKET; M/VAC TO BODY
8-94111-590-0
02
1
0108-
●
●
●
●
●
39
04.634 NUT; STOPPER LK
09.011 M10
9-09110-410-0
01
1
0108-
●
●
●
●
●
68
04.634 BRACKET; SERVO TO DASH PANEL
8-97061-908-0
01
1
0108-
●
●
●
●
●
71
04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER
8-94279-050-0
02
1
0108-
●
●
●
●
●
80
04.634 PIN; SNAP,BRK PEDAL
L=27.7
8-94157-841-0
01
1
0108-
●
●
●
●
●
117
04.910 SPACER; M/VAC TO BODY
8-94126-762-0
01
1
0108-
●
●
●
●
●
