3-34 — BRAKE VALVE; AIR (#2093) — 132 parça

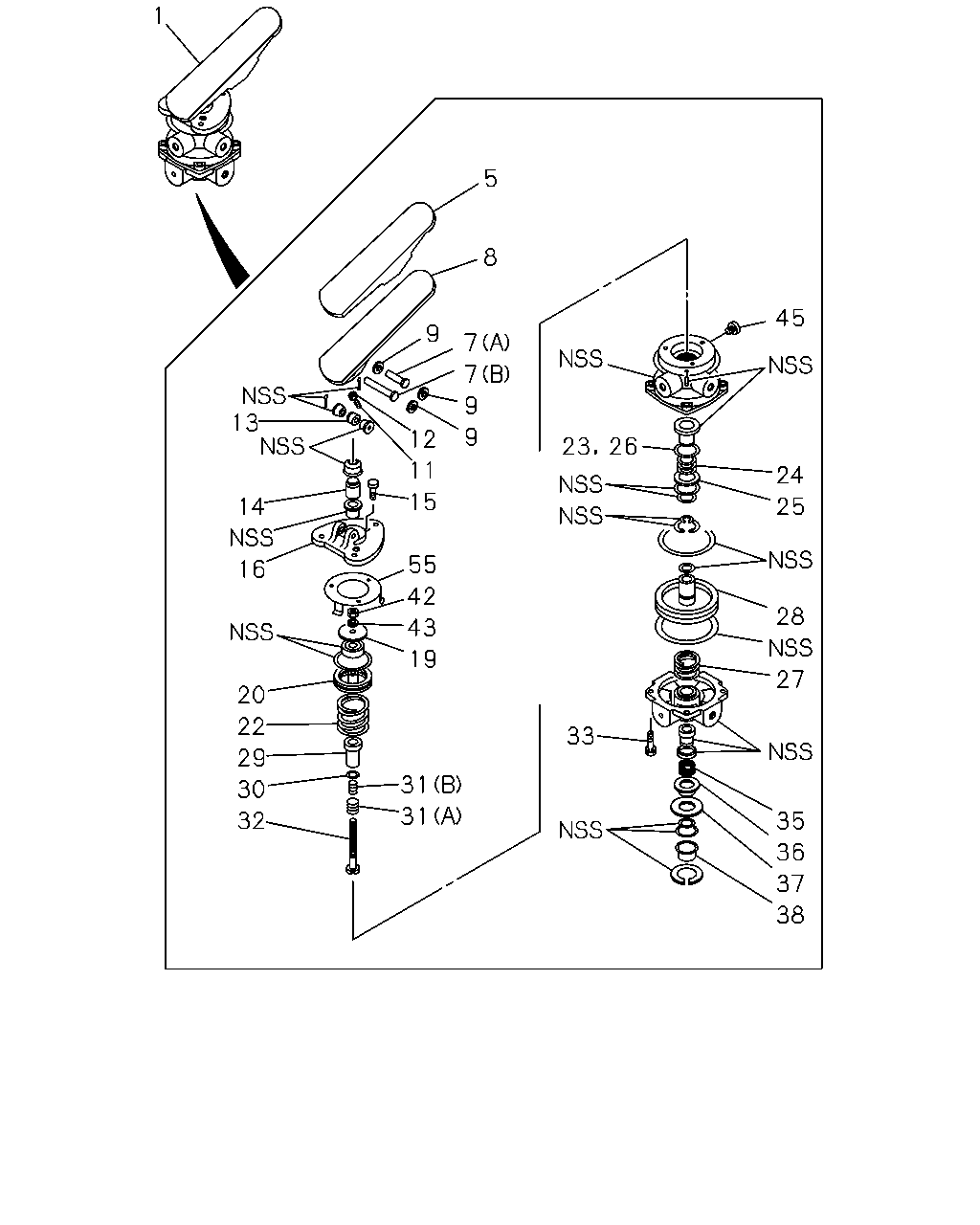

çizim 27335
1 5 8 45 9 7 7 13 9 9 12 23 26 11 24 15 14 25 55 16 42 28 43 19 27 20 22 33 29 31 30 31 32 35 36 37 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 1-48100-662-0 01 1 9001-9204 ●
1 VALVE; BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48100-662-0 01 1 9001-9204 ●
1 VALVE; BRK 1-48100-662-1 01 1 9205-9404 ● ●
1 VALVE; BRK 1-48100-599-2 01 1 9405-0101 ● ●
1 VALVE; BRK 1-48100-832-0 01 1 0102- ● ●
5 COVER; PEDAL,BRK VLV 1-48119-105-0 01 1 9001-9204 ●
5 COVER; PEDAL,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-105-0 01 1 9001-9204 ●
5 COVER; PEDAL,BRK VLV 1-48119-105-0 01 1 9205-9404 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-201-0 01 1 9405-0101 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0102- ● ●
7 PIN; PEDAL,BRK VLV
(A) 		1-48119-098-0 01 1 9001-9204 ●
7 PIN; PEDAL,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48119-098-0 01 1 9001-9204 ●
7 PIN; PEDAL,BRK VLV
(A) 		1-48119-098-0 01 1 9205-0101 ● ●
7 PIN; PEDAL,BRK VLV
(A),(B) 		1-48119-431-0 02 1 0102- ● ●
7 PIN; PEDAL,BRK VLV
(B) 		1-48119-102-0 01 1 9001-9204 ●
7 PIN; PEDAL,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48119-102-0 01 1 9001-9204 ●
7 PIN; PEDAL,BRK VLV
(B) 		1-48119-102-0 01 1 9205-0101 ● ●
8 PEDAL; BRK VLV 1-48119-200-0 01 1 9001-9204 ●
8 PEDAL; BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-200-0 01 1 9001-9204 ●
8 PEDAL; BRK VLV 1-48119-200-0 01 1 9205-0101 ● ●
8 PEDAL; BRK VLV 1-48119-428-0 01 1 0102- ● ●
9 WASHER; PIN,BRK VLV
ID=10.5 		9-09164-510-0 03 1 9001-9204 ●
9 WASHER; PIN,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5 		9-09164-510-0 03 1 9001-9204 ●
9 WASHER; PIN,BRK VLV
ID=10.5 		9-09164-510-0 03 1 9205-0101 ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 9001-9204 ●
11 SCREW; SET,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-003-1 01 1 9001-9204 ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 9205-0101 ● ●
11 SCREW; SET,BRK VLV 1-48119-570-0 01 1 0102- ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9001-9204 ●
12 NUT; SCREW,PEDAL,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-88510-123-0 01 1 9001-9204 ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9205- ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-031-0 01 1 9001-9204 ●
13 ROLLER; PEDAL,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-031-0 01 1 9001-9204 ●
13 ROLLER; PEDAL,BRK VLV 1-48119-031-0 01 1 9205-0101 ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0102- ● ●
14 PLUNGER; BRK VLV 1-48119-203-0 01 1 9001-9204 ●
14 PLUNGER; BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-203-0 01 1 9001-9204 ●
14 PLUNGER; BRK VLV 1-48119-203-0 01 1 9205-0101 ● ●
14 PLUNGER; BRK VLV 1-48119-571-0 01 1 0102- ● ●
15 BOLT; PLATE,BRK VLV 1-48129-039-0 03 1 9001-9204 ●
15 BOLT; PLATE,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-039-0 03 1 9001-9204 ●
15 BOLT; PLATE,BRK VLV 1-48129-039-0 03 1 9205-0101 ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 0102- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-099-0 01 1 9001-9204 ●
16 PLATE; MTG,BRKT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-099-0 01 1 9001-9204 ●
16 PLATE; MTG,BRKT VLV 1-48119-099-0 01 1 9205-9307 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9308-0101 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0102- ● ●
19 SEAT; SPRING,BRK VLV 1-48123-017-0 01 1 9001-9204 ●
19 SEAT; SPRING,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48123-017-0 01 1 9001-9204 ●
19 SEAT; SPRING,BRK VLV 1-48123-017-0 01 1 9205-0101 ● ●
19 SEAT; SPRING,BRK VLV 1-48123-092-0 01 1 0102- ● ●
20 PISTON; UPR,BRK VLV 1-48119-092-0 01 1 9001-9204 ●
20 PISTON; UPR,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-092-0 01 1 9001-9204 ●
20 PISTON; UPR,BRK VLV 1-48119-092-0 01 1 9205-0101 ● ●
20 PISTON; UPR,BRK VLV 1-48119-546-0 01 1 0102- ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-002-0 01 1 9001-9204 ●
22 SPRING; PISTON,LWR,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48143-002-0 01 1 9001-9204 ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-002-0 01 1 9205-0101 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 0102- ● ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 0102- ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9001-9204 ●
24 SPRING; UPR,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48123-018-0 01 1 9001-9204 ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9205- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9001-9204 ●
25 WASHER; PISTON,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-287-0 01 1 9001-9204 ●
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9205-0101 ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 0102- ● ●
26 RETAINER; VLV,BRK VLV 1-48129-139-0 01 1 9001-9204 ●
26 RETAINER; VLV,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-139-0 01 1 9001-9204 ●
26 RETAINER; VLV,BRK VLV 1-48129-139-0 01 1 9205-0101 ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-020-0 01 1 9001-9204 ●
27 SPRING; PISTON,LWR,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48123-020-0 01 1 9001-9204 ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-020-0 01 1 9205-9404 ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9405- ● ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9001-9204 ●
28 PISTON; LWR,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-140-0 01 1 9001-9204 ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9205-0101 ● ●
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0102- ● ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9001-9204 ●
29 SLEEVE; VLV,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-083-1 01 1 9001-9204 ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9205- ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9001-9204 ●
30 WASHER; SLEEVE,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-082-0 01 1 9001-9204 ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9205- ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9001-9204 ●
31 SPRING; VLV,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48123-032-0 01 1 9001-9204 ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9205- ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9001-9204 ●
31 SPRING; VLV,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48123-033-0 01 1 9001-9204 ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9205- ● ●
32 SCREW; BRK VLV 1-48129-081-1 01 1 9001-9204 ●
32 SCREW; BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-081-1 01 1 9001-9204 ●
32 SCREW; BRK VLV 1-48129-081-1 01 1 9205-0101 ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9001-9204 ●
33 BOLT; BODY,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-213-0 04 1 9001-9204 ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9205-9404 ● ●
33 BOLT; BODY,BRK VLV 1-48119-212-0 04 1 9405- ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9001-9204 ●
35 SPRING; VLV,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48123-019-0 01 1 9001-9204 ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9205- ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-143-0 01 1 9001-9204 ●
36 RETAINER; GASKET,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-143-0 01 1 9001-9204 ●
36 RETAINER; GASKET,BRK VLV 1-48129-143-0 01 1 9205-0101 ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-144-0 01 1 0102- ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9001-9204 ●
37 WASHER; VLV LWR,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-080-0 01 1 9001-9204 ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9205- ● ●
38 COVER; EXH,BRK VLV 1-48119-093-0 01 1 9001-9204 ●
38 COVER; EXH,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-093-0 01 1 9001-9204 ●
38 COVER; EXH,BRK VLV 1-48119-093-0 01 1 9205-9404 ● ●
42 NUT; SPR SEAT,BRK VLV 1-48129-069-0 01 1 9001-9204 ●
42 NUT; SPR SEAT,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-069-0 01 1 9001-9204 ●
42 NUT; SPR SEAT,BRK VLV 1-48129-069-0 01 1 9205-0101 ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48129-002-0 01 1 9001-9204 ●
43 WASHER; SPR SEAT,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-002-0 01 1 9001-9204 ●
43 WASHER; SPR SEAT,BRK VLV 1-48129-002-0 01 1 9205-9404 ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48149-002-0 01 1 9405-0101 ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48419-002-0 01 1 0102- ● ●
45 CONNECTOR; UPR,BRK VLV 1-48119-025-0 01 1 9001-9204 ●
45 CONNECTOR; UPR,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-025-0 01 1 9001-9204 ●
45 CONNECTOR; UPR,BRK VLV 1-48119-025-0 01 1 9205-9307 ● ●
55 RETAINER; PLATE,BRK VLV 1-48119-026-0 01 1 9001-9204 ●
55 RETAINER; PLATE,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-026-0 01 1 9001-9204 ●
55 RETAINER; PLATE,BRK VLV 1-48119-026-0 01 1 9205-0101 ● ●

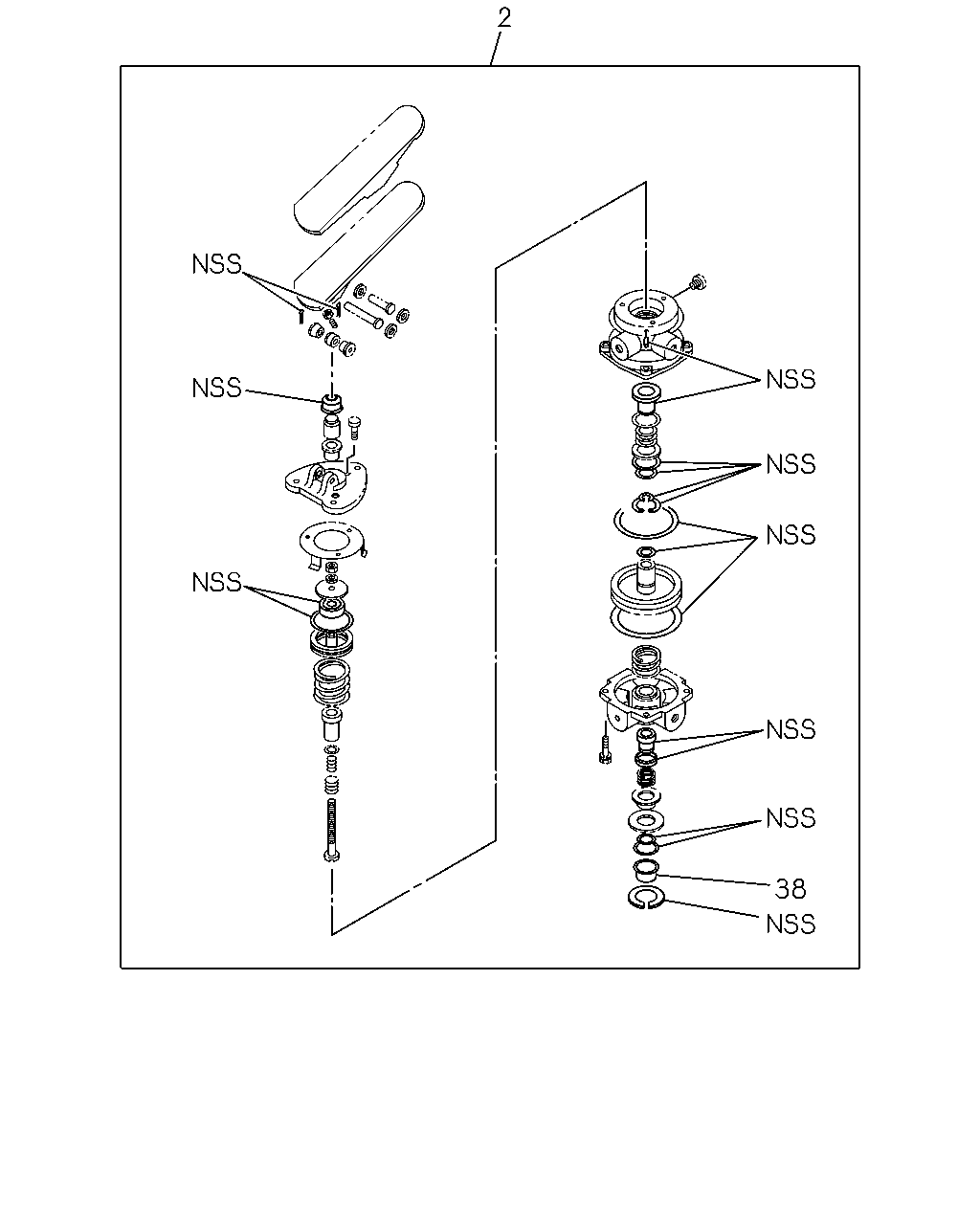

çizim 29022
2 38
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 1-48119-307-0 01 1 9001-9204 ●
2 REPAIR KIT; BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-307-0 01 1 9001-9204 ●
2 REPAIR KIT; BRK VLV 1-48119-307-0 01 1 9205-0101 ● ●
2 REPAIR KIT; BRK VLV 1-85576-292-0 01 1 0102- ● ●
38 COVER; EXH,BRK VLV 1-48119-093-0 01 1 9001-9204 ●
38 COVER; EXH,BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48119-093-0 01 1 9001-9204 ●
38 COVER; EXH,BRK VLV 1-48119-093-0 01 1 9205-9404 ● ●
