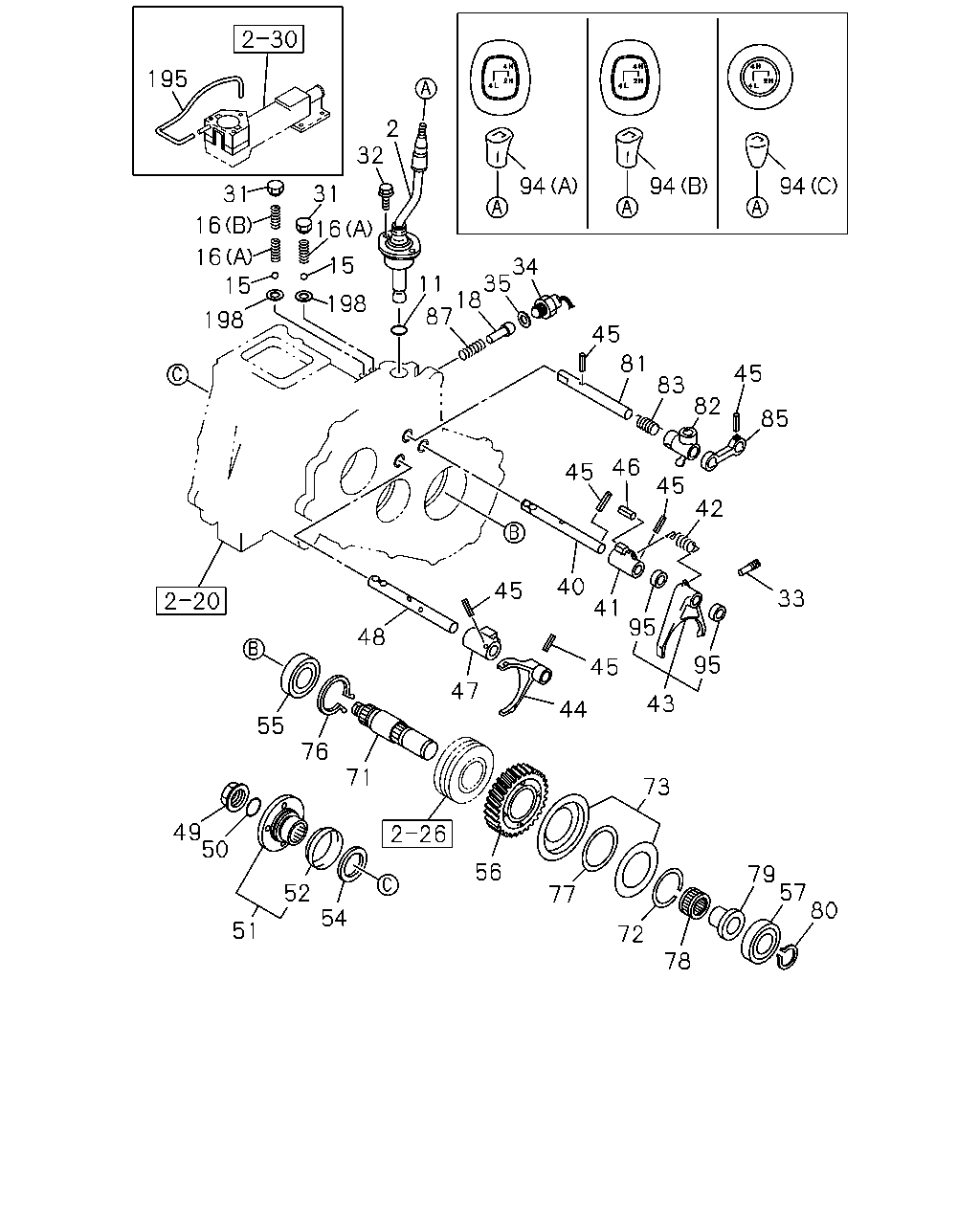

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#20929) — 55 parça

195 2 32 94 94 94 31 31 16 16 16 15 34 35 18 87 11 15 198 198 45 81 45 83 82 85 46 45 45 42 40 41 45 33 95 48 95 45 47 43 44 55 76 71 73 49 50 56 79 57 80 52 77 54 51 72 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	04.570 LEVER ASM; CHANGE,TRANSFER	8-97217-562-3	01	1	0108-	●	●	●
11	04.570 GASKET; CHANGE LEVER 04.435 ID=33.2	1-09623-378-0	01	1	0108-	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER	8-94435-335-0	02	1	0108-	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE 04.311 (A) L=26.8	8-94320-193-0	02	1	0108-	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE (B) L=23.2	8-97241-351-0	01	1	0108-	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF	8-94461-898-0	01	1	0108-	●	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER M12X9	9-99202-312-0	02	1	0108-	●	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0108-	●	●	●
33	04.557 SCREW; STOPPER,TRANSFER M6X18	8-94448-812-2	01	1	0108-	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR	8-97138-632-1	01	1	0108-	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0108-	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER	8-97070-675-2	01	1	0108-	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER	8-97033-094-2	01	1	0108-	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF L=30	8-94422-188-0	01	1	0108-	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER	8-97100-915-2	01	1	0108-	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER	8-94421-922-3	01	1	0108-	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD D=4.2 L=25	8-94171-541-0	06	1	0108-	●	●	●
46	04.555 PIN; SPR,SELECT LEVER	8-94448-816-1	01	1	0108-	●	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97141-883-1	01	1	0108-	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER	8-97182-406-1	01	1	0108-	●	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	0108-	●	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP	8-94483-035-0	01	1	0108-	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN	8-94453-699-7	01	1	0108-	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE	8-94320-867-3	01	1	0108-	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE NOK	8-97046-703-2	01	1	0108-	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR NSK	8-94422-172-1	01	1	0108-	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=49	8-97126-101-1	01	1	0108-	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR NSK	8-94422-052-0	01	1	0108-	●	●	●
71	05.555 SHAFT; TRANSFER OUTPUT	8-94377-437-5	01	1	0108-	●	●	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O	8-94482-501-0	01	1	0108-	●	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE	8-97164-346-0	01	1	0108-	●	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER OD=77.0	8-94422-092-0	01	1	0108-	●	●	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA	8-94482-499-0	01	1	0108-	●	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE 04.419 NSK	8-94422-064-0	01	1	0108-	●	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE 04.419 KOYO	8-94422-065-1	01	1	0108-	●	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER 04.419	8-94422-076-1	01	1	0108-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.55 WHITE	8-94422-180-0	01	1	0108-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.60 YELLOW	8-94422-181-0	01	1	0108-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.65 BLUE	8-94422-182-0	01	1	0108-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.70 PINK	8-94422-183-0	01	1	0108-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.75 GREEN	8-94422-184-0	01	1	0108-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.80 BROWN	8-94422-185-0	01	1	0108-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.85 RED	8-94422-186-0	01	1	0108-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER T=1.90 ORANGE	8-94422-187-0	01	1	0108-	●	●	●
81	04.309 ROD; TRANSFER SELECT	8-94370-499-2	01	1	0108-	●	●	●
82	04.555 BLOCK; TRANSFER	8-97033-092-1	01	1	0108-	●	●	●
83	04.515 SPRING; SELECT	8-94462-235-0	01	1	0108-	●	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER	8-97128-522-0	01	1	0108-	●	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER	8-94461-897-0	01	1	0108-	●	●	●
94	04.570 KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> (B) BLACK	8-97096-174-0	01	1	0108-	●	●	●
94	04.570 KNOB; TRANSFER LEVER SHIFT KNOB DELUXE<S2Y> EXC. LEATHER GRIP PACKAGE<7GZ> 04.006 (A) BLACK	8-94453-161-1	01	1	0108-	●	●	●
94	04.570 KNOB; TRANSFER LEVER EXC. SHIFT KNOB DELUXE<S2Y>,LEATHER GRIP PACKAGE<7GZ> 04.006 (C)	8-94473-779-0	01	1	0108-	●	●	●
95	04.570 BUSHING	8-97103-115-0	02	1	0108-	●	●	●
195	04.510 HOSE; AIR	8-97172-683-0	01	1	0108-	●	●	●
198	04.520 GASKET; PLUG,DETENT 01.531 ID=12.2	1-09630-084-0	02	1	0108-	●	●	●
