◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#20926) — 12 parça

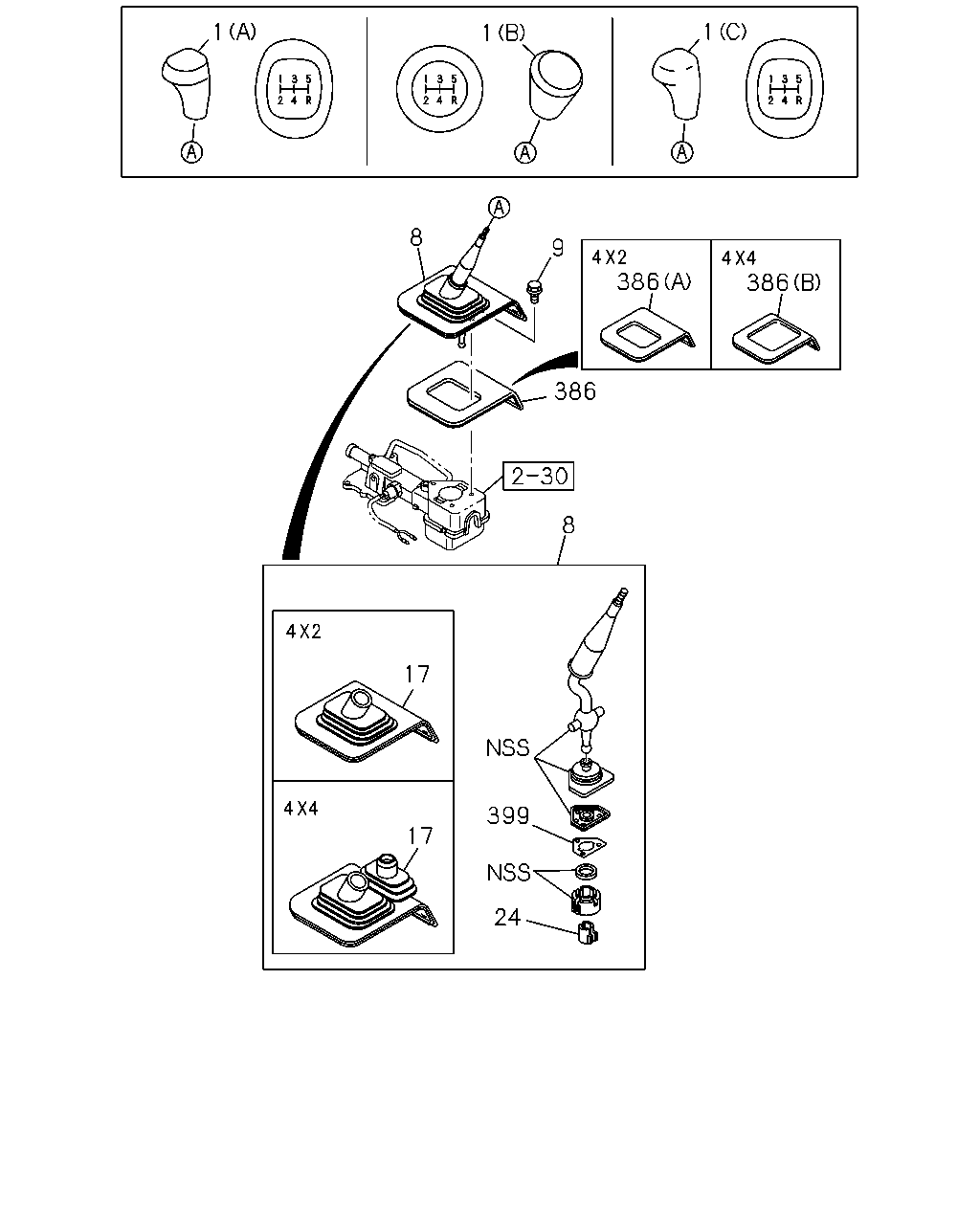

çizim 53132
1 1 1 8 9 386 386 386 8 17 399 17 24
BalonParca AdiParca NoAdetTipApplied Date
1 04.006 KNOB; CHANGE LEVER
LEATHER GRIP PACKAGE<7GZ> (C) 		8-97205-550-0 01 1 0108-
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB DELUXE<S2Y> EXC. LEATHER GRIP PACKAGE<7GZ> (A) 		8-94453-174-1 01 1 0108-
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB DELUXE<S2Y>,LEATHER GRIP PACKAGE<7GZ> (B) 		8-94473-778-0 01 1 0108-
8 04.006 LEVER; CHANGE
4X2(TFB***) 		8-97031-496-7 01 1 0108-
8 04.006 LEVER; CHANGE
4X4(TFS***) 		8-97031-498-7 01 1 0108-
9 04.012 BOLT; CHANGE LEVER
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0108-
17 04.015 GROMMET; TRANS SHIFT LEVER
4X2(TFB***) 		8-94338-050-1 01 1 0108-
17 04.015 GROMMET; TRANS SHIFT LEVER
4X4(TFS***) 		8-94338-051-1 01 1 0108-
24 04.008 BUSHING; CHANGE LEVER
4X4(TFS***) 04.570 		8-94442-099-0 01 1 0108-
386 04.015 INSULATION; CHANGE LEVER
4X2(TFB***) (A) 		8-97023-481-0 01 1 0108-
386 04.015 INSULATION; CHANGE LEVER
4X4(TFS***) (B) 		8-97023-480-0 01 1 0108-
399 04.012 GASKET; CHANGE LEVER
4X4(TFS***) 		8-94462-360-0 01 1 0108-0109
