2-30 — GEAR SHIFTER AND QUADRANT BOX (#20925) — 53 parça

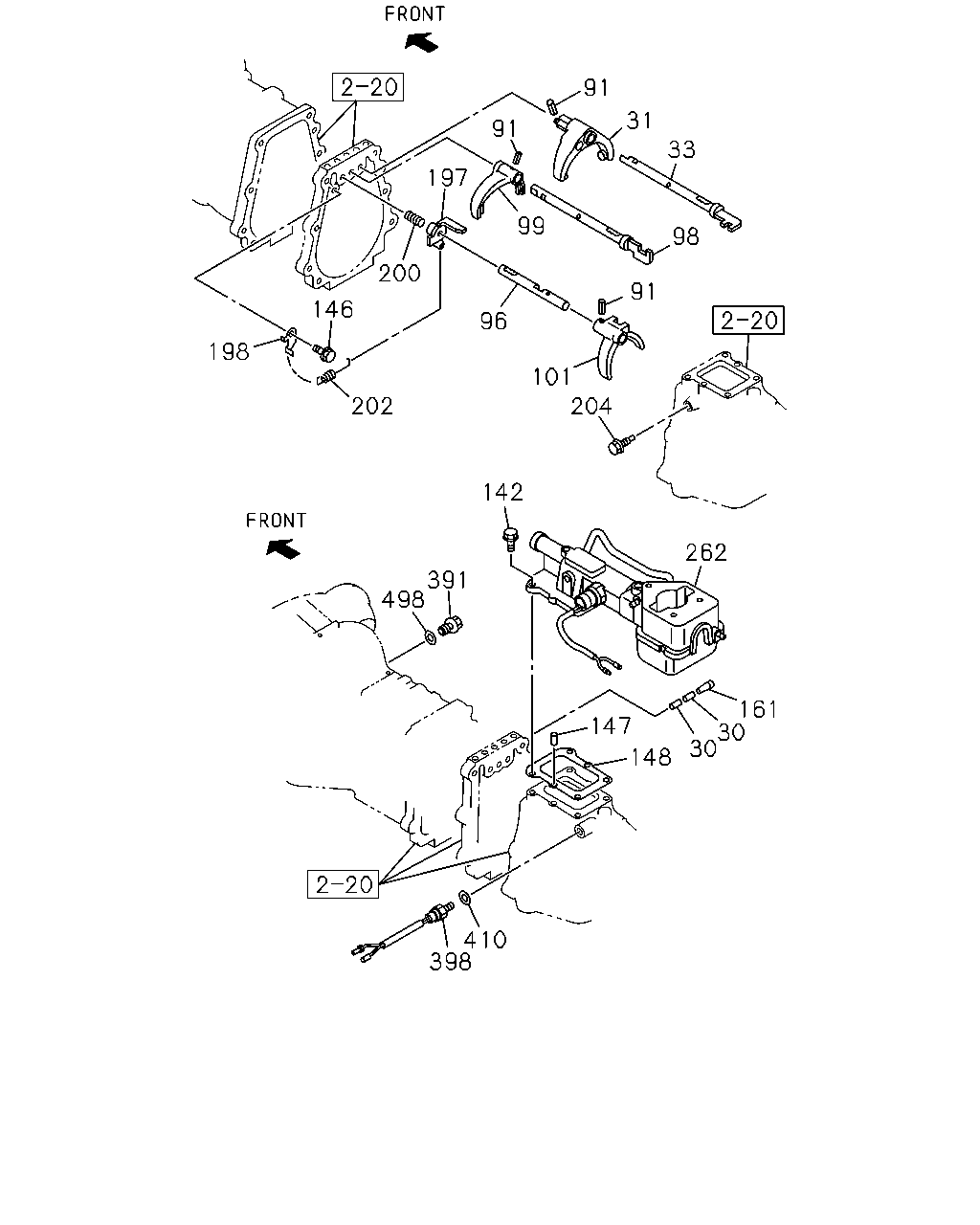

çizim 53235
91 31 91 33 197 99 98 200 91 146 96 198 101 202 204 142 262 391 498 161 30 30 147 148 410 398
BalonParca AdiParca NoAdetTipApplied Date
30 04.307 PIN; INTER LK 5-33534-002-1 02 1 0108-
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 0108-
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0108-
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 0108-
96 04.309 ROD; SHIFT,5TH 8-94440-079-1 01 1 0108-
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0108-
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0108-
101 04.302 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0108-
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0108-
146 04.032 BOLT; REV INHIBITOR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 0108-
147 04.020 PIN; KNOCK
4X2(TFB***) 04.510 OD=6 L=12 		9-08150-612-0 02 1 0108-
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0108-
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0108-
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 0108-
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 0108-
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 0108-
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 0108-
204 04.309 STOPPER; REV INHIBITOR 8-94479-434-2 01 1 0108-
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 4JG2 ENG(RJC) 		8-97358-140-0 01 1 0306-
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97358-139-0 01 1 0310-
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) 		8-97257-823-0 01 1 0108-0309
262 04.105 BOX ASM; SHIFT CONT
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97357-583-0 01 1 0310-
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC) 		8-97257-822-0 01 1 0108-0305
262 04.105 BOX ASM; SHIFT CONT
4X4(TFS***) 4JG2 ENG(RJC) 		8-97357-584-0 01 1 0306-
262 04.105 BOX ASM; SHIFT CONT
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97357-584-0 01 1 0306-
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 0108-
398 02.698 SWITCH; REV LAMP 8-97138-635-0 01 1 0108-
410 04.054 GASKET; REV SW
08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0108-
498 04.075 GASKET; SWITCH,1ST & 2ND
08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0108-

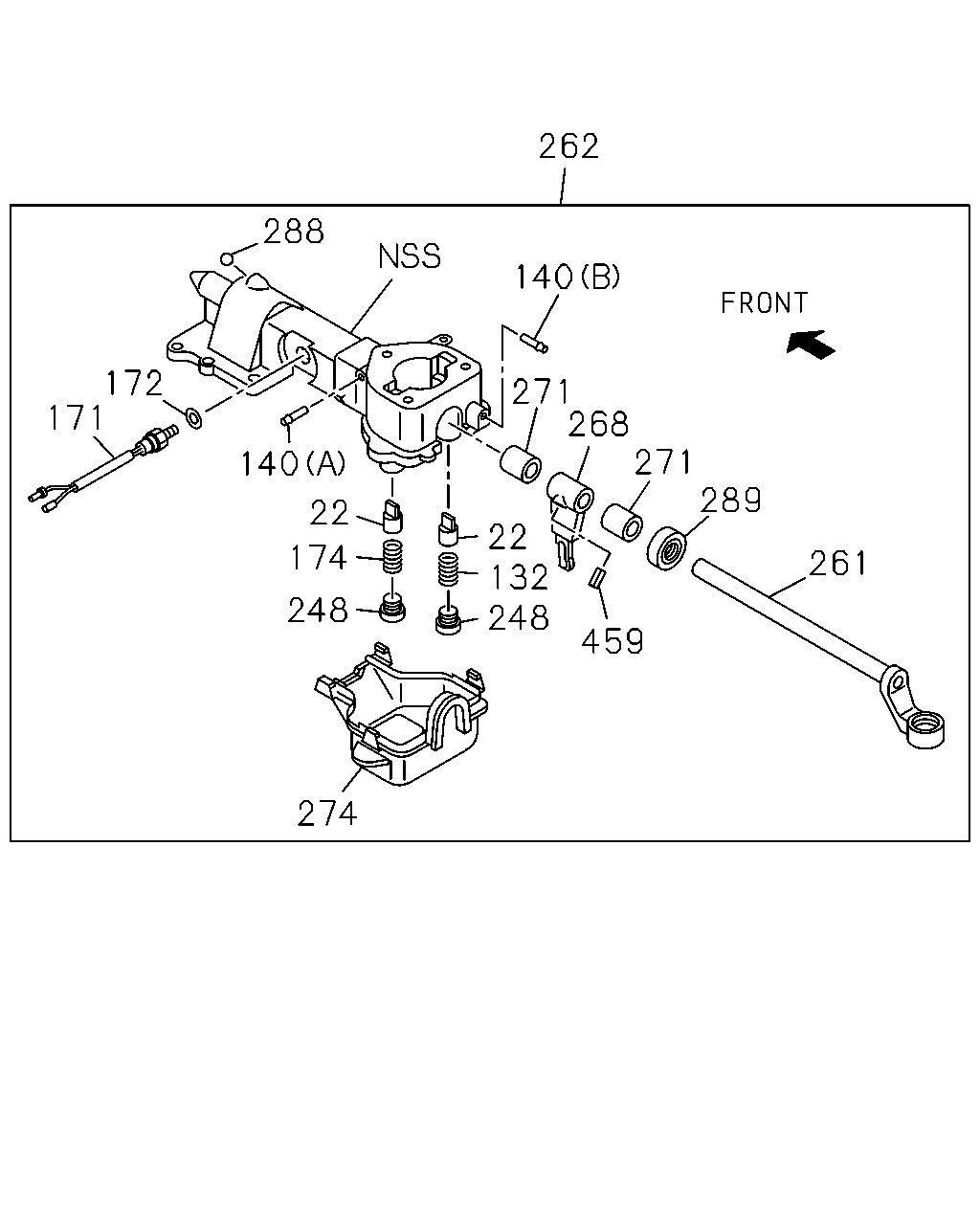

çizim 53528
262 288 140 172 171 271 268 271 289 140 22 22 132 248 174 261 248 459 274
BalonParca AdiParca NoAdetTipApplied Date
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0108-
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0108-
140 04.104 BREATHER; AIR,TRANS
04.510 (A) 		8-97173-544-0 01 1 0108-
140 04.104 BREATHER; AIR,TRANS
04.510 (B) 		8-97173-545-0 01 1 0108-0305
140 04.104 BREATHER; AIR,TRANS
4JA1 ENG(RLE) 04.510 (B) 		8-97173-545-0 01 1 0306-0309
171 04.054 SWITCH; NEUTRAL
4JA1 ENG(RLE) 		8-97138-631-0 01 1 0108-
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE) 04.075 ID=14.2 		8-94462-114-0 01 1 0108-
174 04.307 SPRING; REV 8-97181-394-0 01 1 0108-
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0108-
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) 		8-97257-909-0 01 1 0108-
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC) 		8-97257-825-0 01 1 0108-
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 4JG2 ENG(RJC) 		8-97358-140-0 01 1 0306-
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97358-139-0 01 1 0310-
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) 		8-97257-823-0 01 1 0108-0309
262 04.105 BOX ASM; SHIFT CONT
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97357-583-0 01 1 0310-
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC) 		8-97257-822-0 01 1 0108-0305
262 04.105 BOX ASM; SHIFT CONT
4X4(TFS***) 4JG2 ENG(RJC) 		8-97357-584-0 01 1 0306-
262 04.105 BOX ASM; SHIFT CONT
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97357-584-0 01 1 0306-
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0108-
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0108-
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0108-
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0108-
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0108-
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0108-
