Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#20924) — 196 parça

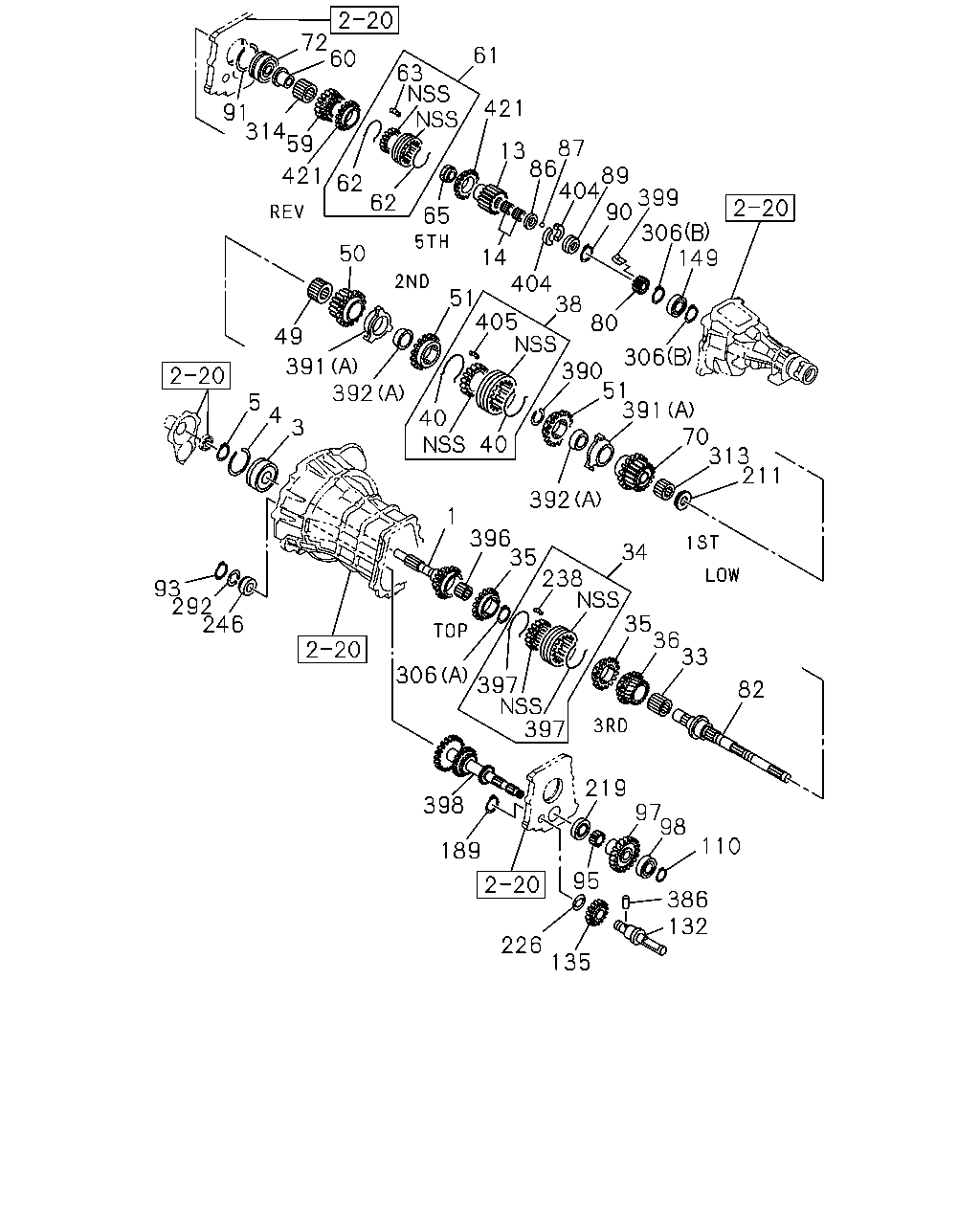

72 60 61 63 421 91 314 59 13 87 86 89 404 399 90 306 149 421 62 62 65 50 14 404 38 80 51 405 390 51 391 70 313 211 49 306 391 392 5 4 3 40 40 392 1 396 35 238 35 36 33 34 93 292 246 306 397 397 82 219 97 98 398 110 189 95 386 132 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	0108-
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0108-
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0108-
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0108-
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0108-
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0108-
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0108-
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0108-
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0108-
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	0108-
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0108-
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0108-
49	04.352 BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	0108-
50	04.395 GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	0108-
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0108-
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	0108-
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0108-
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0108-
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0108-
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0108-
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0108-
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	0108-
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0108-
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	0108-
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97120-040-0	01	1	0108-
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97120-039-0	01	1	0108-
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0108-
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0108-
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0108-
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0108-
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0108-
89	04.416 RING; RET,THRUST RING	8-94422-395-0	01	1	0108-
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0108-
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0108-
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0108-
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0108-
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0108-
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0108-
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0108-
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	0108-
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	0108-
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0108-
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0108-
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0108-
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0108-
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0108-
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0108-
238	04.384 INSERT 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4JG2 ENG(RJC)	8-94448-202-2	03	1	0108-
238	04.384 INSERT 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-94448-202-2	03	1	0108-
238	04.384 INSERT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94448-202-2	03	1	0108-
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0108-
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0108-
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0108-
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0108-
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0108-
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0108-
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0108-
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0108-
314	04.419 BEARING; NEEDLE,REV GEAR KOYO	8-94422-065-1	01	1	0108-
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0108-
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0108-
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0108-
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0108-
391	04.383 RING; INSIDE,SYN (A)	8-94363-056-0	02	1	0108-
391	04.383 RING; INSIDE,SYN 4X4(TFS***) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	0108-
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	0108-
392	04.383 RING; OUTSIDE,SYN 4X4(TFS***) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) (B)	8-97169-514-1	01	1	0108-
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0108-
397	04.384 SPRING; INSERT,4TH & 3RD 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4JG2 ENG(RJC)	8-94422-075-0	02	1	0108-
397	04.384 SPRING; INSERT,4TH & 3RD 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	0108-
397	04.384 SPRING; INSERT,4TH & 3RD 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94422-075-0	02	1	0108-
398	04.421 GEAR; COUNTER Z=46-38-27-21	8-97100-912-1	01	1	0108-
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	0108-
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0108-
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0108-
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0108-

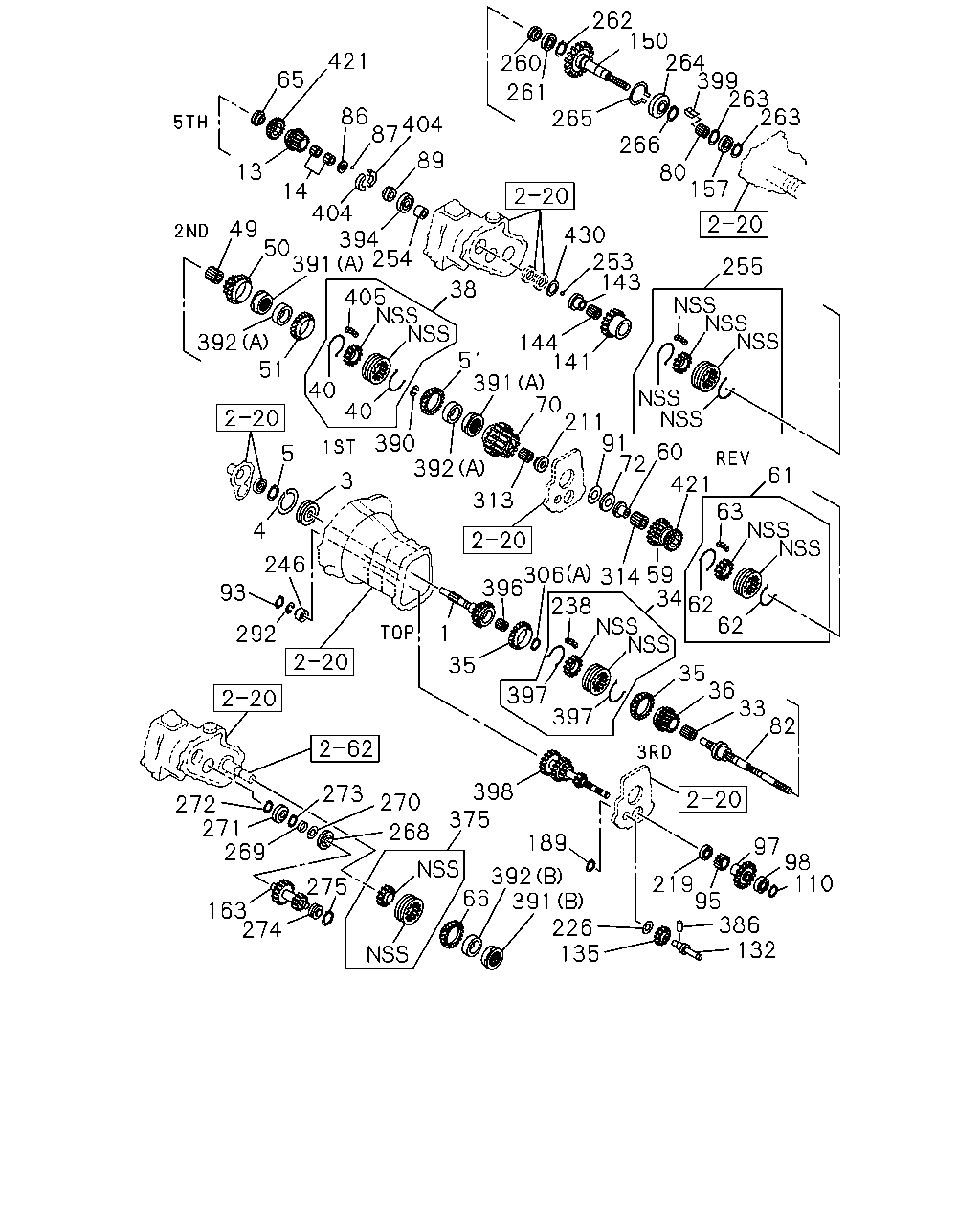

262 150 264 399 263 263 260 421 65 261 265 86 404 87 266 80 157 89 13 14 404 49 394 50 254 391 430 253 143 255 38 405 51 391 392 51 144 141 70 211 91 72 40 40 390 392 60 5 421 63 61 3 313 4 246 34 62 62 306 396 93 238 1 292 35 35 36 33 82 397 397 398 375 273 270 272 271 269 268 189 97 98 110 392 66 391 226 135 219 95 386 132 275 163 274 314 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	0108-
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0108-
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0108-
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0108-
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0108-
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0108-
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0108-
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0108-
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0108-
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	0108-
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0108-
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0108-
49	04.352 BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	0108-
50	04.395 GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	0108-
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0108-
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	0108-
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0108-
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0108-
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0108-
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0108-
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0108-
66	04.383 RING; BLOCK,SYN 4X4(TFS***) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-97169-516-1	01	1	0108-
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	0108-
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0108-
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	0108-
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97120-040-0	01	1	0108-
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97120-039-0	01	1	0108-
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0108-
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0108-
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0108-
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0108-
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0108-
89	04.416 RING; RET,THRUST RING	8-94422-395-0	01	1	0108-
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0108-
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0108-
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0108-
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0108-
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0108-
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0108-
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0108-
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	0108-
141	04.535 GEAR; INPUT,TRANSFER 4X4(TFS***) Z=34	8-97141-878-0	01	1	0108-
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER 4X4(TFS***)	8-94482-579-1	01	1	0108-
144	04.525 BEARING; NEEDLE,INPUT GEAR 4X4(TFS***) 04.419 NSK	1-09811-028-1	01	1	0108-
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***) Z=49	8-97166-157-0	01	1	0108-
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) NSK	8-94422-170-0	01	1	0108-
163	04.535 GEAR; COUNTER,TRANSFER 4X4(TFS***) Z=37-26	8-97165-317-0	01	1	0108-
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0108-
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0108-
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0108-
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0108-
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0108-
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0108-
238	04.384 INSERT 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4JG2 ENG(RJC)	8-94448-202-2	03	1	0108-
238	04.384 INSERT 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-94448-202-2	03	1	0108-
238	04.384 INSERT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94448-202-2	03	1	0108-
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0108-
253	04.535 BALL; INPUT 4X4(TFS***) 04.416	8-94201-356-0	01	1	0108-
254	04.525 COLLAR; TRANSFER 4X4(TFS***)	8-94483-030-2	01	1	0108-
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS 4X4(TFS***)	8-97141-885-1	01	1	0108-
260	04.412 NUT; MAINSHAFT END 4X4(TFS***) M30	8-94422-072-1	01	1	0108-
261	04.525 BEARING; PILOT,OUTPUT SHAFT 4X4(TFS***) NSK	8-94422-176-0	01	1	0108-
262	04.525 RING; SNAP,PILOT BRG 4X4(TFS***) 08.934 ID=23.2	9-09180-025-0	01	1	0108-
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4X4(TFS***) 04.416 ID=27.9	9-09180-030-0	02	1	0108-
264	04.520 BEARING; RR OUTPUT SHAFT,FRT 4X4(TFS***) NSK	8-94422-054-1	01	1	0108-
264	04.520 BEARING; RR OUTPUT SHAFT,FRT 4X4(TFS***) KOYO	8-94422-055-1	01	1	0108-
265	04.525 RING; SNAP,BRG OUTER 4X4(TFS***) OD=95.0	8-94422-091-0	01	1	0108-
266	04.525 RING; SNAP,BRG INNER 4X4(TFS***) ID=37.4	8-97254-316-0	01	1	0108-
268	04.537 PLATE; ANTI LASH,COUNTER 4X4(TFS***)	8-97164-348-0	01	1	0108-
269	04.537 SPACER; ANTI LASH PLATE,COUNTER 4X4(TFS***)	8-97222-764-0	01	1	0108-
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 4X4(TFS***) 04.537	8-94482-498-0	01	1	0108-
271	04.520 BEARING; COUNTER GEAR,FRT 4X4(TFS***) NSK	8-94422-050-1	01	1	0108-
272	04.525 RING; SNAP,BRG INNER 4X4(TFS***) T=1.50 WHITE	8-94448-808-0	01	1	0108-
272	04.525 RING; SNAP,BRG INNER 4X4(TFS***) T=1.55 YELLOW	8-94448-809-0	01	1	0108-
272	04.525 RING; SNAP,BRG INNER 4X4(TFS***) T=1.60 BLUE	8-94448-810-0	01	1	0108-
273	04.525 RING; SNAP,BRG OUTER 4X4(TFS***) OD=77.0	8-94422-092-0	01	1	0108-
274	04.520 BEARING; COUNTER GEAR,RR 4X4(TFS***) NSK	8-97080-184-0	01	1	0108-
274	04.520 BEARING; COUNTER GEAR,RR 4X4(TFS***) KOYO	8-97080-185-0	01	1	0108-
275	04.525 RING; SNAP,COUNTER GEAR BRG 4X4(TFS***) 08.934 ID=23.2	9-09180-025-0	01	1	0108-
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0108-
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0108-
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0108-
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0108-
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0108-
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0108-
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0108-
314	04.419 BEARING; NEEDLE,REV GEAR KOYO	8-94422-065-1	01	1	0108-
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 4X4(TFS***) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-97188-798-0	01	1	0108-
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 4X4(TFS***) 4JG2 ENG(RJC)	8-97104-026-0	01	1	0108-
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 4X4(TFS***) 4JA1 ENG(RLE) EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	0108-
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0108-
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0108-
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0108-
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0108-
391	04.383 RING; INSIDE,SYN (A)	8-94363-056-0	02	1	0108-
391	04.383 RING; INSIDE,SYN 4X4(TFS***) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	0108-
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	0108-
392	04.383 RING; OUTSIDE,SYN 4X4(TFS***) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) (B)	8-97169-514-1	01	1	0108-
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0108-
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0108-
397	04.384 SPRING; INSERT,4TH & 3RD 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4JG2 ENG(RJC)	8-94422-075-0	02	1	0108-
397	04.384 SPRING; INSERT,4TH & 3RD 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	0108-
397	04.384 SPRING; INSERT,4TH & 3RD 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94422-075-0	02	1	0108-
398	04.421 GEAR; COUNTER Z=46-38-27-21	8-97100-912-1	01	1	0108-
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	0108-
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0108-
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0108-
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0108-
430	04.525 PLATE; OIL SEAL,TRANSFER 4X4(TFS***) 04.537	8-94482-379-2	01	1	0108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
