Sayfa 2-25 - Isuzu EPC

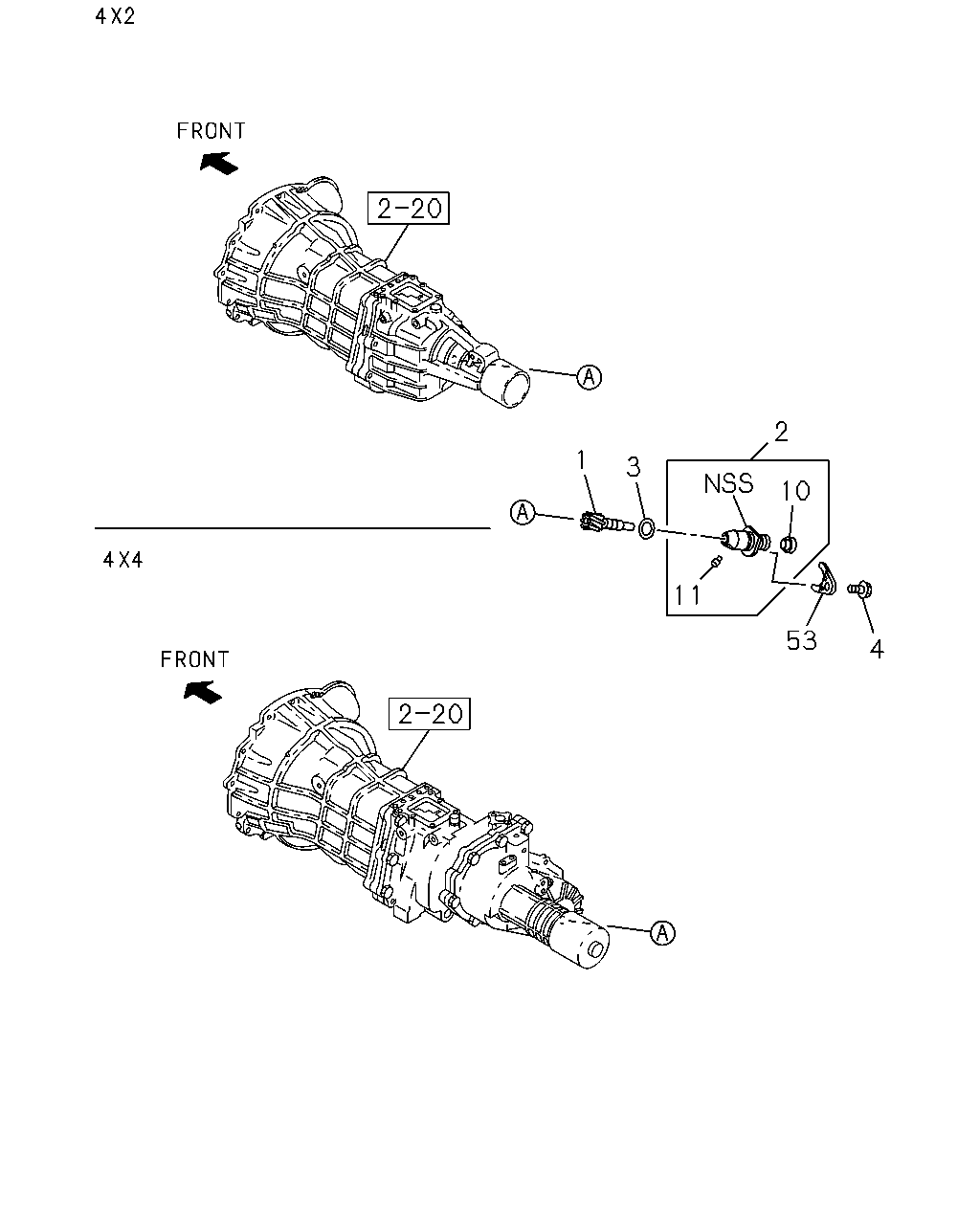

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JA1 ENG(RLE) Z=18	8-97012-086-2	01	1	0108-
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=18	8-97012-086-2	01	1	0108-
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JG2 ENG(RJC) Z=19	8-94473-303-2	01	1	0108-
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	0108-
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	9-09921-100-0	01	1	0108-
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0108-
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97131-328-1	01	1	0108-
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0108-
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0108-0206
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97352-311-0	01	1	0207-0207
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0207-

43 22 15 22 23 43 43 22 25 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	00.685 BOLT; UNDER COVER TO TRANS M10X45 FLANGE	0-28081-045-0	01	1	0108-
22	00.685 BOLT; TRANS CASE TO ENG 04.525 M10X40 FLANGE	0-28081-040-0	03	1	0108-
22	00.685 BOLT; TRANS CASE TO ENG M10X60 FLANGE	0-28081-060-0	02	1	0108-
22	00.685 BOLT; TRANS CASE TO ENG 09.171 M12X40 FLANGE	0-28081-240-0	01	1	0108-
23	00.685 BOLT; STARTER TO TRANS CASE M12X70 FLANGE	0-28081-270-0	02	1	0108-
25	00.685 WASHER; PL,TRANS CASE 03.430 ID=12.5	9-09160-512-0	01	1	0108-
43	00.685 NUT; TRANS CASE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0108-
43	00.685 NUT; TRANS CASE 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	0108-
43	00.685 NUT; TRANS CASE 05.816 (C) M12	9-99110-412-0	01	1	0108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
