2-20 — MANUAL TRANSMISSION ASM AND CASE (#20922) — 92 parça

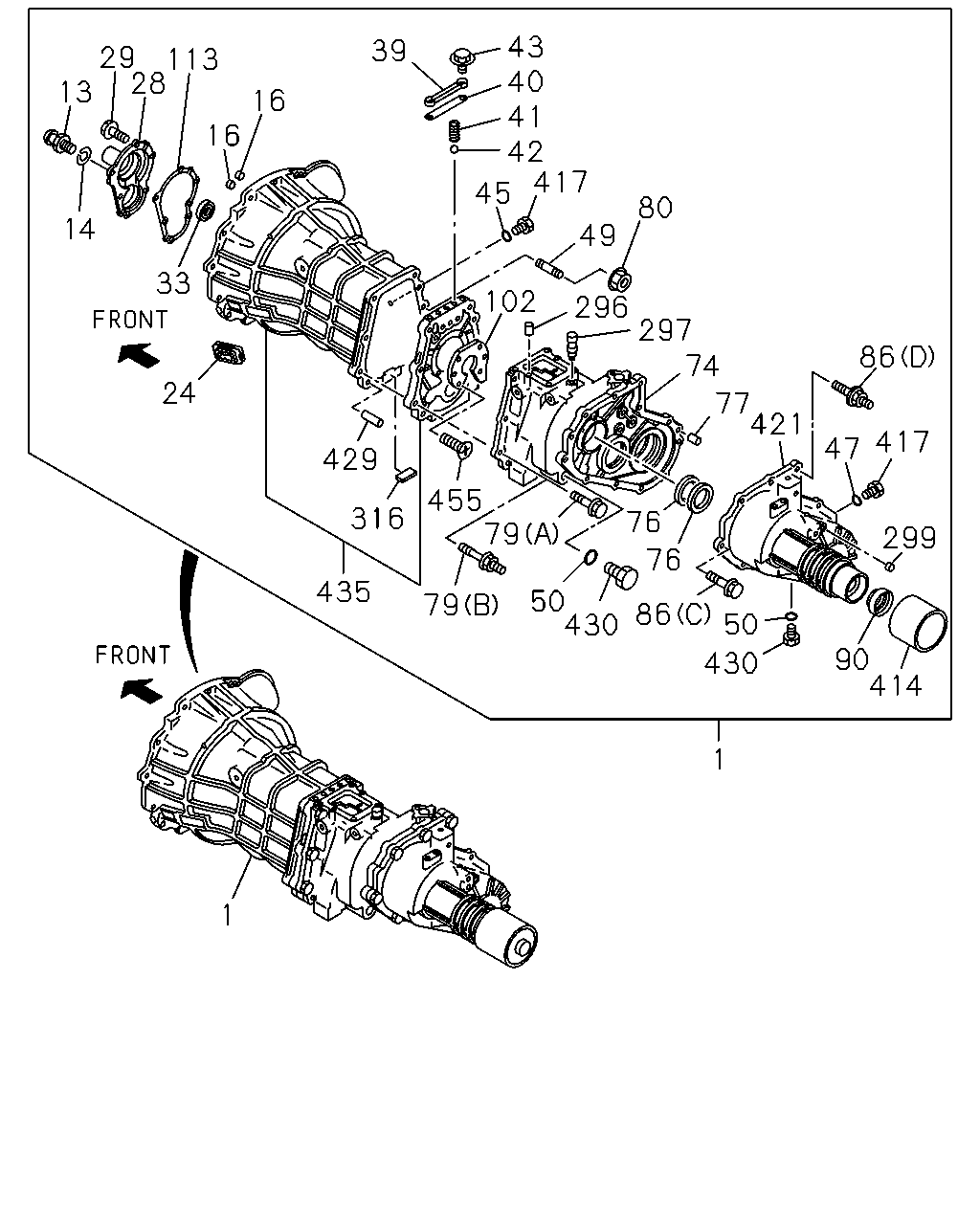

43 40 41 42 417 39 29 113 28 13 16 16 45 80 14 49 33 102 296 297 74 86 24 77 421 417 47 429 455 79 316 76 299 76 435 50 430 79 86 50 90 414 430 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1 ENG(RLE)	8-97301-031-0	01	1	0108-
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JG2 ENG(RJC)	8-97174-806-0	01	1	0108-
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-97301-033-0	01	1	0108-
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) EXC. SHIFT ON THE FLY(7EX)	8-97301-032-0	01	1	0108-
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JG2 ENG(RJC)	8-97181-386-0	01	1	0108-
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0108-
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	0108-
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0108-
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0108-
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0108-
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0108-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0108-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	0108-
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0108-
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0108-
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0108-
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0108-
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0108-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0108-
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	0108-
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X51.5 L=72	8-97036-714-1	01	1	0108-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	0108-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	0108-
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97149-125-1	01	1	0108-
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	02	1	0108-
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	02	1	0108-
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) OD=10 L=20	8-97135-423-0	02	1	0108-
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 04.317 (A) M10X55 FLANGE	8-94473-959-1	06	1	0108-
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	0108-
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	01	1	0108-
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	07	1	0108-
86	04.317 BOLT; RR COVER 4X2(TFB***) 04.510 (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	0108-
86	04.317 BOLT; RR COVER 4X4(TFS***) 00.685 (C) M10X35 FLANGE	0-28081-035-0	09	1	0108-
86	04.317 BOLT; RR COVER 4X4(TFS***) (D) M10X18,M10X35 L=63	8-94367-310-1	02	1	0108-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-2	01	1	0108-
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0108-
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0108-
296	04.510 PIN; QUAD BOX TO CASE 4X4(TFS***) OD=6 L=12	9-08150-612-0	02	1	0108-
297	04.104 BREATHER; AIR,TRANSFER CASE 4X4(TFS***)	8-97172-677-1	01	1	0108-
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.309 OD=14	5-09609-004-0	03	1	0108-
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0108-
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	0108-
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0108-
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	0108-
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0108-
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97217-334-0	01	1	0108-
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0108-
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	0108-
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	0108-
435	04.103 CASE; TRANS 4JA1 ENG(RLE)	8-97301-098-0	01	1	0108-
435	04.103 CASE; TRANS 4JG2 ENG(RJC)	8-97252-840-1	01	1	0108-
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0108-

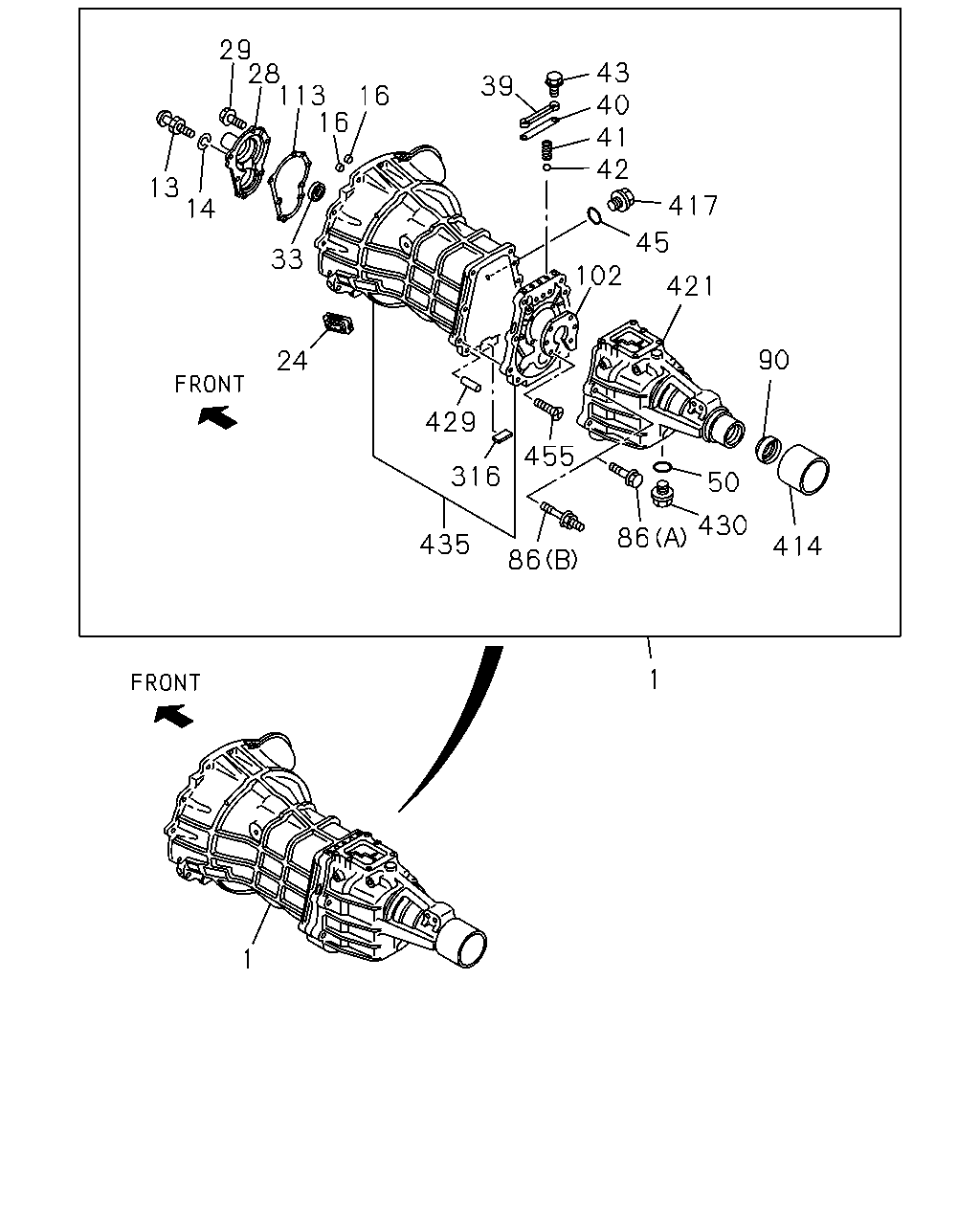

29 28 113 16 43 40 41 42 39 16 13 14 417 45 33 102 421 90 24 429 455 316 50 430 86 435 414 86 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1 ENG(RLE)	8-97301-031-0	01	1	0108-
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JG2 ENG(RJC)	8-97174-806-0	01	1	0108-
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-97301-033-0	01	1	0108-
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1 ENG(RLE) EXC. SHIFT ON THE FLY(7EX)	8-97301-032-0	01	1	0108-
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JG2 ENG(RJC)	8-97181-386-0	01	1	0108-
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0108-
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	0108-
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0108-
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0108-
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0108-
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0108-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0108-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	0108-
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0108-
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0108-
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0108-
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0108-
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0108-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0108-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	0108-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	0108-
86	04.317 BOLT; RR COVER 4X2(TFB***) (A) M10X55 FLANGE	8-94473-959-1	07	1	0108-
86	04.317 BOLT; RR COVER 4X2(TFB***) 04.510 (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	0108-
86	04.317 BOLT; RR COVER 4X4(TFS***) 00.685 (C) M10X35 FLANGE	0-28081-035-0	09	1	0108-
86	04.317 BOLT; RR COVER 4X4(TFS***) (D) M10X18,M10X35 L=63	8-94367-310-1	02	1	0108-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-2	01	1	0108-
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0108-
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0108-
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0108-
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	0108-
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0108-
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	01	1	0108-
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0108-
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97217-334-0	01	1	0108-
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0108-
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	0108-
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	0108-
435	04.103 CASE; TRANS 4JA1 ENG(RLE)	8-97301-098-0	01	1	0108-
435	04.103 CASE; TRANS 4JG2 ENG(RJC)	8-97252-840-1	01	1	0108-
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0108-
