◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#20920) — 20 parça
çizim 51615
1 1 11 12 13 3 4 42 16 10 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97137-261-2 01 1 0108- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
CHARGE AIR COOLER<6PL> 		8-97300-704-0 01 1 0108- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 0108- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 0108- ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 0108- ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 0108- ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 0108- ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 0108- ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 0108- ● ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 0108- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-039-0 01 1 0108- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-040-0 01 1 0108- ●

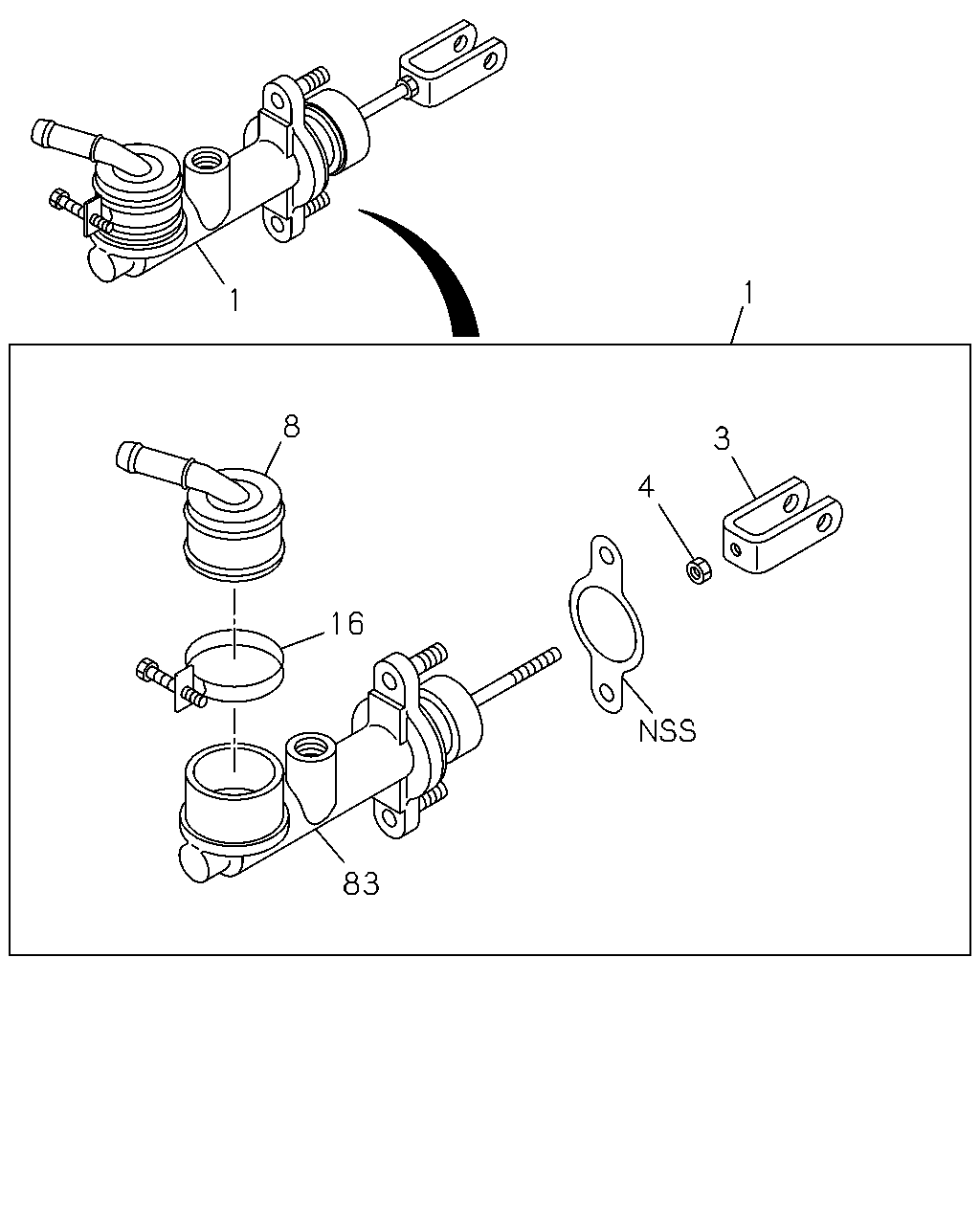

çizim 52875
1 1 8 3 4 16 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97137-261-2 01 1 0108- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
CHARGE AIR COOLER<6PL> 		8-97300-704-0 01 1 0108- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 0108- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 0108- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
CHARGE AIR COOLER<6PL> 		8-97300-706-0 01 1 0108- ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 0108- ● ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-039-0 01 1 0108- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-040-0 01 1 0108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
