Sayfa 3-33 - Isuzu EPC

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

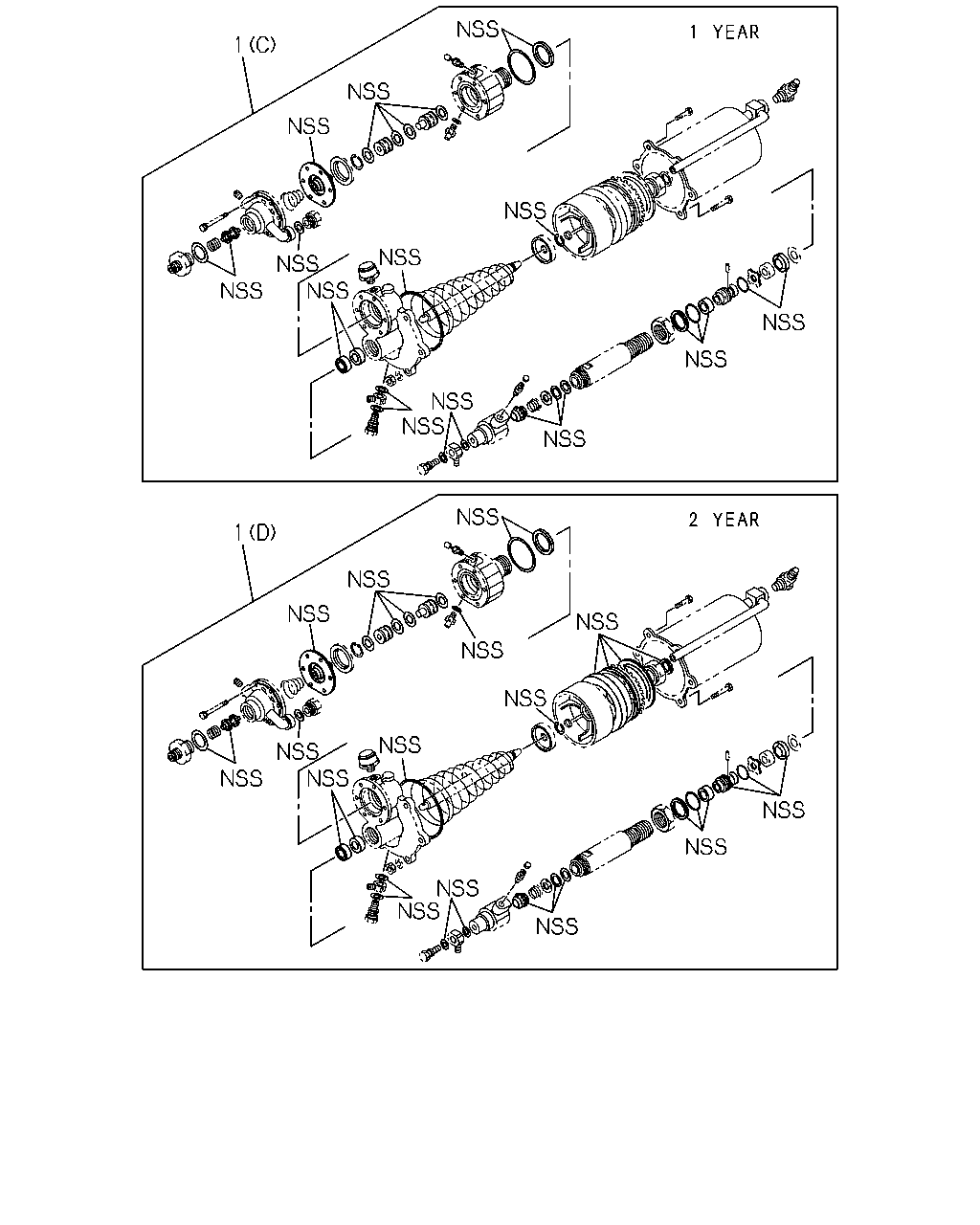

1	REPAIR KIT; AIR MASTER (C) REAR 1 YEAR ASM PART: A = 1-47800-359-0	1-87520-096-0	01	1	-
1	REPAIR KIT; AIR MASTER (D) REAR 2 YEAR ASM PART: A = 1-47800-359-0	1-87520-097-1	01	1	-

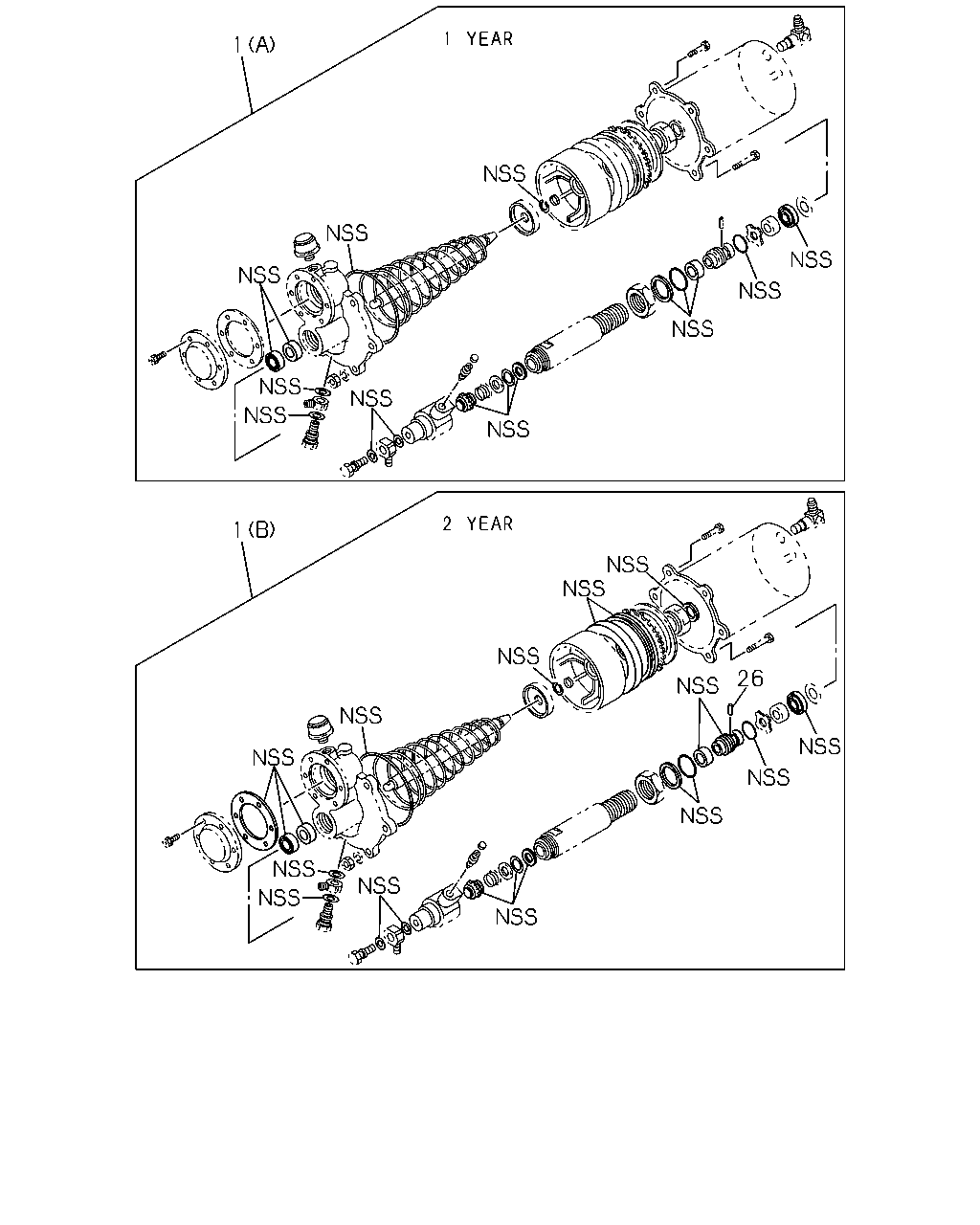

1	REPAIR KIT; AIR MASTER (A) FRONT 1 YEAR ASM PART: B = 1-47800-363-0	1-87520-258-0	01	1	-
1	REPAIR KIT; AIR MASTER (B) FRONT 2 YEAR ASM PART: B = 1-47800-363-0	1-87520-269-0	01	1	-

9 60 87 63 82 64 19 65 88 88 29 69 38 73 10 74 67 66 39 9 76 60 38 37 54 32 7 30 28 58 20 26 14 15 80 59 83 9 60 70 80 81 71 72 18 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

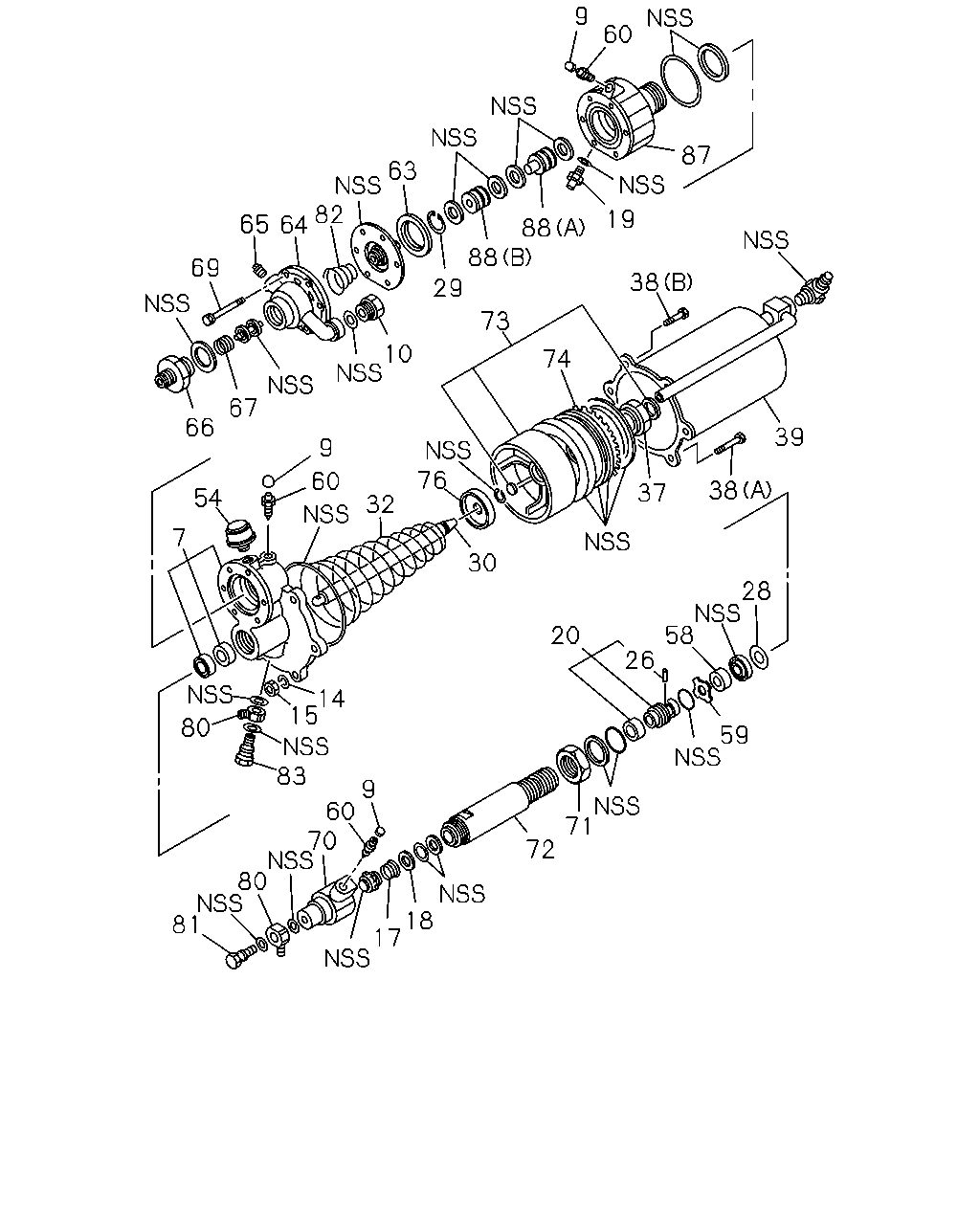

7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47813-025-0	01	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0	9-83335-044-0	03	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: B = 1-47800-363-0	9-83335-044-0	01	1	-
10	NUT; VLV BODY,AIR MASTER ASM PART: A = 1-47800-359-0	9-83315-079-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-032-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-085-0	06	1	-
17	SPRING; OUTLET VLV,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83331-306-0	01	1	-
18	WASHER; OUTLET VLV,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83335-025-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0	1-47815-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-359-0	1-47834-002-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47839-004-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-052-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-359-0	9-83345-042-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47825-005-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83321-413-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47839-003-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-082-0	04	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-083-0	02	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-359-0	1-47812-017-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: B = 1-47800-363-0	1-47812-019-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-039-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-050-0	01	1	-
59	WASHER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-051-0	01	1	-
60	PLUG; END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0	9-83331-704-0	03	1	-
60	PLUG; END PLATE,AIR MASTER ASM PART: B = 1-47800-363-0	9-83331-704-0	01	1	-
63	WASHER; DIAPH,AIR MASTER ASM PART: A = 1-47800-359-0	9-83345-072-0	01	1	-
64	BODY; POPPET VLV,AIR MASTER ASM PART: A = 1-47800-359-0	9-83341-127-0	01	1	-
65	PLUG; TAPER,VLV ASM PART: A = 1-47800-359-0	9-48229-013-0	01	1	-
66	CONNECTOR; POPPET VLV,AIR MASTER ASM PART: A = 1-47800-359-0	1-47815-024-0	01	1	-
67	SPRING; POPPET VLV,AIR MASTER ASM PART: A = 1-47800-359-0	9-83341-315-0	01	1	-
69	SCREW; POPPET VLV,AIR MASTER ASM PART: A = 1-47800-359-0	1-47819-117-0	06	1	-
69	SCREW; POPPET VLV,AIR MASTER ASM PART: B = 1-47800-363-0	1-52139-005-0	06	1	-
70	CAP; CYL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-063-0	01	1	-
71	NUT; CYL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83335-028-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83311-128-0	01	1	-
73	PISTON; SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47834-001-0	01	1	-
74	EXPANDER; SHELL,AIR MASTER ASM PART: A = 1-47800-359-0	1-47839-011-0	01	1	-
76	RETAINER; SPR,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-054-0	01	1	-
80	CONNECTOR; EYE,CAP,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-118-0	02	1	-
81	BOLT; EYE,CAP,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-047-0	01	1	-
82	SPRING; DIAPH,AIR MASTER ASM PART: A = 1-47800-359-0	9-83341-312-0	01	1	-
83	BOLT; EYE,END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-116-0	01	1	-
87	ORIFICE; AIR MASTER ASM PART: A = 1-47800-359-0	1-47813-026-0	01	1	-
88	PISTON; ORIFICE,AIR MASTER (A) ASM PART: A = 1-47800-359-0	1-47821-007-0	01	1	-
88	PISTON; ORIFICE,AIR MASTER (B) ASM PART: A = 1-47800-359-0	9-83341-705-0	01	1	-

1 1 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER (C) REAR 1 YEAR ASM PART: A = 1-47800-359-0	1-87520-096-0	01	1	-
1	REPAIR KIT; AIR MASTER (D) REAR 2 YEAR ASM PART: A = 1-47800-359-0	1-87520-097-1	01	1	-
1	REPAIR KIT; AIR MASTER (A) FRONT 1 YEAR ASM PART: B = 1-47800-363-0	1-87520-258-0	01	1	-
1	REPAIR KIT; AIR MASTER (B) FRONT 2 YEAR ASM PART: B = 1-47800-363-0	1-87520-269-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47839-004-0	01	1	-

38 73 96 39 76 38 37 54 32 7 30 69 28 58 26 14 15 80 59 83 9 60 71 70 80 81 72 18 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

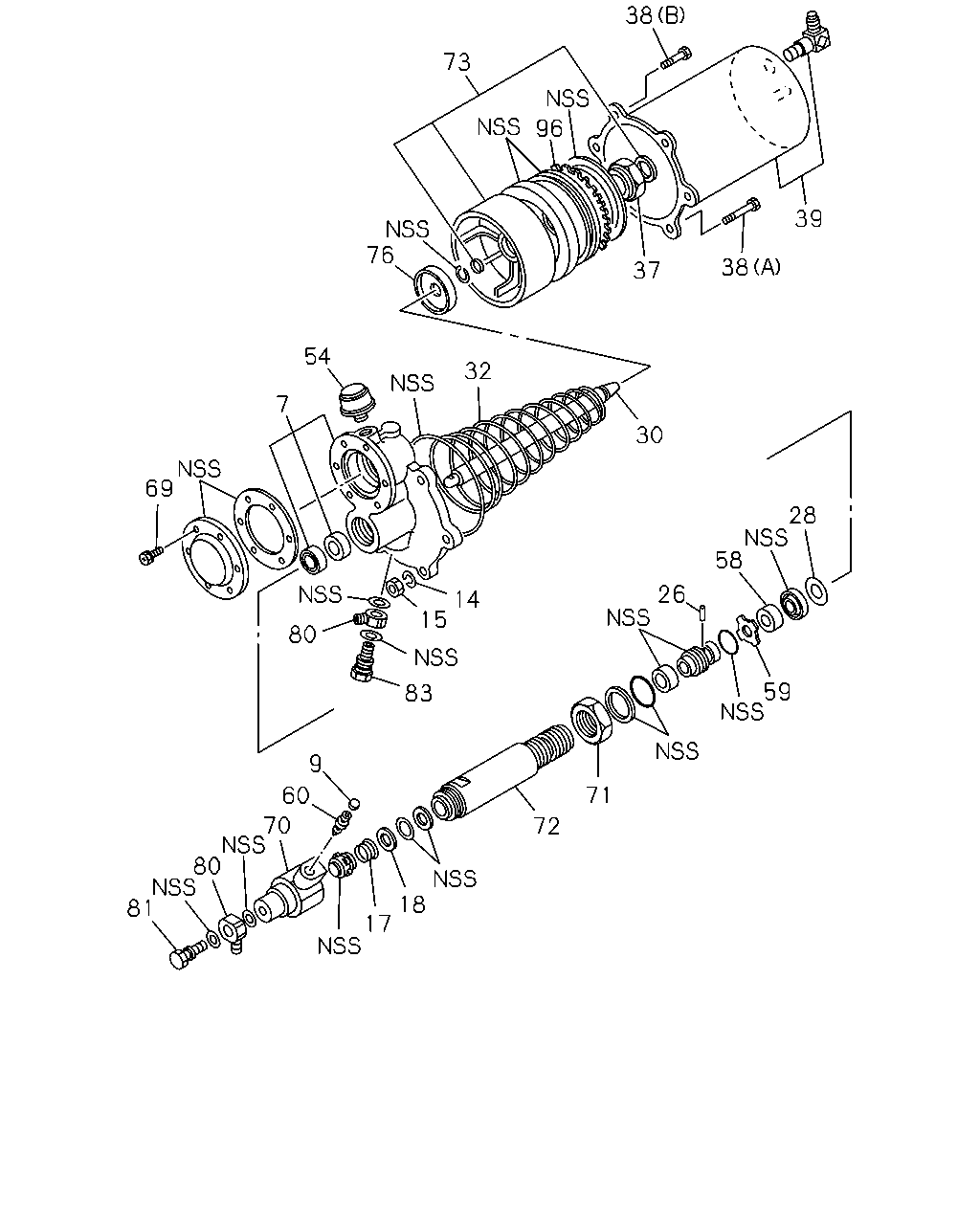

7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47813-025-0	01	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0	9-83335-044-0	03	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: B = 1-47800-363-0	9-83335-044-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-032-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-085-0	06	1	-
17	SPRING; OUTLET VLV,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83331-306-0	01	1	-
18	WASHER; OUTLET VLV,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83335-025-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47839-004-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-052-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47825-005-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83321-413-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47839-003-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-082-0	04	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-083-0	02	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-359-0	1-47812-017-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: B = 1-47800-363-0	1-47812-019-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-039-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-050-0	01	1	-
59	WASHER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-051-0	01	1	-
60	PLUG; END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0	9-83331-704-0	03	1	-
60	PLUG; END PLATE,AIR MASTER ASM PART: B = 1-47800-363-0	9-83331-704-0	01	1	-
69	SCREW; POPPET VLV,AIR MASTER ASM PART: A = 1-47800-359-0	1-47819-117-0	06	1	-
69	SCREW; POPPET VLV,AIR MASTER ASM PART: B = 1-47800-363-0	1-52139-005-0	06	1	-
70	CAP; CYL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-063-0	01	1	-
71	NUT; CYL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83335-028-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83311-128-0	01	1	-
73	PISTON; SHELL,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47834-001-0	01	1	-
76	RETAINER; SPR,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-054-0	01	1	-
80	CONNECTOR; EYE,CAP,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	1-47819-118-0	02	1	-
81	BOLT; EYE,CAP,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-047-0	01	1	-
83	BOLT; EYE,END PLATE,AIR MASTER ASM PART: A = 1-47800-359-0, B = 1-47800-363-0	9-83315-116-0	01	1	-
96	WASHER ASM PART: B = 1-47800-363-0	1-47839-011-0	01	1	-
