2-05 — CLUTCH PIPING (#20918) — 15 parça

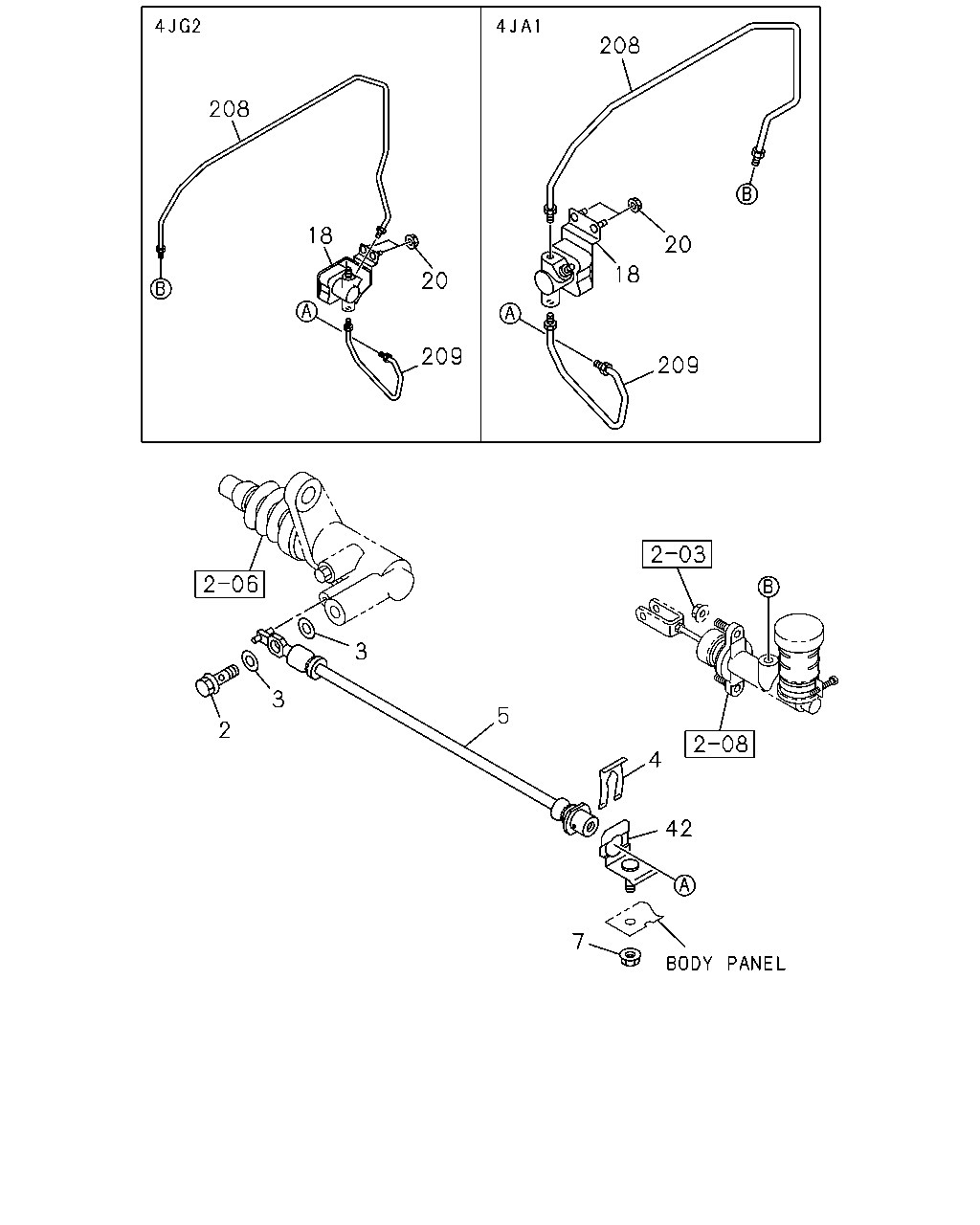

çizim 51714
208 208 18 20 18 20 209 209 3 3 5 2 4 42 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0108- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0108- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94436-216-0 01 1 0108- ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 0108- ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97014-916-1 01 1 0108- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0108- ● ●
18 00.830 DAMPER ASM; CLU OIL 8-97132-841-0 01 1 0108- ●
18 00.830 DAMPER ASM; CLU OIL 8-97130-319-0 01 1 0108- ●
20 00.837 NUT; CLU OIL DAMPER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0108- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-1 01 1 0108- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97145-667-1 01 1 0108- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97216-802-2 01 1 0108- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97227-556-2 01 1 0108- ●
209 00.785 PIPE; OIL,DAMPER CYL TO FLEX HOS 8-97066-883-3 01 1 0108- ●
209 00.785 PIPE; OIL,DAMPER CYL TO FLEX HOS 8-94435-229-4 01 1 0108- ●
