◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#20917) — 35 parça

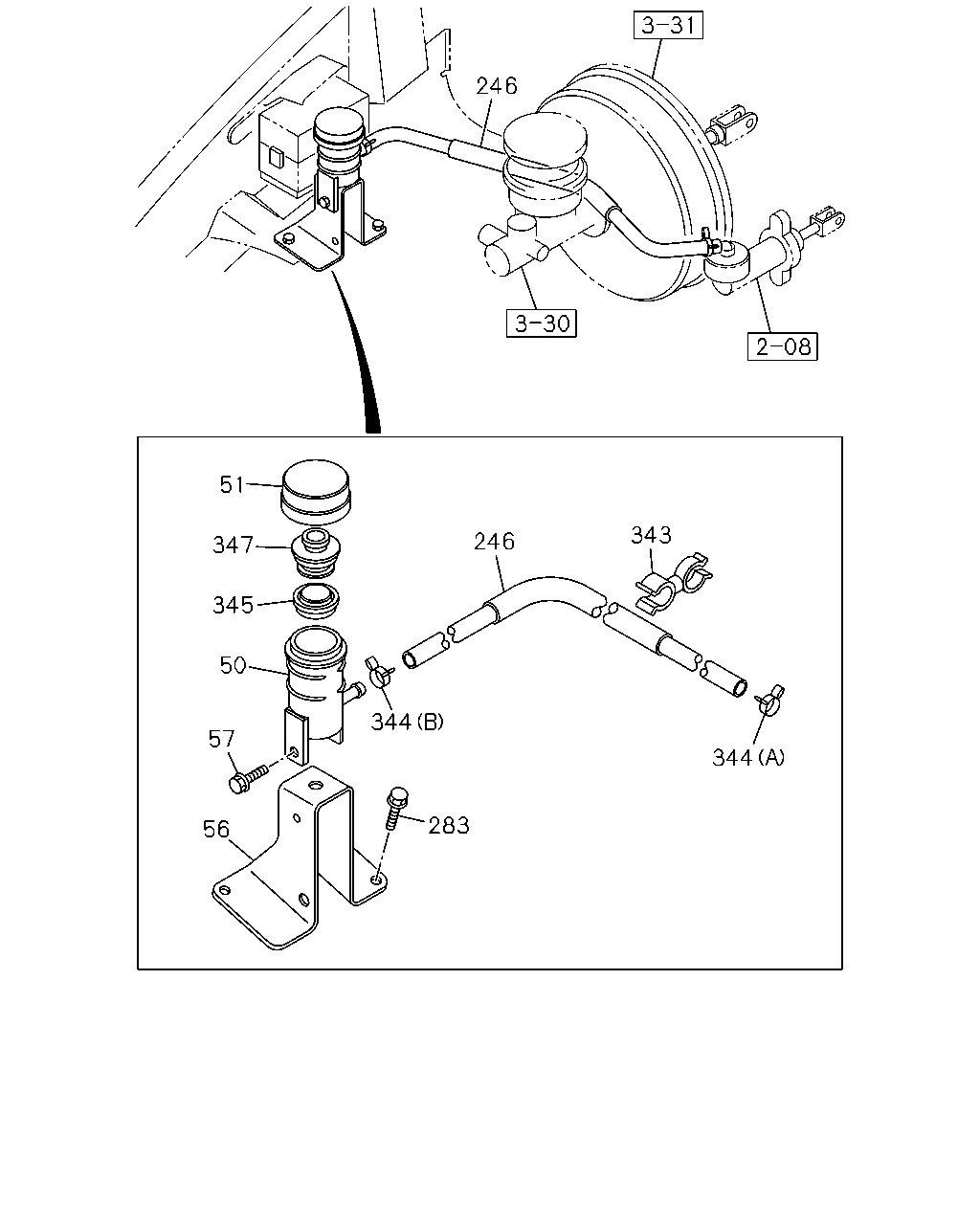

çizim 9814
246 51 343 246 347 345 50 344 57 344 283 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E
50 00.785 TANK; OIL,CLU
4JA1 ENG(RLE) 		8-97300-714-0 01 1 0108- ● ● ● ●
51 00.785 CAP; OIL TANK,CLU
4JA1 ENG(RLE) 00.777 		8-94412-207-0 01 1 0108- ● ● ● ●
56 00.785 BRACKET; OIL TANK,CLU CONT
4JA1 ENG(RLE) 		8-97300-717-0 01 1 0108- ● ● ● ●
57 00.782 BOLT; OIL TANK BRKT,CLU
4JA1 ENG(RLE) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0108- ● ● ● ●
246 00.785 HOSE; OIL TANK
4JA1 ENG(RLE) 		8-97300-718-1 01 1 0108- ● ● ● ●
283 00.785 BOLT; OIL TANK
4JA1 ENG(RLE) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0108- ● ● ● ●
343 00.785 CLIP; HOSE
4JA1 ENG(RLE) 02.589 ID=13 & 16.5 		8-94169-028-0 01 1 0108- ● ● ● ●
344 00.785 CLAMP
4JA1 ENG(RLE) 01.219 (A) ID=13 		8-94238-571-0 01 1 0108- ● ● ● ●
344 00.785 CLAMP
4JA1 ENG(RLE) (B) 		8-97300-722-0 01 1 0108- ● ● ● ●
345 00.805 SEAL; RESERVOIR
4JA1 ENG(RLE) 00.777 		8-94412-205-0 01 1 0108- ● ● ● ●
347 00.805 BASE; CAP
4JA1 ENG(RLE) 00.775 		8-94412-206-0 01 1 0108- ● ● ● ●

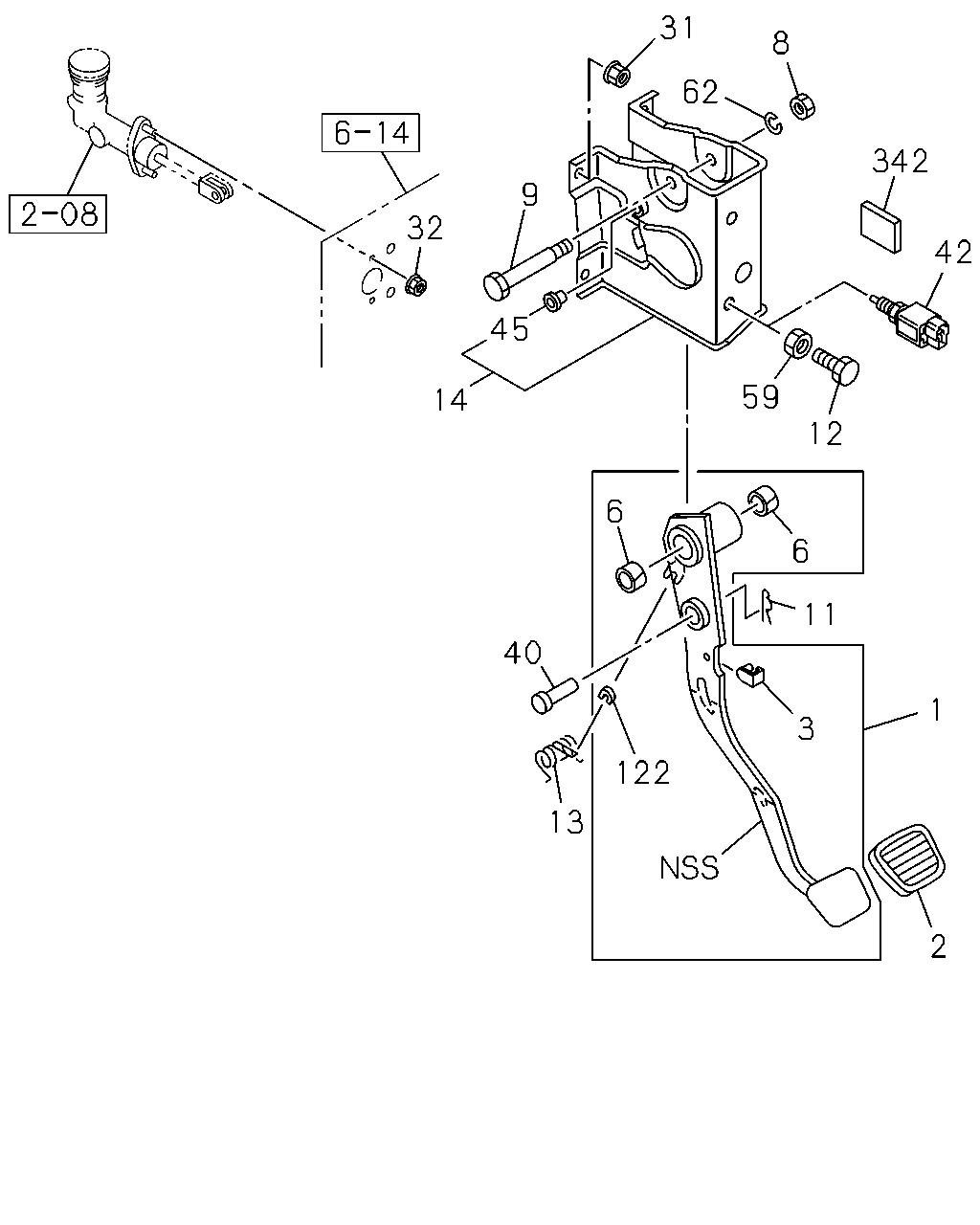

çizim 51715
31 8 62 342 9 32 42 45 59 14 12 6 6 11 40 1 3 122 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.830 PEDAL; CLU 8-97071-836-0 01 1 0108- ● ● ● ● ●
2 04.630 COVER; CLU PEDAL 8-94222-524-1 01 1 0108- ● ● ● ● ●
3 00.785 RUBBER; STOPPER,CLU PEDAL 8-94463-258-0 01 1 0108- ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
00.833 		8-94244-439-0 02 1 0108- ● ● ● ● ●
8 00.833 NUT; PIN TO PEDAL
09.011 M10 		9-09110-410-0 01 1 0108-0208 ● ● ● ● ●
8 00.833 NUT; PIN TO PEDAL
04.785 M10 FLANGE 		0-91150-110-0 01 1 0209- ● ● ● ● ●
9 00.833 PIN; CLU PEDAL 8-94455-308-0 01 1 0108- ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.662 L=27.7 		1-09747-005-0 01 1 0108- ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
4JG2 ENG(RJC) 00.805 M10X35 		0-20801-035-0 01 1 0108- ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
00.805 M10X35 		0-20801-035-0 01 1 0108- ●
13 00.844 SPRING; ASSIST,CLU PEDAL
00.837 		8-97036-041-0 01 1 0108-0109 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL 8-97312-882-0 01 1 0110- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-94329-888-1 01 1 0108- ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
00.854 M8 FLANGE 		5-09440-005-0 04 1 0108- ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ● ● ● ● ●
40 00.833 PIN; JOINT,CLU DAMPER 8-94432-133-1 01 1 0108- ● ● ● ● ●
42 04.054 SWITCH; CLU
4JA1 ENG(RLE) 		8-94331-723-1 01 1 0108-0212 ● ● ● ●
42 04.054 SWITCH; CLU
4JA1 ENG(RLE) 02.575 		8-97358-248-0 01 1 0301- ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL 8-94175-433-0 02 1 0108- ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
4JG2 ENG(RJC) 09.011 M10 		9-09110-410-0 01 1 0108- ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
09.011 M10 		9-09110-410-0 01 1 0108- ●
62 00.833 WASHER; LK,PIN TO PEDAL
00.002 ID=10.2 		9-09150-510-0 01 1 0108-0208 ● ● ● ● ●
122 00.831 BUSHING; ASSIST PEDAL,CLU 8-94175-434-0 01 1 0108- ● ● ● ● ●
342 04.592 TAPE; SOFT
4JA1 ENG(RLE) 02.559 100X100 		8-94232-622-0 01 1 0108- ● ● ● ●
