2-01 — CLUTCH (#20916) — 20 parça

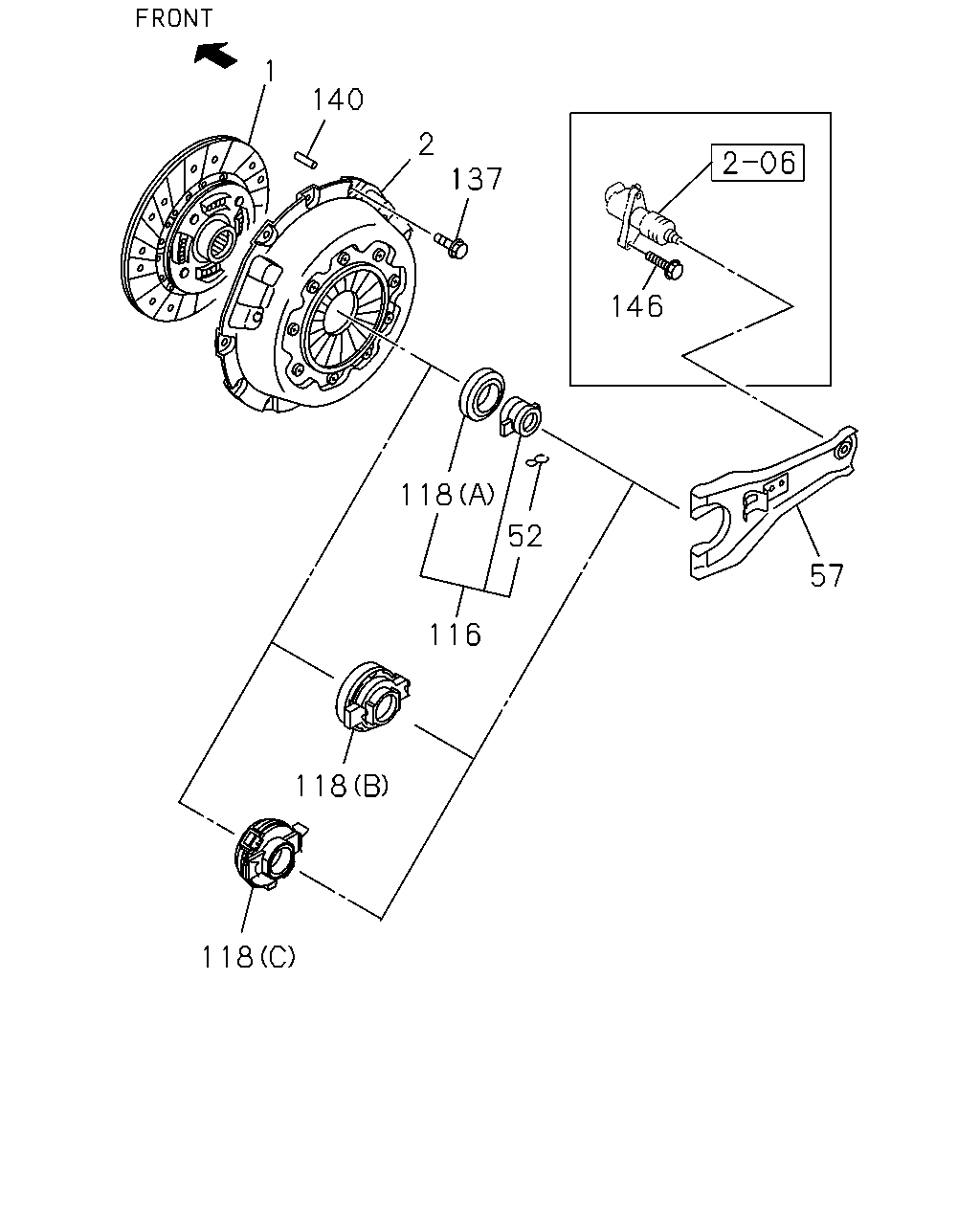

çizim 51108
1 140 2 137 146 118 52 57 116 118 118
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.886 DISC; CLUTCH 8-97257-124-0 01 1 0108- ●
1 00.886 DISC; CLUTCH
CHARGE AIR COOLER<6PL> 		8-97257-124-0 01 1 0108- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 0108- ●
2 00.859 PLATE ASM; PRESSURE,CLU
CHARGE AIR COOLER<6PL> 		8-97109-246-0 01 1 0108- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-94311-807-0 01 1 0108-0112 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> 		8-94311-807-0 01 1 0201-0302 ●
57 00.795 FORK; SHIFT,CLU 8-97039-266-0 01 1 0108-0305 ● ●
57 00.795 FORK; SHIFT,CLU 8-97365-654-0 01 1 0306- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-94379-441-0 01 1 0108-0112 ●
116 00.799 BLOCK; SHIFT,CLU
CHARGE AIR COOLER<6PL> 		8-94379-441-0 01 1 0108-0112 ●
118 00.799 BEARING; CLU RELEASE
(A) KOYO 		8-94379-499-0 01 1 0108-0112 ●
118 00.799 BEARING; CLU RELEASE
CHARGE AIR COOLER<6PL> (A) KOYO 		8-94379-499-0 01 1 0108-0112 ●
118 00.799 BEARING; CLU RELEASE
(C) NSK 		8-97316-591-0 01 1 0201- ●
118 00.799 BEARING; CLU RELEASE
CHARGE AIR COOLER<6PL> (C) NSK 		8-97316-591-0 01 1 0201- ●
118 00.799 BEARING; CLU RELEASE
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> (B) NSK 		8-97333-487-0 01 1 0303- ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 0108- ●
137 00.862 BOLT; CLU COVER
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 0108- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 0108- ●
140 00.862 PIN; STRAIGHT
CHARGE AIR COOLER<6PL> OD=6 L=24 		9-09878-532-0 02 1 0108- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X85 FLANGE 		8-94480-345-1 02 1 0108- ● ●
