◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-57 - EXHAUST THROTTLE BODY ▶
1-57 — EXHAUST THROTTLE BODY (#20915) — 20 parça

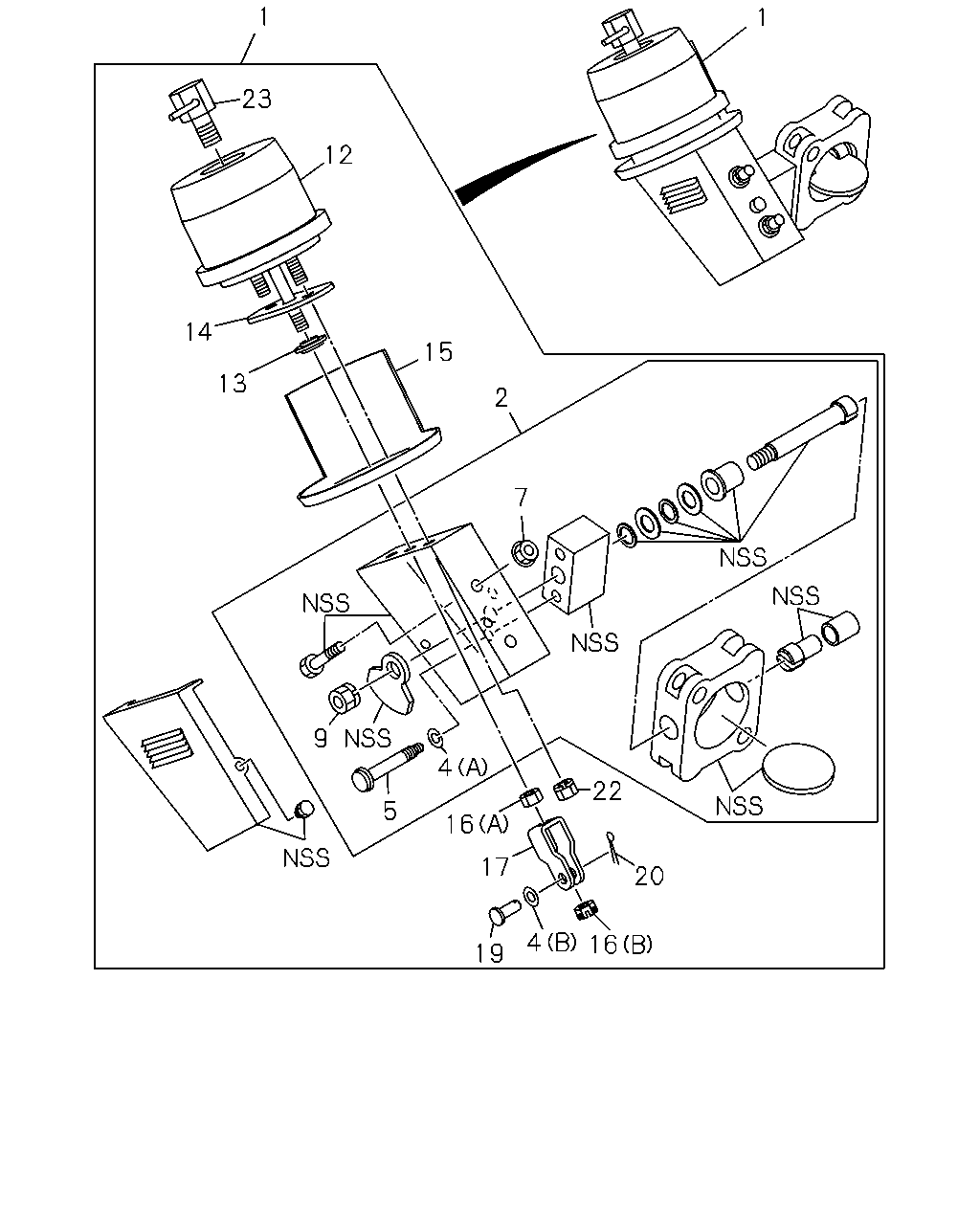

çizim 49703
1 1 23 12 14 15 13 2 7 9 4 22 5 16 17 20 4 16 19
BalonParca AdiParca NoAdetTipApplied Date
1 03.440 BODY ASM; EXH THROTTLE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97128-894-1 01 1 0108-
2 03.440 BODY; EXH THROTTLE
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97131-329-0 01 1 0108-
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> 00.002 (A) ID=8.2 		9-09150-508-0 02 1 0108-
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> 01.276 (B) ID=8.4 OD=18 		9-09164-608-0 01 1 0108-
5 03.444 BOLT; BRKT TO VLV
ENG QUICK WARM UP SYSTEM<6JZ> 04.027 M5X8 		0-20800-508-0 02 1 0108-
7 03.444 NUT; LOCK,BOLT
ENG QUICK WARM UP SYSTEM<6JZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108-
9 03.440 NUT; LEVER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0108-0201
9 03.440 NUT; LEVER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0202-
12 03.440 CHAMBER; POWER,EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> 03.634 		8-97039-374-0 01 1 0108-
13 03.440 BEARING; POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> 03.634 		8-94383-629-0 01 1 0108-
14 03.440 GASKET; POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> 03.634 		8-94328-234-0 01 1 0108-
15 03.440 INSULATOR; POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> 03.634 		8-94383-633-0 01 1 0108-
16 03.440 NUT; LK,POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> 05.122 (A) 		8-94311-428-0 01 1 0108-
16 03.440 NUT; LK,POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-94388-225-0 01 1 0108-
17 03.440 CLEVIS; EXH THROTTLE BODY
ENG QUICK WARM UP SYSTEM<6JZ> 03.636 		8-97039-375-0 01 1 0108-
19 03.440 PIN; LEVER
ENG QUICK WARM UP SYSTEM<6JZ> 03.636 		8-94311-452-0 01 1 0108-
20 03.440 PIN; SPLIT,LEVER
ENG QUICK WARM UP SYSTEM<6JZ> 03.636 		8-97028-428-0 01 1 0108-
22 03.440 NUT; BRKT TO POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0108-0201
22 03.440 NUT; BRKT TO POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0202-
23 03.440 ELBOW; CONNECTOR,POWER CHAMBER
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97018-078-0 01 1 0108-
