1-50 — EXHAUST PIPE AND SILENCER (#20914) — 72 parça

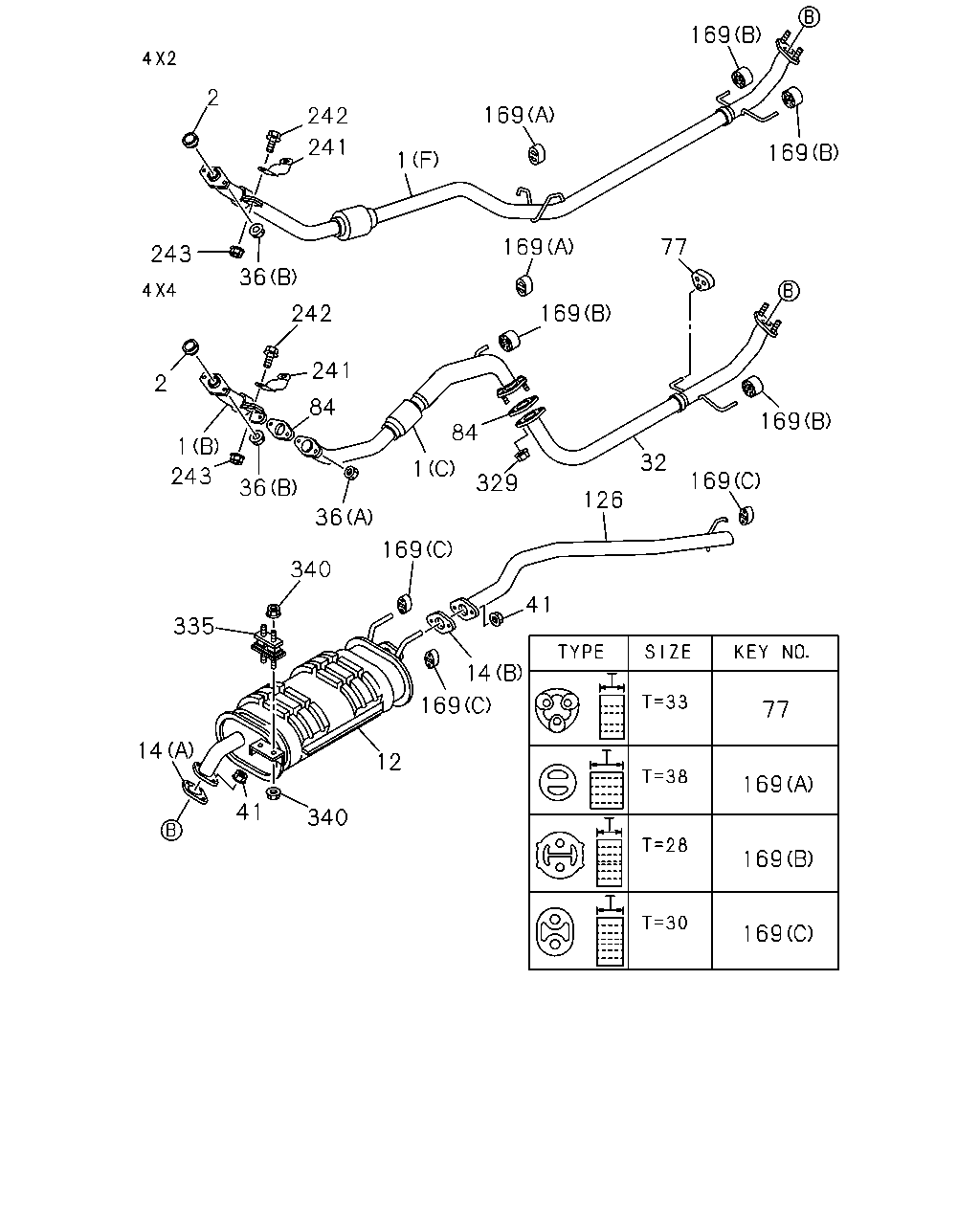

169 2 169 242 241 169 1 169 77 243 36 169 242 241 2 84 169 84 1 32 1 243 169 329 36 126 36 169 340 41 335 14 169 77 14 12 169 41 340 169 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (F)	8-97223-861-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97037-890-1	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97216-484-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X2(TFB***) CHARGE AIR COOLER<6PL> (A)	8-97307-310-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (D)	8-97307-312-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (E)	8-97307-383-0	01	1	0108-		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0108-	●	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	0108-	●
12	03.701 SILENCER ASM; EXH CHARGE AIR COOLER<6PL>	8-97310-266-0	01	1	0108-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-1	01	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	01	1	0108-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0108-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-		●
32	03.609 PIPE; EXH,FRT 4X4(TFS***)	8-97223-862-0	01	1	0108-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0108-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0108-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0108-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0108-	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.706	8-97120-442-0	01	1	0108-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	0108-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	0108-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR CHARGE AIR COOLER<6PL>	8-97307-314-0	01	1	0108-		●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	0108-	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	0108-		●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	0108-	●	●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	0108-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0108-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	0108-0109	●	●
243	03.613 NUT; PIPE BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	02	1	0108-	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	0108-	●
340	03.706 NUT; RUBBER,SUPPORT 01.540 M8 FLANGE	0-91150-208-0	04	1	0108-0109	●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	0110-	●

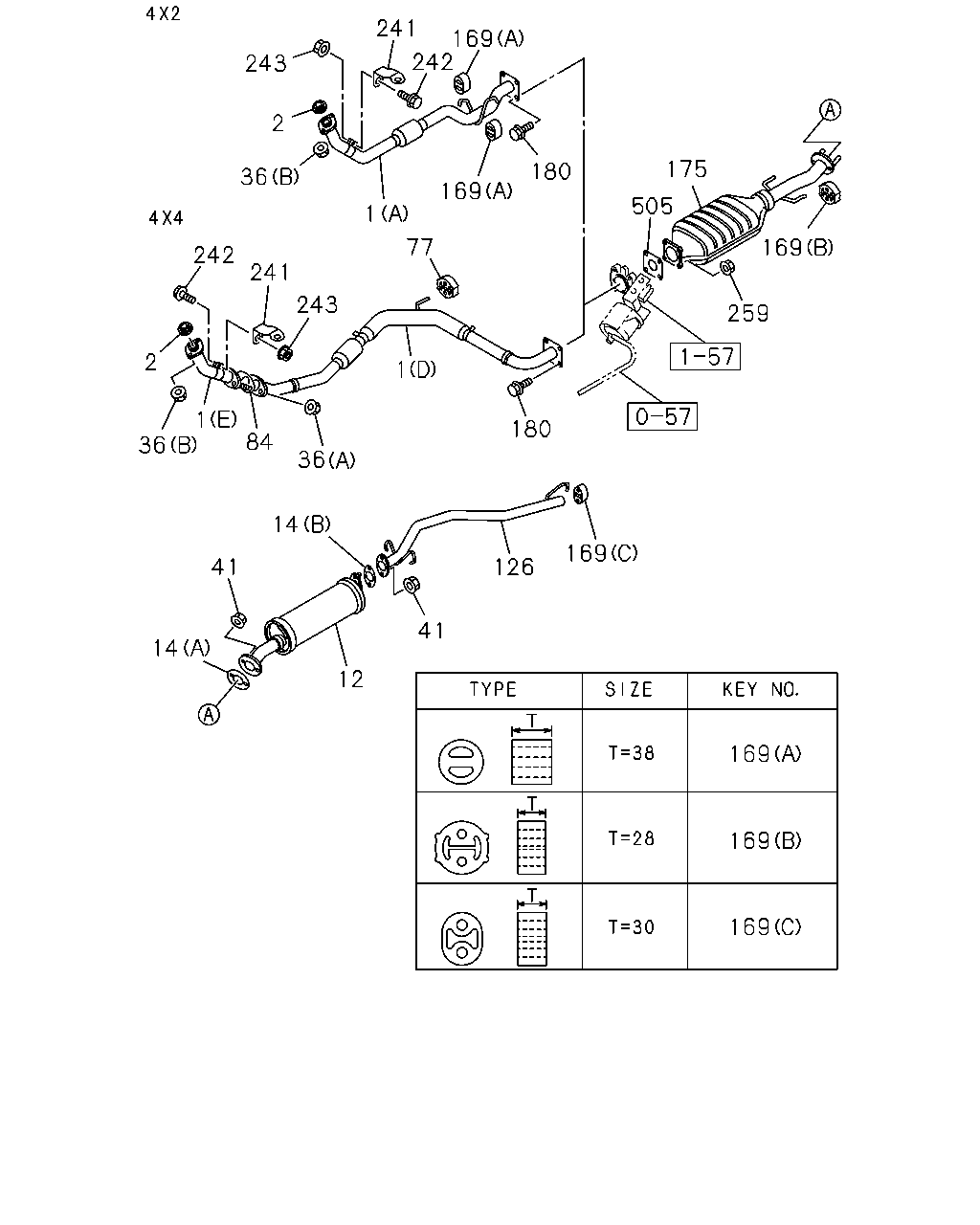

241 169 242 243 2 175 180 36 169 505 1 77 169 242 241 243 259 2 1 36 84 180 14 169 126 41 41 14 12 169 169 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (F)	8-97223-861-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97037-890-1	01	1	0108-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97216-484-0	01	1	0108-	●
1	03.609 PIPE; EXH 4X2(TFB***) CHARGE AIR COOLER<6PL> (A)	8-97307-310-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (D)	8-97307-312-0	01	1	0108-		●
1	03.609 PIPE; EXH 4X4(TFS***) CHARGE AIR COOLER<6PL> (E)	8-97307-383-0	01	1	0108-		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0108-	●	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	0108-	●
12	03.701 SILENCER ASM; EXH CHARGE AIR COOLER<6PL>	8-97310-266-0	01	1	0108-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-1	01	1	0108-	●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	01	1	0108-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0108-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ> 03.611 (A) ID=55	8-97093-574-1	02	1	0108-		●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0108-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0108-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0108-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0108-	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.706	8-97120-442-0	01	1	0108-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	0108-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-1	01	1	0108-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	0108-	●
126	03.705 PIPE; EXH,RR CHARGE AIR COOLER<6PL>	8-97307-314-0	01	1	0108-		●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	0108-	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	0108-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	0108-		●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	0108-	●	●
175	03.685 CONVERTER; CATALYST CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ>	8-97305-386-0	01	1	0108-		●
175	03.685 CONVERTER; CATALYST CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97308-029-0	01	1	0108-		●
180	03.708 BOLT; CONV TO PIPE CHARGE AIR COOLER<6PL> 03.613 M10X40 FLANGE	0-28681-040-0	04	1	0108-		●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	0108-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0108-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	0108-0109	●	●
243	03.613 NUT; PIPE BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
259	03.613 NUT; CONV MTG CHARGE AIR COOLER<6PL> M10	8-94201-308-1	04	1	0108-		●
505	03.611 GASKET; CONV TO EXH PIPE CHARGE AIR COOLER<6PL> ID=71	8-94324-194-0	01	1	0108-		●
