1-41 — FUEL PIPING; CHASSIS (#20913) — 81 parça

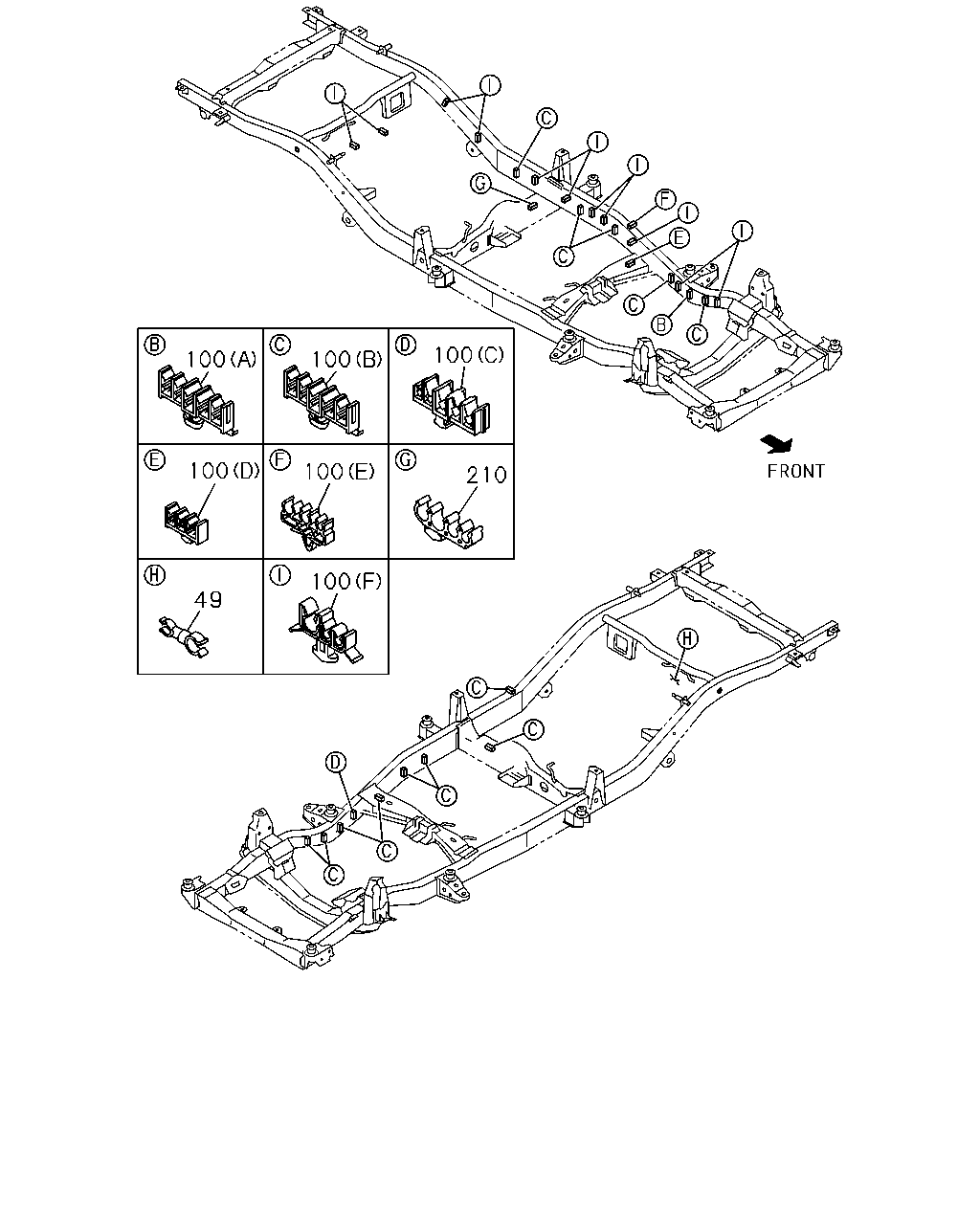

100 100 100 100 100 210 100 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	03.162 CLIP; PIPE TO FRAME 03.425 ID=6 & 8.3	8-94167-742-0	01	1	0108-	●
100	03.162 CLIP; FUEL PIPE SPACE CAB(TF*C) AIR BAG DRIVER(AJ3) (B) L=7.4	8-94435-550-0	01	1	0108-	●
100	03.162 CLIP; FUEL PIPE SPACE CAB(TF*C) EXC. AIR BAG DRIVER(AJ3) (B) L=7.4	8-94435-550-0	04	1	0108-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) (B) L=7.4	8-94435-550-0	12	1	0108-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) (D)	8-97061-372-0	01	1	0108-	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) AIR BAG DRIVER(AJ3) (A) L=8.9	8-94435-551-1	07	1	0108-	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) EXC. AIR BAG DRIVER(AJ3) (A) L=8.9	8-94435-551-1	04	1	0108-	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) AIR BAG DRIVER(AJ3) (B) L=7.4	8-94435-550-0	02	1	0108-	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. AIR BAG DRIVER(AJ3) (B) L=7.4	8-94435-550-0	05	1	0108-	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (C) L=8.5	8-97014-423-0	01	1	0108-	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (E)	8-97061-373-0	01	1	0108-	●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) CHARGE AIR COOLER<6PL> (F)	8-97245-523-0	11	1	0108-0207		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) CHARGE AIR COOLER<6PL> (F)	8-97245-523-0	12	1	0208-		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) CHARGE AIR COOLER<6PL> (F)	8-97245-523-0	10	1	0108-		●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	0108-	●

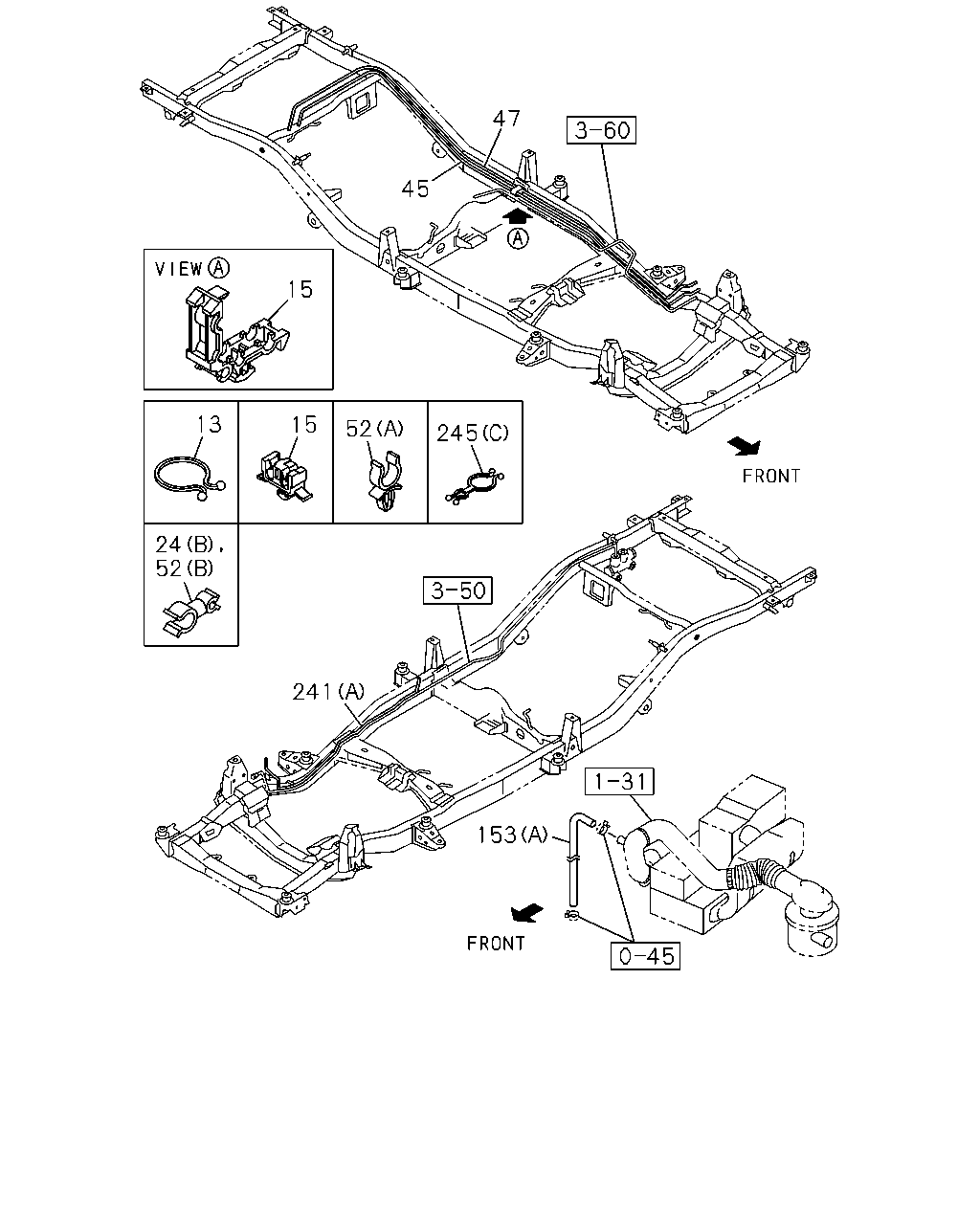

47 45 15 13 15 52 245 24 52 24 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	03.162 CLIP; PURSE LOCK 03.278	8-94463-508-0	01	1	0108-0211	●
15	03.162 CLIP; FUEL PIPE	8-97231-261-0	05	1	0108-	●
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	0108-	●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 03.280 (A) ID=17.1	8-94122-679-0	02	1	0108-		●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 06.672 (B) ID=20.2X2	8-94480-371-0	01	1	0108-		●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 02.483 (B) ID=25.5 & 13	8-97181-208-0	02	1	0108-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***)	8-97222-236-0	01	1	0108-	●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***)	8-97222-254-0	01	1	0108-	●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) CHARGE AIR COOLER<6PL>	8-97301-004-5	01	1	0108-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) CHARGE AIR COOLER<6PL>	8-97301-005-1	01	1	0108-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***)	8-97222-237-1	01	1	0108-	●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***)	8-97222-257-1	01	1	0108-0302	●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***)	8-97365-524-0	01	1	0303-	●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) CHARGE AIR COOLER<6PL>	8-97301-006-3	01	1	0108-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) CHARGE AIR COOLER<6PL>	8-97301-007-0	01	1	0108-		●
52	03.145 CLIP; EVAP PIPE 03.163 (C) ID=11	8-97173-219-0	02	1	0108-0211	●
52	03.145 CLIP; EVAP PIPE 06.672 (A) ID=17	8-94382-792-1	01	1	0108-0211	●	●
52	03.145 CLIP; EVAP PIPE 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0108-0211		●
153	03.162 HOSE; RUBBER,PIPE TO ACL (B)	8-97227-954-0	01	1	0108-0211	●
153	03.162 HOSE; RUBBER,PIPE TO ACL CHARGE AIR COOLER<6PL> (A)	8-97306-905-0	01	1	0108-0211		●
245	03.162 CLIP; EVAP HOSE 04.686 (A) ID=6.4 & 4.8	8-94257-329-0	02	1	0108-0211	●
245	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0108-0211	●	●
245	03.162 CLIP; EVAP HOSE CHARGE AIR COOLER<6PL> AIR CONDITIONER MANUAL CONT(C60) 03.145 (C)	8-94423-042-0	01	1	0108-0211		●

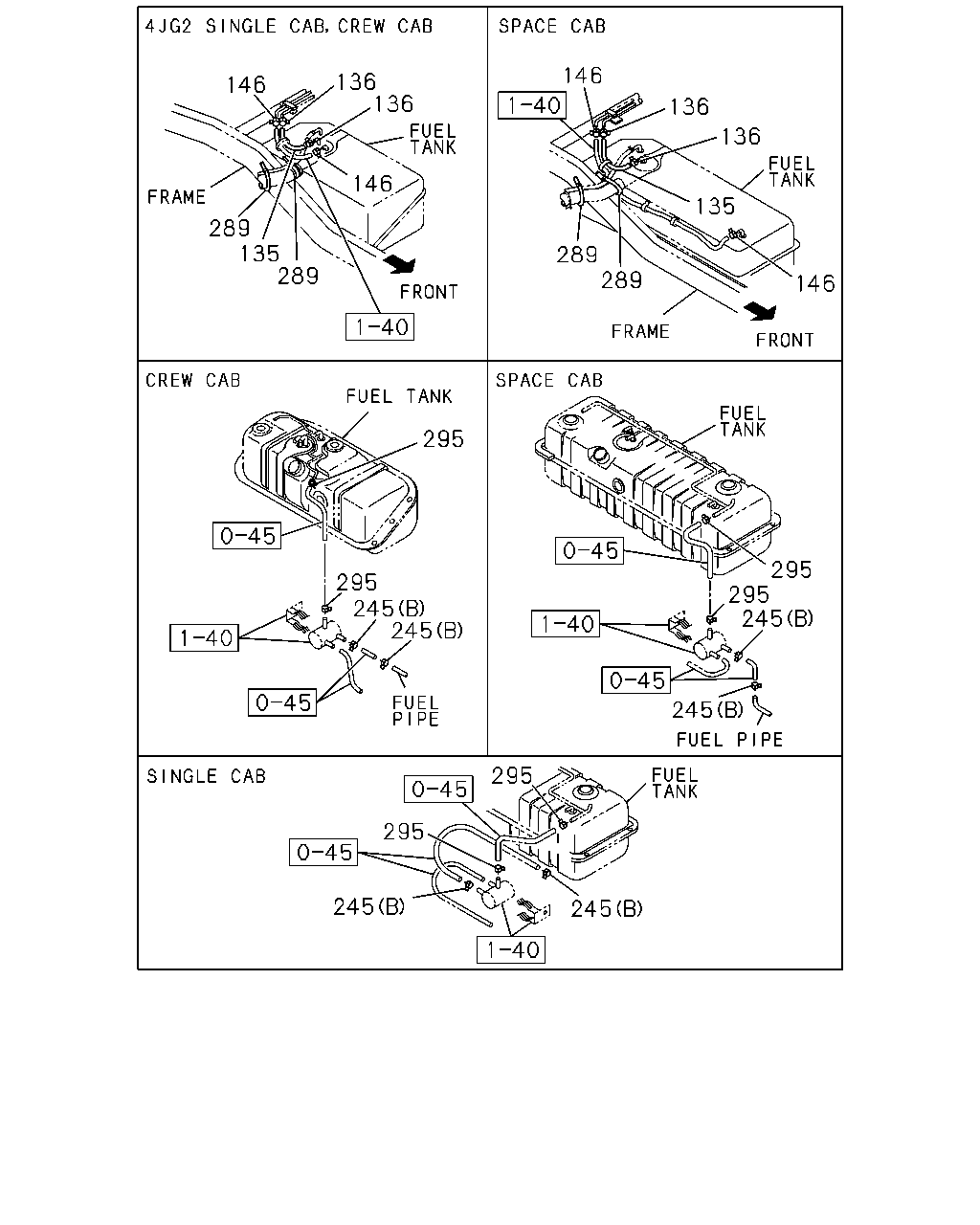

146 136 136 146 136 146 136 135 289 135 289 289 289 146 295 295 295 245 295 245 245 245 295 295 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
135	03.163 HOSE; FUEL TANK TO FUEL PIPE CREW CAB(TF*W) 08.962 L=400 SERVICED BY L=3000	0-01258-300-0	01	1	0108-	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 L=560 SERVICED BY L=3000	0-01258-300-0	01	1	0108-	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE CREW CAB(TF*W) CHARGE AIR COOLER<6PL> L=400 SERVICED BY L=3000	0-01262-300-0	01	1	0108-		●
136	03.162 CLIP; HOSE,FUEL TANK ID=14	8-97173-221-0	02	1	0108-	●
136	03.162 CLIP; HOSE,FUEL TANK CHARGE AIR COOLER<6PL> 03.280 ID=17.1	8-94122-679-0	02	1	0108-		●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE 03.162 ID=13	8-97173-220-0	02	1	0108-0209	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE ID=11	8-97173-219-0	02	1	0210-	●	●
245	03.162 CLIP; EVAP HOSE 04.686 (A) ID=6.4 & 4.8	8-94257-329-0	02	1	0108-0211	●
245	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0108-0211	●	●
245	03.162 CLIP; EVAP HOSE CHARGE AIR COOLER<6PL> AIR CONDITIONER MANUAL CONT(C60) 03.145 (C)	8-94423-042-0	01	1	0108-0211		●
289	03.008 CLIP; BAND,HOSE CREW CAB(TF*W) 03.162 L=140	5-09707-031-1	01	1	0108-	●
289	03.008 CLIP; BAND,HOSE L=330	5-09709-118-0	02	1	0108-	●	●
295	03.003 CLIP; HOSE,EVAP 03.163 ID=11	8-97173-219-0	02	1	0108-0211	●	●

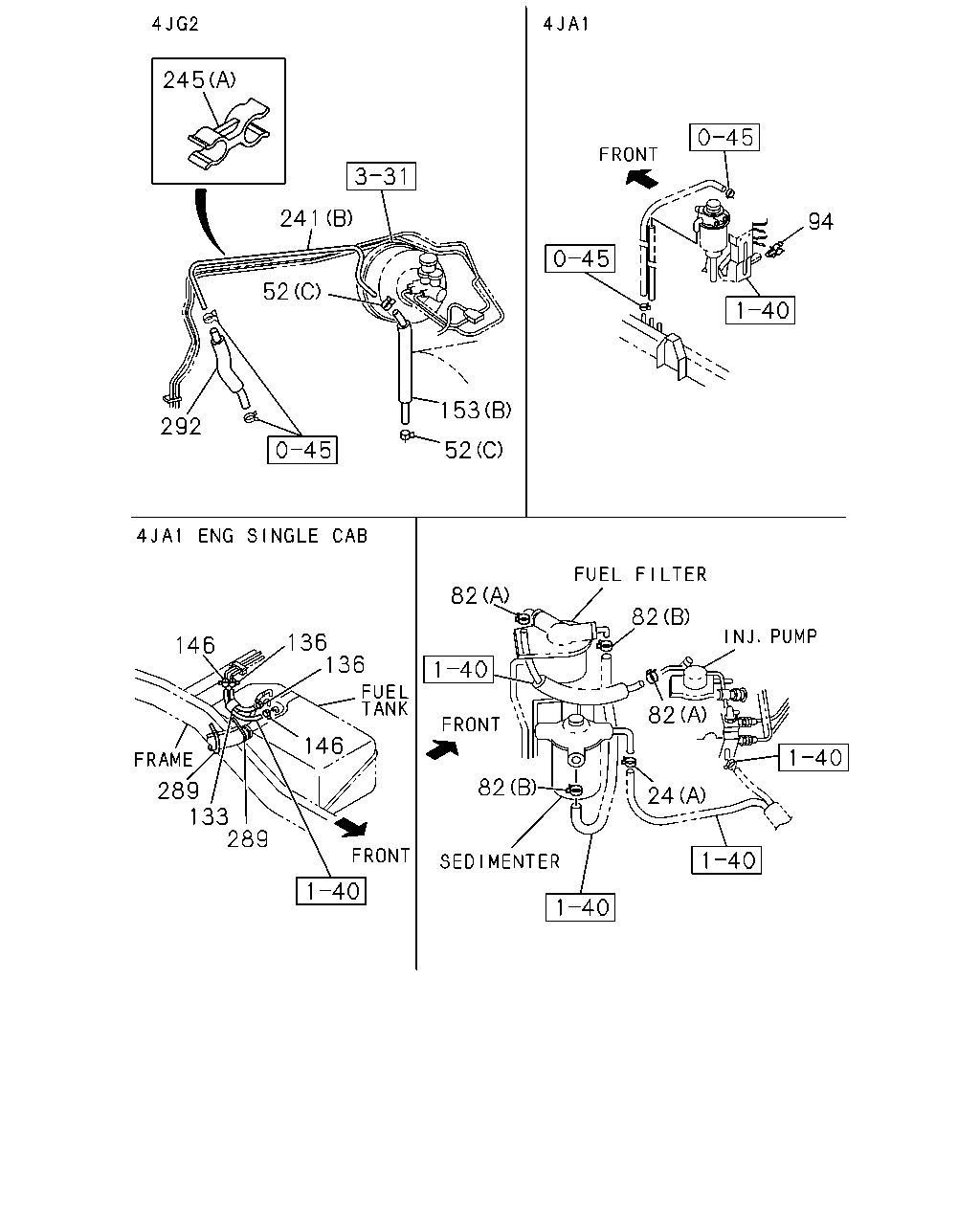

245 241 94 52 153 292 52 82 82 136 136 146 146 82 82 289 133 289 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	0108-	●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 03.280 (A) ID=17.1	8-94122-679-0	02	1	0108-		●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 06.672 (B) ID=20.2X2	8-94480-371-0	01	1	0108-		●
24	03.162 CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> 02.483 (B) ID=25.5 & 13	8-97181-208-0	02	1	0108-		●
52	03.145 CLIP; EVAP PIPE 03.163 (C) ID=11	8-97173-219-0	02	1	0108-0211	●
52	03.145 CLIP; EVAP PIPE 06.672 (A) ID=17	8-94382-792-1	01	1	0108-0211	●	●
52	03.145 CLIP; EVAP PIPE 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	0108-0211		●
82	03.163 CLIP; FUEL HOSE 01.166 (B) ID=14	8-94238-572-0	02	1	0108-	●
82	03.163 CLIP; FUEL HOSE 03.278 (A)	8-94463-508-0	01	1	0108-	●
94	03.890 CLIP; HOSE,FILTER 01.166 ID=21 BLACK	8-94422-733-0	01	1	0108-		●
133	03.300 HOSE ASM; FUEL,PIPE TO TANK SINGLE CAB(TF*S) CHARGE AIR COOLER<6PL>	8-97301-114-0	01	1	0108-0108		●
133	03.300 HOSE ASM; FUEL,PIPE TO TANK SINGLE CAB(TF*S) CHARGE AIR COOLER<6PL>	8-97323-823-0	01	1	0109-		●
136	03.162 CLIP; HOSE,FUEL TANK ID=14	8-97173-221-0	02	1	0108-	●
136	03.162 CLIP; HOSE,FUEL TANK CHARGE AIR COOLER<6PL> 03.280 ID=17.1	8-94122-679-0	02	1	0108-		●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE 03.162 ID=13	8-97173-220-0	02	1	0108-0209	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE ID=11	8-97173-219-0	02	1	0210-	●	●
153	03.162 HOSE; RUBBER,PIPE TO ACL (B)	8-97227-954-0	01	1	0108-0211	●
153	03.162 HOSE; RUBBER,PIPE TO ACL CHARGE AIR COOLER<6PL> (A)	8-97306-905-0	01	1	0108-0211		●
241	03.163 PIPE; EVAP (B)	8-97216-803-0	01	1	0108-0211	●
241	03.163 PIPE; EVAP 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (A)	8-97132-330-0	01	1	0108-0211	●
241	03.163 PIPE; EVAP 4X4 SINGLE CAB(TFSS) (A)	8-97132-330-0	01	1	0108-0211		●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB(TFBS) (A)	8-97122-652-0	01	1	0108-0211	●	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) (A)	8-97122-653-0	01	1	0108-0211	●	●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) (A)	8-97122-654-0	01	1	0108-0211	●	●
245	03.162 CLIP; EVAP HOSE 04.686 (A) ID=6.4 & 4.8	8-94257-329-0	02	1	0108-0211	●
245	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0108-0211	●	●
245	03.162 CLIP; EVAP HOSE CHARGE AIR COOLER<6PL> AIR CONDITIONER MANUAL CONT(C60) 03.145 (C)	8-94423-042-0	01	1	0108-0211		●
289	03.008 CLIP; BAND,HOSE CREW CAB(TF*W) 03.162 L=140	5-09707-031-1	01	1	0108-	●
289	03.008 CLIP; BAND,HOSE L=330	5-09709-118-0	02	1	0108-	●	●
292	03.163 HOSE; EVAP,FUEL PIPE	8-97217-089-0	01	1	0108-0211	●
