1 |

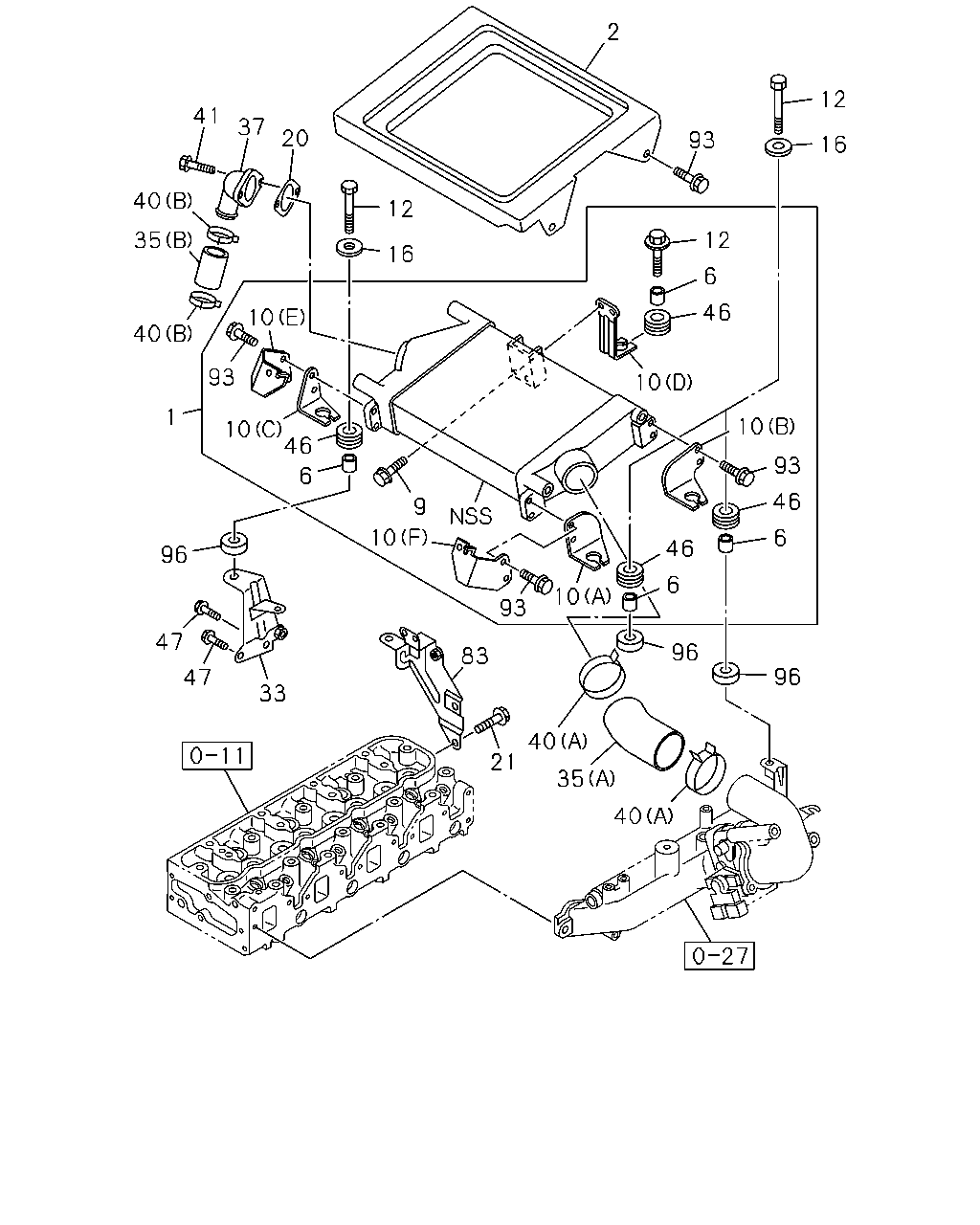

03.374 COOLER; CHARGE AIR
CHARGE AIR COOLER<6PL>
|
8-97307-025-2 |
01 |
1 |
0108- |
| |
2 |
01.540 COVER; CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
|
8-97307-018-2 |
01 |
1 |
0108- |
| |
6 |
01.540 COLLAR; MTG,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
|
8-97107-898-0 |
04 |
1 |
0108- |
| |
9 |
01.540 NUT; CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0108- |
| |
10 |
01.540 BRACKET; STAY,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
(A)
|
8-97251-883-2 |
01 |
1 |
0108- |
| |
10 |
01.540 BRACKET; STAY,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
(B)
|
8-97251-884-2 |
01 |
1 |
0108- |
| |
10 |
01.540 BRACKET; STAY,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
(C)
|
8-97251-885-1 |
01 |
1 |
0108- |
| |
10 |
01.540 BRACKET; STAY,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
(D)
|
8-97300-705-2 |
01 |
1 |
0108- |
| |
10 |
01.540 BRACKET; STAY,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
(E)
|
8-97301-161-3 |
01 |
1 |
0108- |
| |
10 |
01.540 BRACKET; STAY,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
(F)
|
8-97301-162-2 |
01 |
1 |
0108- |
| |
12 |
01.540 BOLT; CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
01.251
M8X60 FLANGE
|
0-28080-860-0 |
01 |
1 |
0108- |
| |
12 |
01.540 BOLT; CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
M8X41 W/PL WASHER
|
8-97264-622-0 |
01 |
1 |
0108- |
| |
12 |
01.540 BOLT; CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
M8X41 W/PL WASHER
|
8-97264-622-0 |
02 |
1 |
0108- |
| |
16 |
03.374 WASHER; PL,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
03.405
ID=8.5 OD=36
|
8-94221-082-0 |
01 |
1 |
0108- |
| |
20 |
01.540 GASKET
CHARGE AIR COOLER<6PL>
03.275
|
8-97086-961-0 |
01 |
1 |
0108- |
| |
21 |
01.540 BOLT
CHARGE AIR COOLER<6PL>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0108- |
| |
33 |
01.540 BRACKET; CHARGE AIR COOLER,FRT
CHARGE AIR COOLER<6PL>
EXC. AIR CONDITIONER MANUAL CONT(C60)
|
8-97309-958-0 |
01 |
1 |
0108- |
| |
35 |
01.540 HOSE; CONNECTING
CHARGE AIR COOLER<6PL>
(A)
|
8-97249-290-4 |
01 |
1 |
0108- |
| |
35 |
01.540 HOSE; CONNECTING
CHARGE AIR COOLER<6PL>
(B)
|
8-97312-383-0 |
01 |
1 |
0108- |
| |
37 |
03.609 PIPE; INL
CHARGE AIR COOLER<6PL>
|
8-97312-365-0 |
01 |
1 |
0108- |
| |
40 |
03.162 CLIP; RUBBER HOSE
CHARGE AIR COOLER<6PL>
03.273
(A)
ID=65-82
|
8-97131-942-0 |
02 |
1 |
0108-0109 |
| |
40 |
03.162 CLIP; RUBBER HOSE
CHARGE AIR COOLER<6PL>
03.407
ID=68-75
|
8-94320-428-0 |
02 |
1 |
0110- |
| |
40 |
03.162 CLIP; RUBBER HOSE
CHARGE AIR COOLER<6PL>
03.407
(B)
ID=45.5-56.5
|
8-97131-943-0 |
02 |
1 |
0108- |
| |
41 |
01.540 BOLT; INL PIPE
CHARGE AIR COOLER<6PL>
03.405
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0108- |
| |
46 |
01.540 RUBBER; MTG,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
|
8-97232-774-0 |
04 |
1 |
0108- |
| |
47 |
01.540 BOLT; CHARGE AIR COOLER BRKT
CHARGE AIR COOLER<6PL>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0108- |
| |
47 |
01.540 BOLT; CHARGE AIR COOLER BRKT
CHARGE AIR COOLER<6PL>
EXC. AIR CONDITIONER MANUAL CONT(C60)
01.271
M8X40 FLANGE
|
0-28080-840-0 |
01 |
1 |
0108- |
| |
47 |
01.540 BOLT; CHARGE AIR COOLER BRKT
CHARGE AIR COOLER<6PL>
EXC. AIR CONDITIONER MANUAL CONT(C60)
00.685
M10X45 FLANGE
|
0-28081-045-0 |
01 |
1 |
0108- |
| |
83 |
01.540 BRACKET; CHARGE AIR COOLER,RR
CHARGE AIR COOLER<6PL>
|
8-97310-617-0 |
01 |
1 |
0108- |
| |
93 |
01.540 BOLT; COVER
CHARGE AIR COOLER<6PL>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0108- |
| |
93 |
01.540 BOLT; COVER
CHARGE AIR COOLER<6PL>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0108- |
| |
93 |
01.540 BOLT; COVER
CHARGE AIR COOLER<6PL>
07.010
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
0108- |
| |
96 |
01.540 SPACER; BRKT,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
OD=36
|
8-97251-731-0 |
01 |
1 |
0108- |
| |
96 |
01.540 SPACER; BRKT,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
EXC. AIR CONDITIONER MANUAL CONT(C60)
OD=17.3
|
8-94328-221-1 |
01 |
1 |
0108- |
| |
96 |
01.540 SPACER; BRKT,CHARGE AIR COOLER
CHARGE AIR COOLER<6PL>
EXC. AIR CONDITIONER MANUAL CONT(C60)
OD=20
|
8-94369-182-0 |
01 |
1 |
0108- |
