1-11 — RADIATOR HOSE AND SUB TANK (#20908) — 63 parça

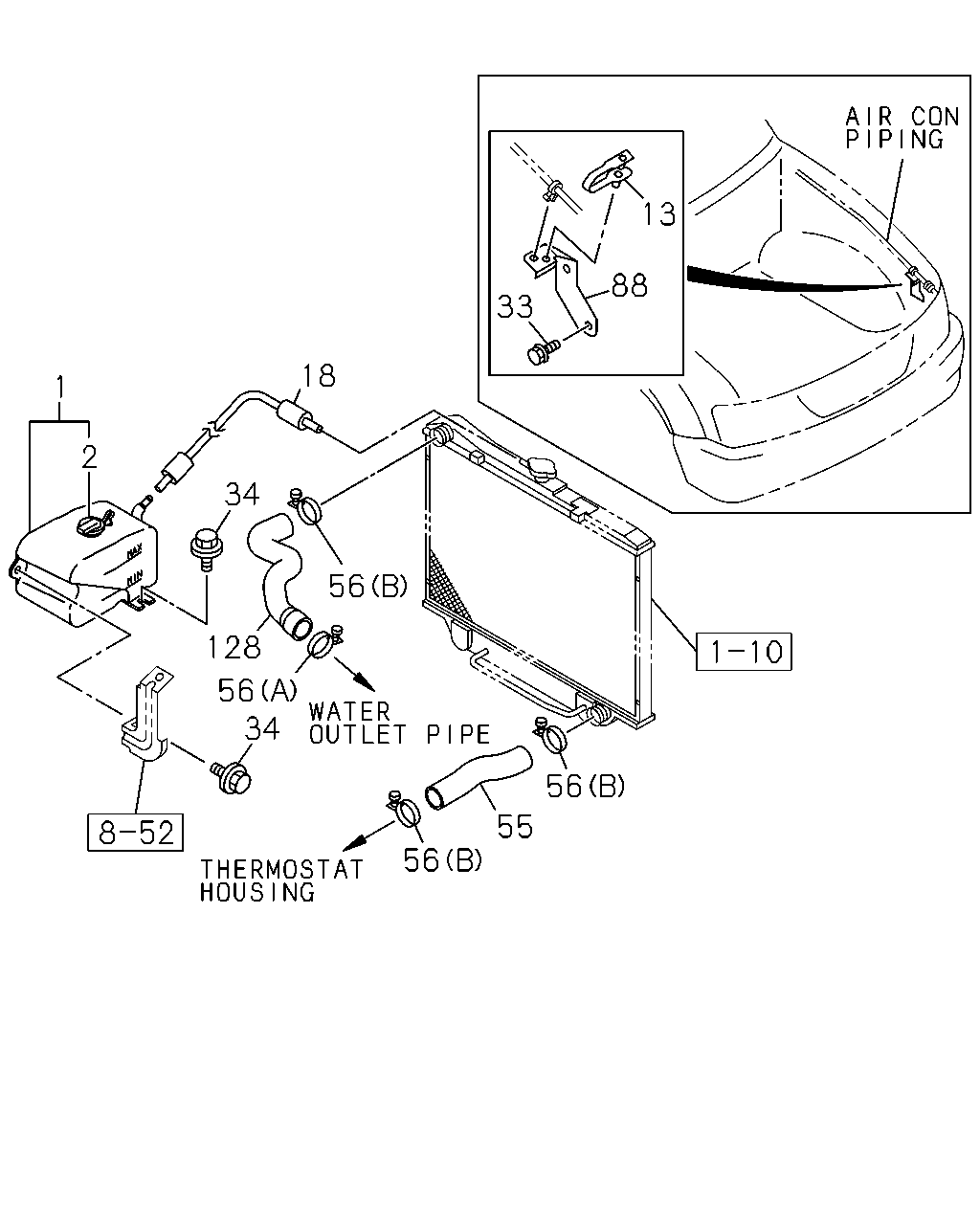

13 88 33 18 1 2 34 56 128 56 34 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD	8-97119-467-1	01	1	0108-	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	0108-		●
2	01.203 CAP; SURGE TANK	8-97079-007-0	01	1	0108-	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	0108-		●
13	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> 02.559 L=103	8-94239-339-0	01	1	0108-		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97070-767-2	01	1	0108-	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL>	8-97301-155-0	01	1	0108-		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0108-		●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	03	1	0108-	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	0108-0203		●
34	01.203 BOLT; RESERVE TANK 03.162 M8X25	8-97327-634-0	02	1	0204-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0108-0207	●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0108-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0208-0301	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0302-	●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0208-0301		●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 ID=52	1-09704-057-0	01	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	01	1	0108-	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0108-0207	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	03	1	0108-0207		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	03	1	0208-0301	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	03	1	0302-	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> ID=48	8-97213-216-0	03	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 (A) ID=52	1-09704-057-0	01	1	0108-0207		●
56	01.166 CLIP; WATER HOSE,RAD ID=42	8-97209-203-0	03	1	0208-		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	01	1	0208-		●
88	01.219 BRACKET; SUB TANK HOSE CHARGE AIR COOLER<6PL>	8-94473-988-3	01	1	0108-		●
128	01.159 HOSE; WATER,RAD INL	8-97070-938-1	01	1	0108-	●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0108-0207		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97351-660-0	01	1	0208-0301		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0302-		●

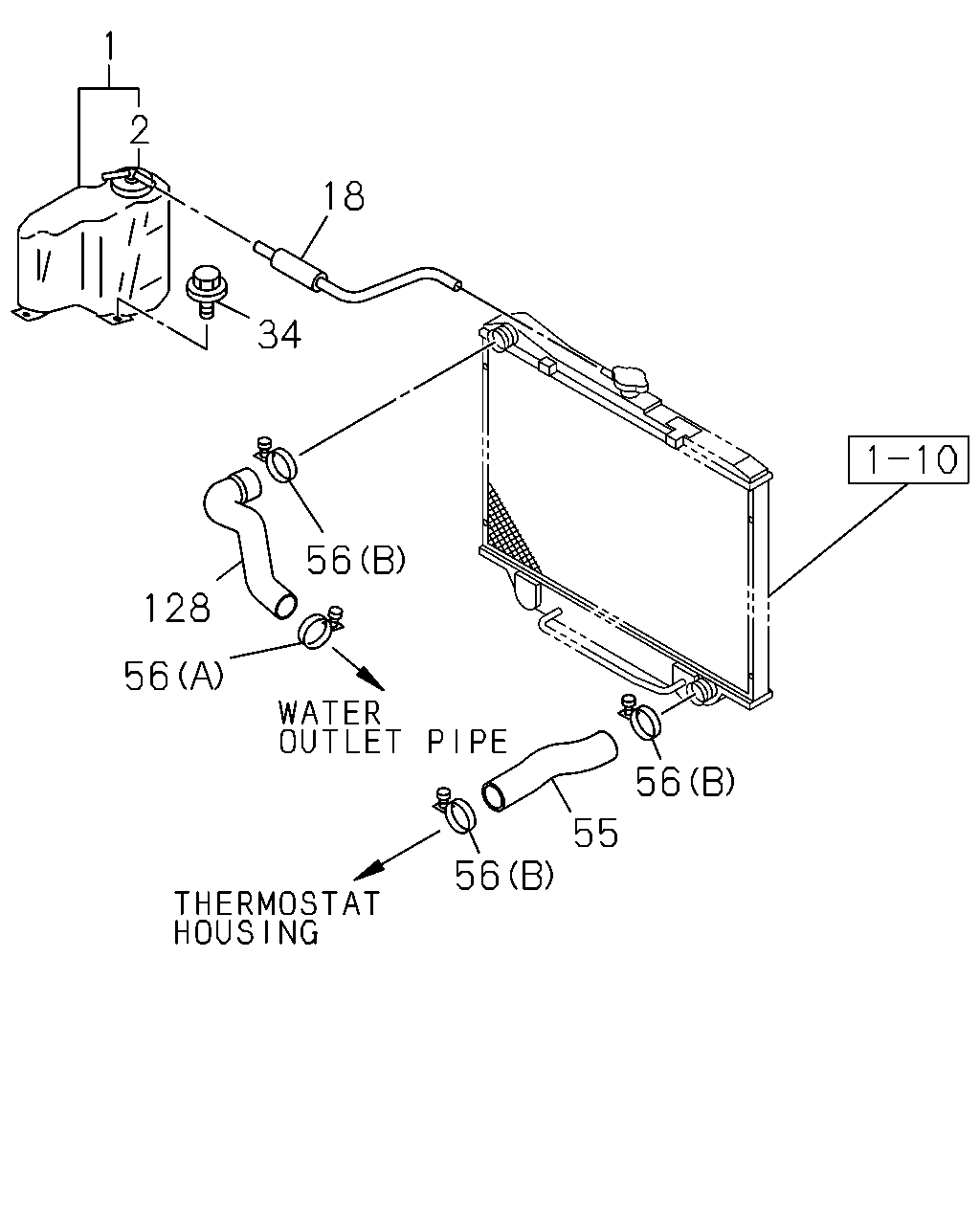

1 2 18 34 56 128 56 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD	8-97119-467-1	01	1	0108-	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	0108-		●
2	01.203 CAP; SURGE TANK	8-97079-007-0	01	1	0108-	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	0108-		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97070-767-2	01	1	0108-	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL>	8-97301-155-0	01	1	0108-		●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	03	1	0108-	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	0108-0203		●
34	01.203 BOLT; RESERVE TANK 03.162 M8X25	8-97327-634-0	02	1	0204-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0108-0207	●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0108-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0208-0301	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0302-	●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0208-0301		●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 ID=52	1-09704-057-0	01	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	01	1	0108-	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0108-0207	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	03	1	0108-0207		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	03	1	0208-0301	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	03	1	0302-	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> ID=48	8-97213-216-0	03	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 (A) ID=52	1-09704-057-0	01	1	0108-0207		●
56	01.166 CLIP; WATER HOSE,RAD ID=42	8-97209-203-0	03	1	0208-		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	01	1	0208-		●
128	01.159 HOSE; WATER,RAD INL	8-97070-938-1	01	1	0108-	●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0108-0207		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97351-660-0	01	1	0208-0301		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0302-		●
