◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11424 - FVR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#20906) — 86 parça

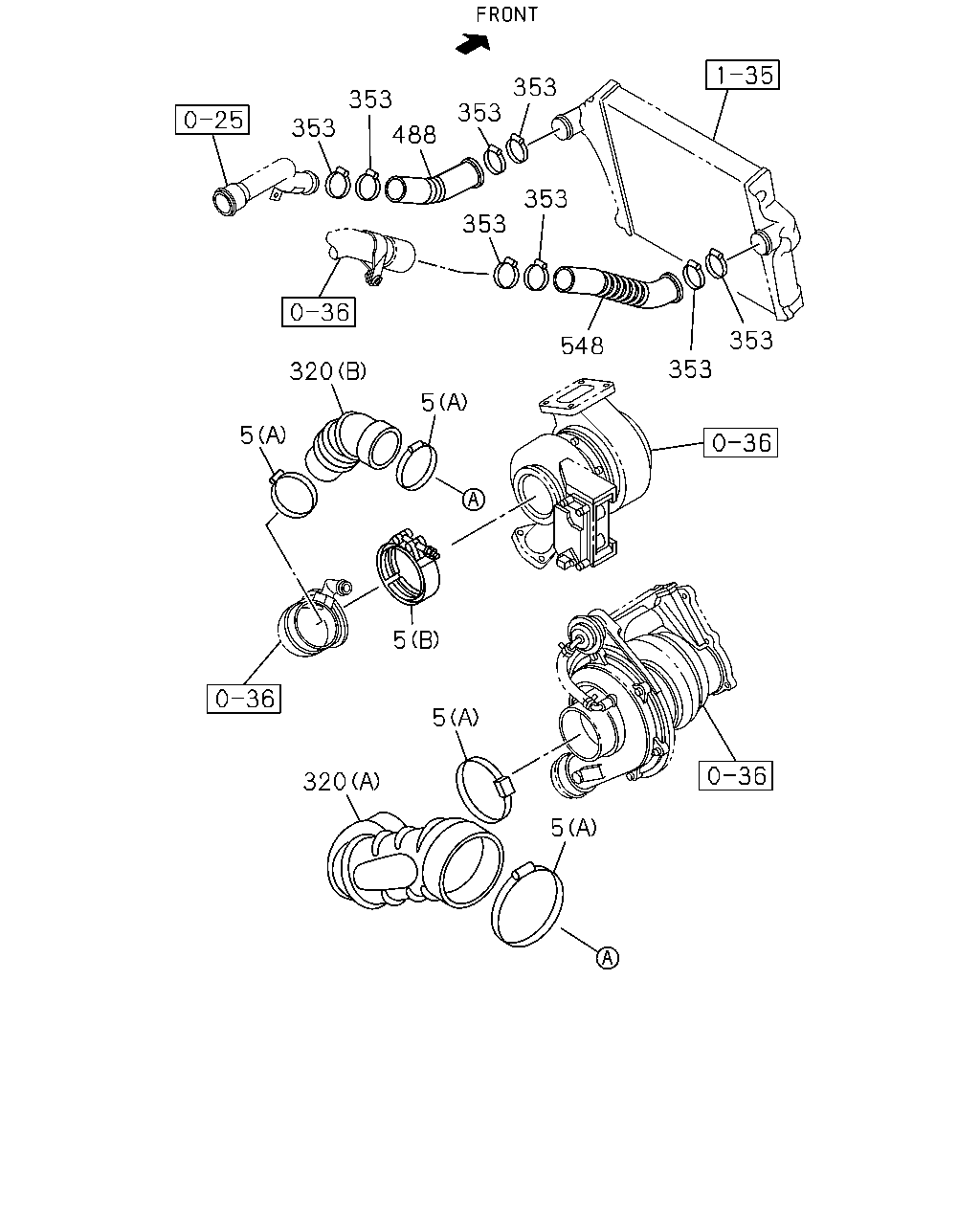

çizim 111639
353 353 353 353 488 353 353 353 548 353 320 5 5 5 5 320 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0809-0811
5 CLIP; AIR DUCT
(A) ID=90-110 		8-98133-365-0 01 1 0812-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1002-1005
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0809-0812
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1002-1005
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1002-1005
5 CLIP; AIR DUCT
(A) ID=87-116 		1-09707-138-0 01 1 1006-1011
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> (A) ID=87-116 		1-09707-138-0 01 1 1012-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1005
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1006-1011
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1012-
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=104-142 		1-09707-139-0 01 1 1012-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (B) ID=114 		8-15178-030-0 01 1 1012-1101
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=114 		8-15178-030-0 01 1 1102-
320 HOSE; CONN,ACL
(A) 		8-98073-257-0 01 1 0809-1011
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (A) 		8-98073-257-0 01 1 1012-
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) 		8-98167-258-0 01 1 1012-
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98012-859-2 01 1 1012-
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0809-0811
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002-1005
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002-1005
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 08 1 1006-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 0809-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 0809-1101
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> 		8-98065-044-0 01 1 1102-
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> 		8-98181-974-1 01 1 1102-

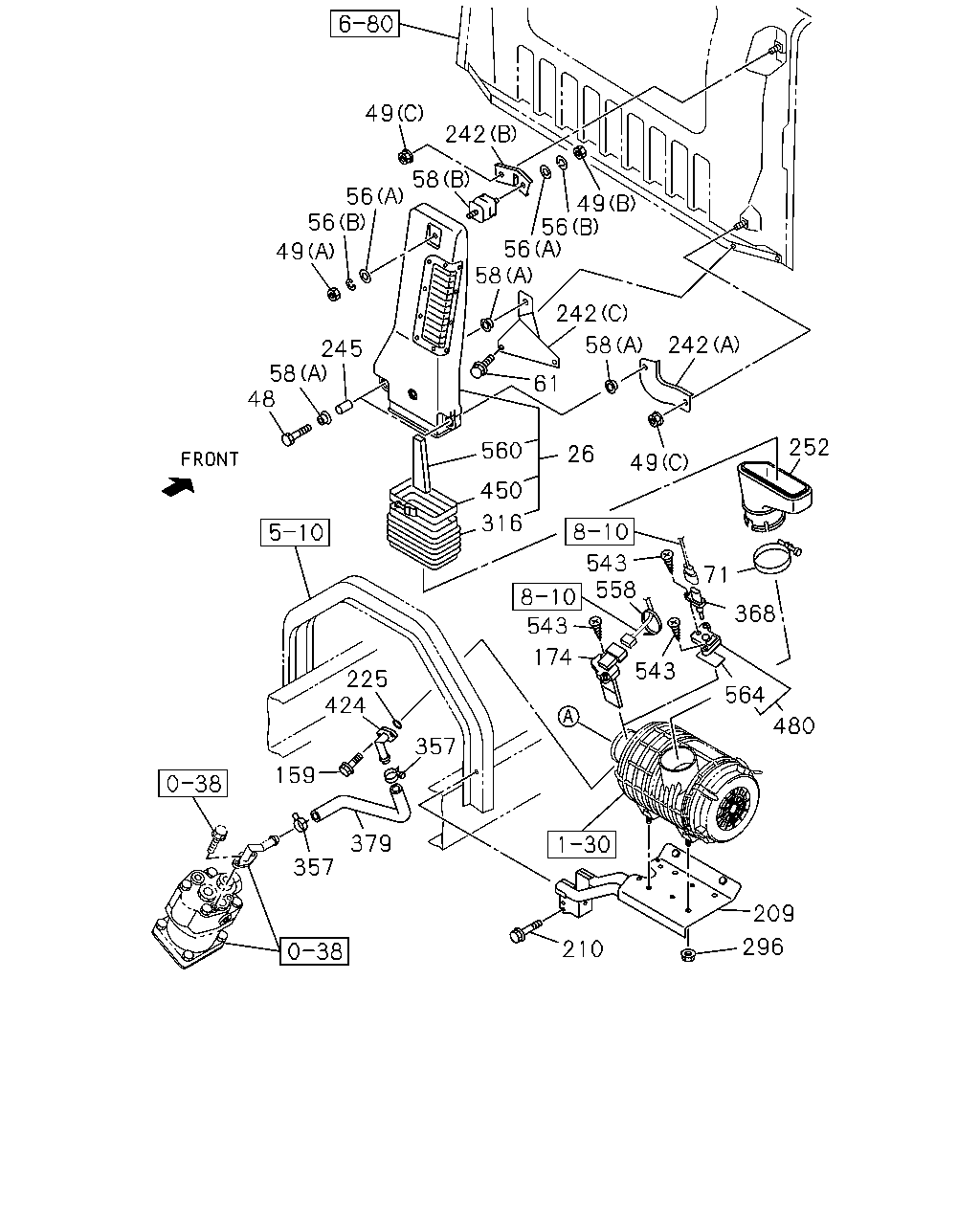

çizim 111655
49 242 58 56 56 49 56 56 58 49 242 242 58 245 61 58 48 252 560 26 49 450 316 543 558 71 368 543 174 543 225 424 564 480 357 159 379 357 209 296 210
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 0809-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0809-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0809-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0809-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0809-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0809-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0809-
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0809-0810
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0809-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0809-
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0809-0812
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 0809-
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> 		8-97601-967-0 01 1 1012-1112
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97601-967-0 01 1 1201-
209 BRACKET; ACL 8-98021-995-1 01 1 0809-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0809-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0809-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0809-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0809-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 0809-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0809-
252 DUCT; AIR INT 8-98012-861-1 01 1 0809-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0809-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
357 CLIP; RUBBER HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=26 		1-09707-091-0 01 1 0809-
357 CLIP; RUBBER HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=29.5 		8-97354-979-0 01 1 0809-
357 CLIP; RUBBER HOSE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=26 		1-09707-091-0 02 1 0809-
368 SENSOR; TEMP 8-98065-377-0 01 1 0809-1011
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1012-1112
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1201-
368 SENSOR; TEMP
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98065-377-0 01 1 1201-
379 HOSE; RUBBER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-97619-194-0 01 1 0809-
379 HOSE; RUBBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98077-469-0 01 1 0809-
424 PIPE; AIR,INL 8-98081-834-0 01 1 0809-
450 CLAMP; HOSE 9-09915-504-1 01 1 0809-
480 ADAPTER 8-98086-417-0 01 1 0809-1011
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1012-1112
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1201-
480 ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98086-417-0 01 1 1201-
543 SCREW; SENSOR
M5X14 W/LK WASHER 		0-36220-514-0 01 1 0809-1011
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012-1112
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> M5X14 W/LK WASHER 		0-36220-514-0 01 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M5X14 W/LK WASHER 		0-36220-514-0 01 1 1201-
543 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0809-1011
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012-1112
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1012-1112
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1201-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0809-
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 0809-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0809-
564 GASKET; ADAPTER 8-98071-416-0 01 1 0809-1011
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1012-1112
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1201-
564 GASKET; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98071-416-0 01 1 1201-
