◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#20903) — 36 parça

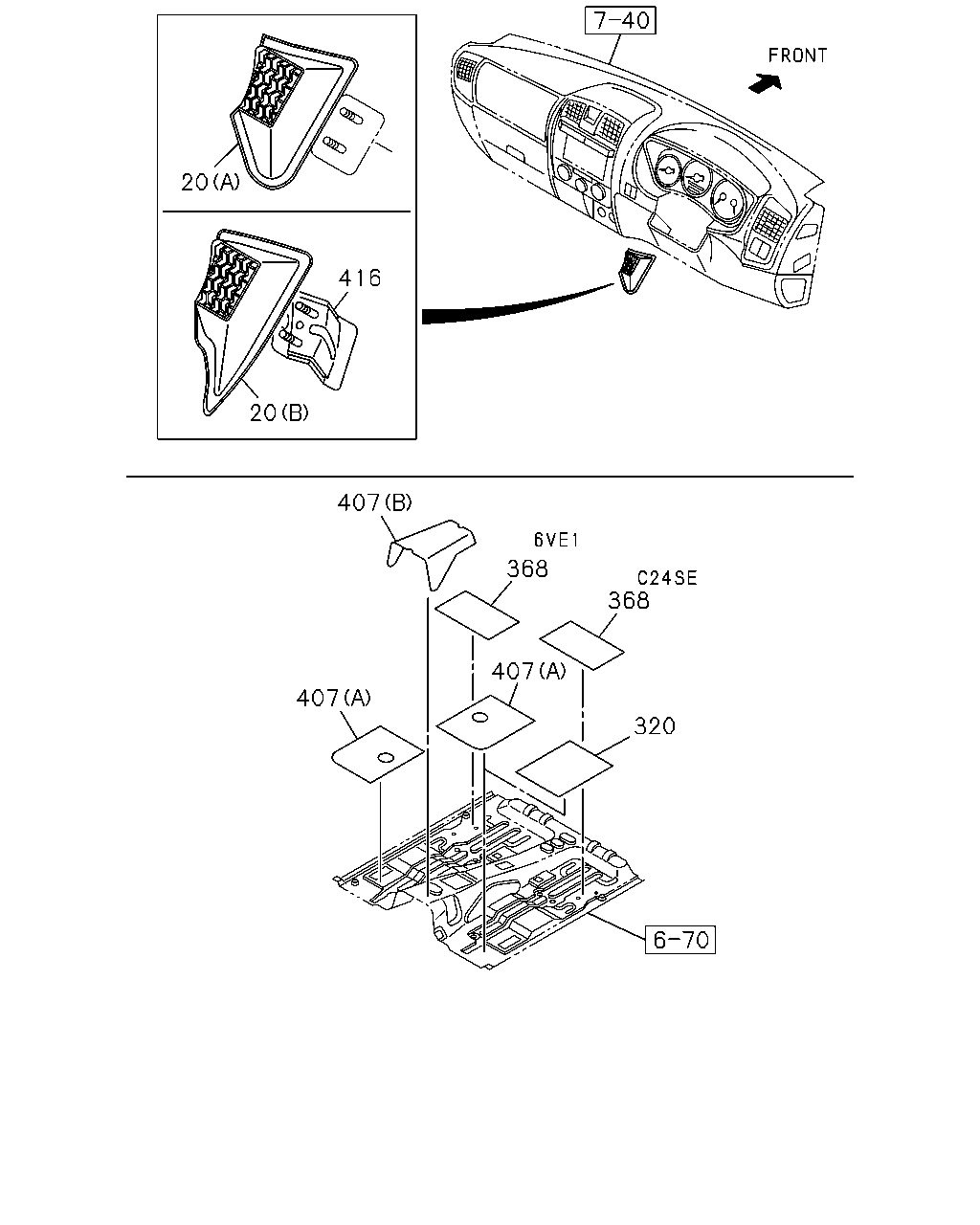

çizim 56076
20 416 20 407 368 368 407 407 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 16.547 REST; FOOT
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> (A) 		8-97236-450-1 01 1 0509-0609 ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> (A) 		8-97236-450-1 01 1 0509-0609 ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT
M/T AISIN 5 SPEED(MA5),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ,M/T MSG 5 SPEED(M75),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> (A) 		8-97236-450-1 01 1 0610- ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT
PARKING BRAKE FLOOR<7XW> (A) 		8-97236-450-1 01 1 0307-0402 ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT
DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> (A) 		8-97236-450-1 01 1 0403-0508 ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> (B) 		8-98007-894-0 01 1 0509-0609 ● ● ● ●
20 16.547 REST; FOOT
A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> (B) 		8-98007-894-0 01 1 0610- ● ● ●
20 16.547 REST; FOOT
A/T 4 SPEED-HMD,ELEC(M30) (B) 		8-98007-894-0 01 1 0610- ●
20 16.547 REST; FOOT
4X4 CREW CAB LONG(TFS*WF) A/T 4 SPEED-HMD,ELEC,PTU(MK2) PARKING BRAKE FLOOR<7XW> (B) 		8-98007-894-0 01 1 0610- ●
20 16.547 REST; FOOT
EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97365-724-0 01 1 0307-0402 ● ● ● ● ● ● ●
20 16.547 REST; FOOT
DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97365-724-0 01 1 0403-0609 ● ● ● ● ● ● ●
20 16.547 REST; FOOT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97365-724-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97365-724-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97365-724-0 01 1 1001- ● ● ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 0307-0508 ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) EURO3 SPECIFICATION<NT3> 		8-97329-088-1 01 1 0307-0508 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) EURO3 SPECIFICATION<NT3> 		8-97329-088-1 01 1 0509-0609 ● ● ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 0509-0609 ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-97329-088-1 01 1 0610- ● ● ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
HF V6 ENG(LCA) 		8-97329-088-1 01 1 0610- ● ● ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION<NT4> 		8-97329-088-1 01 1 0610- ● ● ● ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
6VE1 ENG(LX5) 		8-97329-089-1 01 1 0307-0508 ● ● ●
368 16.549 INSULATOR; FLOOR,RR
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97329-089-1 01 1 0307-0508 ● ●
368 16.549 INSULATOR; FLOOR,RR
HF V6 ENG(LCA),C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97329-089-1 01 1 0509-0609 ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-97329-089-1 01 1 0610- ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 0610-0612 ● ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 0701-0912 ● ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 1001- ● ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 1001- ● ● ● ● ● ● ● ●
416 16.549 BRACKET; FOOT REST
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-98004-165-0 01 1 0509-0609 ● ● ● ●
416 16.549 BRACKET; FOOT REST
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-98004-165-0 01 1 0610-0611 ● ● ● ● ●
416 16.549 BRACKET; FOOT REST
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-98061-157-0 01 1 0612- ● ● ● ● ●
