6-66 — HEAD LINING AND TRIM (#20900) — 97 parça

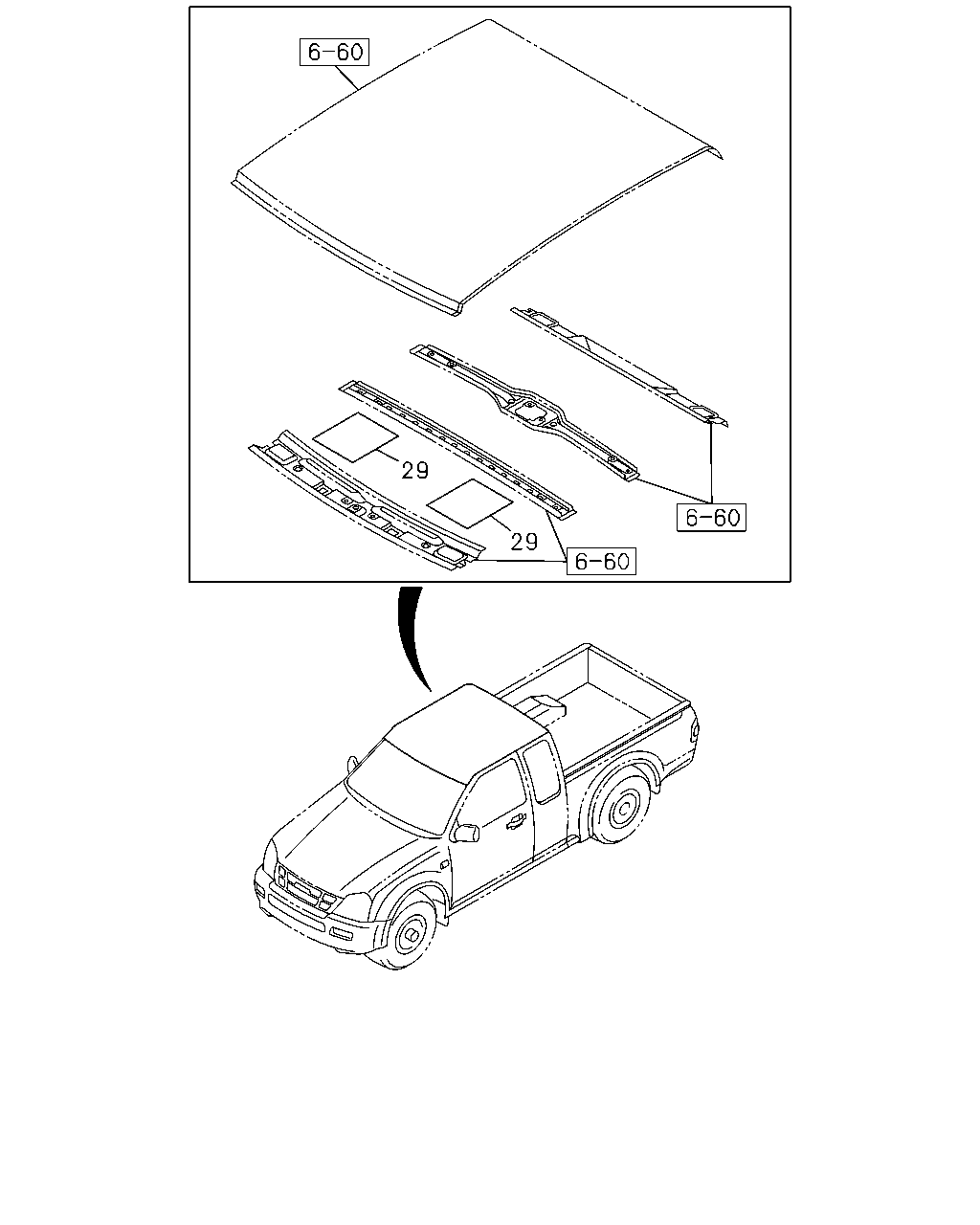

29 29

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	29	16.742 DEADENER; ROOF PANEL 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)	8-97369-873-1	02	1	0610-	●	●	●	●	●

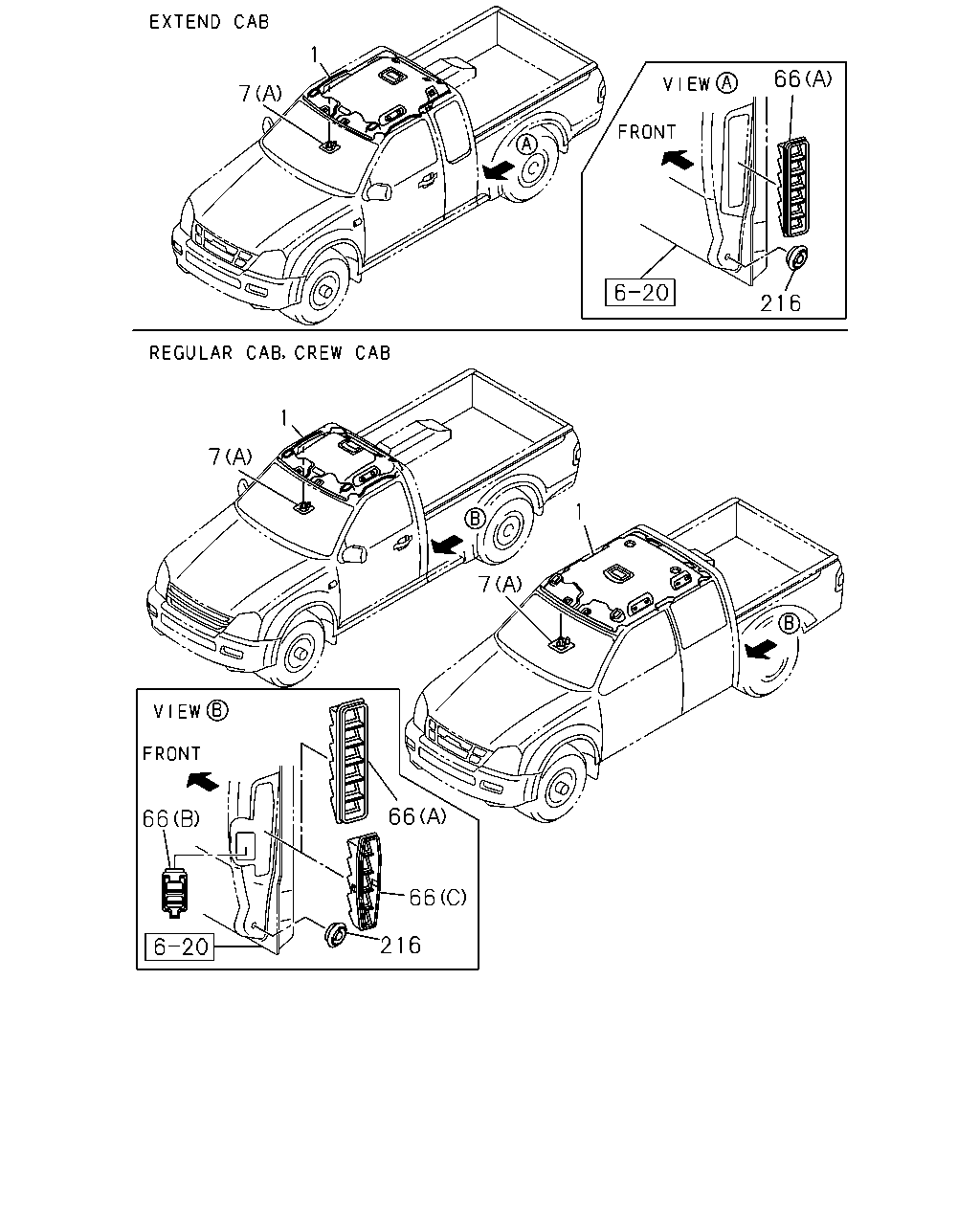

66 216 1 7 7 1 7 1 66 66 216 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97298-438-3	01	1	0307-0501	●	●		●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-116-0	01	1	0502-0508	●	●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-116-0	01	1	0509-0603	●	●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-882-0	01	1	0604-0609	●	●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-883-0	01	1	0610-	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-437-3	01	1	0307-0501	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-115-0	01	1	0502-0508	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-115-0	01	1	0509-0603	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-879-0	01	1	0604-0609	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-880-0	01	1	0610-	●	●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-121-0	01	1	0509-0603	●			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-876-0	01	1	0604-0609	●			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-877-0	01	1	0610-	●			●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97391-516-3	01	1	0307-0501						●	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-118-0	01	1	0502-0508						●	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-118-0	01	1	0509-0603						●	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-894-0	01	1	0604-0609						●	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-895-0	01	1	0610-						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-439-3	01	1	0307-0501						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-117-0	01	1	0502-0508						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-117-0	01	1	0509-0603						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-891-0	01	1	0604-0609						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-892-0	01	1	0610-						●	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-122-0	01	1	0509-0603						●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-889-0	01	1	0604-0609						●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	0610-0709						●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	0710-						●	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-123-0	01	1	0509-0603			●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-898-0	01	1	0604-0609			●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	0610-			●		●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97298-441-5	01	1	0307-0502			●		●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-120-0	01	1	0503-0508			●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-120-0	01	1	0509-0603			●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-904-0	01	1	0604-0609			●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	0610-			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-440-5	01	1	0307-0502			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-119-0	01	1	0503-0508			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-119-0	01	1	0509-0603			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-901-0	01	1	0604-0609			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	0610-			●		●
7	16.742 RETAINER; HEADLINING RAIL (B)	8-97301-381-1	02	1	0307-	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97298-442-0	02	1	0307-0609	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) (A) LIGHT GRAY	8-97298-442-0	02	1	0307-0609	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97403-535-0	02	1	0610-	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) (A) LIGHT GRAY	8-97403-535-0	02	1	0610-	●	●	●	●	●	●	●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97361-476-0	02	1	0307-	●	●		●
66	16.576 GRILLE; AIR OUTLET (B)	8-97251-682-1	02	1	0307-						●	●	●
66	16.576 GRILLE; AIR OUTLET (C)	8-97311-440-2	02	1	0307-						●	●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97361-477-0	02	1	0307-			●		●
66	16.576 GRILLE; AIR OUTLET (B)	8-97365-208-0	02	1	0307-			●		●
216	16.576 GROMMET; HOLE 16.575 OD=19	8-97365-823-0	02	1	0307-	●	●	●	●	●	●	●	●

1 7 1 7 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97298-438-3	01	1	0307-0501	●	●		●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-116-0	01	1	0502-0508	●	●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-116-0	01	1	0509-0603	●	●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-882-0	01	1	0604-0609	●	●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-883-0	01	1	0610-	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-437-3	01	1	0307-0501	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-115-0	01	1	0502-0508	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-115-0	01	1	0509-0603	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-879-0	01	1	0604-0609	●	●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-880-0	01	1	0610-	●	●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-121-0	01	1	0509-0603	●			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-876-0	01	1	0604-0609	●			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-877-0	01	1	0610-	●			●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97391-516-3	01	1	0307-0501						●	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-118-0	01	1	0502-0508						●	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-118-0	01	1	0509-0603						●	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-894-0	01	1	0604-0609						●	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-895-0	01	1	0610-						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-439-3	01	1	0307-0501						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-117-0	01	1	0502-0508						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-117-0	01	1	0509-0603						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-891-0	01	1	0604-0609						●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-892-0	01	1	0610-						●	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-122-0	01	1	0509-0603						●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-889-0	01	1	0604-0609						●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	0610-0709						●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	0710-						●	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-123-0	01	1	0509-0603			●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-898-0	01	1	0604-0609			●		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	0610-			●		●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97298-441-5	01	1	0307-0502			●		●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-120-0	01	1	0503-0508			●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-120-0	01	1	0509-0603			●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-904-0	01	1	0604-0609			●		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	0610-			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-440-5	01	1	0307-0502			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-119-0	01	1	0503-0508			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-119-0	01	1	0509-0603			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-901-0	01	1	0604-0609			●		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	0610-			●		●
7	16.742 RETAINER; HEADLINING RAIL (B)	8-97301-381-1	02	1	0307-	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97298-442-0	02	1	0307-0609	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) (A) LIGHT GRAY	8-97298-442-0	02	1	0307-0609	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97403-535-0	02	1	0610-	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) (A) LIGHT GRAY	8-97403-535-0	02	1	0610-	●	●	●	●	●	●	●	●
