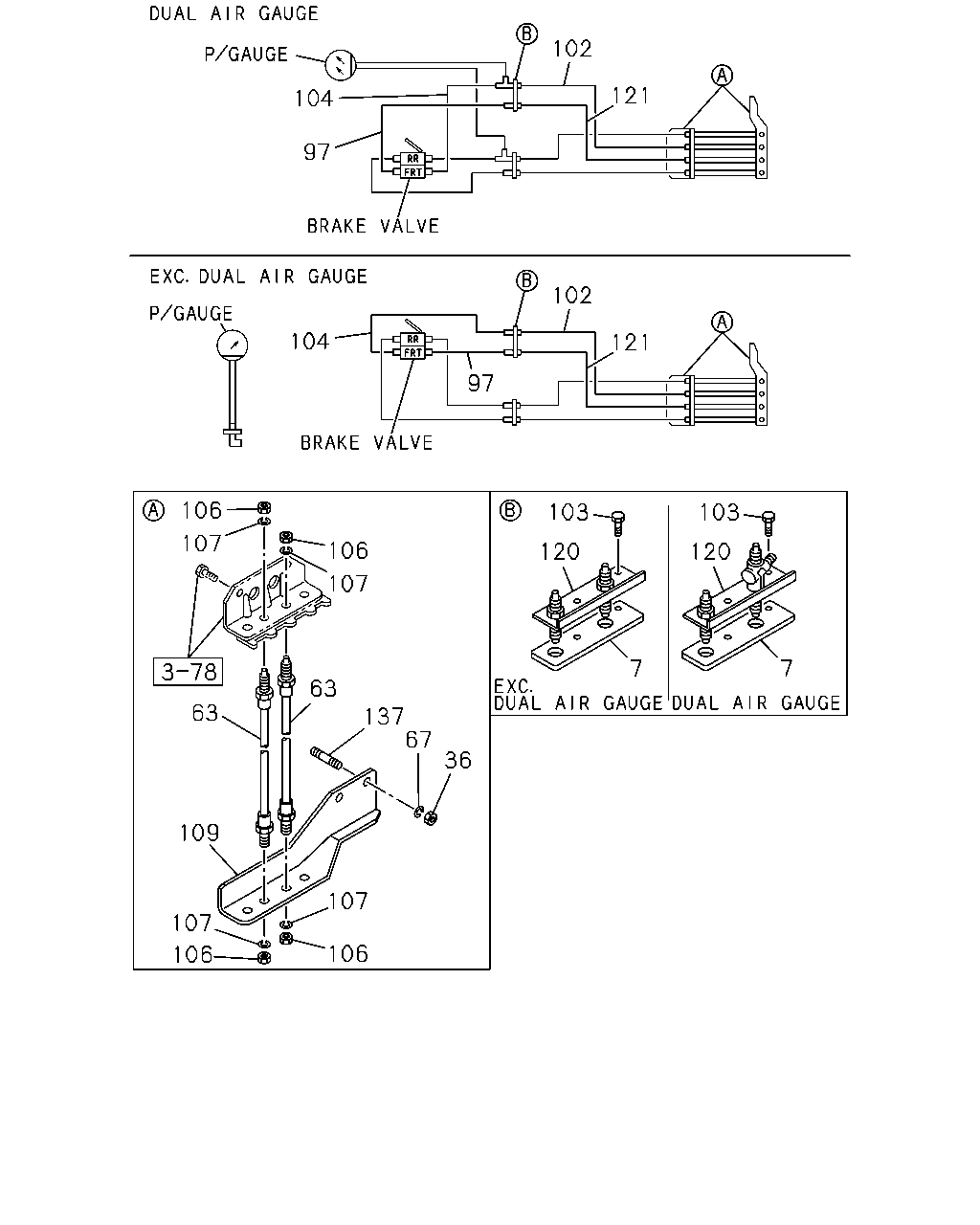

3-75 — BRAKE PIPING; AIR,FRONT (#209) — 69 parça

2 60 72 94 2 2 80 4 75 78 4 3 68 3 77 46 4 3 39 58 74 48 73 131 128 129 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 L=42	9-09233-010-1	02	1	9212-
2	UNION; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 ELBOW	9-09235-210-1	01	1	9212-
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	01	1	9212-
3	NUT; PIPE UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16	9-99111-416-0	01	1	9212-
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9212-
4	WASHER; LK,PIPE UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.2	9-09150-516-0	01	1	9212-9312
4	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9212-9312
39	NUT; PIPE UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16	9-99111-416-0	01	1	9212-
46	WASHER; LK,PIPE UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.2	9-09150-516-0	01	1	9212-9312
48	NUT; UNION BRKT M8	9-09110-408-0	02	1	9212-
58	SPACER; BRKT,UNION HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-22151-204-1	01	1	9212-
60	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 ELBOW	9-09235-210-1	01	1	9212-
68	NUT; UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16	9-99111-416-0	01	1	9212-
72	UNION; AIR PIPE M16 L=74	9-09233-310-1	01	1	9212-
73	NUT; PIPE UNION M16	9-99111-416-0	01	1	9212-
74	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9212-9312
75	BRACKET; UNION	1-47476-292-0	01	1	9212-
77	NUT; PIPE UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16	9-99111-416-0	01	1	9212-
78	WASHER; LK,PIPE UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.2	9-09150-516-0	01	1	9212-9312
80	WASHER; LK,UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.2	9-09150-516-0	01	1	9212-9312
94	BOLT; BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	02	1	9212-
94	BOLT; BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
126	SPACER; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09503-191-0	02	1	9212-
128	PLATE; 2 WAY UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-397-0	01	1	9212-
129	SEAL; UNION PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79998-237-0	01	1	9212-
131	BOLT; PLATE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9212-

102 121 104 97 102 104 121 97 106 103 103 107 106 120 120 107 7 7 63 63 137 67 36 109 107 107 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; PLATE UNION	1-79998-232-0	01	1	9212-
36	NUT; HOSE BRKT M10	9-09110-510-0	02	1	9212-
63	HOSE; FLEX,BRK LINE,CAB SIDE L=630	0-07424-630-0	02	1	9212-
67	WASHER; LK,HOSE BRKT ID=10.2	9-09150-510-0	02	1	9212-
97	PIPE; AIR,BRK VLV TO UNION L=454	1-47482-292-0	01	1	9212-9212
97	PIPE; AIR,BRK VLV TO UNION L=455	1-47497-060-0	01	1	9301-
102	PIPE; AIR,FLEX HOSE TO UNION L=495 SERVICED BY L=500	1-47426-406-0	01	1	9212-9212
102	PIPE; AIR,FLEX HOSE TO UNION L=495 SERVICED BY L=550	1-47426-407-0	01	1	9301-
103	BOLT; PIPE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9212-
104	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500	1-47434-472-0	01	1	9212-9212
104	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500	1-47426-406-0	01	1	9301-
104	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550	1-47437-963-0	01	1	9212-9212
104	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550	1-47426-407-0	01	1	9301-
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9212-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9212-
109	BRACKET; FLEX HOSE POWER STEERING(N40)	1-47476-455-0	01	1	9212-
109	BRACKET; FLEX HOSE EXC. POWER STEERING(N40)	1-47475-778-1	01	1	9212-
120	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-220-1	01	1	9212-
120	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-218-1	01	1	9212-
121	PIPE; AIR,UNION TO FLEX HOSE L=489	1-47482-997-0	01	1	9212-9212
121	PIPE; AIR,UNION TO FLEX HOSE L=489	1-47497-061-0	01	1	9301-
137	STUD; BRKT M10X25 L=40	9-04411-025-0	02	1	9212-

87 1 5 76 70 62 76 76 87 59 5 1 70 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=362 SERVICED BY L=400	1-47426-404-0	01	1	9212-
1	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=732	1-47488-504-0	01	1	9212-9212
1	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=732	1-47497-936-0	01	1	9301-
5	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1442 SERVICED BY L=1550	1-47426-419-0	01	1	9212-
5	PIPE; AIR,UNION TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1838 SERVICED BY L=2100	1-47426-422-0	01	1	9212-
59	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1304 SERVICED BY L=1400	1-47437-969-0	01	1	9212-9212
59	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1304 SERVICED BY L=1400	1-47426-418-0	01	1	9301-
62	PIPE; AIR,UNION TO FLEX HOSE L=1351 SERVICED BY L=1550	1-47437-970-0	01	1	9212-9212
62	PIPE; AIR,UNION TO FLEX HOSE L=1351 SERVICED BY L=1550	1-47426-419-0	01	1	9301-
70	PIPE; AIR,FLEX HOSE TO UNION L=1321 SERVICED BY L=1550	1-47437-970-0	01	1	9212-9212
70	PIPE; AIR,FLEX HOSE TO UNION L=1321 SERVICED BY L=1550	1-47426-419-0	01	1	9301-
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1481 SERVICED BY L=1700	1-47434-478-0	01	1	9212-9212
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1481 SERVICED BY L=1700	1-47426-420-0	01	1	9301-
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1561 SERVICED BY L=1700	1-47434-478-0	01	1	9212-9212
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1561 SERVICED BY L=1700	1-47426-420-0	01	1	9301-
76	PIPE; AIR,UNION TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2208 SERVICED BY L=2600	1-47437-973-0	01	1	9212-9212
76	PIPE; AIR,UNION TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2208 SERVICED BY L=2600	1-47426-424-0	01	1	9301-
87	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=726 SERVICED BY L=550	1-47426-344-0	01	1	9212-9212
87	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=726 SERVICED BY L=730	1-47426-411-0	01	1	9301-
87	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=912	1-47488-441-0	01	1	9212-9212
87	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=912	1-47497-170-0	01	1	9301-
