◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#20896) — 45 parça

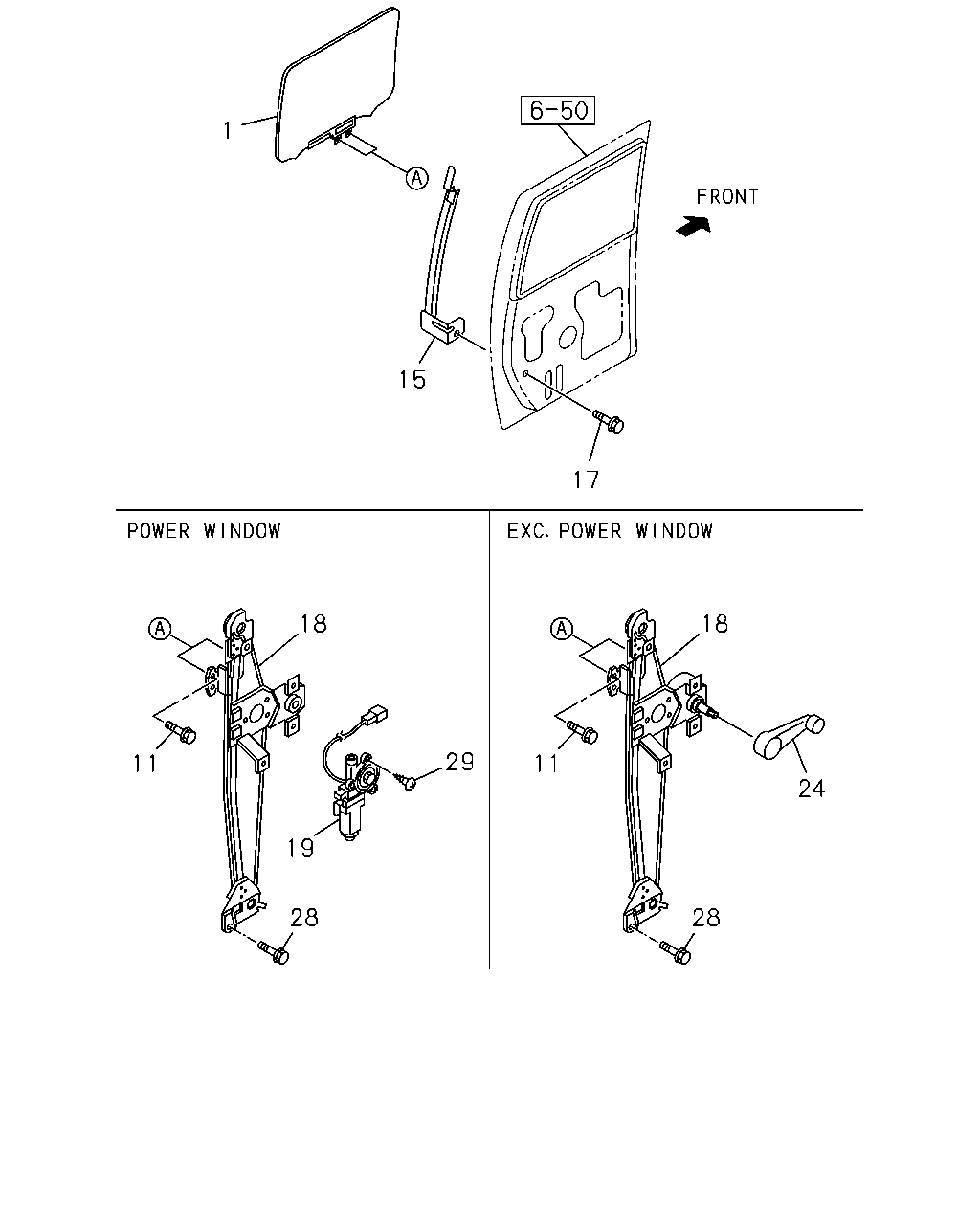

çizim 56711
1 15 17 18 24 28 11 29 18 11 19 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; RR DOOR 8-93297-658-1 01 1 0307-0508 ● ●
1 16.180 GLASS; RR DOOR 8-98002-757-0 01 1 0509-0808 ● ●
1 16.180 GLASS; RR DOOR 8-98130-014-0 01 1 0809- ● ●
1 16.180 GLASS; RR DOOR 8-93297-659-1 01 1 0307-0508 ● ●
1 16.180 GLASS; RR DOOR 8-98002-758-0 01 1 0509-0808 ● ●
1 16.180 GLASS; RR DOOR 8-98130-015-0 01 1 0809- ● ●
11 16.183 BOLT; GLASS
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 0307-0601 ● ●
11 16.183 BOLT; GLASS
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0602- ● ●
15 16.190 RAIL; RR GUIDE,RR DOOR 8-93298-412-0 01 1 0307- ● ●
15 16.190 RAIL; RR GUIDE,RR DOOR 8-93298-413-0 01 1 0307- ● ●
17 10.765 BOLT; RR GUIDE RAIL
10.701 M6X8 		8-94155-893-0 02 1 0307-0609 ● ●
17 10.765 BOLT; RR GUIDE RAIL
M6X8 FLANGE 		8-98048-996-0 02 1 0610- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-812-0 01 1 0610-0908 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98150-525-0 01 1 0909- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-813-0 01 1 0610-0908 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98150-526-0 01 1 0909- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98005-168-3 01 1 0610-0908 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98150-521-0 01 1 0909- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98005-169-3 01 1 0610-0908 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98150-522-0 01 1 0909- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97352-746-0 01 1 0307-0506 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98020-412-0 01 1 0507-0609 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97352-747-0 01 1 0307-0506 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98020-411-0 01 1 0507-0609 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-93290-871-2 01 1 0307-0508 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-93290-871-2 01 1 0509-0609 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-93290-872-2 01 1 0307-0508 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-93290-872-2 01 1 0509-0609 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-803-0 01 1 0610-0908 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98151-593-0 01 1 0909- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-804-0 01 1 0610-0908 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98151-594-0 01 1 0909- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97352-748-0 01 1 0307-0506 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97369-491-0 01 1 0507-0609 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97352-749-0 01 1 0307-0506 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97369-492-0 01 1 0507-0609 ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97298-454-3 02 1 0307-0609 ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97408-066-0 02 1 0610- ● ●
28 16.181 BOLT; WINDOW REG
POWER WINDOW FRT&REAR DOOR<A31> 10.701 M6X8 		8-94155-893-0 06 1 0307-0609 ● ●
28 16.181 BOLT; WINDOW REG
POWER WINDOW FRT&REAR DOOR<A31> 10.765 M6X8 FLANGE 		8-98048-996-0 06 1 0610- ● ●
28 16.181 BOLT; WINDOW REG
EXC. POWER WINDOW FRT&REAR DOOR<A31> 10.701 M6X8 		8-94155-893-0 08 1 0307-0508 ● ●
28 16.181 BOLT; WINDOW REG
EXC. POWER WINDOW FRT&REAR DOOR<A31> 10.701 M6X8 		8-94155-893-0 08 1 0509-0609 ● ●
28 16.181 BOLT; WINDOW REG
EXC. POWER WINDOW FRT&REAR DOOR<A31> 10.765 M6X8 FLANGE 		8-98048-996-0 08 1 0610- ● ●
29 16.270 SCREW; WINDOW REG
POWER WINDOW FRT&REAR DOOR<A31> 		8-97351-770-0 06 1 0307-0609 ● ●
29 16.270 SCREW; WINDOW REG
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-809-0 06 1 0610- ● ●
