6-50 — REAR DOOR AND HINGE (#20895) — 25 parça

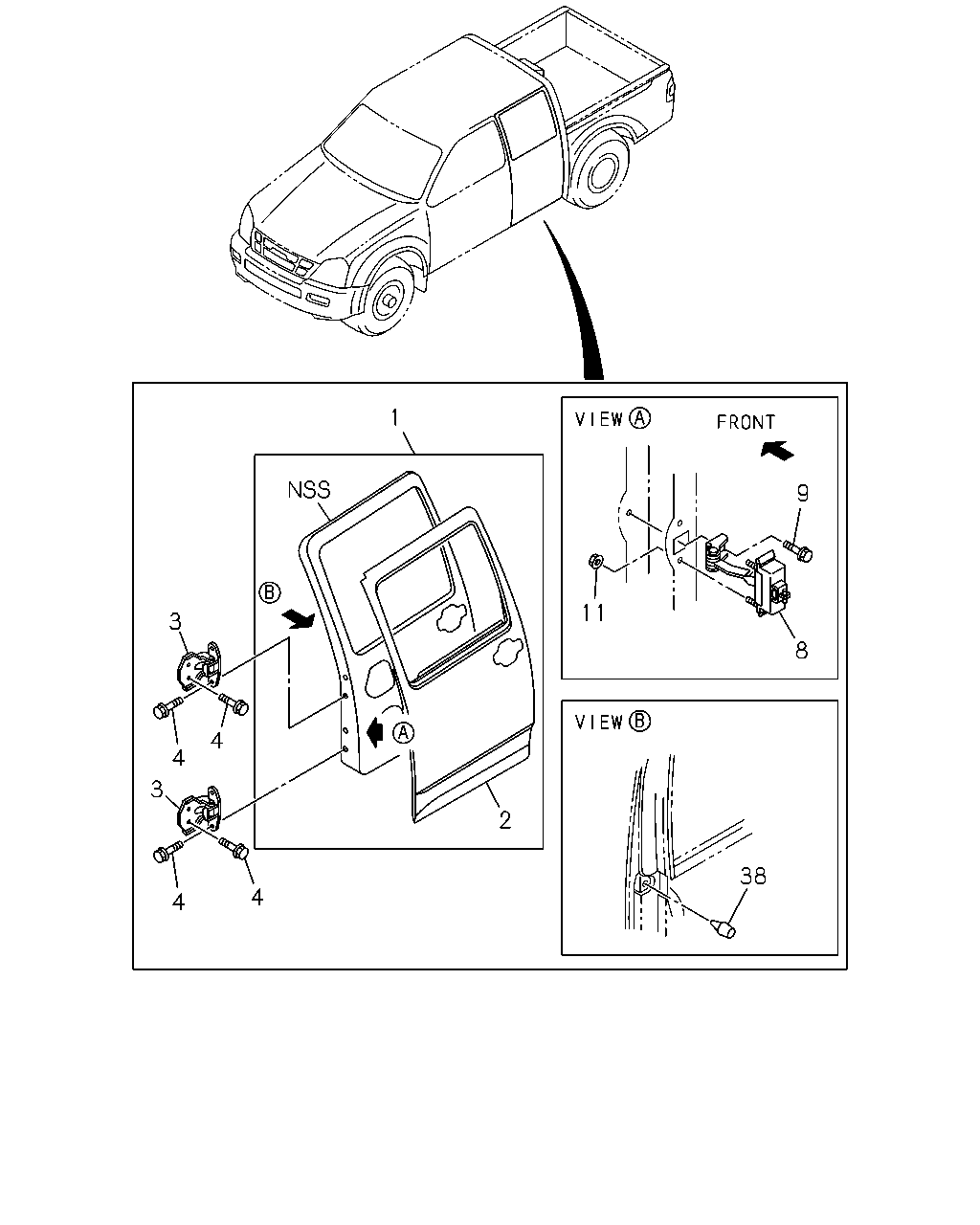

çizim 53791
9 8 11 1 3 4 4 3 4 4 2 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; REAR
BODY SIDE MOLDING(B84) 		8-97359-169-0 01 1 0307-0604 ● ●
1 16.150 DOOR ASM; REAR
BODY SIDE MOLDING(B84) 		8-98042-780-0 01 1 0605- ● ●
1 16.150 DOOR ASM; REAR
BODY SIDE MOLDING(B84) 		8-97359-168-0 01 1 0307-0604 ● ●
1 16.150 DOOR ASM; REAR
BODY SIDE MOLDING(B84) 		8-98042-779-0 01 1 0605- ● ●
1 16.150 DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84) 		8-97359-171-0 01 1 0307-0604 ● ●
1 16.150 DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84) 		8-98042-901-0 01 1 0605- ● ●
1 16.150 DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84) 		8-97359-170-0 01 1 0307-0604 ● ●
1 16.150 DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84) 		8-98042-902-0 01 1 0605- ● ●
2 16.152 PANEL; RR DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97306-621-5 01 1 0307- ● ●
2 16.152 PANEL; RR DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97306-620-5 01 1 0307- ● ●
2 16.152 PANEL; RR DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-93291-097-6 01 1 0307- ● ●
2 16.152 PANEL; RR DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-93291-098-6 01 1 0307- ● ●
3 16.335 HINGE; RR DOOR
LH UPPER,RH LOWER 		8-93299-816-2 02 1 0307-0609 ● ●
3 16.335 HINGE; RR DOOR
LH LOWER,RH UPPER 		8-98057-550-0 02 1 0610- ● ●
3 16.335 HINGE; RR DOOR
LH LOWER,RH UPPER 		8-93299-817-2 02 1 0307-0609 ● ●
3 16.335 HINGE; RR DOOR
LH UPPER,RH LOWER 		8-98057-551-0 02 1 0610- ● ●
4 16.335 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0307-0606 ● ●
4 16.335 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 0607-0709 ● ●
4 16.335 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 0710- ● ●
8 16.320 ARM; CHECK,RR DOOR 8-97369-017-0 02 1 0307- ● ●
9 16.323 BOLT; CHECK ARM
M8X23 		8-97310-216-1 02 1 0307-0701 ● ●
9 16.323 BOLT; CHECK ARM
16.320 M8X23 		8-98062-206-0 02 1 0702- ● ●
11 16.320 NUT
M6 FLANGE 		8-97943-101-0 04 1 0307-0610 ● ●
11 16.320 NUT
M6 FLANGE 		8-98049-362-0 04 1 0611- ● ●
38 16.152 PROTECTOR; RR DOOR
16.165 		8-97301-795-1 02 1 0307- ● ●
