Isuzu WW
▶
PICKUP
▶
TFR
▶
50965 - TFR/TFS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

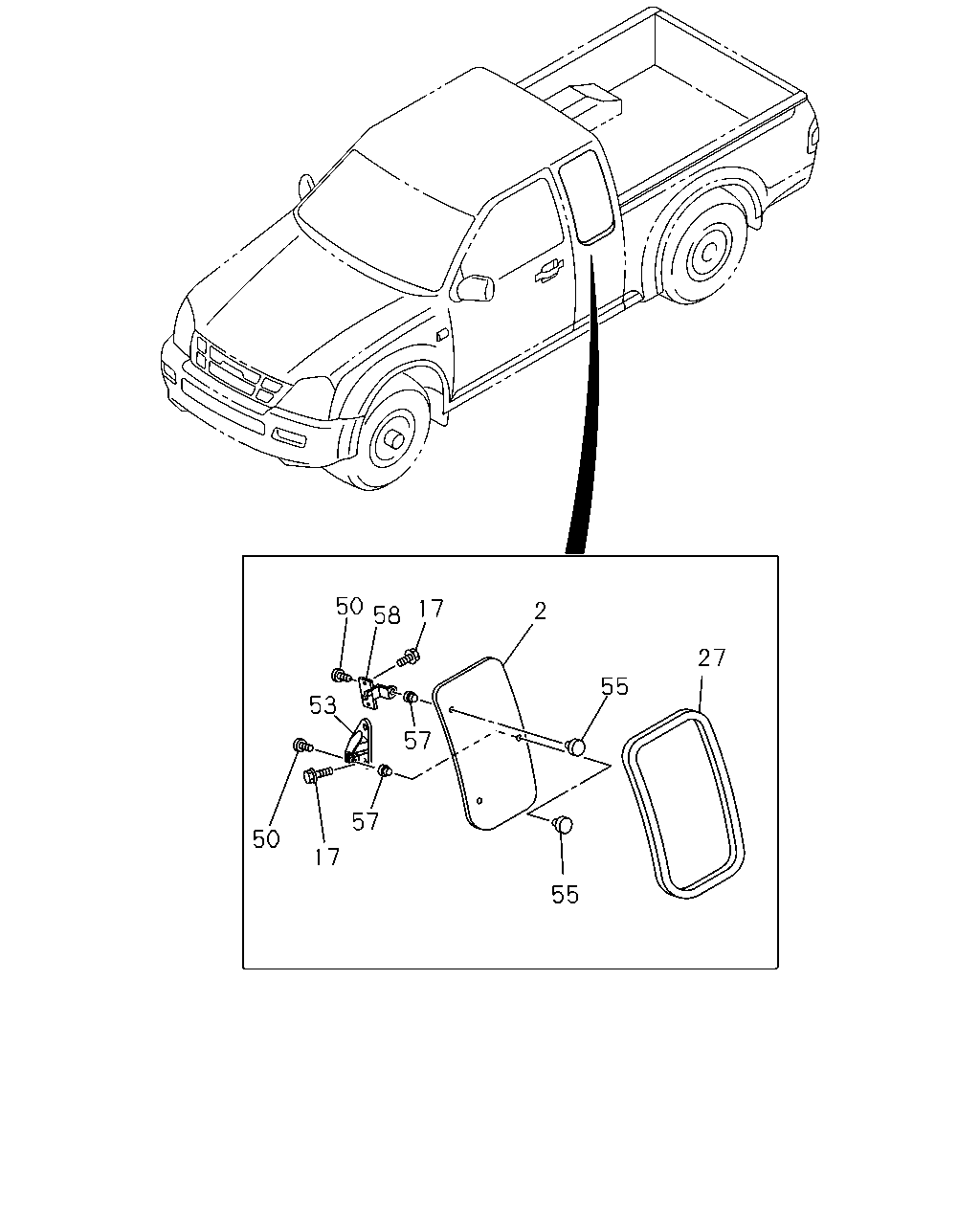

6-41 - SIDE WINDOW GLASS AND WEATHERSTRIP
▶
6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP
(#20891) — 16 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFS5C
27
55
2
17
58
50
53
57
57
17
50
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.460 GLASS; RR QUARTER
8-97252-932-0
01
1
0307-0808
●
●
●
2
16.460 GLASS; RR QUARTER
8-98134-040-0
01
1
0809-
●
●
●
2
16.460 GLASS; RR QUARTER
8-97252-931-0
01
1
0307-0808
●
●
●
2
16.460 GLASS; RR QUARTER
8-98134-039-0
01
1
0809-
●
●
●
17
16.263 SCREW; SIDE WINDOW LOCK
8-97301-764-2
14
1
0307-0611
●
●
●
17
16.263 SCREW; SIDE WINDOW LOCK
M6X19 W/WASHER
8-98062-136-0
14
1
0612-
●
●
●
27
16.470 WEATHERSTRIP; RR QUARTER
8-97365-180-0
02
1
0307-0412
●
●
●
27
16.470 WEATHERSTRIP; RR QUARTER
8-98004-235-0
02
1
0501-0509
●
●
●
27
16.470 WEATHERSTRIP; RR QUARTER
8-98023-144-0
02
1
0510-
●
●
●
50
16.155 SCREW; HINGE
11.010 M5X10
9-03810-510-0
06
1
0307-
●
●
●
53
16.190 FASTENER; RR QUARTER
8-97252-938-0
02
1
0307-0308
●
●
●
53
16.190 FASTENER; RR QUARTER
DARK GRAY
8-97398-490-0
02
1
0309-0609
●
●
●
53
16.190 FASTENER; RR QUARTER
DARK GRAY
8-97408-834-0
02
1
0610-
●
●
●
55
16.152 NUT; SPECIAL,HINGE
8-97305-953-1
06
1
0307-
●
●
●
57
16.152 GROMMET; HINGE
8-94480-192-0
04
1
0307-
●
●
●
58
16.152 HINGE; RR QUARTER WINDOW
8-97252-936-1
04
1
0307-
●
●
●
