3-22 — AIR CONTROL PARTS (#2089) — 147 parça
çizim 27712
240 30
BalonParca AdiParca NoAdetTipApplied Date A B
30 GOVERNOR; AIR CONT 1-48350-037-0 01 1 9001-9204 ●
30 GOVERNOR; AIR CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48350-037-0 01 1 9001-9204 ●
30 GOVERNOR; AIR CONT 1-48350-037-0 01 1 9205-9208 ● ●
30 GOVERNOR; AIR CONT 1-48350-050-1 01 1 9209-9409 ● ●
30 GOVERNOR; AIR CONT 1-48350-059-0 01 1 9410- ● ●
30 GOVERNOR; AIR CONT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-48350-041-0 01 1 9001-9204 ●
240 REPAIR KIT; AIR CONT GOV 1-85576-145-0 01 1 9209-9409 ● ●
240 REPAIR KIT; AIR CONT GOV 1-85576-207-0 01 1 9410- ● ●

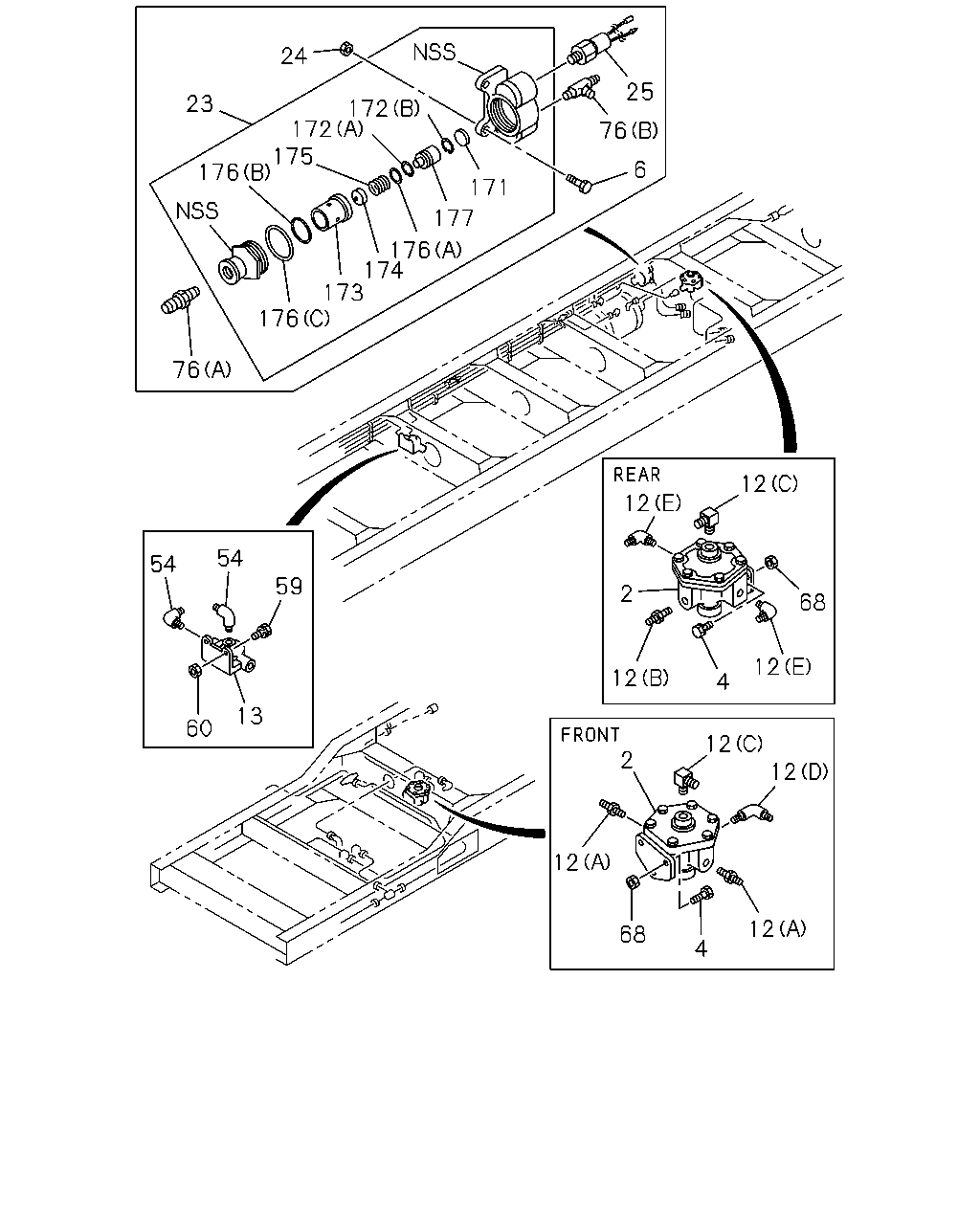

çizim 29011
24 25 172 172 175 176 23 76 6 171 177 176 174 173 176 76 12 12 54 54 59 2 68 12 12 4 13 60 2 12 12 12 12 68 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-047-1 02 1 9001-9204 ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48210-047-1 02 1 9001-9204 ●
2 VALVE; RELAY 1-48210-047-1 02 1 9205- ● ●
4 BOLT; RELAY VLV TO BRKT
M8X25 W/LK WASHER 		9-01910-825-0 06 1 9001-9005 ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER 		9-01910-825-0 06 1 9001-9005 ●
4 BOLT; RELAY VLV TO BRKT
M8X25 W/LK WASHER 		0-50040-825-0 06 1 9006-9204 ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER 		0-50040-825-0 06 1 9006-9204 ●
4 BOLT; RELAY VLV TO BRKT
M8X25 W/LK WASHER 		0-50040-825-0 06 1 9205-9606 ● ●
4 BOLT; RELAY VLV TO BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 9607- ● ●
6 BOLT; VLV
M8X35 W/LK WASHER 		9-01900-835-0 02 1 9001-9204 ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 W/LK WASHER 		9-01900-835-0 02 1 9001-9204 ●
6 BOLT; VLV
M8X35 W/LK WASHER 		0-50040-835-0 02 1 9205-9606 ● ●
6 BOLT; VLV
M8X35 FLANGE 		0-28680-835-0 02 1 9607- ● ●
12 CONNECTOR; RELAY VLV
(E) 		1-09650-093-0 02 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) 		1-09650-093-0 02 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
(E) 		1-09650-093-1 02 1 9205-9302 ● ●
12 CONNECTOR; RELAY VLV
(E) M16 & PT1/2 ELBOW 		1-09650-442-0 02 1 9303- ● ●
12 CONNECTOR; RELAY VLV
(A) M16 		1-09650-245-0 02 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		1-09650-245-0 02 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
(A) M16 		1-09650-245-1 02 1 9205- ● ●
12 CONNECTOR; RELAY VLV
(B) FLARE M22 PT1/2 		9-09231-815-0 01 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FLARE M22 PT1/2 		9-09231-815-0 01 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
(B) FLARE M22 PT1/2 		9-09231-815-1 01 1 9205- ● ●
12 CONNECTOR; RELAY VLV
(C) M16 & PT1/4 ELBOW 		9-09234-310-0 02 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 & PT1/4 ELBOW 		9-09234-310-0 02 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
(C) M16 & PT1/4 ELBOW 		9-09234-310-1 02 1 9205-9302 ● ●
12 CONNECTOR; RELAY VLV
(C) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 9303- ● ●
12 CONNECTOR; RELAY VLV
(D) M22 & PT1/2 ELBOW 		9-09234-315-0 01 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 & PT1/2 ELBOW 		9-09234-315-0 01 1 9001-9204 ●
12 CONNECTOR; RELAY VLV
(D) M22 & PT1/2 ELBOW 		9-09234-315-1 01 1 9205-9302 ● ●
12 CONNECTOR; RELAY VLV
(D) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9303- ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-131-0 01 1 9001-9204 ●
13 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48410-131-0 01 1 9001-9204 ●
13 VALVE ASM; QUICK RELEASE 1-48410-131-0 01 1 9205-9307 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-321-0 01 1 9308-9604 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-407-0 01 1 9605-0002 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-602-0 01 1 0003-0109 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-658-0 01 1 0110- ● ●
23 VALVE; PRESSURE CONT 1-48460-067-1 01 1 9001-9204 ●
23 VALVE; PRESSURE CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48460-067-1 01 1 9001-9204 ●
23 VALVE; PRESSURE CONT 1-48460-067-1 01 1 9205- ● ●
24 NUT
M8 		9-09110-408-0 02 1 9001-9204 ●
24 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 02 1 9001-9204 ●
24 NUT
M8 		9-09110-408-0 02 1 9205-9606 ● ●
24 NUT
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
25 SWITCH; PRESSURE 1-48340-011-1 01 1 9001-9204 ●
25 SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48340-011-1 01 1 9001-9204 ●
25 SWITCH; PRESSURE 1-48340-011-1 01 1 9205-9411 ● ●
25 SWITCH; PRESSURE 1-48340-049-0 01 1 9412- ● ●
54 CONNECTOR; QUICK RELEASE VLV
M16 & PT3/8 ELBOW 		1-09650-180-0 02 1 9001-9204 ●
54 CONNECTOR; QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 & PT3/8 ELBOW 		1-09650-180-0 02 1 9001-9204 ●
54 CONNECTOR; QUICK RELEASE VLV
M16 & PT3/8 ELBOW 		1-09650-180-1 02 1 9205-9302 ● ●
54 CONNECTOR; QUICK RELEASE VLV
M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 9303- ● ●
59 BOLT; RELEASE VALVE FIX
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9001-9204 ●
59 BOLT; RELEASE VALVE FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9001-9204 ●
59 BOLT; RELEASE VALVE FIX
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9606 ● ●
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9607- ● ●
60 NUT; RELEASE VALVE FIX
M8 		9-09110-408-0 02 1 9001-9204 ●
60 NUT; RELEASE VALVE FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 02 1 9001-9204 ●
60 NUT; RELEASE VALVE FIX
M8 		9-09110-408-0 02 1 9205-9606 ● ●
60 NUT; RELEASE VALVE FIX
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
68 NUT; RELAY VLV TO BRKT
M8 		9-09110-408-0 06 1 9001-9204 ●
68 NUT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 06 1 9001-9204 ●
68 NUT; RELAY VLV TO BRKT
M8 		9-09110-408-0 06 1 9205-9606 ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91150-108-0 06 1 9607- ● ●
76 CONNECTOR; CONT VLV
(A) M14 		1-09650-031-0 01 1 9001-9103 ●
76 CONNECTOR; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 		1-09650-031-0 01 1 9001-9103 ●
76 CONNECTOR; CONT VLV
(A) M14 & PT1/4 STRAIGHT 		1-09650-332-0 01 1 9104-9204 ●
76 CONNECTOR; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 & PT1/4 STRAIGHT 		1-09650-332-0 01 1 9104-9204 ●
76 CONNECTOR; CONT VLV
(A) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9205- ● ●
76 CONNECTOR; CONT VLV
(B) 		1-09650-036-0 01 1 9001-9204 ●
76 CONNECTOR; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-09650-036-0 01 1 9001-9204 ●
76 CONNECTOR; CONT VLV
(B) 		1-09650-036-1 01 1 9205- ● ●
171 FILTER; PRESS CONT VLV 9-88510-330-0 01 1 9001-9204 ●
171 FILTER; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-88510-330-0 01 1 9001-9204 ●
171 FILTER; PRESS CONT VLV 9-88510-330-0 01 1 9205- ● ●
172 RING; RETAINING
(A) 		1-31829-081-0 01 1 9001-9204 ●
172 RING; RETAINING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-31829-081-0 01 1 9001-9204 ●
172 RING; RETAINING
(A) 		1-31829-081-0 01 1 9205- ● ●
172 RING; RETAINING
(B) 		9-88510-331-0 01 1 9001-9204 ●
172 RING; RETAINING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		9-88510-331-0 01 1 9001-9204 ●
172 RING; RETAINING
(B) 		9-88510-331-0 01 1 9205- ● ●
173 PISTON; PRESS CONT VLV 1-48469-103-0 01 1 9001-9204 ●
173 PISTON; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48469-103-0 01 1 9001-9204 ●
173 PISTON; PRESS CONT VLV 1-48469-103-0 01 1 9205- ● ●
174 VALVE; PRESS CONT VLV 1-48469-104-1 01 1 9001-9204 ●
174 VALVE; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48469-104-1 01 1 9001-9204 ●
174 VALVE; PRESS CONT VLV 1-48469-104-1 01 1 9205- ● ●
175 SPRING; PRESS CONT VLV 1-48469-105-0 01 1 9001-9204 ●
175 SPRING; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48469-105-0 01 1 9001-9204 ●
175 SPRING; PRESS CONT VLV 1-48469-105-0 01 1 9205- ● ●
176 GASKET; PRESS CONT VLV
(A) 		1-47849-010-0 01 1 9001-9204 ●
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-47849-010-0 01 1 9001-9204 ●
176 GASKET; PRESS CONT VLV
(A) 		1-47849-010-0 01 1 9205- ● ●
176 GASKET; PRESS CONT VLV
(B) 		1-48212-004-0 01 1 9001-9204 ●
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48212-004-0 01 1 9001-9204 ●
176 GASKET; PRESS CONT VLV
(B) 		1-48212-004-0 01 1 9205- ● ●
176 GASKET; PRESS CONT VLV
(C) 		1-48469-107-0 01 1 9001-9204 ●
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-48469-107-0 01 1 9001-9204 ●
176 GASKET; PRESS CONT VLV
(C) 		1-48469-107-0 01 1 9205- ● ●
177 RETAINER; PRESS CONT VLVE 1-48469-106-0 01 1 9001-9204 ●
177 RETAINER; PRESS CONT VLVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48469-106-0 01 1 9001-9204 ●
177 RETAINER; PRESS CONT VLVE 1-48469-106-0 01 1 9205- ● ●
çizim 93804
158 157 13 13 216
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-131-0 01 1 9001-9204 ●
13 VALVE ASM; QUICK RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48410-131-0 01 1 9001-9204 ●
13 VALVE ASM; QUICK RELEASE 1-48410-131-0 01 1 9205-9307 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-321-0 01 1 9308-9604 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-407-0 01 1 9605-0002 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-602-0 01 1 0003-0109 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-658-0 01 1 0110- ● ●
157 RETAINER; VALVE 1-48419-036-0 01 1 9605- ● ●
158 SPRING; VALVE 9-48419-003-0 01 1 9605- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-056-0 01 1 9605-0002 ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0003- ● ●

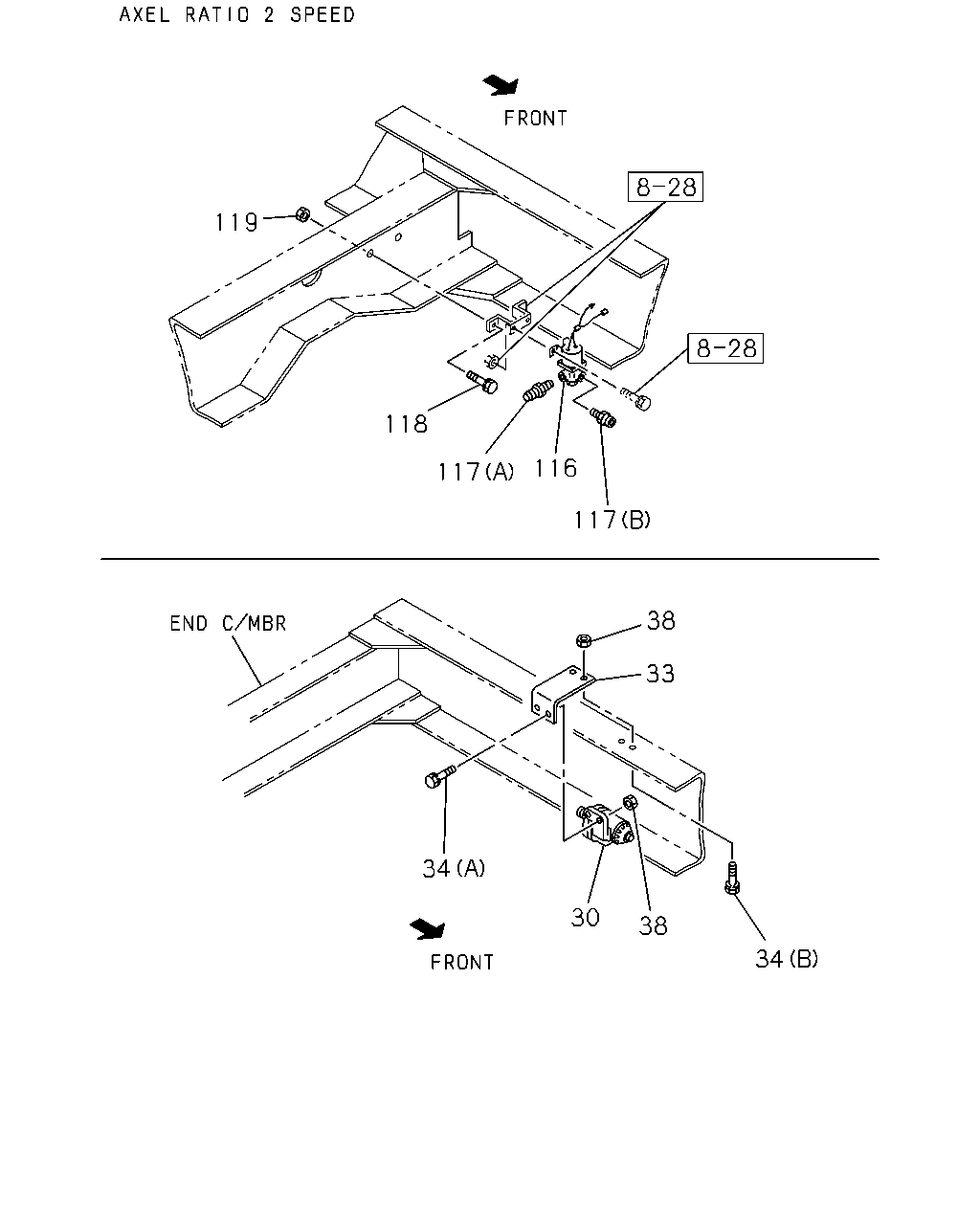

çizim 94653
119 118 116 117 117 38 33 34 30 38 34
BalonParca AdiParca NoAdetTipApplied Date A B
30 GOVERNOR; AIR CONT 1-48350-037-0 01 1 9001-9204 ●
30 GOVERNOR; AIR CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48350-037-0 01 1 9001-9204 ●
30 GOVERNOR; AIR CONT 1-48350-037-0 01 1 9205-9208 ● ●
30 GOVERNOR; AIR CONT 1-48350-050-1 01 1 9209-9409 ● ●
30 GOVERNOR; AIR CONT 1-48350-059-0 01 1 9410- ● ●
30 GOVERNOR; AIR CONT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-48350-041-0 01 1 9001-9204 ●
33 BRACKET; GOV,AIR CONT 1-47475-056-0 01 1 9001- ● ●
34 BOLT; BRKT,GOV
(A) M8X25 W/LK WASHER 		9-01910-825-0 02 1 9001-9005 ● ●
34 BOLT; BRKT,GOV
(A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9006-9606 ● ●
34 BOLT; BRKT,GOV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607- ● ●
34 BOLT; BRKT,GOV
(B) M8X30 W/LK WASHER 		9-01910-830-0 02 1 9001-9005 ● ●
34 BOLT; BRKT,GOV
(B) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9006-9606 ● ●
34 BOLT; BRKT,GOV
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ●
38 NUT; BRKT,GOV
M8 		9-09110-408-0 04 1 9001-9606 ● ●
38 NUT; BRKT,GOV
M8 FLANGE 		0-91150-108-0 04 1 9607- ● ●
116 VALVE; MAG,2 SPEED DIFF
AXLE RATIO 2 SPEED<W9Y> 		1-82563-023-0 01 1 9001-9104 ● ●
116 VALVE; MAG,2 SPEED DIFF
AXLE RATIO 2 SPEED<W9Y> 		1-82563-068-0 01 1 9105- ● ●
117 CONNECTOR; MAG VLV
AXLE RATIO 2 SPEED<W9Y> (A) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9101-9105 ● ●
117 CONNECTOR; MAG VLV
AXLE RATIO 2 SPEED<W9Y> (A) M16 & PT1/4 STRAIGHT 		9-09231-810-1 01 1 9101- ● ●
117 CONNECTOR; MAG VLV
AXLE RATIO 2 SPEED<W9Y> (B) M20 & PT1/4 		9-09902-386-0 01 1 9101- ● ●
118 BOLT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M10X20 W/LK WASHER 		9-01901-020-0 02 1 9001-9204 ● ●
118 BOLT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9205-9606 ● ●
118 BOLT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M10X25 FLANGE 		0-28681-025-0 02 1 9607- ● ●
119 NUT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M10 		9-09110-510-0 02 1 9308-9606 ● ●
119 NUT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M10 FLANGE 		0-91150-210-0 02 1 9607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
