◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#20888) — 100 parça

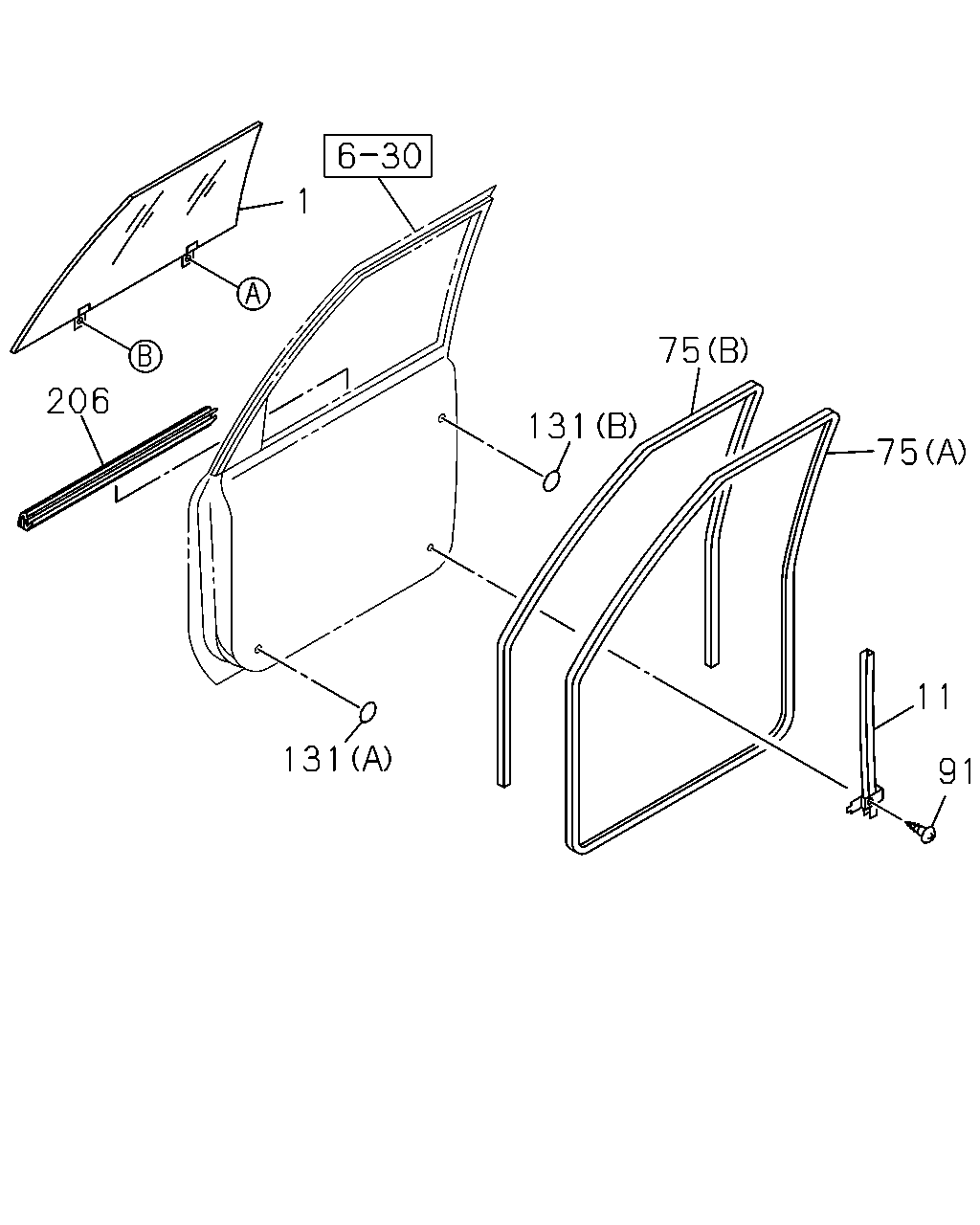

çizim 11192
1 75 206 131 75 11 131 91
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.180 GLASS; FRT DOOR 8-97236-032-2 01 1 0307-0808 ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-98130-013-0 01 1 0809- ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-97236-028-2 01 1 0307-0808 ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-98130-012-0 01 1 0809- ● ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-127-1 01 1 0307- ● ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) 		8-97315-864-1 01 1 0307- ● ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97241-126-1 01 1 0307-0709 ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97241-126-1 01 1 0307-0709 ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUSTRALIA EQUIPMENT(B13) EXC. AUTO DOOR LOCK<AU4> 		8-97241-126-1 01 1 0710- ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97241-126-1 01 1 0710- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 0307- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-154-2 01 1 0307-0412 ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-226-0 01 1 0501- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 0307- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-153-2 01 1 0307-0412 ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-225-0 01 1 0501- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-112-2 01 1 0307-0412 ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-220-0 01 1 0501- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-110-2 01 1 0307-0412 ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-219-0 01 1 0501- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93291-058-3 01 1 0307-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-217-0 01 1 0501- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93296-881-3 01 1 0307-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-218-0 01 1 0501- ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.701 M6X8 		8-94155-893-0 02 1 0307-0609 ● ● ● ● ● ● ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0610- ● ● ● ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0307- ● ● ● ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0307- ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-97364-716-0 01 1 0307-0410 ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98003-176-0 01 1 0411-0412 ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98004-222-0 01 1 0501- ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-97364-715-0 01 1 0307-0410 ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98003-175-0 01 1 0411-0412 ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98004-221-0 01 1 0501- ● ● ● ● ● ● ● ●

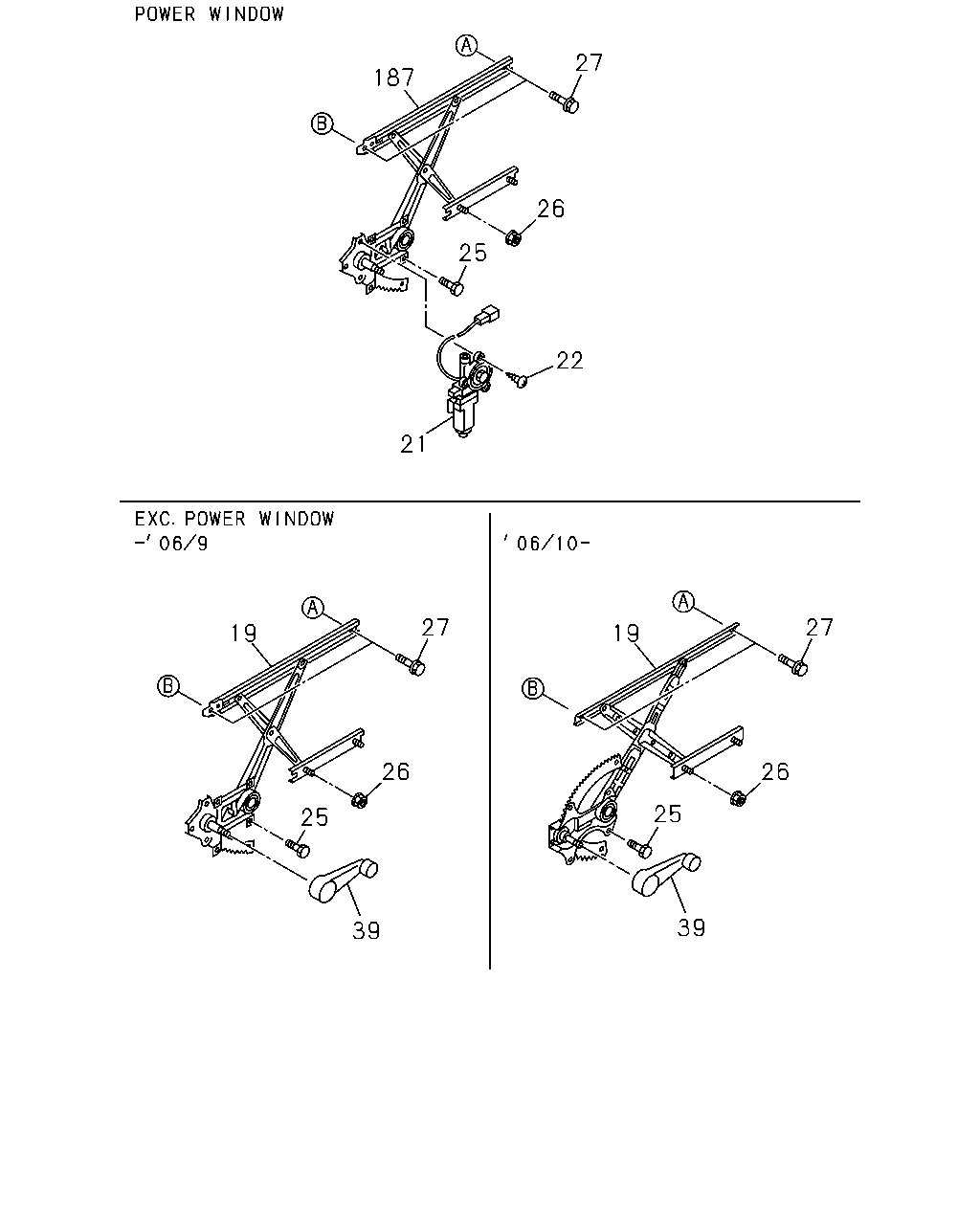

çizim 53808
27 187 26 25 22 21 27 27 19 19 26 26 25 25 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97235-875-2 01 1 0307-0504 ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR 8-97235-875-2 01 1 0307-0504 ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97235-875-2 01 1 0505-0609 ● ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98005-165-2 01 1 0610-0709 ● ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98005-165-2 01 1 0710-0803 ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98111-489-0 01 1 0804- ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97235-873-2 01 1 0307-0504 ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR 8-97235-873-2 01 1 0307-0504 ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97235-873-2 01 1 0505-0609 ● ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98005-164-2 01 1 0610-0709 ● ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98005-164-2 01 1 0710-0803 ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98111-488-0 01 1 0804- ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97358-233-0 01 1 0307-0504 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97358-233-0 01 1 0505-0609 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-802-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-802-0 01 1 0710-0908 ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98009-802-0 01 1 0710-0908 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98152-287-0 01 1 0909- ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98152-287-0 01 1 0909- ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97358-232-0 01 1 0307-0504 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97358-232-0 01 1 0505-0609 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-801-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-801-0 01 1 0710-0908 ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98009-801-0 01 1 0710-0908 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98152-286-0 01 1 0909- ● ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98152-286-0 01 1 0909- ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97351-770-0 06 1 0307-0504 ● ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97351-770-0 06 1 0505-0609 ● ● ● ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-809-0 06 1 0610-0709 ● ● ● ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-809-0 06 1 0710- ● ● ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR 8-98009-809-0 06 1 0710- ●
25 16.270 BOLT; WINDOW REG
10.701 M6X8 		8-94155-893-0 06 1 0307-0609 ● ● ● ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
10.765 M6X8 FLANGE 		8-98048-996-0 06 1 0610- ● ● ● ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-97943-101-0 04 1 0307-0610 ● ● ● ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-98049-362-0 04 1 0611- ● ● ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.701 M6X8 		8-94155-893-0 04 1 0307-0609 ● ● ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.765 M6X8 FLANGE 		8-98048-996-0 04 1 0610- ● ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97298-454-3 02 1 0307-0504 ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
DARK GRAY 		8-97298-454-3 02 1 0307-0504 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97298-454-3 02 1 0505-0609 ● ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97408-066-0 02 1 0610-0709 ● ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97408-066-0 02 1 0710- ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97350-002-0 01 1 0307-0504 ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97350-002-0 01 1 0505-0609 ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-811-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-811-0 01 1 0710- ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR 8-98009-811-0 01 1 0710- ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97350-004-0 01 1 0307-0504 ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97350-004-0 01 1 0505-0609 ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-810-0 01 1 0610-0709 ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98009-810-0 01 1 0710- ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR 8-98009-810-0 01 1 0710- ●

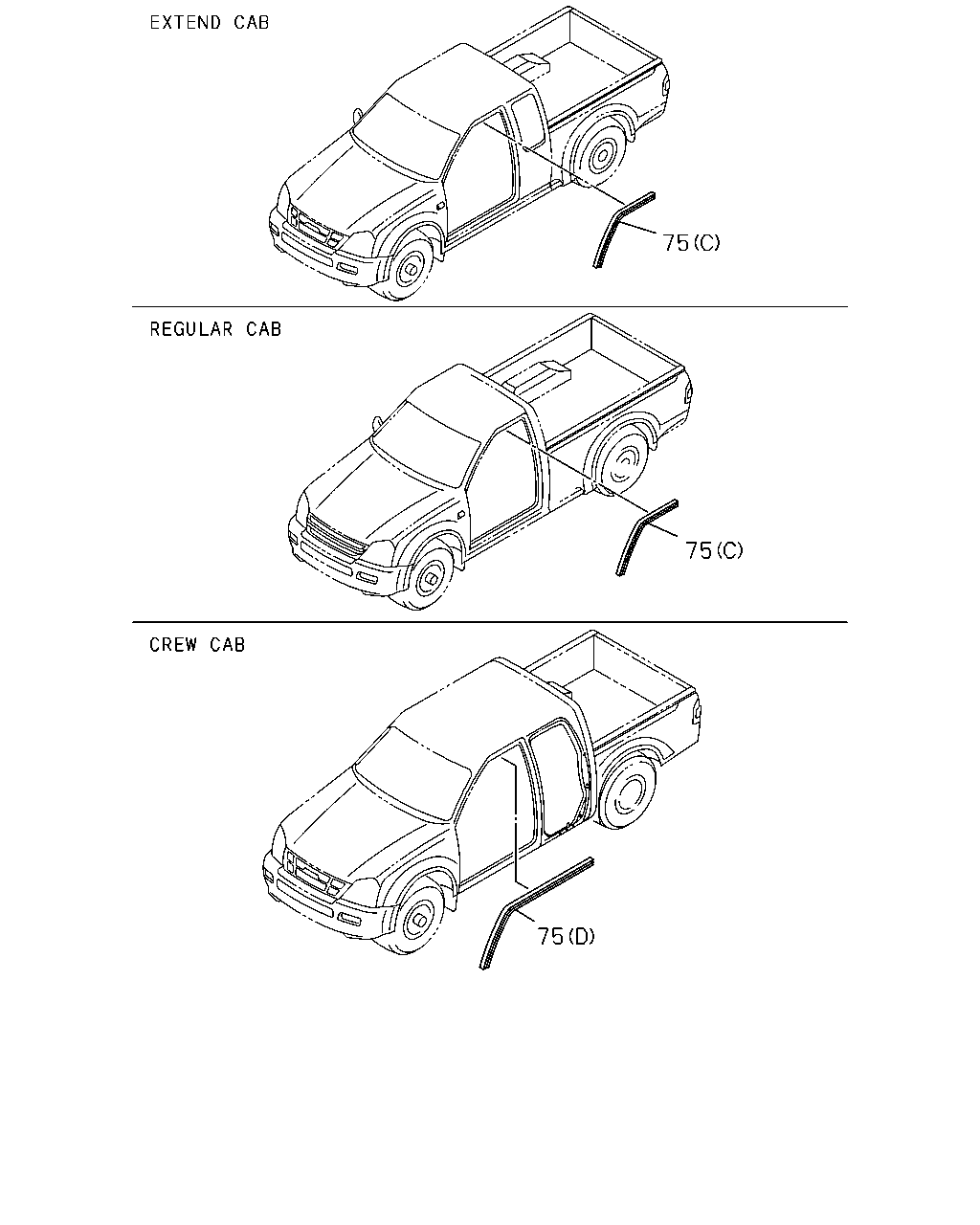

çizim 56644
75 75 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 0307- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-154-2 01 1 0307-0412 ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-226-0 01 1 0501- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 0307- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-153-2 01 1 0307-0412 ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-225-0 01 1 0501- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-112-2 01 1 0307-0412 ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-220-0 01 1 0501- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-110-2 01 1 0307-0412 ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-219-0 01 1 0501- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93291-058-3 01 1 0307-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-217-0 01 1 0501- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93296-881-3 01 1 0307-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-218-0 01 1 0501- ● ●
