6-14 — DASH PANEL AND FENDER SKIRT (#20885) — 23 parça

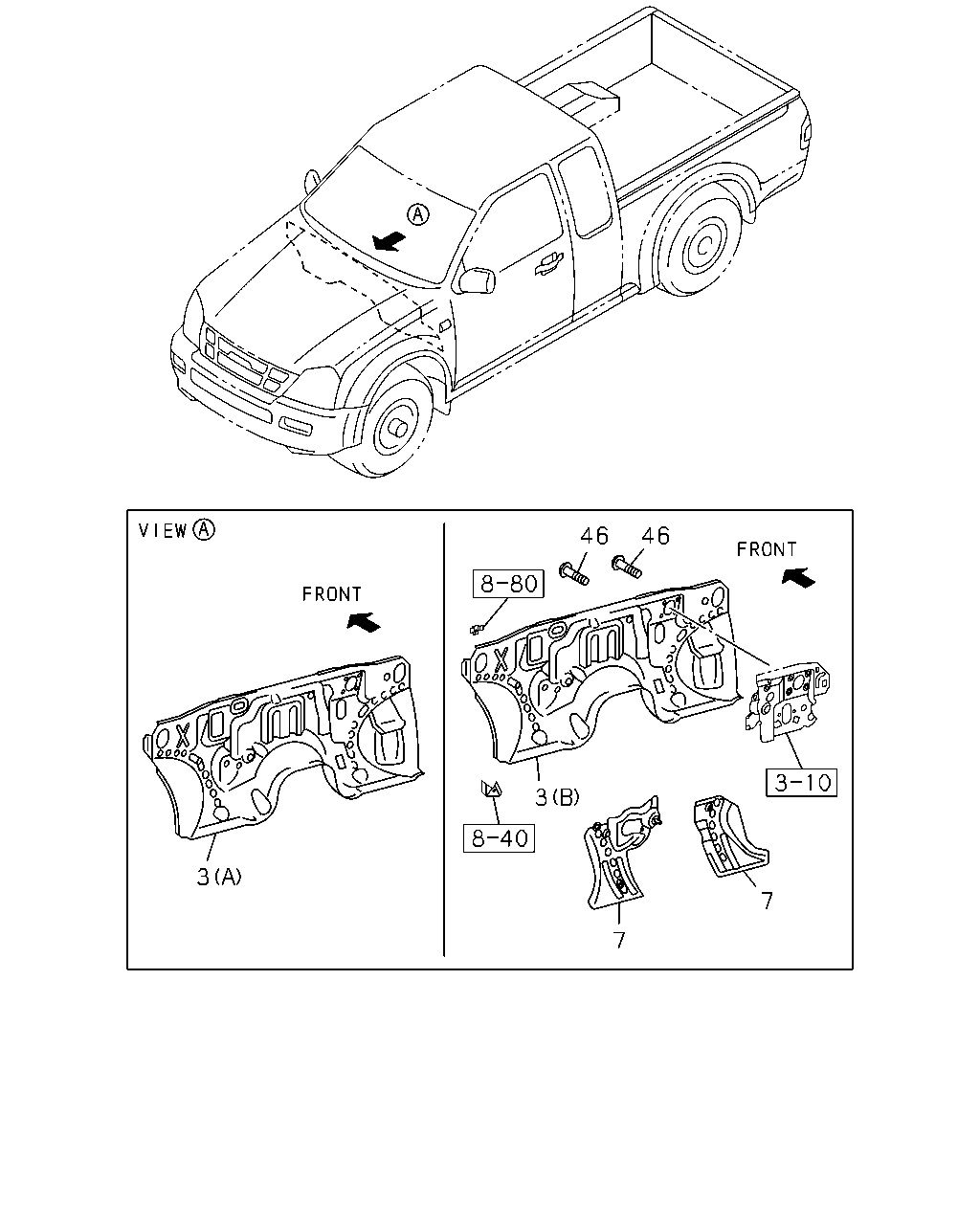

çizim 53503
46 46 3 7 7 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.550 PANEL; SUB,DASH LWR
(A) 		8-97365-196-1 01 1 0307-0403 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
(A) 		8-97381-175-0 01 1 0404-0503 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
(A) 		8-98009-292-0 01 1 0504-0508 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) DRIVER SIDE FOOT REST<7NU> 00.030 (A) 		8-98008-882-1 01 1 0509-0509 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) DRIVER SIDE FOOT REST<7NU> (A) 		8-98029-268-0 01 1 0510-0611 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) DRIVER SIDE FOOT REST<7NU> (A) 		8-98057-346-0 01 1 0612-0612 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) DRIVER SIDE FOOT REST<7NU> (A) 		8-98061-147-0 01 1 0612- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) DRIVER SIDE FOOT REST<7NU> (A) 		8-98009-292-0 01 1 0509-0509 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) DRIVER SIDE FOOT REST<7NU> (A) 		8-98029-269-0 01 1 0510-0609 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> (A) 		8-98029-269-0 01 1 0610-0611 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> (A) 		8-98057-347-0 01 1 0612-0612 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> (A) 		8-98061-148-0 01 1 0612- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> DRIVER SIDE FOOT REST<7NU> (B) 		8-98029-267-0 01 1 0510-0609 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> DRIVER SIDE FOOT REST<7NU> (B) 		8-98029-267-0 01 1 0610-0611 ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> DRIVER SIDE FOOT REST<7NU> (B) 		8-98057-344-0 01 1 0612-0612 ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> DRIVER SIDE FOOT REST<7NU> (B) 		8-98061-146-0 01 1 0612- ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> (B) 		8-98004-040-0 01 1 0509-0609 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> (B) 		8-98004-040-0 01 1 0610- ● ● ● ● ●
7 12.804 REINFORCEMENT; BAR,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-97234-772-5 01 1 0509-0609 ● ● ● ●
7 12.804 REINFORCEMENT; BAR,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-97234-772-5 01 1 0610- ● ● ● ● ●
7 12.804 REINFORCEMENT; BAR,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-97234-451-3 01 1 0509-0609 ● ● ● ●
7 12.804 REINFORCEMENT; BAR,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5> 		8-97234-451-3 01 1 0610- ● ● ● ● ●
46 16.575 STUD; DASH PANEL
HF V6 ENG(LCA) M6X11.3 		8-90467-724-0 06 1 0509- ● ● ● ● ● ● ● ●
