6-10 — ENGINE HOOD AND LOCK (#20884) — 93 parça

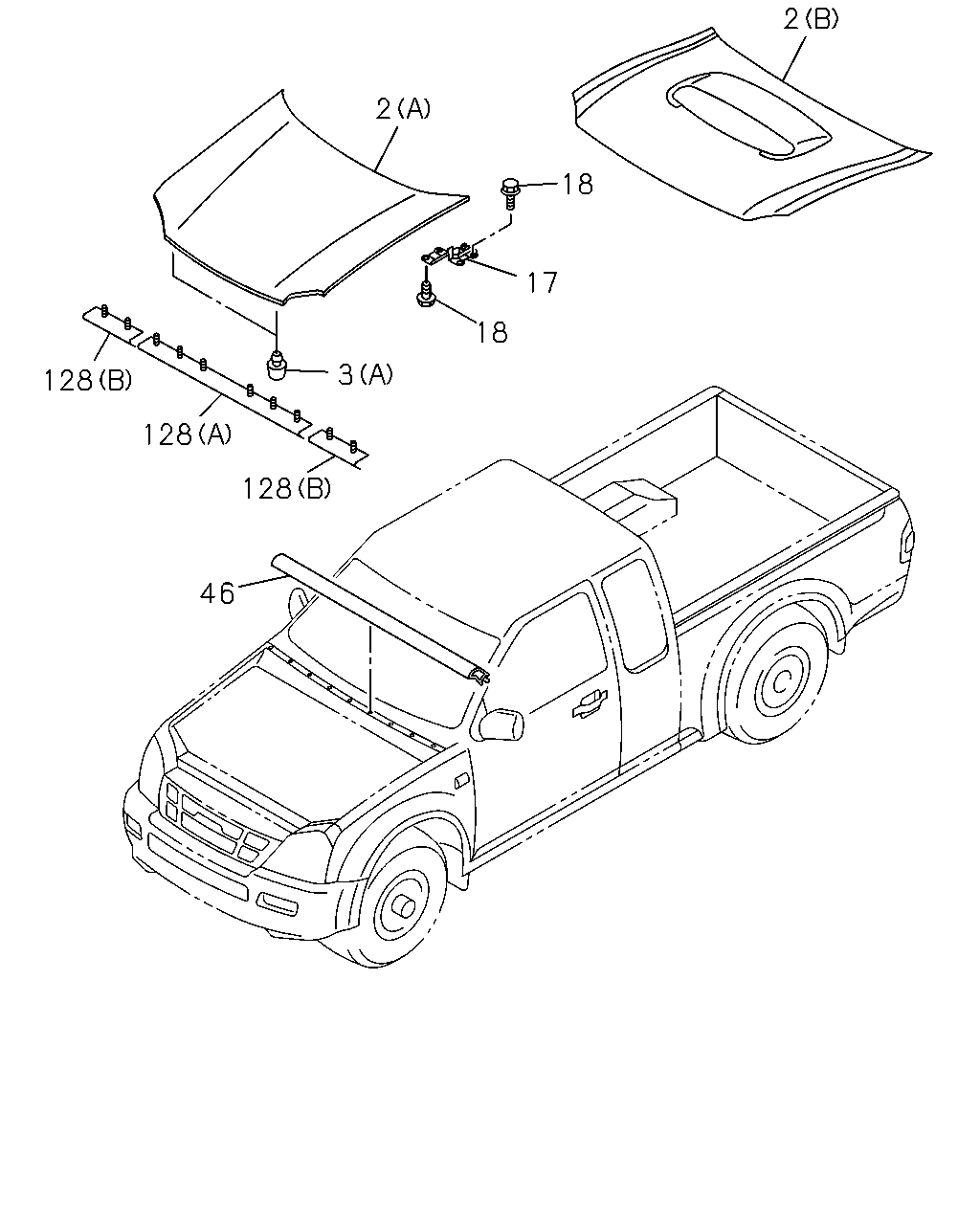

çizim 13562
2 2 18 17 18 3 128 128 128 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 08.000 PANEL; ENG HOOD
(A) 		8-97363-781-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) (A) 		8-98046-692-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JA1-T ENG(LP0) (A) 		8-98046-692-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) (A) 		8-98046-692-0 01 1 1001- ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-98046-693-0 01 1 0610- ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
16.400 (A) 		8-94358-581-0 02 1 0307- ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 0307- ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-97235-398-1 01 1 0307-0611 ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-98050-665-0 01 1 0612- ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-97235-397-1 01 1 0307-0611 ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-98050-664-0 01 1 0612- ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-94139-492-0 08 1 0307-0402 ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-94139-492-0 04 1 0403-0611 ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-94139-492-0 04 1 0403-0611 ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 0612- ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 0612- ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD 8-97235-437-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
HF V6 ENG(LCA),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 		8-97235-437-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 		8-97235-437-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
HF V6 ENG(LCA),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 		8-97235-437-0 01 1 1001- ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 		8-97380-860-0 01 1 0610- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97234-598-1 01 1 0307-0606 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98024-523-0 01 1 0607- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) 		8-97308-751-1 02 1 0307-0408 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) 		8-97333-334-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) 		8-98023-876-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) 		8-98023-876-0 01 1 0610- ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-97333-442-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98023-877-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) 		8-98023-877-0 01 1 0610-0612 ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG(LFB) (C) 		8-98023-877-0 01 1 0701-0912 ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) 		8-98023-877-0 01 1 1001- ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E) 		8-97357-495-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F) 		8-97372-864-0 01 1 0610- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F) 		8-97372-864-0 01 1 0610- ● ● ● ●
128 08.010 SEAL; PLATFORM
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D) 		8-98023-875-0 01 1 0610- ● ● ● ● ● ● ● ●

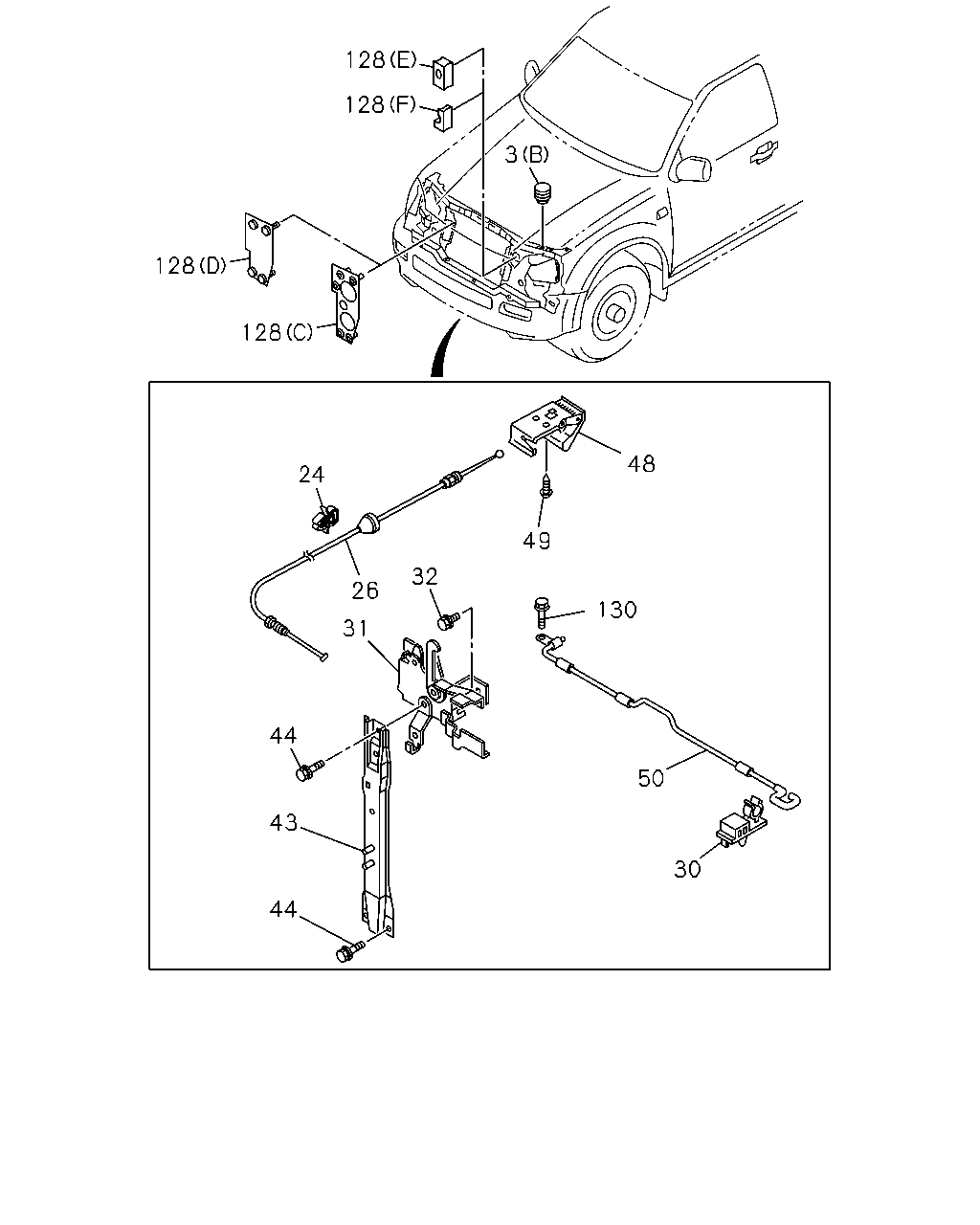

çizim 53502
128 128 3 128 128 24 26 31 32 49 48 130 50 30 44 43 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 08.077 BUFFER; ENG HOOD,FRT
16.400 (A) 		8-94358-581-0 02 1 0307- ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 0307- ● ● ● ● ● ● ● ●
24 08.077 CLIP; CONT CABLE 8-97182-405-0 02 1 0307- ● ● ● ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT 8-97333-143-2 01 1 0307-0612 ● ● ● ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT 8-98072-367-0 01 1 0701- ● ● ● ● ● ● ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD 8-97301-356-0 01 1 0307- ● ● ● ● ● ● ● ●
31 08.083 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97363-008-0 01 1 0307-0508 ● ● ● ● ● ●
31 08.083 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> 		8-97363-007-0 01 1 0307-0508 ● ● ● ● ● ●
31 08.083 LOCK; ENG HOOD 8-97363-007-0 01 1 0307-0508 ● ●
31 08.083 LOCK; ENG HOOD 8-97363-007-0 01 1 0509- ● ● ● ● ● ● ● ●
32 08.077 BOLT; HOOD LK
M6X20 W/PL WASHER 		8-97249-670-1 02 1 0307-0405 ● ● ● ● ● ● ● ●
32 08.077 BOLT; HOOD LK
M6X20 W/PL WASHER 		8-97370-668-0 02 1 0406- ● ● ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-97362-229-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END
EXC. OUTSIDE TEMPERATURE GAGE<UJH> 		8-97362-229-0 01 1 0610- ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-97362-229-0 01 1 0610- ● ●
43 08.077 STAY; ENG HOOD,FRT END
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98031-229-0 01 1 0610- ● ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97249-670-1 04 1 0307-0405 ● ● ● ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97370-668-0 04 1 0406- ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD 8-97333-142-0 01 1 0307-0308 ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
DARK GRAY 		8-97397-848-0 01 1 0309-0609 ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
DARK GRAY 		8-97397-849-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
DARK GRAY 		8-97411-781-0 01 1 0701- ● ● ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0307-0612 ● ● ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98061-685-0 02 1 0701-1003 ● ● ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD 8-97361-206-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD 8-98044-500-0 01 1 0610- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97234-598-1 01 1 0307-0606 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98024-523-0 01 1 0607- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) 		8-97308-751-1 02 1 0307-0408 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) 		8-97333-334-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) 		8-98023-876-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) 		8-98023-876-0 01 1 0610- ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-97333-442-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-98023-877-0 01 1 0509-0609 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) 		8-98023-877-0 01 1 0610-0612 ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG(LFB) (C) 		8-98023-877-0 01 1 0701-0912 ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) 		8-98023-877-0 01 1 1001- ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E) 		8-97357-495-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F) 		8-97372-864-0 01 1 0610- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F) 		8-97372-864-0 01 1 0610- ● ● ● ●
128 08.010 SEAL; PLATFORM
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D) 		8-98023-875-0 01 1 0610- ● ● ● ● ● ● ● ●
130 08.077 BOLT; SUPPORT ROD,HOOD
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0307-0601 ● ● ● ● ● ● ● ●
130 08.077 BOLT; SUPPORT ROD,HOOD
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0602- ● ● ● ● ● ● ● ●
çizim 53896
5 155 8 154 153 2 152 8 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 08.000 PANEL; ENG HOOD
(A) 		8-97363-781-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) (A) 		8-98046-692-0 01 1 0610-0612 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JA1-T ENG(LP0) (A) 		8-98046-692-0 01 1 0701-0912 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) (A) 		8-98046-692-0 01 1 1001- ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-98046-693-0 01 1 0610- ● ● ● ● ● ● ● ●
5 08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PRIMER 		8-98057-978-0 01 1 0610- ● ● ● ● ● ● ● ●
8 08.054 SEAL; AIR SCOOP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-126-3 01 1 0610- ● ● ● ● ● ● ● ●
8 08.054 SEAL; AIR SCOOP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-98056-056-0 01 1 0610- ● ● ● ● ● ● ● ●
147 08.013 CLIP; COVER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 0610- ● ● ● ● ● ● ● ●
152 07.829 NUT; HOOD
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0610- ● ● ● ● ● ● ● ●
153 08.054 STOPPER; SEAL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98056-058-0 03 1 0610- ● ● ● ● ● ● ● ●
154 08.077 STUD
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98056-035-0 04 1 0610- ● ● ● ● ● ● ● ●
155 08.054 FASTENER; AIR SCOOP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98056-037-0 01 1 0610- ● ● ● ● ● ● ● ●
