Sayfa 6-03 - Isuzu EPC

6-03 — RADIATOR GRILLE (#20881) — 202 parça

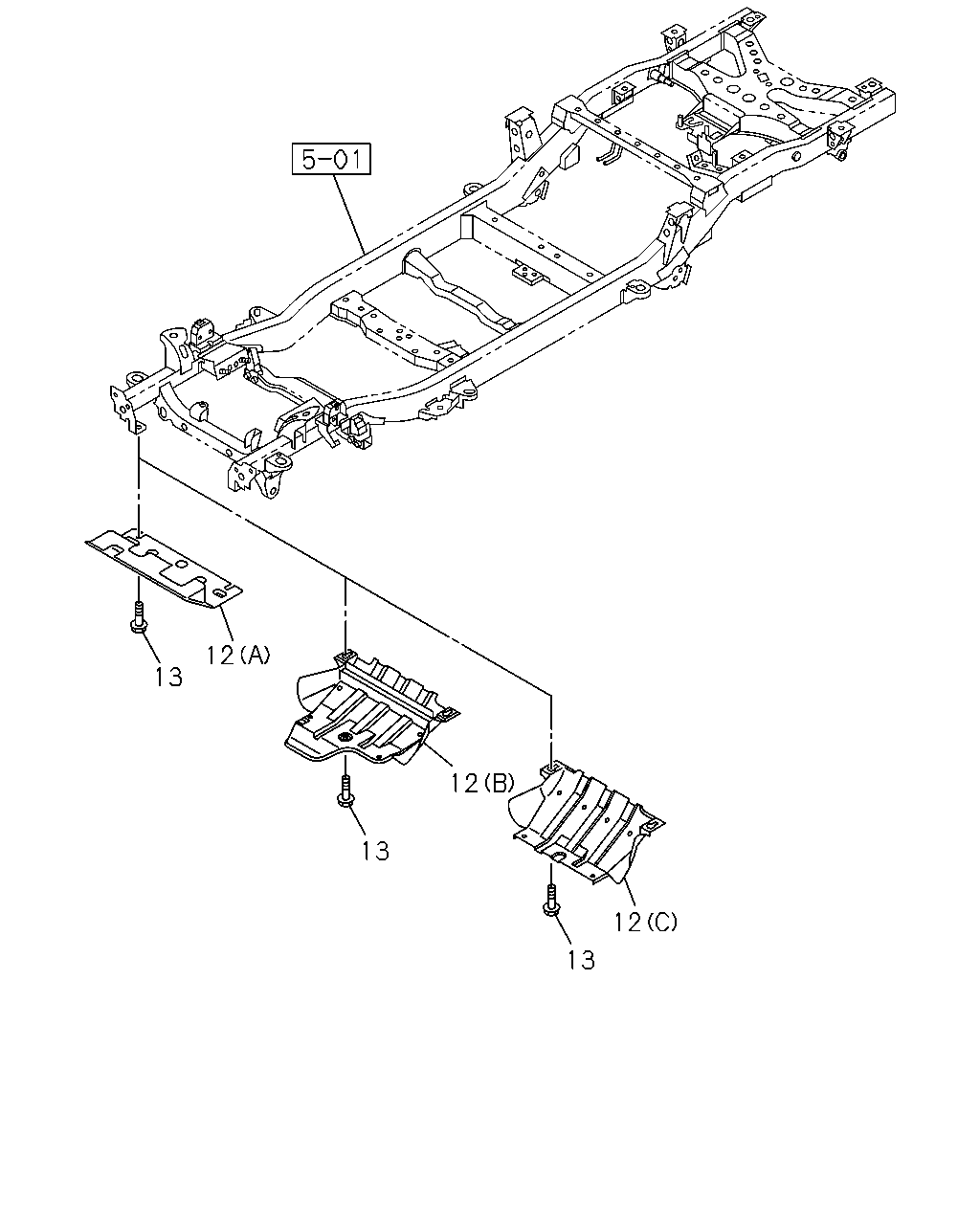

12 13 12 13 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
12	01.274 PLATE; SKID,RAD SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-353-0	01	1	0307-0402	●	●	●	●	●
12	01.274 PLATE; SKID,RAD (B)	8-97943-353-0	01	1	0307-0402						●	●	●
12	01.274 PLATE; SKID,RAD SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-919-0	01	1	0403-0609	●	●	●	●	●
12	01.274 PLATE; SKID,RAD (B)	8-97943-919-0	01	1	0403-0609						●	●	●
12	01.274 PLATE; SKID,RAD HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-919-0	01	1	0610-0612	●	●	●	●	●
12	01.274 PLATE; SKID,RAD HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) (B)	8-97943-919-0	01	1	0610-0612						●	●	●
12	01.274 PLATE; SKID,RAD HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-919-0	01	1	0701-0912	●	●	●	●	●
12	01.274 PLATE; SKID,RAD HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) SKID PLATE<7WE> (B)	8-97943-919-0	01	1	0701-0912						●	●	●
12	01.274 PLATE; SKID,RAD HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-919-0	01	1	1001-	●	●	●	●	●
12	01.274 PLATE; SKID,RAD HF V6 ENG(LCA),4JJ1-TCS ENG(LFB), C24SE ENG(LG1),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) (B)	8-97943-919-0	01	1	1001-						●	●	●
12	01.274 PLATE; SKID,RAD SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-919-0	01	1	0307-0609	●	●	●	●	●
12	01.274 PLATE; SKID,RAD HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0) SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-919-0	01	1	0610-	●	●	●	●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-848-1	01	1	0610-	●	●	●	●	●
12	01.274 PLATE; SKID,RAD 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97945-193-0	01	1	0610-	●	●	●	●	●
12	01.274 PLATE; SKID,RAD 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B)	8-97945-193-0	01	1	0610-						●	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> M10X28 W/LK&PL WASHER	8-97943-077-0	04	1	0307-0609	●	●	●	●	●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97943-077-0	04	1	0307-0609						●	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-0912	●	●	●	●	●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-0912						●	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1001-	●	●	●	●	●
13	01.267 BOLT; RAD SKID PLATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1001-	●	●	●	●	●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1001-						●	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97943-077-0	02	1	0307-0609	●	●	●	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0610-	●	●	●	●	●

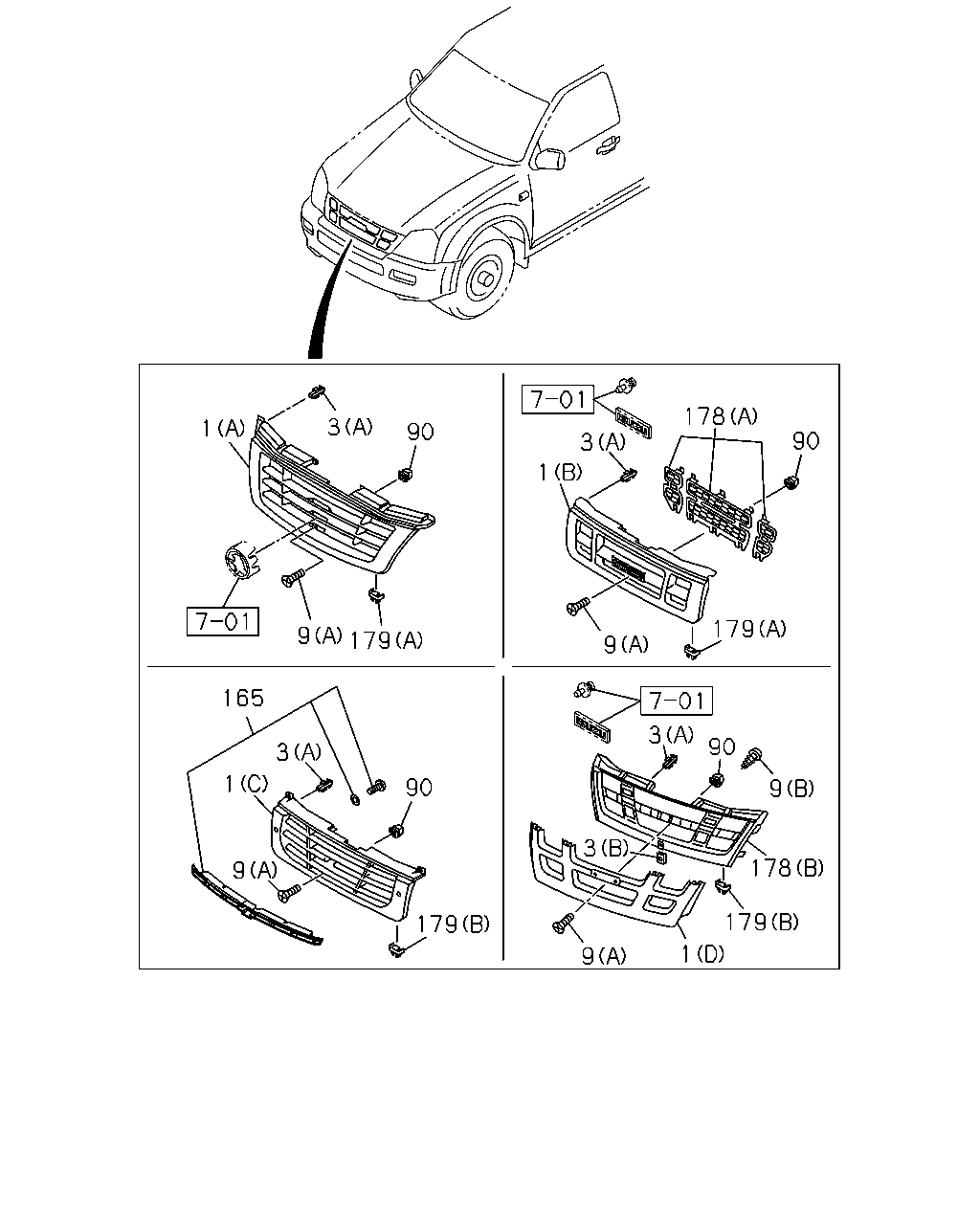

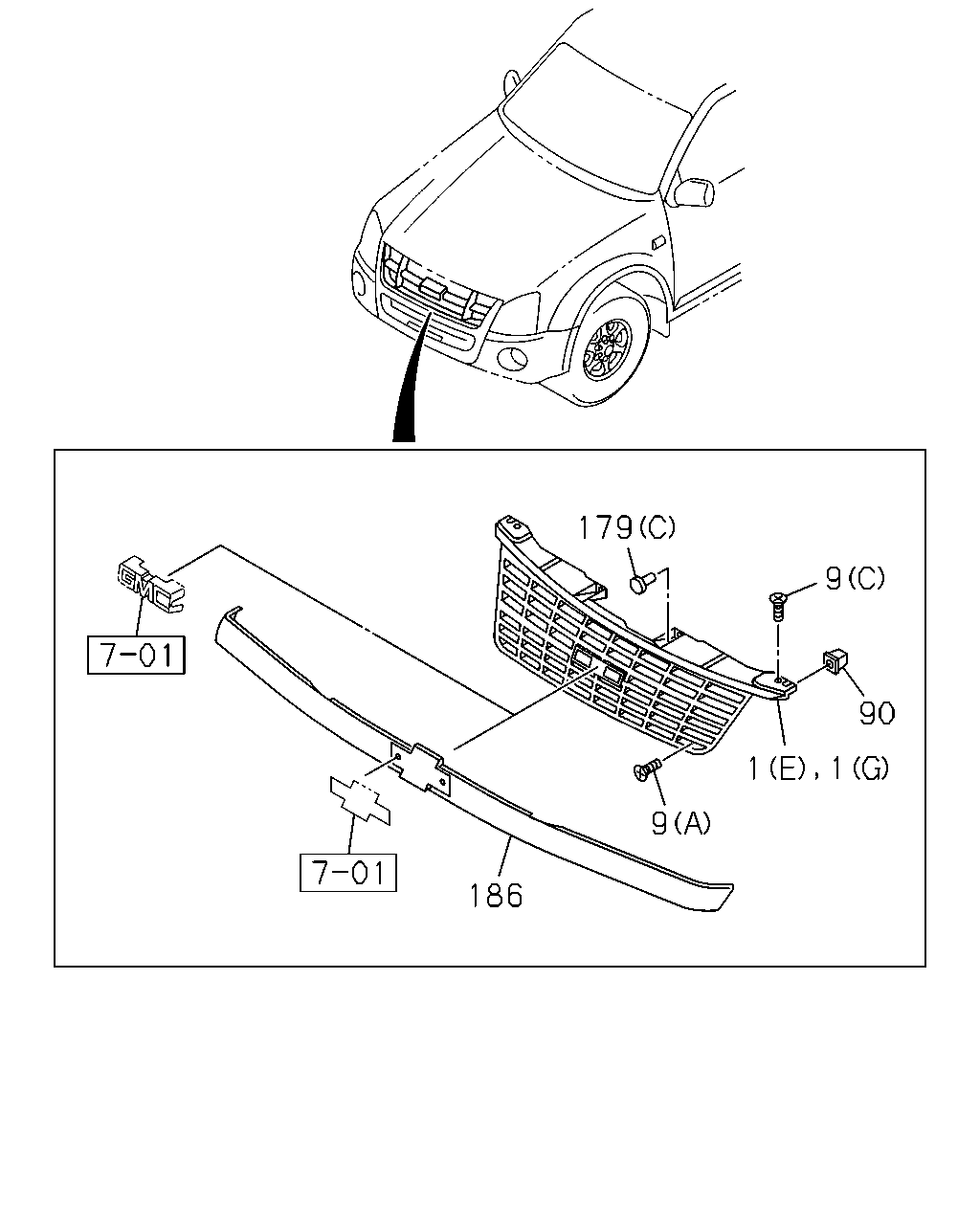

179 9 90 1 1 9 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.266 GRILLE; RAD GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (H) PLATED	8-98109-369-1	01	1	0905-0912					●			●
1	01.266 GRILLE; RAD GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (H) PLATED	8-98159-148-0	01	1	1001-					●			●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> HOLDEN BRAND<8DU> (G)	8-98012-517-2	01	1	0610-	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0307-0405	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0406-0508	●		●	●	●	●	●	●
1	01.266 GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0406-0508		●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> EXC. FACE LIFT MODEL<TX7> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0509-0609	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (F)	8-98012-479-1	01	1	0610-	●		●		●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609	●		●		●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609						●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) PLATED	8-97331-613-0	01	1	0307-0508	●		●		●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED	8-97331-613-0	01	1	0509-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (E)	8-98012-516-2	01	1	0610-	●		●		●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> (C) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0307-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-97367-361-2	01	1	0509-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98012-482-1	01	1	0610-0904	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98012-482-1	01	1	0905-	●	●	●	●		●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) PLATED	8-98012-482-1	01	1	0905-					●			●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (F) PLATED	8-98012-482-1	01	1	0905-					●			●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0307-0508	●		●		●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●		●		●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	0905-					●			●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0307-0609	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609	●		●		●
9	01.269 SCREW; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97370-062-0	09	1	0509-0609	●		●		●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609						●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	17	1	0701-	●		●		●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0307-0609	●	●	●	●	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0610-	●	●	●	●	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> (B)	8-97367-166-0	02	1	0307-0609	●		●		●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL>,HOLDEN BRAND<8DU> (A)	8-97350-904-0	02	1	0307-0609	●		●		●	●	●	●
179	01.269 RETAINER; GRILLE,RAD (A)	8-97350-904-0	02	1	0307-0609		●		●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0610-	●	●	●	●	●	●	●	●
186	01.266 BAR; RAD GRILLE CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>	8-98012-651-0	01	1	0610-	●		●		●	●	●	●

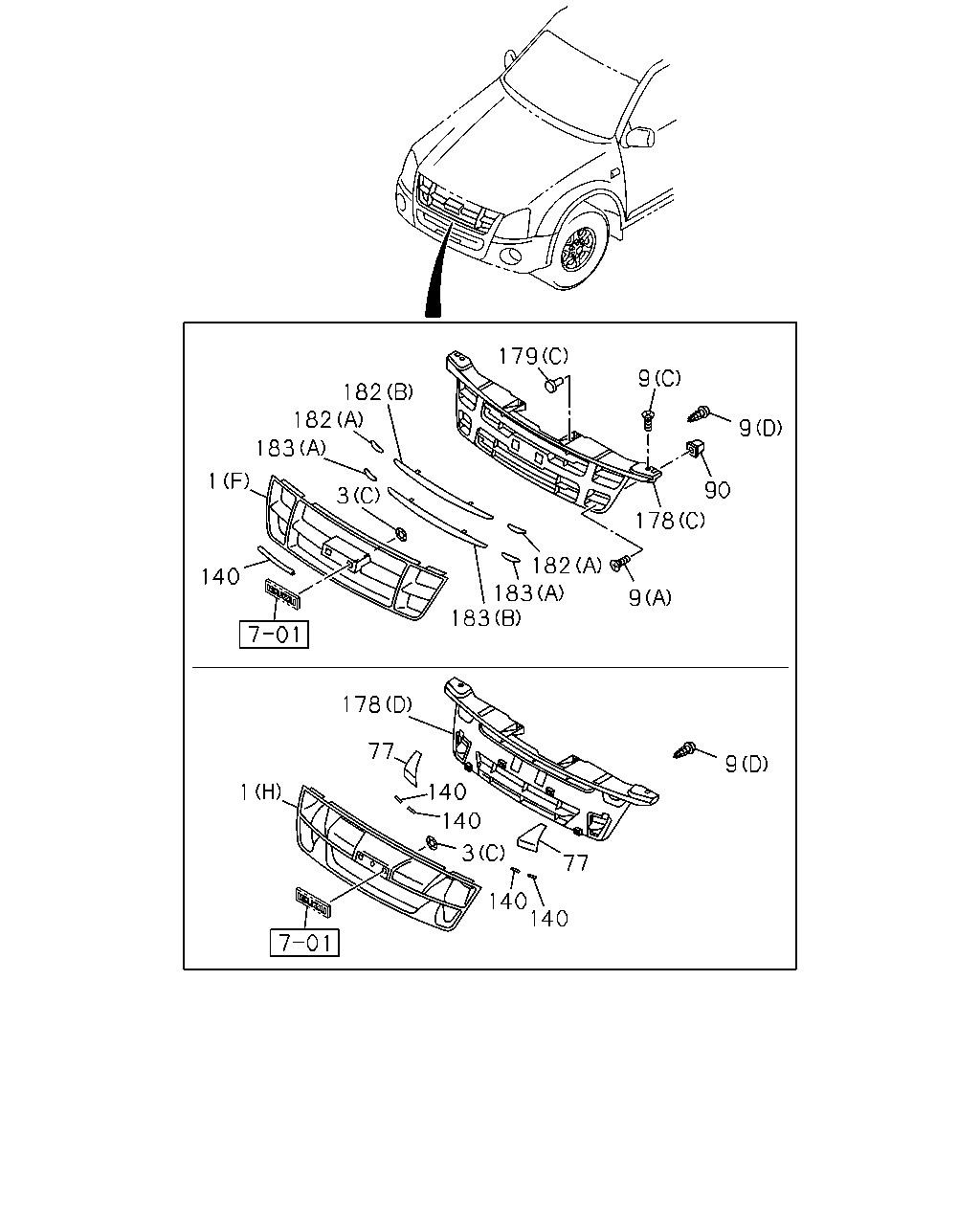

179 9 182 182 9 183 1 90 3 178 182 183 183 140 9 178 77 9 1 140 140 3 77 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.266 GRILLE; RAD GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (H) PLATED	8-98109-369-1	01	1	0905-0912					●			●
1	01.266 GRILLE; RAD GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (H) PLATED	8-98159-148-0	01	1	1001-					●			●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> HOLDEN BRAND<8DU> (G)	8-98012-517-2	01	1	0610-	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0307-0405	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0406-0508	●		●	●	●	●	●	●
1	01.266 GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0406-0508		●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> EXC. FACE LIFT MODEL<TX7> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0509-0609	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (F)	8-98012-479-1	01	1	0610-	●		●		●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609	●		●		●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609						●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) PLATED	8-97331-613-0	01	1	0307-0508	●		●		●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED	8-97331-613-0	01	1	0509-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (E)	8-98012-516-2	01	1	0610-	●		●		●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> (C) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0307-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-97367-361-2	01	1	0509-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98012-482-1	01	1	0610-0904	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98012-482-1	01	1	0905-	●	●	●	●		●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) PLATED	8-98012-482-1	01	1	0905-					●			●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (F) PLATED	8-98012-482-1	01	1	0905-					●			●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0307-0508	●		●		●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●		●		●	●	●	●
3	01.269 CLIP; GRILLE (A)	8-97350-903-0	04	1	0307-0609	●	●	●	●	●	●	●	●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609	●		●		●
3	01.269 CLIP; GRILLE BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97317-633-0	01	1	0509-0609	●		●		●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609						●	●	●
3	01.269 CLIP; GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL> (C)	8-97182-223-0	02	1	0701-	●		●		●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	0905-					●			●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0307-0609	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609	●		●		●
9	01.269 SCREW; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97370-062-0	09	1	0509-0609	●		●		●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609						●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	17	1	0701-	●		●		●	●	●	●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL>	8-98139-020-0	01	1	0905-0905					●			●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL>	8-98139-116-0	01	1	0905-0905					●			●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0307-0609	●	●	●	●	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0610-	●	●	●	●	●	●	●	●
140	01.266 SEAL; RAD GRILLE GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL>	8-98130-916-0	04	1	0905-					●			●
140	01.266 SEAL; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL>	8-98070-854-0	01	1	0701-	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (D)	8-98109-370-1	01	1	0905-					●			●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609	●		●		●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97367-363-3	01	1	0509-0609	●		●		●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609						●	●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL> (C)	8-98012-483-2	01	1	0610-	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0307-0405	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> (A)	8-97331-458-0	01	1	0307-0405	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0406-0508	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A)	8-97331-458-0	01	1	0509-0609	●		●		●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> (B)	8-97367-166-0	02	1	0307-0609	●		●		●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL>,HOLDEN BRAND<8DU> (A)	8-97350-904-0	02	1	0307-0609	●		●		●	●	●	●
179	01.269 RETAINER; GRILLE,RAD (A)	8-97350-904-0	02	1	0307-0609		●		●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0610-	●	●	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-491-0	01	1	0610-0904	●	●	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-491-0	01	1	0905-	●	●	●	●		●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98012-491-0	01	1	0905-					●			●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (B)	8-98012-491-0	01	1	0905-					●			●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-493-0	01	1	0610-0904	●	●	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-493-0	01	1	0905-	●	●	●	●		●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98012-493-0	01	1	0905-					●			●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98012-493-0	01	1	0905-					●			●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-492-0	01	1	0610-0904	●	●	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-492-0	01	1	0905-	●	●	●	●		●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98012-492-0	01	1	0905-					●			●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98012-492-0	01	1	0905-					●			●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (B)	8-98012-484-0	01	1	0610-	●		●		●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-486-0	01	1	0610-	●		●		●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-485-0	01	1	0610-	●		●		●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-494-0	01	1	0610-0904	●	●	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-494-0	01	1	0905-	●	●	●	●		●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98012-494-0	01	1	0905-					●			●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (B)	8-98012-494-0	01	1	0905-					●			●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-496-0	01	1	0610-0904	●	●	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-496-0	01	1	0905-	●	●	●	●		●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98012-496-0	01	1	0905-					●			●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98012-496-0	01	1	0905-					●			●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-495-0	01	1	0610-0904	●	●	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-495-0	01	1	0905-	●	●	●	●		●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98012-495-0	01	1	0905-					●			●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98012-495-0	01	1	0905-					●			●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (B)	8-98012-487-0	01	1	0610-	●		●		●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-489-0	01	1	0610-	●		●		●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-488-0	01	1	0610-	●		●		●	●	●	●

178 3 1 90 90 3 1 179 9 179 9 165 3 90 3 1 90 9 3 178 9 179 179 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.266 GRILLE; RAD GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (H) PLATED	8-98109-369-1	01	1	0905-0912					●			●
1	01.266 GRILLE; RAD GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (H) PLATED	8-98159-148-0	01	1	1001-					●			●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> HOLDEN BRAND<8DU> (G)	8-98012-517-2	01	1	0610-	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0307-0405	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0406-0508	●		●	●	●	●	●	●
1	01.266 GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0406-0508		●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> HOLDEN BRAND<8DU> EXC. FACE LIFT MODEL<TX7> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0509-0609	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (F)	8-98012-479-1	01	1	0610-	●		●		●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609	●		●		●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609						●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) PLATED	8-97331-613-0	01	1	0307-0508	●		●		●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED	8-97331-613-0	01	1	0509-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (E)	8-98012-516-2	01	1	0610-	●		●		●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> (C) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0307-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-97367-361-2	01	1	0509-0609	●		●		●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98012-482-1	01	1	0610-0904	●	●	●	●	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98012-482-1	01	1	0905-	●	●	●	●		●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) PLATED	8-98012-482-1	01	1	0905-					●			●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (F) PLATED	8-98012-482-1	01	1	0905-					●			●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0307-0508	●		●		●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●		●		●	●	●	●
3	01.269 CLIP; GRILLE (A)	8-97350-903-0	04	1	0307-0609	●	●	●	●	●	●	●	●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609	●		●		●
3	01.269 CLIP; GRILLE BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97317-633-0	01	1	0509-0609	●		●		●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609						●	●	●
3	01.269 CLIP; GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL> (C)	8-97182-223-0	02	1	0701-	●		●		●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	0905-					●			●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0307-0609	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609	●		●		●
9	01.269 SCREW; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97370-062-0	09	1	0509-0609	●		●		●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609						●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	17	1	0701-	●		●		●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0307-0609	●	●	●	●	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0610-	●	●	●	●	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE>	8-97333-542-2	01	1	0307-0609	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> (D)	8-98109-370-1	01	1	0905-					●			●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609	●		●		●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97367-363-3	01	1	0509-0609	●		●		●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609						●	●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX>,BRIGHT RADGRILLE<V22> ISUZU BRAND<7WL> (C)	8-98012-483-2	01	1	0610-	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0307-0405	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> (A)	8-97331-458-0	01	1	0307-0405	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0406-0508	●		●		●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A)	8-97331-458-0	01	1	0509-0609	●		●		●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> (B)	8-97367-166-0	02	1	0307-0609	●		●		●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL>,HOLDEN BRAND<8DU> (A)	8-97350-904-0	02	1	0307-0609	●		●		●	●	●	●
179	01.269 RETAINER; GRILLE,RAD (A)	8-97350-904-0	02	1	0307-0609		●		●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0610-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
