1 |

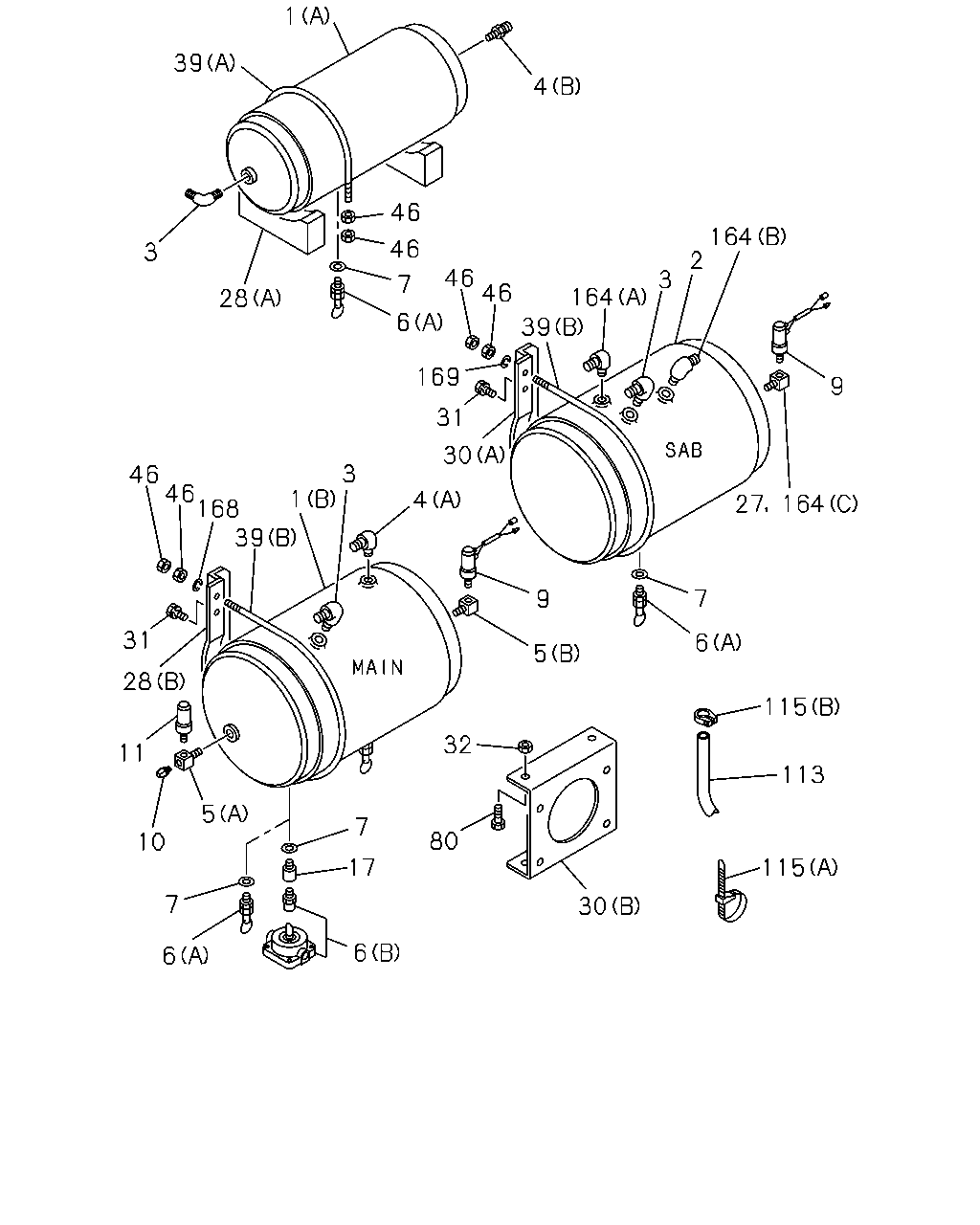

TANK ASM; AIR
(A)
11L
|
1-48310-515-1 |
01 |
1 |
9001-9204 |
● |
|
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
11L
|
1-48310-515-1 |
01 |
1 |
9001-9204 |
|
● |
| |
1 |
TANK ASM; AIR
(A)
11L
|
1-48310-515-1 |
01 |
1 |
9205- |
● |
● |
| |
1 |
TANK ASM; AIR
(B)
20L
|
1-48310-528-1 |
01 |
1 |
9001- |
● |
● |
| |
2 |
TANK; AIR
20L
|
1-48310-530-1 |
02 |
1 |
9001-9204 |
● |
|
| |
2 |
TANK; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
20L
|
1-48310-530-1 |
02 |
1 |
9001-9204 |
|
● |
| |
2 |
TANK; AIR
20L
|
1-48310-530-1 |
02 |
1 |
9205- |
● |
● |
| |
2 |
TANK; AIR
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
20L
|
1-48310-529-1 |
01 |
1 |
9001-9204 |
|
● |
| |
3 |
VALVE; CHECK,AIR TANK
M16 PT3/4
|
1-48410-132-1 |
02 |
1 |
9001-9012 |
● |
|
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16 PT3/4
|
1-48410-132-1 |
02 |
1 |
9001-9012 |
|
● |
| |
3 |
VALVE; CHECK,AIR TANK
M16 PT3/4
|
1-48410-132-1 |
03 |
1 |
9101-9204 |
● |
|
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16 PT3/4
|
1-48410-132-1 |
03 |
1 |
9101-9204 |
|
● |
| |
3 |
VALVE; CHECK,AIR TANK
M16 PT3/4
|
1-48410-132-3 |
03 |
1 |
9205- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
M16 PT3/4
|
1-48410-132-1 |
01 |
1 |
9001-9012 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M16 PT3/4
|
1-48410-132-1 |
01 |
1 |
9101-9204 |
|
● |
| |
3 |
VALVE; CHECK,AIR TANK
M16 PT3/4
|
1-48410-133-2 |
01 |
1 |
9001-9606 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
9607- |
● |
● |
| |
4 |
CONNECTOR; FLARE
(B)
|
1-09650-245-0 |
01 |
1 |
9001-9204 |
● |
|
| |
4 |
CONNECTOR; FLARE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-09650-245-0 |
01 |
1 |
9001-9204 |
|
● |
| |
4 |
CONNECTOR; FLARE
(B)
|
1-09650-245-1 |
01 |
1 |
9205-9604 |
● |
● |
| |
4 |
CONNECTOR; FLARE
(A)
|
9-09234-310-1 |
01 |
1 |
9001-9302 |
● |
● |
| |
4 |
CONNECTOR; FLARE
(A)
|
1-09650-434-0 |
01 |
1 |
9303- |
● |
● |
| |
5 |
UNION; AIR TANK
(A)
|
9-09902-561-0 |
01 |
1 |
9001- |
● |
● |
| |
5 |
UNION; AIR TANK
(B)
|
9-09903-738-0 |
01 |
1 |
9001- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
AUTO DRAIN<J78>
(A)
W/COVER
|
1-48312-004-1 |
01 |
1 |
9307-9604 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
AUTO DRAIN<J78>
(A)
|
1-48312-015-0 |
01 |
1 |
9605- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
AUTO DRAIN<J78>
(B)
|
9-09904-177-0 |
01 |
1 |
9307- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
EXC. AUTO DRAIN<J78>
(A)
W/COVER
|
1-48312-004-1 |
02 |
1 |
9307-9604 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
EXC. AUTO DRAIN<J78>
(A)
|
1-48312-015-0 |
02 |
1 |
9605- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
(A)
W/COVER
|
1-48312-004-1 |
05 |
1 |
9001-9306 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
(A)
W/COVER
|
1-48312-004-1 |
03 |
1 |
9307-9604 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
(A)
|
1-48312-015-0 |
03 |
1 |
9605- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
ID=14.2 OD=23.0
|
9-09572-014-0 |
05 |
1 |
9001-9608 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
ID=14
|
1-09630-145-0 |
03 |
1 |
9609- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
AUTO DRAIN<J78>
ID=14
|
1-09630-145-0 |
01 |
1 |
9609- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
EXC. AUTO DRAIN<J78>
ID=14
|
1-09630-145-0 |
02 |
1 |
9609- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
AUTO DRAIN<J78>
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9609- |
● |
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
|
1-48340-035-0 |
03 |
1 |
9001-9204 |
● |
|
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48340-035-0 |
03 |
1 |
9001-9204 |
|
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
|
1-48340-035-0 |
03 |
1 |
9205-9411 |
● |
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
|
1-48340-052-0 |
03 |
1 |
9412- |
● |
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-48340-013-1 |
02 |
1 |
9001-9204 |
|
● |
| |
10 |
PLUG; AIR TANK
PT1/4
|
9-99204-513-0 |
01 |
1 |
9001- |
● |
● |
| |
11 |
VALVE; SAFETY,AIR TANK
|
1-48320-002-0 |
01 |
1 |
9001-9204 |
● |
|
| |
11 |
VALVE; SAFETY,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48320-002-0 |
01 |
1 |
9001-9204 |
|
● |
| |
11 |
VALVE; SAFETY,AIR TANK
|
1-48320-002-1 |
01 |
1 |
9205- |
● |
● |
| |
11 |
VALVE; SAFETY,AIR TANK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-48320-001-0 |
01 |
1 |
9001-9204 |
|
● |
| |
17 |
ADAPTER; AUTO DRAIN
AUTO DRAIN<J78>
|
1-48319-031-0 |
01 |
1 |
9307- |
● |
● |
| |
27 |
UNION; ELBOW,AIR TANK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
PT1/4
|
9-09903-738-0 |
01 |
1 |
9001-9204 |
|
● |
| |
28 |
BRACKET; AIR TANK
(A)
|
9-48317-032-0 |
02 |
1 |
9001-9204 |
● |
|
| |
28 |
BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
9-48317-032-0 |
02 |
1 |
9001-9204 |
|
● |
| |
28 |
BRACKET; AIR TANK
(A)
|
9-48317-032-0 |
02 |
1 |
9205-9604 |
● |
● |
| |
28 |
BRACKET; AIR TANK
(B)
|
1-48317-049-4 |
02 |
1 |
9001- |
● |
● |
| |
30 |
BRACKET; AIR TANK,SUB
(A)
|
1-48317-049-4 |
04 |
1 |
9001-9204 |
● |
|
| |
30 |
BRACKET; AIR TANK,SUB
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48317-049-4 |
04 |
1 |
9001-9204 |
|
● |
| |
30 |
BRACKET; AIR TANK,SUB
(A)
|
1-48317-049-4 |
04 |
1 |
9205- |
● |
● |
| |
30 |
BRACKET; AIR TANK,SUB
(B)
|
1-53153-452-2 |
01 |
1 |
9001-9204 |
● |
|
| |
30 |
BRACKET; AIR TANK,SUB
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-53153-452-2 |
01 |
1 |
9001-9204 |
|
● |
| |
30 |
BRACKET; AIR TANK,SUB
(B)
|
1-53153-452-2 |
01 |
1 |
9205- |
● |
● |
| |
30 |
BRACKET; AIR TANK,SUB
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
(A)
|
1-48317-049-4 |
02 |
1 |
9001-9204 |
|
● |
| |
31 |
BOLT; BRKT TO FRAME
M12X32 W/LK WASHER
|
9-01911-232-0 |
08 |
1 |
9001-9005 |
● |
|
| |
31 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12X32 W/LK WASHER
|
9-01911-232-0 |
08 |
1 |
9001-9005 |
|
● |
| |
31 |
BOLT; BRKT TO FRAME
M12X32 W/LK WASHER
|
0-50041-232-0 |
08 |
1 |
9006-9204 |
● |
|
| |
31 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12X32 W/LK WASHER
|
0-50041-232-0 |
08 |
1 |
9006-9204 |
|
● |
| |
31 |
BOLT; BRKT TO FRAME
M12X32 W/LK WASHER
|
9-01911-232-0 |
04 |
1 |
9001-9005 |
● |
● |
| |
31 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M12X32 W/LK WASHER
|
9-01911-232-0 |
04 |
1 |
9001-9005 |
|
● |
| |
31 |
BOLT; BRKT TO FRAME
M12X32 W/LK WASHER
|
0-50041-232-0 |
04 |
1 |
9006-9204 |
● |
● |
| |
31 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M12X32 W/LK WASHER
|
0-50041-232-0 |
04 |
1 |
9006-9204 |
|
● |
| |
31 |
BOLT; BRKT TO FRAME
M12X32 W/LK WASHER
|
0-50041-232-0 |
12 |
1 |
9205-9606 |
● |
● |
| |
31 |
BOLT; BRKT TO FRAME
M12X30 FLANGE
|
0-28681-230-0 |
12 |
1 |
9607- |
● |
● |
| |
32 |
NUT; BRKT TO FRAME
M10
|
9-09110-410-0 |
04 |
1 |
9001-9204 |
● |
|
| |
32 |
NUT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10
|
9-09110-410-0 |
04 |
1 |
9001-9204 |
|
● |
| |
32 |
NUT; BRKT TO FRAME
M10
|
9-09110-510-0 |
04 |
1 |
9308-9606 |
● |
● |
| |
32 |
NUT; BRKT TO FRAME
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9607- |
● |
● |
| |
39 |
U-BOLT; AIR TANK
(A)
L=245
|
1-48317-004-0 |
02 |
1 |
9001-9204 |
● |
|
| |
39 |
U-BOLT; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=245
|
1-48317-004-0 |
02 |
1 |
9001-9204 |
|
● |
| |
39 |
U-BOLT; AIR TANK
(A)
L=245
|
1-48317-004-0 |
02 |
1 |
9205-9501 |
● |
● |
| |
39 |
U-BOLT; AIR TANK
(A)
L=250
|
1-48317-308-0 |
02 |
1 |
9502-9604 |
● |
● |
| |
39 |
U-BOLT; AIR TANK
(B)
L=303
|
1-48317-087-0 |
06 |
1 |
9001-9204 |
● |
|
| |
39 |
U-BOLT; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=303
|
1-48317-087-0 |
06 |
1 |
9001-9204 |
|
● |
| |
39 |
U-BOLT; AIR TANK
(B)
L=303
|
1-48317-087-1 |
06 |
1 |
9205- |
● |
● |
| |
39 |
U-BOLT; AIR TANK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
(B)
L=303
|
1-48317-087-0 |
04 |
1 |
9001-9204 |
|
● |
| |
46 |
NUT; U-BOLT
M12
|
9-99110-412-0 |
08 |
1 |
9001-9204 |
● |
|
| |
46 |
NUT; U-BOLT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
9-99110-412-0 |
08 |
1 |
9001-9204 |
|
● |
| |
46 |
NUT; U-BOLT
M12
|
9-99110-512-0 |
08 |
1 |
9205-9606 |
● |
● |
| |
46 |
NUT; U-BOLT
M12 FLANGE
|
0-91150-212-0 |
08 |
1 |
9607- |
● |
● |
| |
46 |
NUT; U-BOLT
M8
|
9-09110-408-0 |
24 |
1 |
9205-9606 |
● |
● |
| |
46 |
NUT; U-BOLT
M8
|
9-09110-408-0 |
02 |
1 |
9607- |
● |
● |
| |
46 |
NUT; U-BOLT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607- |
● |
● |
| |
46 |
NUT; U-BOLT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607- |
● |
● |
| |
46 |
NUT; U-BOLT
M8
|
9-09111-408-0 |
24 |
1 |
9001-9204 |
● |
|
| |
46 |
NUT; U-BOLT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8
|
9-09111-408-0 |
24 |
1 |
9001-9204 |
|
● |
| |
46 |
NUT; U-BOLT
M8
|
9-09110-408-0 |
08 |
1 |
9607- |
● |
● |
| |
46 |
NUT; U-BOLT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M8
|
9-09111-408-0 |
16 |
1 |
9001-9204 |
|
● |
| |
80 |
BOLT; BRKT
M10X25
|
9-01911-025-0 |
04 |
1 |
9001-9002 |
● |
|
| |
80 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10X25
|
9-01911-025-0 |
04 |
1 |
9001-9002 |
|
● |
| |
80 |
BOLT; BRKT
M10X25 W/LK WASHER
|
0-50041-025-0 |
04 |
1 |
9003-9204 |
● |
|
| |
80 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10X25 W/LK WASHER
|
0-50041-025-0 |
04 |
1 |
9003-9204 |
|
● |
| |
80 |
BOLT; BRKT
M10X25 W/LK WASHER
|
0-50041-025-0 |
04 |
1 |
9205-9606 |
● |
● |
| |
80 |
BOLT; BRKT
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
9607- |
● |
● |
| |
113 |
HOSE; VINYL,EXH
L=950
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9001-9204 |
● |
|
| |
113 |
HOSE; VINYL,EXH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=950
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9001-9204 |
|
● |
| |
113 |
HOSE; VINYL,EXH
L=950
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9205- |
● |
● |
| |
115 |
CLIP; VINYL HOSE
(A)
L=140
|
5-09707-031-0 |
01 |
1 |
9001-9204 |
● |
|
| |
115 |
CLIP; VINYL HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=140
|
5-09707-031-0 |
01 |
1 |
9001-9204 |
|
● |
| |
115 |
CLIP; VINYL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
9205- |
● |
● |
| |
115 |
CLIP; VINYL HOSE
(B)
|
9-09915-653-0 |
01 |
1 |
9001-9204 |
● |
|
| |
115 |
CLIP; VINYL HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
9-09915-653-0 |
01 |
1 |
9001-9204 |
|
● |
| |
115 |
CLIP; VINYL HOSE
(B)
|
9-09915-653-0 |
01 |
1 |
9205- |
● |
● |
| |
164 |
CONNECTOR; SUB AIR TANK
(B)
M16 & PT1/4 ELBOW
|
9-09234-310-0 |
02 |
1 |
9001-9204 |
● |
|
| |
164 |
CONNECTOR; SUB AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M16 & PT1/4 ELBOW
|
9-09234-310-0 |
02 |
1 |
9001-9204 |
|
● |
| |
164 |
CONNECTOR; SUB AIR TANK
(B)
M16 & PT1/4 ELBOW
|
9-09234-310-1 |
02 |
1 |
9205-9302 |
● |
● |
| |
164 |
CONNECTOR; SUB AIR TANK
(B)
M16 & PT1/4 ELBOW
|
1-09650-434-0 |
02 |
1 |
9303- |
● |
● |
| |
164 |
CONNECTOR; SUB AIR TANK
(A)
M22 & PT1/2 ELBOW
|
9-09234-315-0 |
02 |
1 |
9001-9204 |
● |
|
| |
164 |
CONNECTOR; SUB AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M22 & PT1/2 ELBOW
|
9-09234-315-0 |
02 |
1 |
9001-9204 |
|
● |
| |
164 |
CONNECTOR; SUB AIR TANK
(A)
M22 & PT1/2 ELBOW
|
9-09234-315-1 |
02 |
1 |
9205-9302 |
● |
● |
| |
164 |
CONNECTOR; SUB AIR TANK
(A)
M22 & PT1/2 ELBOW
|
1-09650-444-0 |
02 |
1 |
9303- |
● |
● |
| |
164 |
CONNECTOR; SUB AIR TANK
(C)
PT1/4
|
9-09903-738-0 |
02 |
1 |
9001-9204 |
● |
|
| |
164 |
CONNECTOR; SUB AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
PT1/4
|
9-09903-738-0 |
02 |
1 |
9001-9204 |
|
● |
| |
164 |
CONNECTOR; SUB AIR TANK
(C)
PT1/4
|
9-09903-738-0 |
02 |
1 |
9205- |
● |
● |
| |
164 |
CONNECTOR; SUB AIR TANK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
(A)
M20 & PT1/2 ELBOW
|
1-09650-178-0 |
01 |
1 |
9001-9204 |
|
● |
| |
168 |
WASHER; LK,BRKT
ID=8.2
|
9-09150-508-0 |
02 |
1 |
9001-9606 |
● |
● |
| |
169 |
WASHER; LK,U-BOLT
ID=8.2
|
9-09150-508-0 |
04 |
1 |
9001-9204 |
● |
|
| |
169 |
WASHER; LK,U-BOLT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=8.2
|
9-09150-508-0 |
04 |
1 |
9001-9204 |
|
● |
| |
169 |
WASHER; LK,U-BOLT
ID=8.2
|
9-09150-508-0 |
04 |
1 |
9205-9606 |
● |
● |
| |
169 |
WASHER; LK,U-BOLT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
ID=8.2
|
9-09150-508-0 |
02 |
1 |
9001-9204 |
|
● |
