◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11169 - FVZ SOUTH AFRICA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#20879) — 133 parça

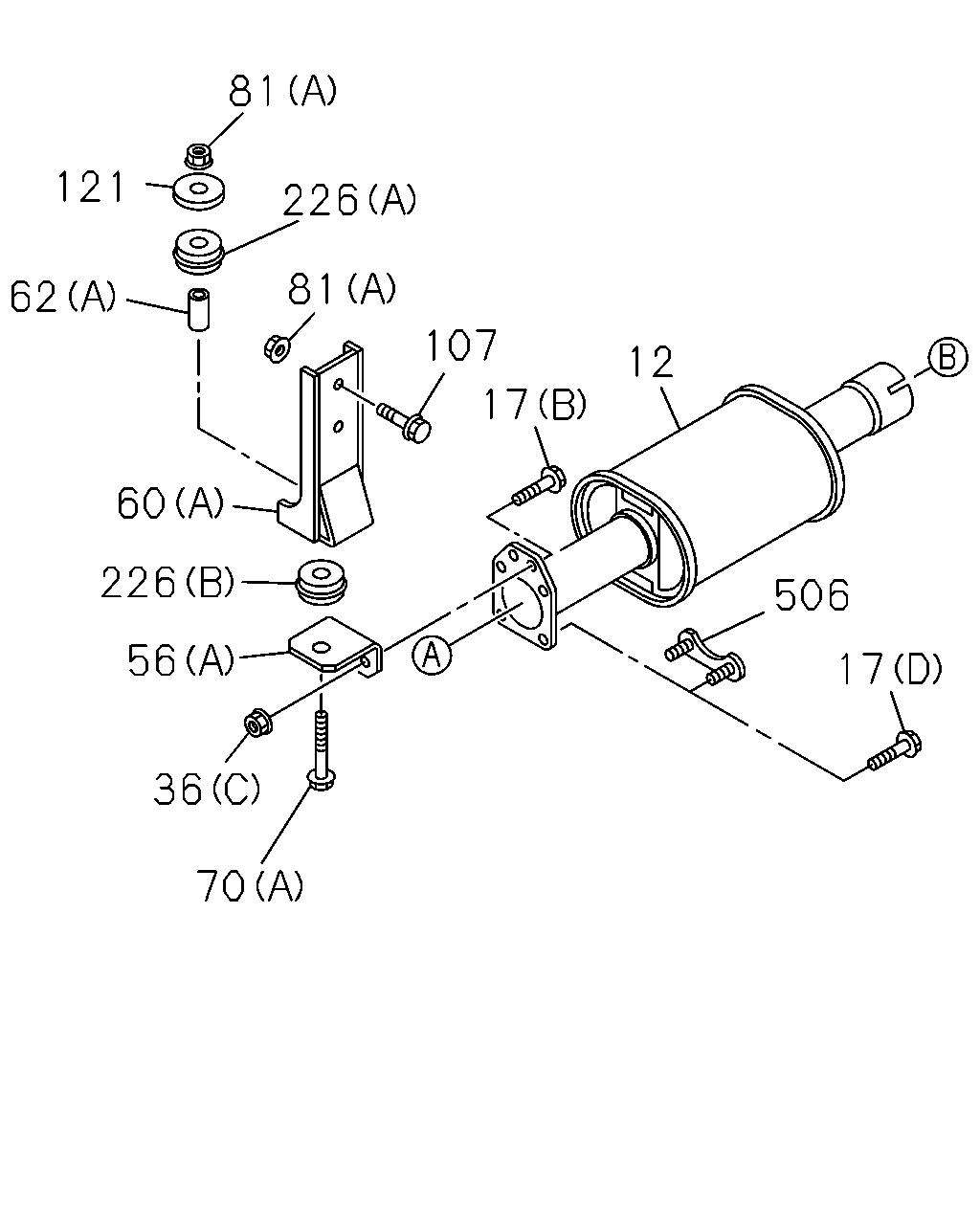

çizim 128389
81 121 62 60 226 56 36 70 107 81 226 17 12 506 17
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-98101-274-1 01 1 1001-
17 BOLT; EXH PIPE
(D) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) (C) M16X45 		9-92361-645-0 02 1 1107-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1001-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
36 NUT; EXH PIPE
(C) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
36 NUT; EXH PIPE
(B) M12 FLANGE SOU 		0-91180-212-0 07 1 1001-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98070-639-0 01 1 1001-1309
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-536-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(B) L=22 SOU 		9-22159-024-0 01 1 1001-
70 BOLT; BRKT
(B) M10X50 FLANGE SOU 		0-28051-050-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
81 NUT; BRKT
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1001-1203

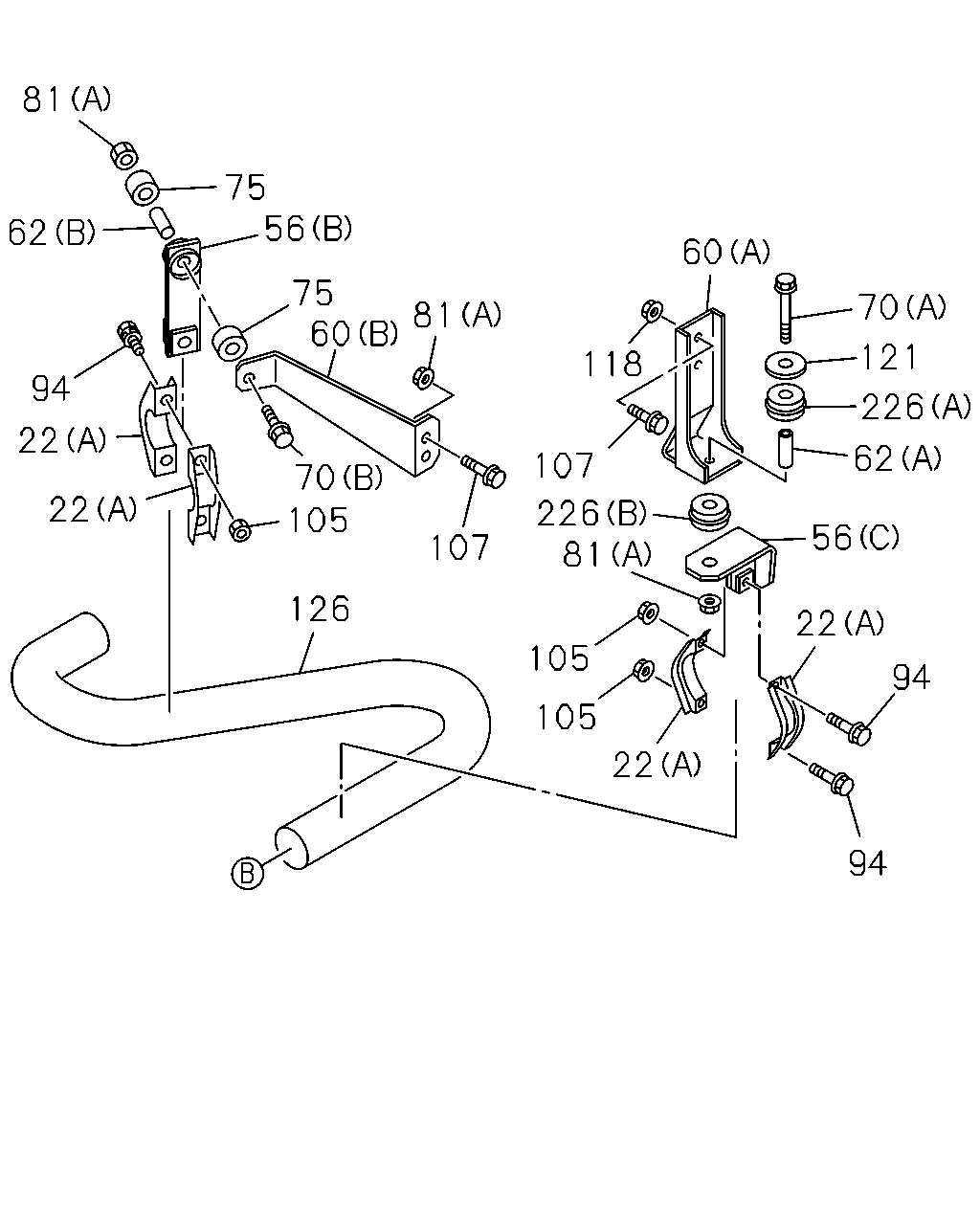

çizim 128392
94 94 22 56 62 226 121 70 22 105 105 81 226 107 118 60 107 126 105 70 81 22 22 94 62 60 75 56 75 81
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
(B) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98070-639-0 01 1 1001-1309
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-536-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(B) L=22 SOU 		9-22159-024-0 01 1 1001-
70 BOLT; BRKT
(B) M10X50 FLANGE SOU 		0-28051-050-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
75 RUBBER; SUPPORT,BRKT
OD=40 SOU 		1-22159-193-0 02 1 1001-
81 NUT; BRKT
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
94 BOLT; CLAMP
M10X40 FLANGE SOU 		0-28651-040-0 02 1 1001-
94 BOLT; CLAMP
M10X40 FLANGE SOU 		0-28651-040-0 02 1 1001-
105 NUT; CLAMP
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
105 NUT; CLAMP
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
118 NUT; SILENCER MTG BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
126 PIPE; EXH,RR 8-98069-920-0 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-

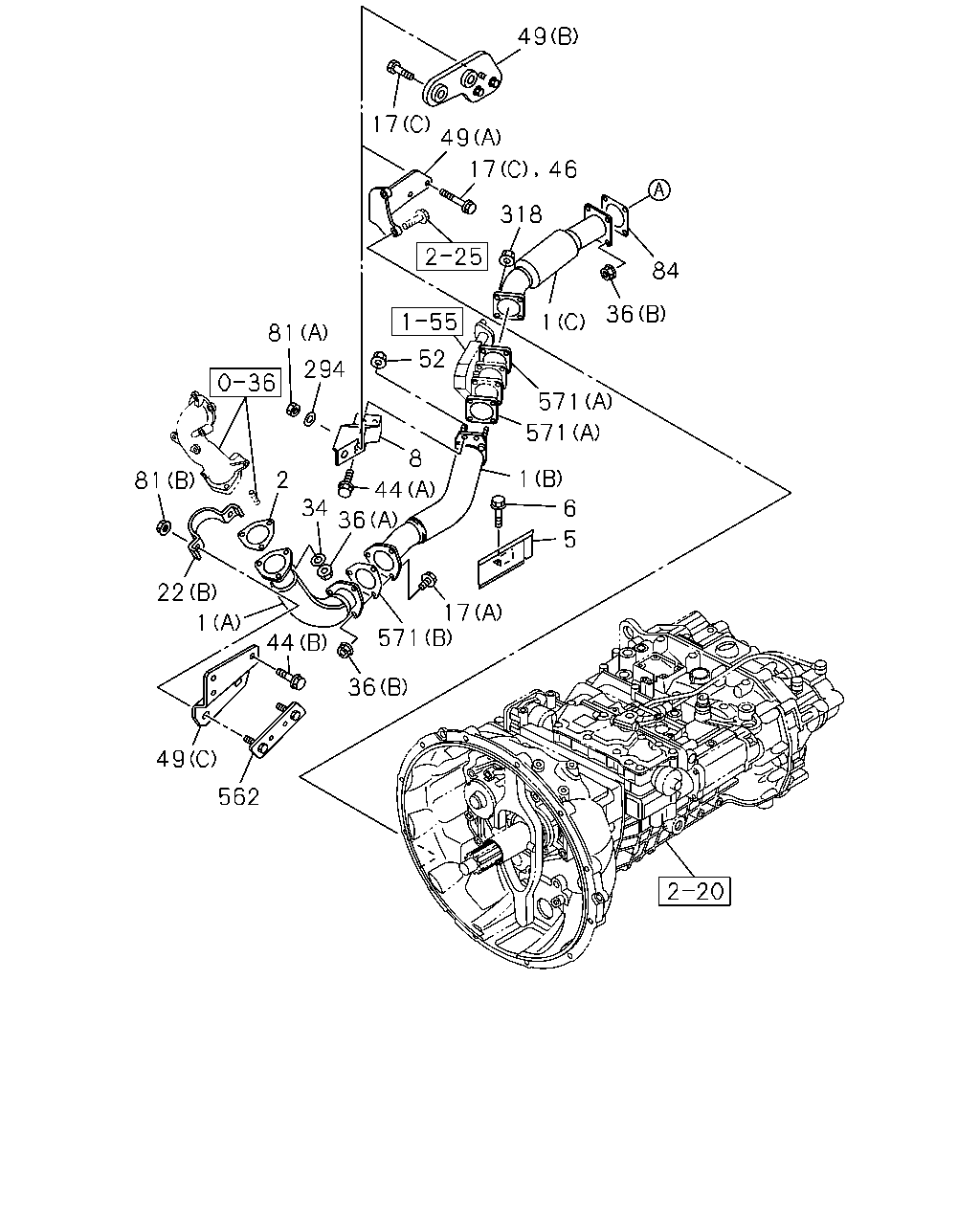

çizim 128393
17 81 81 2 22 1 49 562 36 44 571 5 1 571 6 17 36 34 294 52 1 571 36 84 318 46 17 49 49 44 8
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98060-615-0 01 1 1001-1309
1 PIPE; EXH
(B) 		8-98245-500-0 01 1 1310-
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 1001-
1 PIPE; EXH
(C) 		8-98090-386-0 01 1 1001-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1001-
5 PROTECTOR; HEAT 8-98073-436-0 01 1 1001-1406
5 PROTECTOR; HEAT 8-98255-001-0 01 1 1407-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) 		8-98149-834-0 01 1 1107-
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1001-1106
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) 		8-98120-522-0 01 1 1107-
17 BOLT; EXH PIPE
(D) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) (C) M16X45 		9-92361-645-0 02 1 1107-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1001-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
22 CLAMP; EXH PIPE
(B) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1001-
36 NUT; EXH PIPE
(C) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
36 NUT; EXH PIPE
(B) M12 FLANGE SOU 		0-91180-212-0 07 1 1001-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1001-
44 BOLT; BRKT
(B) M10X20 FLANGE 		0-28751-020-0 03 1 1305-
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) (A) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-1106
44 BOLT; BRKT
(A) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1001-
49 BRACKET; EXH PIPE TO TRANS
(C) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) (B) 		8-98149-833-0 01 1 1107-
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (A) 		8-98120-497-0 01 1 1001-
52 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
81 NUT; BRKT
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
84 GASKET; EXH PIPE 8-98096-305-0 01 1 1001-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1001-
318 NUT; EXH PIPE,FRT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-
562 PLATE; STUD,BOLT 8-97615-333-1 01 1 1305-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1001-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1001-
