8-60 — HEATER UNIT; FRONT (#20862) — 59 parça

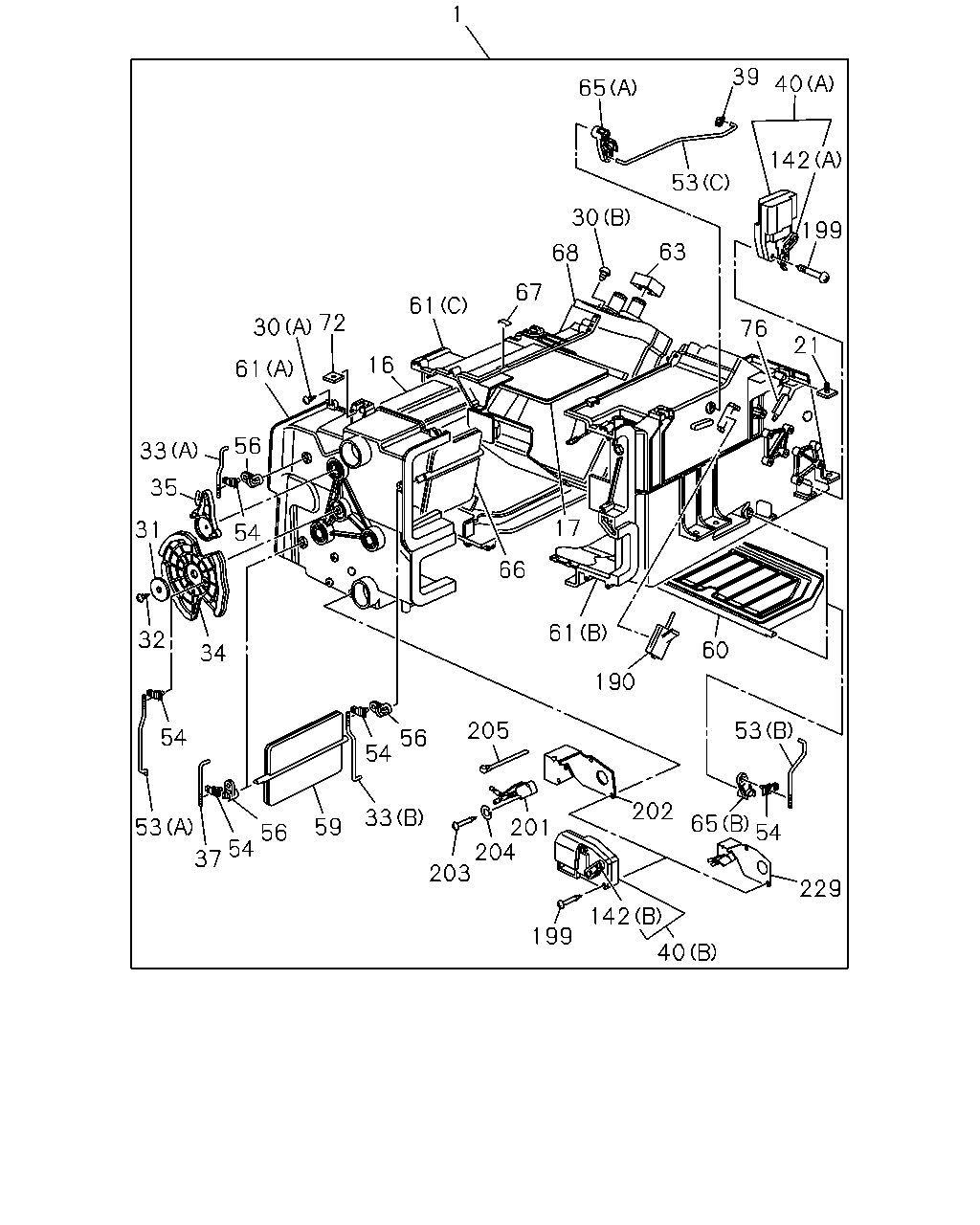

çizim 129782
1 65 53 142 40 39 199 63 30 68 67 61 16 72 30 61 56 33 35 54 31 32 34 54 53 37 54 56 59 33 76 21 60 53 190 61 66 54 229 65 202 142 40 199 204 205 56 54 201 203 17
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 1009-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98238-480-0 01 1 1410-
1 HEATER UNIT 1-83511-184-1 01 1 0904-1008
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83511-184-1 01 1 1009-1409
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-482-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0904-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0904-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0904-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0904-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0904-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0904-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0904-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0904-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0904-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0904-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0904-
37 ROD; LEVER 1-83579-620-1 01 1 0904-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0904-
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 1009-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 0904-1008
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-649-2 01 1 1009-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0904-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0904-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0904-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0904-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0904-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0904-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0904-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0904-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 1009-
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 1009-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0904-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0904-1008
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-401-0 01 1 1009-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0904-1008
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-402-0 01 1 1009-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0904-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0904-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0904-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0904-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0904-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0904-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0904-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0904-
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 1009-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0904-1008
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-345-1 01 1 1009-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0904-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0904-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0904-
201 SWITCH; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-679-1 01 1 1410-
202 BRACKET; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83571-907-1 01 1 1410-
203 SCREW; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		5-83569-141-0 02 1 1410-
204 WASHER; LK,MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1 		9-09150-503-0 02 1 1410-
205 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92 		1-83574-159-0 01 1 1410-
229 SWITCH ASM; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-688-2 01 1 1009-1409
