Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#20861) — 88 parça
◀

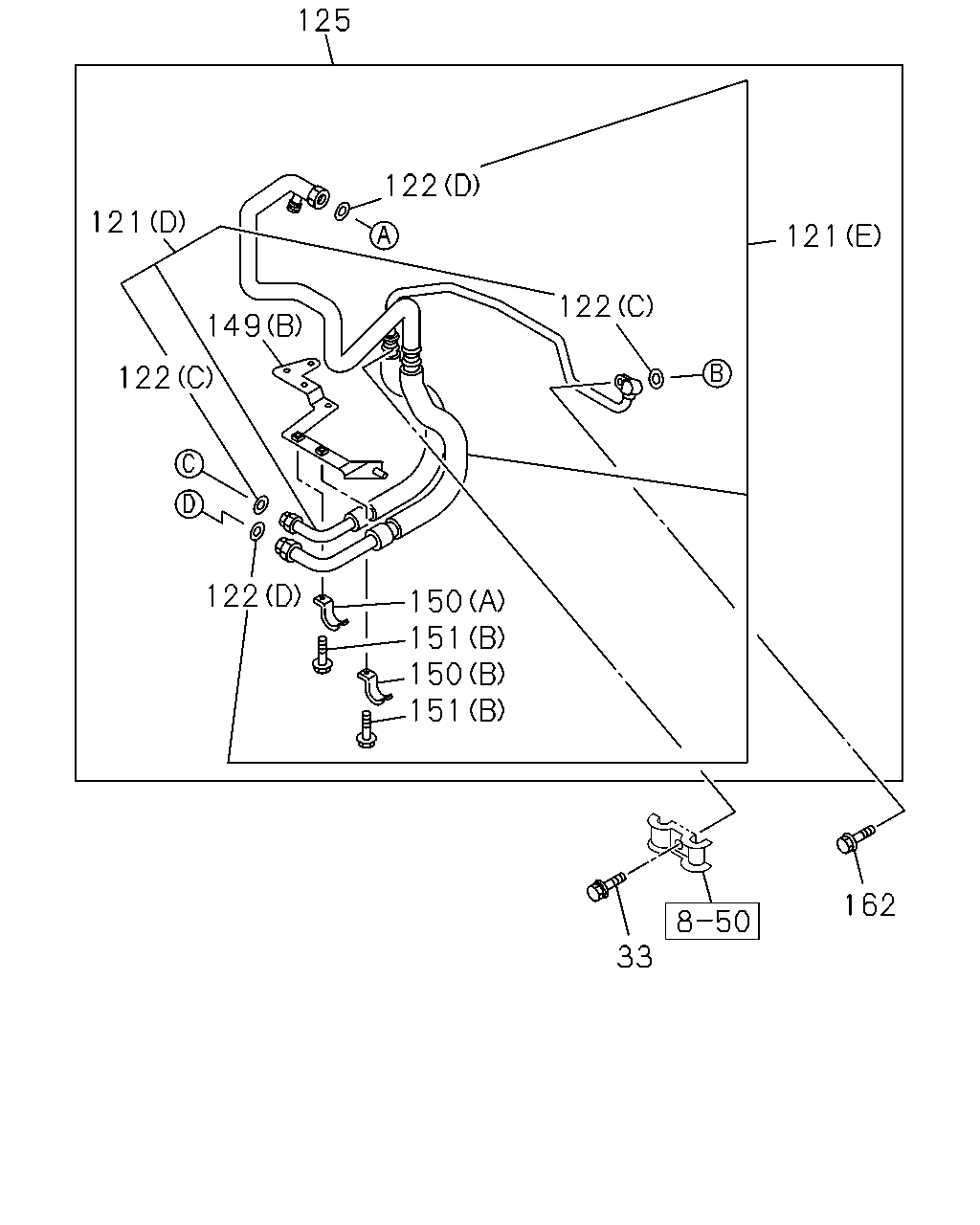

[852A] CAB SIDE NO.2 (30 parça)

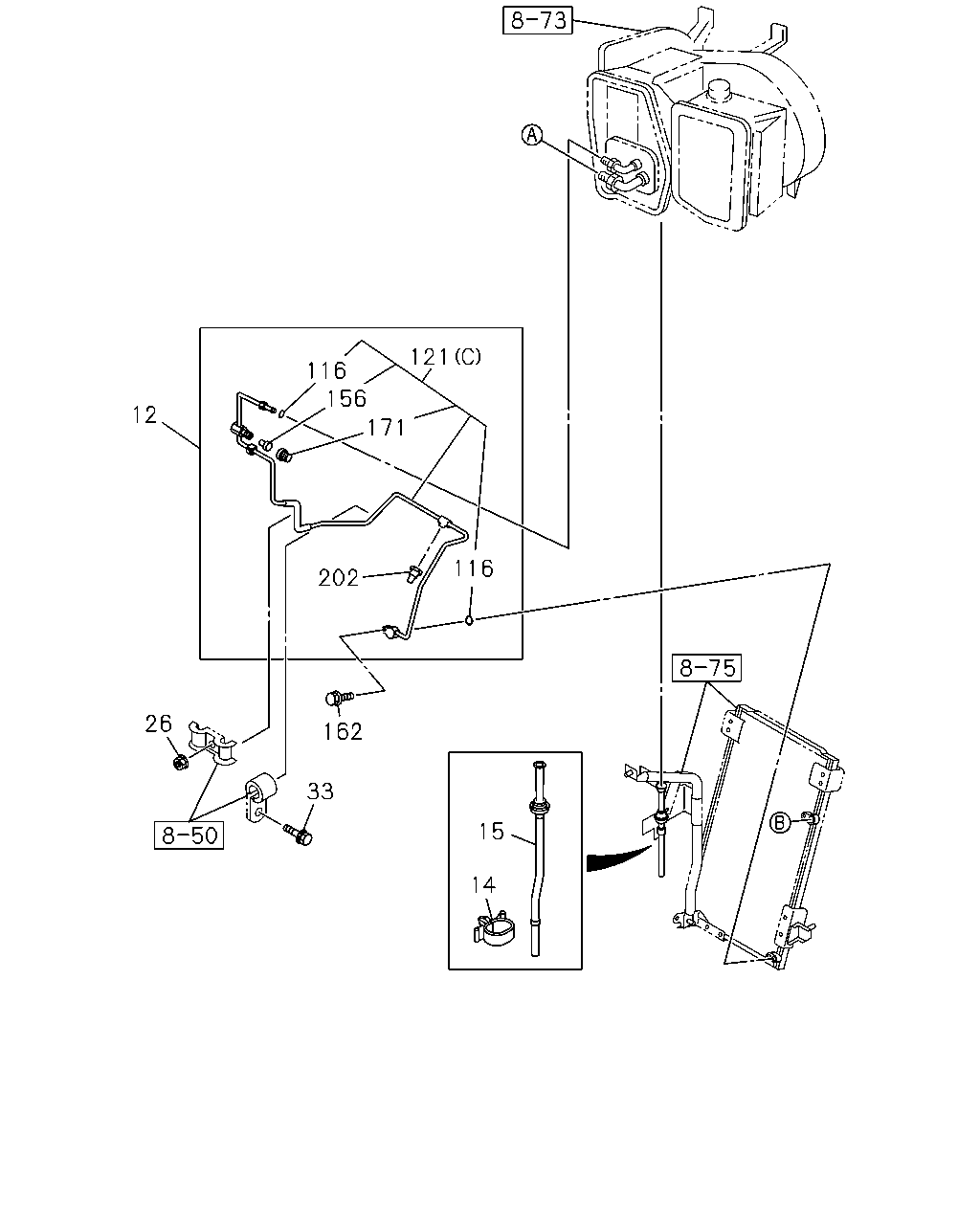

[852A] CAB SIDE NO.1 (18 parça)
[852A] FRAME SIDE NO.1 (2 parça)

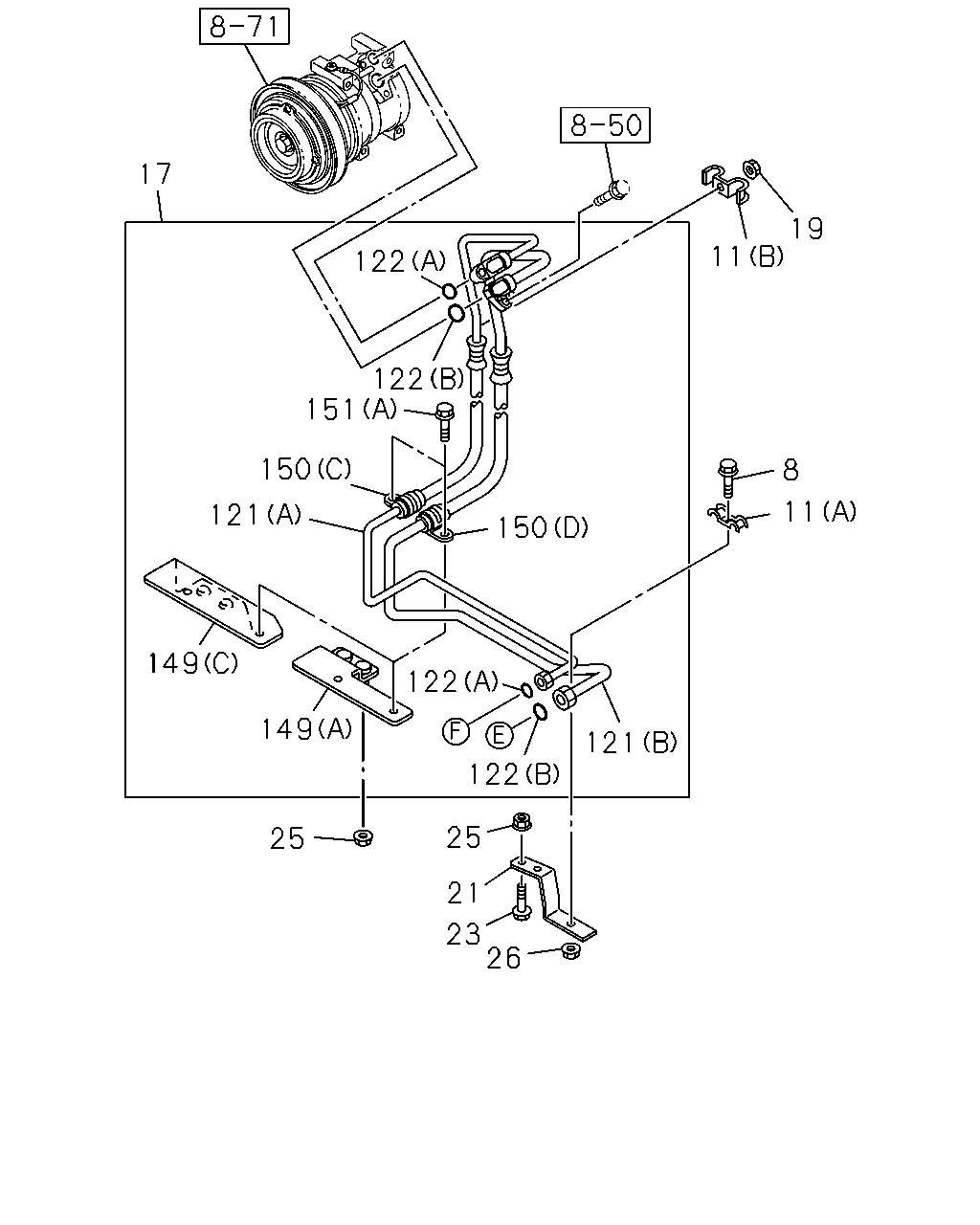

[852A] FRAME SIDE NO.2 (38 parça)
▶
125
122
121
121
122
149
122
122
150
151
150
151
162
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0904-0904
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
121
HOSE; COOLER
(C)
1-83577-054-0
01
1
0904-
121
HOSE; COOLER
(A)
1-83577-070-0
01
1
0904-1008
121
HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)
1-83577-070-0
01
1
1009-
121
HOSE; COOLER
(B)
1-83577-071-0
01
1
0904-1008
121
HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)
1-83577-071-0
01
1
1009-
121
HOSE; COOLER
(D)
1-83577-129-0
01
1
0904-
121
HOSE; COOLER
(E)
1-83577-130-0
01
1
0904-
122
GASKET
(C) ID=11.7
1-83539-317-0
02
1
0904-
122
GASKET
(D) ID=14.5
1-83539-324-0
02
1
0904-
122
GASKET
(A) ID=11.7
8-97095-907-0
02
1
0904-1008
122
GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7
8-97095-907-0
02
1
1009-
122
GASKET
(B) ID=14.5
8-97095-908-0
02
1
0904-1008
122
GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5
8-97095-908-0
02
1
1009-
125
HOSE; FLEX,UNIT TO CMPR
8-98028-191-0
01
1
0904-
149
BRACKET; COOLER HOSE
6WG1 TC-S(97L) (C)
1-83573-322-0
01
1
1009-
149
BRACKET; COOLER HOSE
(A)
1-83573-255-0
01
1
0904-1008
149
BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-R(75L) (A)
1-83573-255-0
01
1
1009-
149
BRACKET; COOLER HOSE
(B)
1-83573-265-0
01
1
0904-
150
CLIP; HOSE
(C)
1-83574-249-0
01
1
0904-1008
150
CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)
1-83574-249-0
01
1
1009-
150
CLIP; HOSE
(A)
1-83574-262-0
01
1
0904-
150
CLIP; HOSE
(B)
1-83574-263-0
01
1
0904-
150
CLIP; HOSE
(D)
1-83574-264-0
01
1
0904-1008
150
CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)
1-83574-264-0
01
1
1009-
151
BOLT; CLIP FIX,COOLER HOSE
(B)
1-83539-336-0
02
1
0904-
151
BOLT; CLIP FIX,COOLER HOSE
(A)
1-83578-098-0
02
1
0904-1008
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)
1-83578-098-0
02
1
1009-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
0904-
12
116
156
171
121
202
116
162
26
33
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
1-83567-877-1
01
1
0904-
14
CLIP; BAND,EVAP DRAIN HOSE
ID=20
8-94410-200-0
01
1
0904-
15
HOSE; DRAIN
1-83572-635-0
01
1
0904-
26
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
02
1
0904-
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0904-0904
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
116
GASKET; PIPE
ID=7.4
8-97095-906-0
02
1
0904-
121
HOSE; COOLER
(C)
1-83577-054-0
01
1
0904-
121
HOSE; COOLER
(A)
1-83577-070-0
01
1
0904-1008
121
HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)
1-83577-070-0
01
1
1009-
121
HOSE; COOLER
(B)
1-83577-071-0
01
1
0904-1008
121
HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)
1-83577-071-0
01
1
1009-
121
HOSE; COOLER
(D)
1-83577-129-0
01
1
0904-
121
HOSE; COOLER
(E)
1-83577-130-0
01
1
0904-
156
VALVE; PIPE
8-97095-909-0
01
1
0904-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
0904-
171
CAP; PIPE
CAP MARK H
8-97095-911-0
01
1
0904-
202
SWITCH; PRESSURE
1-83564-392-1
01
1
0904-
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
PIPE; COOLER,HOSE TO HOSE
(A)
1-83567-899-0
01
1
0904-
9
PIPE; COOLER,HOSE TO HOSE
(B)
1-83567-900-0
01
1
0904-
17
19
11
122
122
151
150
8
11
121
150
149
122
149
121
122
25
25
21
23
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0904-
11
CLIP; COOLER PIPE
(A) ID=20 & 20
1-83574-195-1
01
1
0904-
11
CLIP; COOLER PIPE
(B) ID=12 & 14.5
1-83574-257-0
01
1
0904-
17
HOSE; FLEX,CMPR TO PIPE
6WG1 TC-S(97L)
8-98098-670-0
01
1
1009-
17
HOSE; FLEX,CMPR TO PIPE
1-83577-062-1
01
1
0904-1008
17
HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L),6WG1 TC-R(75L)
1-83577-062-1
01
1
1009-
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
0904-
21
BRACKET; COOLER HOSE
1-83573-297-0
01
1
0904-
23
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0904-
23
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0904-
25
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0904-
26
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
02
1
0904-
121
HOSE; COOLER
(C)
1-83577-054-0
01
1
0904-
121
HOSE; COOLER
(A)
1-83577-070-0
01
1
0904-1008
121
HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)
1-83577-070-0
01
1
1009-
121
HOSE; COOLER
(B)
1-83577-071-0
01
1
0904-1008
121
HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)
1-83577-071-0
01
1
1009-
121
HOSE; COOLER
(D)
1-83577-129-0
01
1
0904-
121
HOSE; COOLER
(E)
1-83577-130-0
01
1
0904-
122
GASKET
(C) ID=11.7
1-83539-317-0
02
1
0904-
122
GASKET
(D) ID=14.5
1-83539-324-0
02
1
0904-
122
GASKET
(A) ID=11.7
8-97095-907-0
02
1
0904-1008
122
GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7
8-97095-907-0
02
1
1009-
122
GASKET
(B) ID=14.5
8-97095-908-0
02
1
0904-1008
122
GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5
8-97095-908-0
02
1
1009-
149
BRACKET; COOLER HOSE
6WG1 TC-S(97L) (C)
1-83573-322-0
01
1
1009-
149
BRACKET; COOLER HOSE
(A)
1-83573-255-0
01
1
0904-1008
149
BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-R(75L) (A)
1-83573-255-0
01
1
1009-
149
BRACKET; COOLER HOSE
(B)
1-83573-265-0
01
1
0904-
150
CLIP; HOSE
(C)
1-83574-249-0
01
1
0904-1008
150
CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)
1-83574-249-0
01
1
1009-
150
CLIP; HOSE
(A)
1-83574-262-0
01
1
0904-
150
CLIP; HOSE
(B)
1-83574-263-0
01
1
0904-
150
CLIP; HOSE
(D)
1-83574-264-0
01
1
0904-1008
150
CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)
1-83574-264-0
01
1
1009-
151
BOLT; CLIP FIX,COOLER HOSE
(B)
1-83539-336-0
02
1
0904-
151
BOLT; CLIP FIX,COOLER HOSE
(A)
1-83578-098-0
02
1
0904-1008
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)
1-83578-098-0
02
1
1009-
