3-10 — BRAKE PEDAL AND CONTROL (#2086) — 64 parça

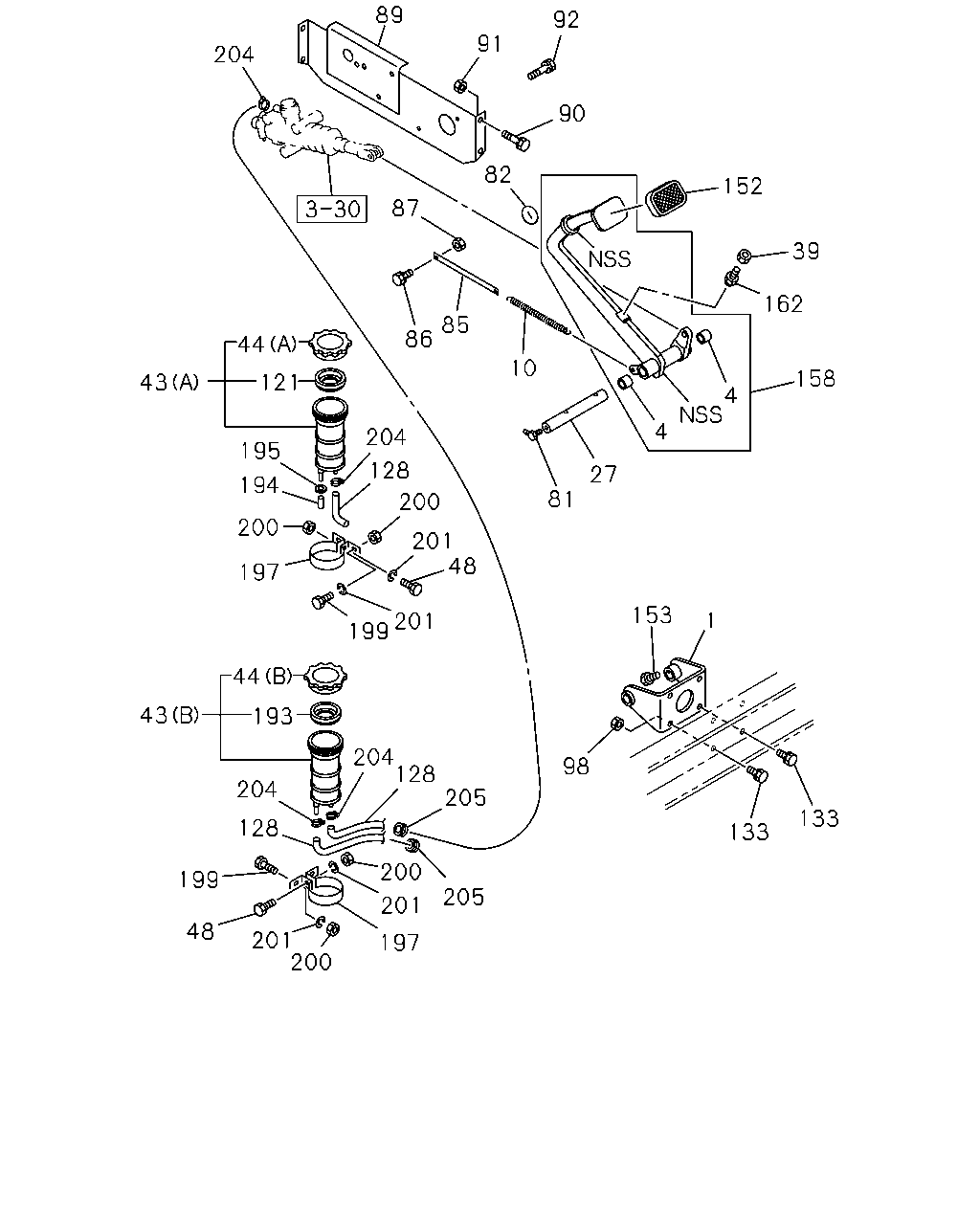

89 92 91 204 90 82 152 87 39 162 85 86 44 10 158 43 121 4 4 204 195 128 27 194 81 200 200 201 48 197 153 1 201 199 44 43 193 204 128 205 98 204 133 128 133 200 199 205 201 48 201 200 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	BRACKET ASM; PEDAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-53311-057-0	01	1	9001-9204	●
4	BUSHING; BRK PEDAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47315-005-0	02	1	9001-9204	●
10	SPRING; RETURN,BRK PEDAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-09942-561-0	01	1	9001-9204	●
27	SHAFT; BRK PEDAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47321-099-1	01	1	9001-9204	●
39	NUT; STOPPER LK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10	9-09110-410-0	01	1	9001-9204	●
43	TANK ASM; OIL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A)	1-47530-112-0	01	1	9001-9204	●
43	TANK ASM; OIL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	1-47530-165-0	01	1	9001-9204	●
44	CAP; OIL TANK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A)	1-47525-027-0	01	1	9001-9204	●
44	CAP; OIL TANK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	9-47525-032-0	01	1	9001-9204	●
48	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M5X16	9-92040-516-0	02	1	9001-9204	●
81	NIPPLE; GREASE,PEDAL ARM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) PT1/8 ELBOW	9-09031-210-0	01	1	9001-9204	●
82	PLATE; SEAL,PEDAL ARM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47319-058-0	01	1	9001-9204	●
85	EYE; RETURN SPR BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) L=205	1-47324-003-0	01	1	9001-9204	●
86	BOLT; EYE,RETURN SPR BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M8X18 W/LK WASHER	9-01900-818-0	01	1	9001-9204	●
87	NUT; EYE,RETURN SPR BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M8	9-09110-408-0	01	1	9001-9204	●
89	BRACKET; M/CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-65600-224-5	01	1	9001-9204	●
90	BOLT; M/CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10X22	9-01911-022-0	04	1	9001-9002	●
90	BOLT; M/CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10X22 W/LK WASHER	0-50041-022-0	04	1	9003-9204	●
91	NUT; M/CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10	9-09110-410-0	04	1	9001-9204	●
92	BOLT; BRKT TO SHAFT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10X22	9-01911-022-0	01	1	9001-9002	●
92	BOLT; BRKT TO SHAFT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10X22 W/LK WASHER	0-50041-022-0	01	1	9003-9204	●
98	NUT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10	9-09110-410-0	04	1	9001-9204	●
121	PLATE; BAFFLE,OIL TANK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47529-031-0	01	1	9001-9204	●
128	PIPE; VINYL,BRK & CLU BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) L=1800	1-09360-320-0	03	1	9001-9204	●
133	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10X30 W/LK WASHER	9-01911-030-0	04	1	9001-9002	●
133	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M10X30 W/LK WASHER	0-50041-030-0	04	1	9003-9204	●
152	COVER; PEDAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47313-015-0	01	1	9001-9204	●
153	BOLT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M8X12	9-06120-812-0	01	1	9001-9204	●
158	PEDAL ASM; BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47311-098-0	01	1	9001-9204	●
162	STOPPER; PEDAL ARM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47515-001-0	01	1	9001-9204	●
193	RUBBER; BAFFLE,BRK M/CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47529-013-0	01	1	9001-9204	●
194	CAP; OIL TANK HOSE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47539-005-0	01	1	9001-9204	●
195	CLIP; CAP TO OIL TANK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=15	9-09715-098-0	01	1	9001-9204	●
197	BRACKET; OIL TANK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47537-009-1	02	1	9001-9204	●
199	BOLT; OIL TANK BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M5X12	9-92040-512-0	04	1	9001-9204	●
200	NUT; BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M5	9-99110-405-0	06	1	9001-9204	●
201	WASHER; LK,OIL TANK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=5.1	9-09150-505-0	06	1	9001-9204	●
204	CLIP; HOSE,BRK CONT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=15	1-09704-018-1	06	1	9001-9204	●
205	GROMMET; OIL TANK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-09956-008-0	03	1	9001-9204	●

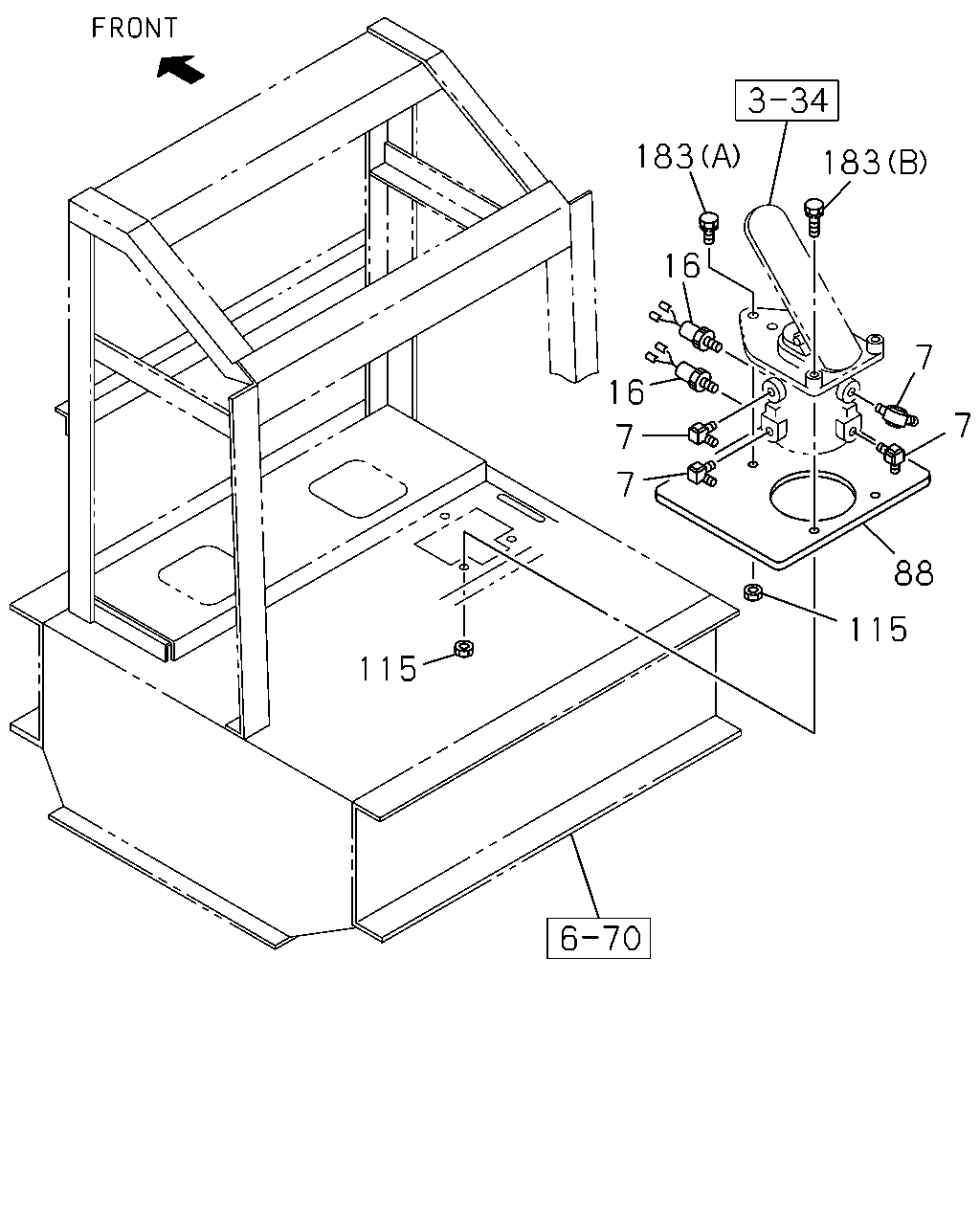

183 183 16 16 7 7 7 7 88 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	CONNECTOR; BRK VALVE M16 & PT3/8 ELBOW	1-09650-180-0	04	1	9001-9204		●
7	CONNECTOR; BRK VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 & PT3/8 ELBOW	1-09650-180-0	04	1	9001-9204	●
7	CONNECTOR; BRK VALVE M16 & PT3/8 ELBOW	1-09650-180-1	04	1	9205-9302	●	●
7	CONNECTOR; BRK VALVE M16 & PT3/8 ELBOW	1-09650-438-0	04	1	9303-	●	●
16	SWITCH; STOP LAMP OPERATE PRESSURE 0.3	1-82410-039-0	02	1	9001-9204		●
16	SWITCH; STOP LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OPERATE PRESSURE 0.3	1-82410-039-0	02	1	9001-9204	●
16	SWITCH; STOP LAMP OPERATE PRESSURE 0.3	1-82410-039-0	02	1	9205-	●	●
88	COVER; PEDAL BOARD,BRK VLV	1-62100-691-0	01	1	9001-9204		●
88	COVER; PEDAL BOARD,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-62100-691-0	01	1	9001-9204	●
88	COVER; PEDAL BOARD,BRK VLV	1-62100-691-0	01	1	9205-	●	●
115	NUT; BRK VLV BRKT M10	9-09110-410-0	03	1	9001-9204		●
115	NUT; BRK VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	03	1	9001-9204	●
115	NUT; BRK VLV BRKT M10	9-09110-510-0	03	1	9308-9606	●	●
115	NUT; BRK VLV BRKT M10 FLANGE	0-91150-210-0	03	1	9607-	●	●
183	BOLT; BRK VLV (A) M10X25	9-01911-025-0	01	1	9001-9002		●
183	BOLT; BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25	9-01911-025-0	01	1	9001-9002	●
183	BOLT; BRK VLV (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9204		●
183	BOLT; BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9204	●
183	BOLT; BRK VLV (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-	●	●
183	BOLT; BRK VLV (B) M10X40 W/LK WASHER	9-01911-040-0	02	1	9001-9002		●
183	BOLT; BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X40 W/LK WASHER	9-01911-040-0	02	1	9001-9002	●
183	BOLT; BRK VLV (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9003-9204		●
183	BOLT; BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9003-9204	●
183	BOLT; BRK VLV (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-9606	●	●
183	BOLT; BRK VLV (B) M10X40 FLANGE	0-28681-040-0	02	1	9607-	●	●
